Last Mercedes-Benz update: August 27, 2014

You can search for a Mercedes-Benz tool on this page by using your web browser's find feature. For example, if you are using Internet Explorer 8, you can click on Edit in the menu bar at the top of the page, then click on (Find on this page), and type in what you want to find. A fast way to bring up the search box is to hold down the (CTRL) key and type the letter "F".
Quick Search
.
Web Special!!
The Mercedes Web Special is a # 4M-009 Multi-spline socket. 1.5 x58mm, for pre-chamber repair of all diesel since 1989. Splines with 28mm diameter, with a 6 point hex on the top to turn with your 27mm wrench or socket. Engines 601, 602, 602.91, 603, 604, 605, 606, 661, 662. Be sure to also see the Milling Cutter that you may need to use if the sealing face needs cleaning, click here.

Only 1 at the Low Web Special Price $54.98!!
To order this special tool call (615) 735-3388, email us or use the handy Shopping Cart Button!!
07.23
.
Brand
and Number
MB No. / Cross Ref.
Description
(Click on the price to see a picture)
.Price
.1234567890123456 123012301201201232132122
Advertising Special
.1234567
. . . .
. .
Air Bag
.
Mercedes-Benz 126 589 00 10 00 Air Bag T30 Torx Bit, 1/4" hex drive, around 70mm
$11.99
(Picture)
. .
Air Conditioning
.
 440/4 set
*
STAHLWILLE  3/8" dr type 440 socket. Mercedes AC Crowfoot set. 17, 19, 22, 24mm Special Order Only!!
$344.30
(Picture)
. .
Axle
.
HAZET
1847-1
*
Hazet Pliers for axle collar clamps. Special jaws.
$172.70
(Picture)
HAZET
1847-11
*
Hazet special clamp pliers for installing metal clamps on rubber boots on axle. 191mm long. Special Jaws.
$170.10
(Picture)
HAZET
2719-17
*
HAZET Special Wrench for the self-locking nut on the rubber bearing at the rear axle differential. For Mercedes Passenger cars. **No Longer Available!
$42.22
(Picture)
Mercedes-Benz 202 589 00 10 00 Retainer Wrench, XZN-12 size for mounting bolt on the torque strut at the rear. Similar to HAZET tool 2792-12.
Price on Request
(Picture)
KLANN
KL-0301
115 589 02 07 00
915 589 02 07 00
Pin Wrench Socket. For R&R of the grooved nut on the rear axle shaft flange, or when replacing axle bearing and seal. W107, W114, W115, W116, W123, W126. With size outside diameter 55mm, inside diameter 49mm, tab width 8mm, diameter of inner tube 27mm. With 3/4" drive. High quality. Made in Germany.

$129.99
(Picture)

4M-007
115 589 02 07 00
915 589 02 07 00
4M-007 Pin Wrench Socket. For R&R of the grooved nut on the rear axle shaft flange, or when replacing axle bearing and seal. W107, W114, W115, W116, W123, W126. With size outside diameter 55mm, inside diameter 49mm, tab width 8mm, diameter of inner tube 27mm. With 30mm outside hex drive. Chrome Plated. High quality. Made by (MMMM)  Brand from Europe.

$107.99
(Picture)

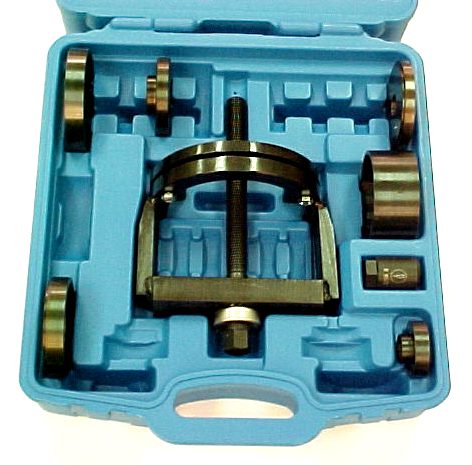

Sir Tools
B90-M
*
Mercedes Wheel Bearing - R&R Kit, ship 27lbs, designed for all Mercedes Benz W 124, W 129, W 201 and W 202 chassis models with S.R.W.B. and I.R.S. NOTE: Note the only kit on the market to extract the hub without a slide hammer. Detailed instructions of the procedure is included.
$375.10
(Picture)
Sir Tool
M0085

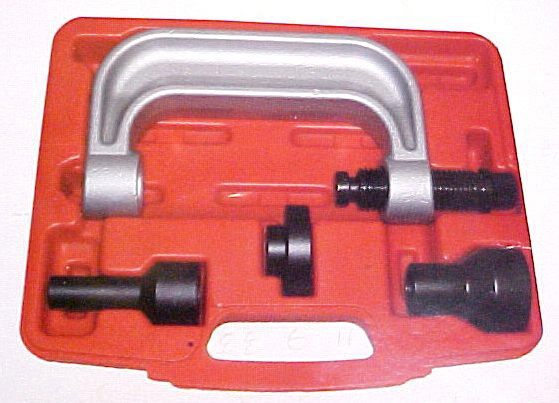

202 589 00 43 00 Sir Tools Metal Clad Bushing R&R Kit is needed for the efficient R&R of rear axle thrust rod bushings found on late model rear axle wheel carrier assemblies. Incorporating a thrust bearing to ease the pulling/pushing action, reduces the wear & tear of the tool to ensure longevity. This bushing tool comes complete with all the proper components to efficiently get the job done right. Applicable: Chassis - W 124, W 129, W 140, W 201, W 202, W 210.

$149.99
(Picture)
. .
Belt
.
Mercedes-Benz
102 589 01 07 00
Belt Tension Lever for Air Conditioning Idler Pulley. Very thin, 300mm (12") long. With short 8mm hex bit. For gas engine M102 M103. *No Longer Available. Only have 1 left in stock!!

$29.99
(Picture)

Mercedes-Benz
117 589 05  07 00
Holding bar with 10mm hex bit, for AC belt tension on 420 and 560 with V8 engine.
$89.79
(Picture)
Mercedes-Benz
166 589 00 03 00
Assembly lever for poly-V-belt. Engines 166, 266, 640, 668. About 610mm long (24"). With 15mm ring end to loosen Magna tensioner and pin to position belt.
$47.50
(Picture)
*****************
.
Black Forest Tool Foundry
.
TF 000 589 62 33 00

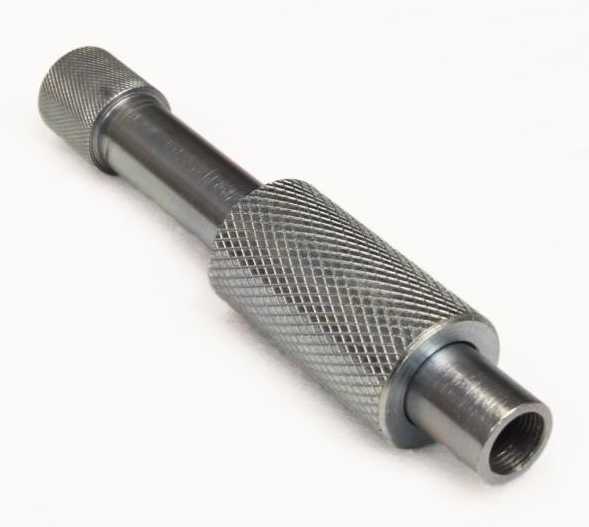

* Universal Delivery Valve Puller for the old gasoline fuel injection pump. For all 2, 6 or 8 plunger pumps from 1954 to 1972. Also for the 6.3 engine found in the type 600 made into the 1980's. This tool allows you to remove and check/clean the delivery valve with the pump installed in the vehicle. About 5" long. Custom Made in the USA! Special Order.

$120.00

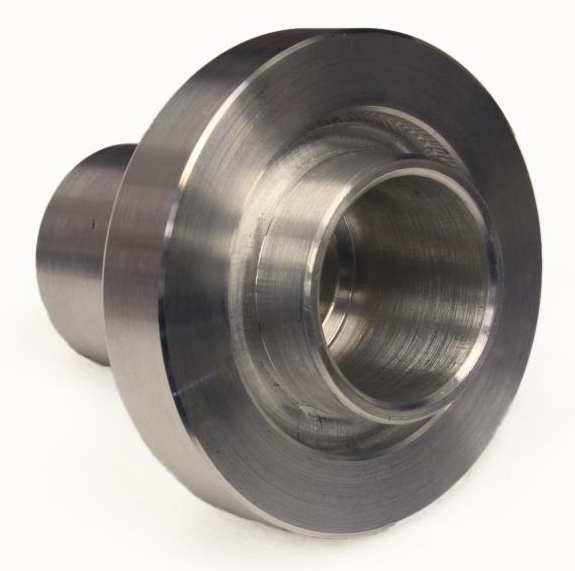

TF 111 589 01 15 00 * Pinion Seal Installation Drift. Years: 1959-1972 Models: Chassis 108, 109, 111, 112, 113. Special Order!


$70.00
TF 120 589 01 07 00
* Tool Foundry. Special 6-Pin Socket 1/2" drive for the rear axle flange pinion nut of the old W121 Chassis type 190SL. Outside diameter 30mm. Pins 5.2mm wide. Inside diameter 20mm. Custom Made in the USA! Not for impact use. Similar to old Mercedes tool 136 589 00 07 00. This socket will remove the nut as shown in the picture below. A spare nut is NOT included.


$120.00

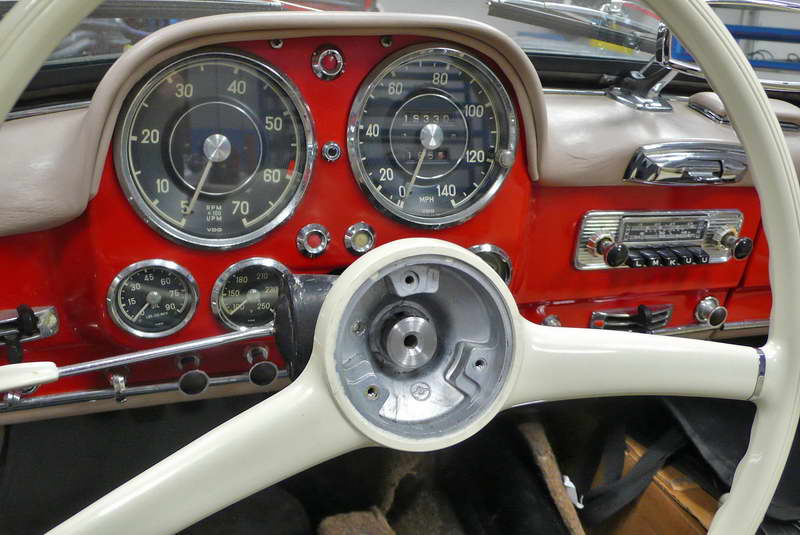

TF 120 589 01 33 00 * Steering Wheel Puller. Good for cars from the 1950's to early 1960's. Type 190SL, 300SL, Pontons, 300 Adenauers, etc. Special Order Only!

$110.00

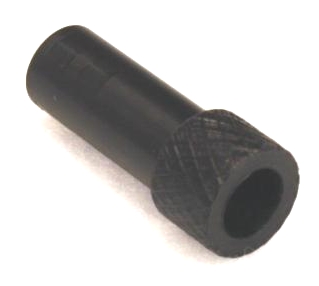

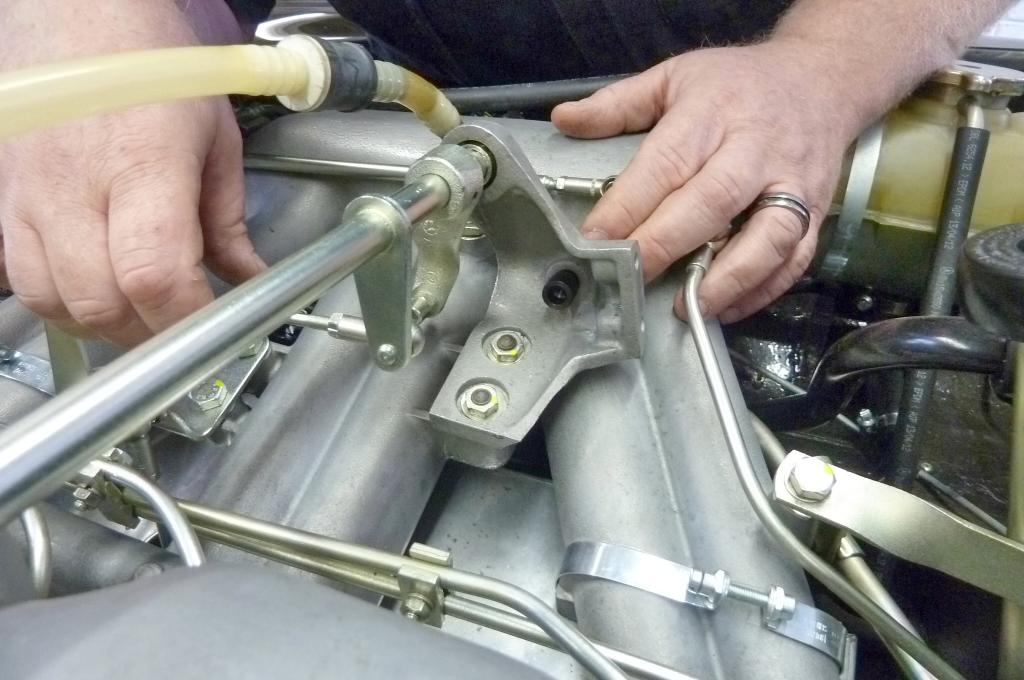

TF 127 589 10 23 01 * Throttle linkage centering guide pin. Centering pin used to adjust the throttle linkage for mechanical fuel injection motors. Years: 1959-1971 Models: Mercedes-Benz with mechanical fuel  injection. Plastic material. 1-1/4" long.

$18.50
(Picture)

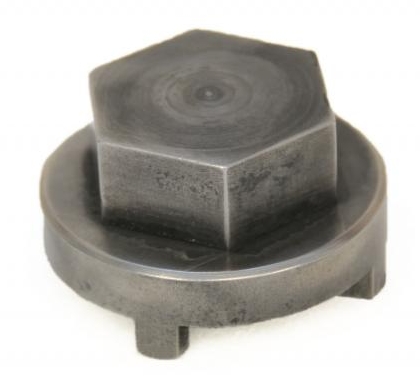

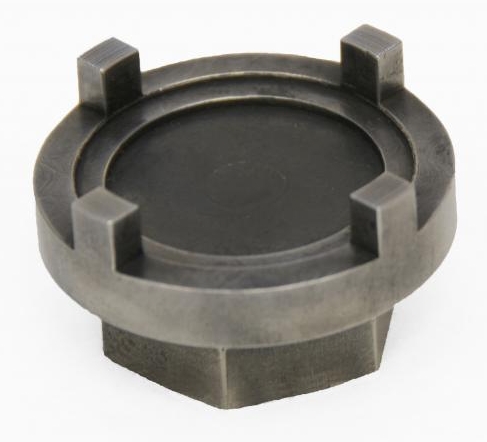

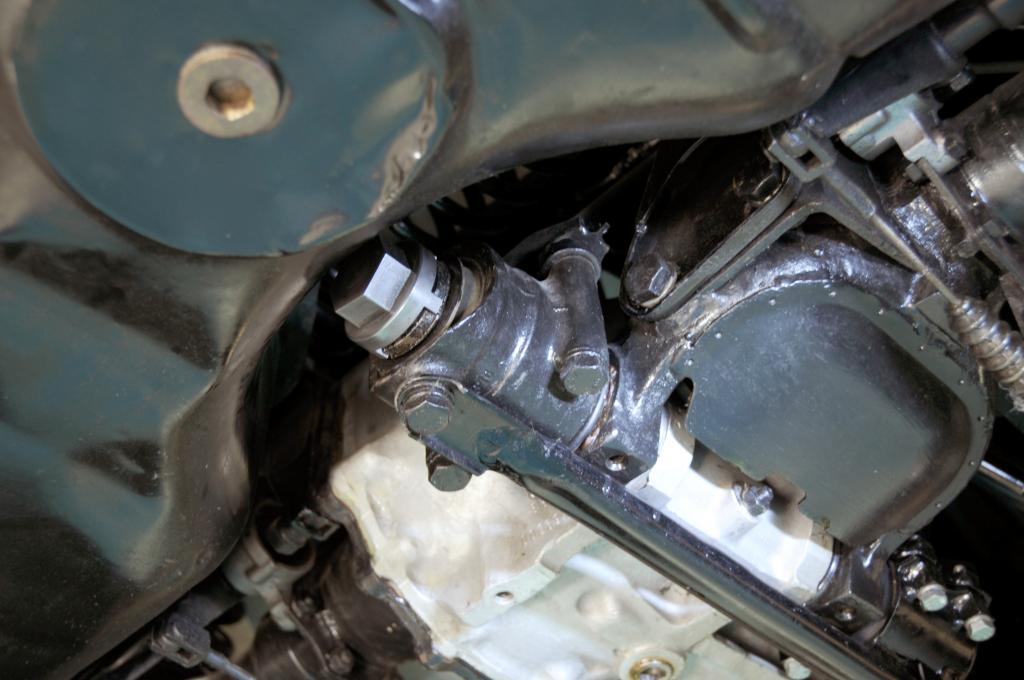

TF 188 589 04 07 00 * 4-Pin Wrench for Swingaxle Connecting Pin, fits all "300 Series". Production Dates: 1954-1963 Models: 300SL. Special Order!!

$150.00
(Picture)
TF 0001
*

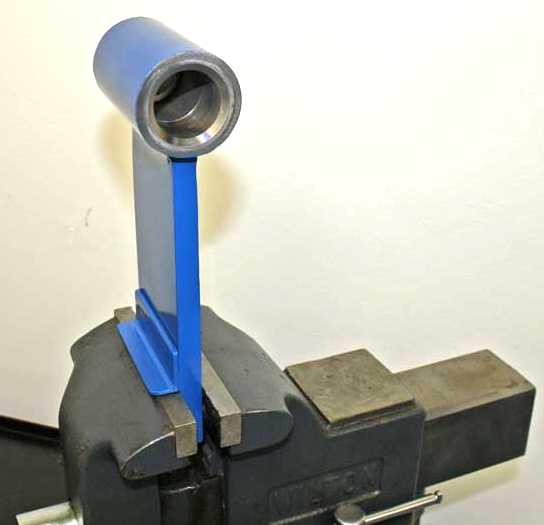

Spindle Holding Fixture. Mounts in your vise. Used during removal and replacement of king pin bushings. Special order only!!

Price on Request

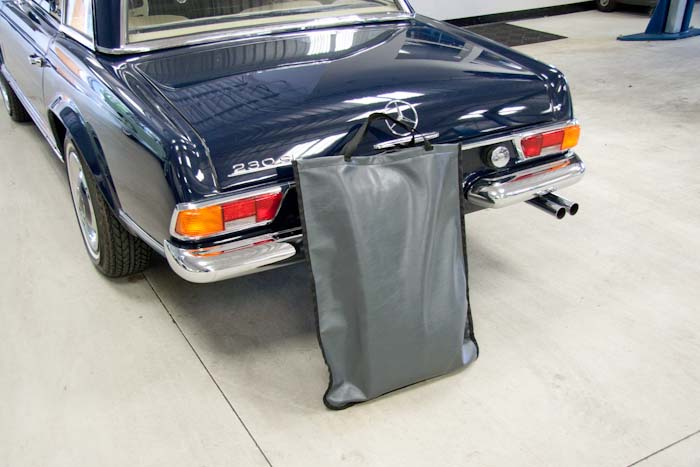

TF-W113-Fender

TF-W113-FenderB

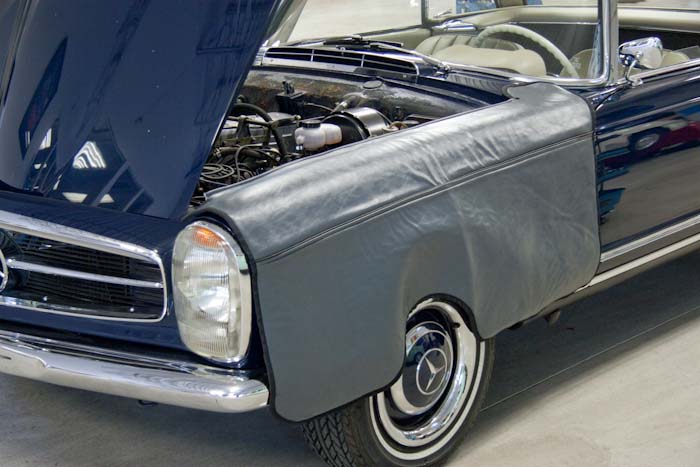

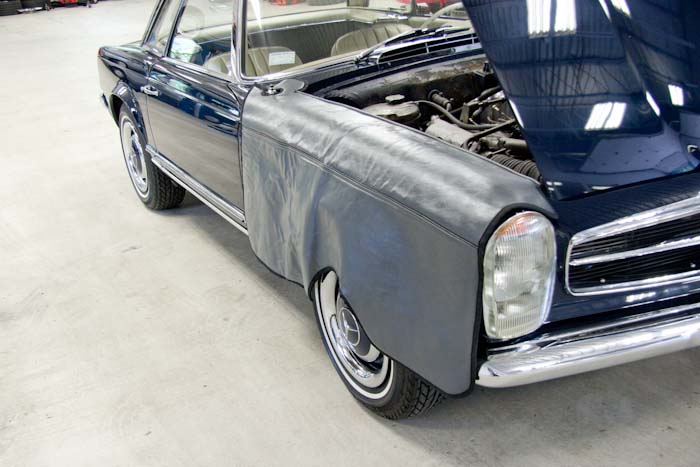

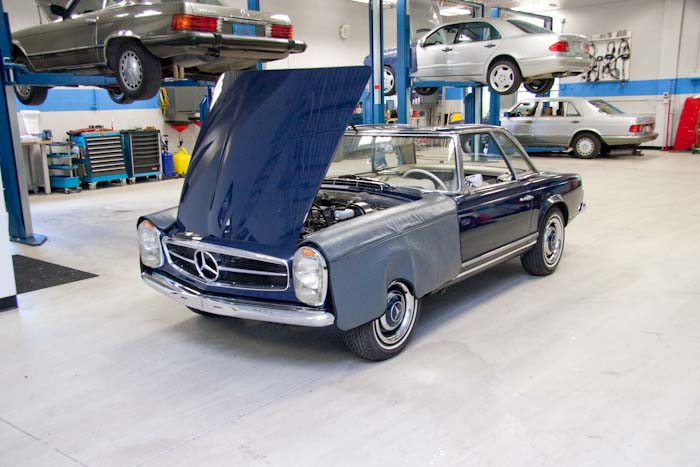

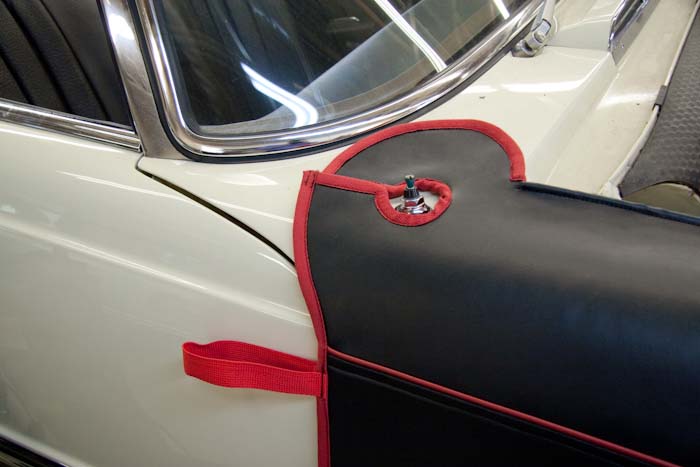

* Mercedes-Benz W113 Fender Cover Set for the old 230SL, 250SL and 280SL cars built from 1963 to 1971. Custom made in Glendale, WI. Price includes 2 piece set + storage bag. Optional bra available at additional cost. Attaches to inner engine bay lip with flexible, semi-rigid contact clips. Outer material: oil/solvent resistant, heavy duty Wyzenbeek, 26 oz. virgin vinyl with cold crack resistance of -20 degrees. Inner lining: 100% recycled spun bonded polyester backing. Binding: 100% cotton. Size: 54"L x 34"W. Color: Black.
In stock, ready to ship. Products individually wrapped and shipped in 30" x 24" x 4" box. Shipping weight: 9 pounds.
Special Order Only!! Call or eMail for more information.

$249.99 standard set black.

$99.99
 Optional
 Bra

. .
Body
.
Esgen
SFB-39230
*
Special side-mirror T-handle bit. 5-point star security point. Overall length 9".
$17.50
(Picture)
SAUER
654 63 200
* Five point star security screwdriver used for the removal of Mercedes side mirrors. Extra Long 12".

$34.50
(Picture)

Grip-On
GR90006BK

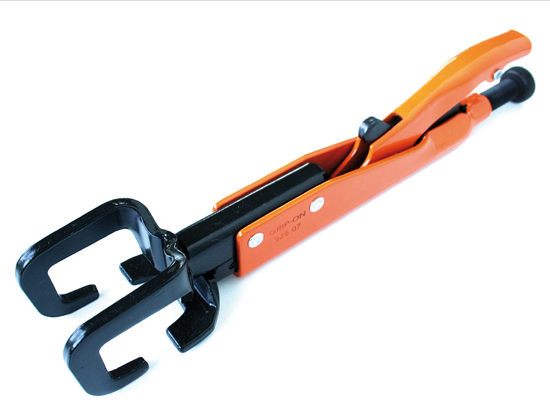

* Axial Clamps for aluminum panel body work. Set of 6 Clamps. Slim profile allows access into difficult places. Straight line motion of mobile jaw allows offset clamping. One-handed push button release system. Eco-friendly epoxy resin-coated handles are more spatter resistant than nickle-plated handles. Special Order Only!!

$316.30
HZ 828Lg-T20
*
Torx T-handle screwdriver T20 used for removing or installing door handle on Mercedes Benz A class-type 168 and type 202 C-Class. Old number 2715-T20
$26.50
(Picture)
HZ
2724-1
*
HAZET Trim Moulding Pliers. C-, E-, S-Class. *No Longer Available. Only 1 in stock.
$88.15
(Picture)
Hazet
 2735
*
HAZET tool for Mercedes Hood Star removal. W140, W124 since 93, W202 Cars.
No Longer Available
$54.11
(Picture)
Klann
KL-0194-15A
*
Plastic Wedge, 200mm Long 29mm wide.
$22.37
(Picture)
Mercedes-Benz 110 589 00 59 00 Instrument Cluster Pull hooks. W107, W123. Set of 2.
$114.75
(Picture)
Mercedes-Benz
110 589 03 59 00
Plastic Mounting Wedge. 200mm long. 32mm width Price on
Request
(Picture)
Mercedes-Benz 115 589 03 59 00 Trim Removal tool. Strong flexible plastic. Wedge shape. 220mm long. 18mm width.
$48.96
(Picture)
Mercedes-Benz 124 589 17 21 00 Roof adjust shim-left side. Strong plastic.
$7.99
(Picture)
Mercedes-Benz 124 589 18 21 00 Roof adjust shim-right side. Strong plastic.
$7.99
(Picture)
Mercedes-Benz 126 589 00 07 00
Antenna Trim Key to tighten antenna mounting nut. Good for W107, W123 and W126 Chassis.  No Longer Available.
$19.99
(Picture)

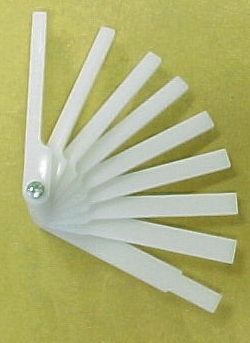

Mercedes-Benz 129 589 03 21 00 Plastic Feeler Blade Set. 9 Blades. (6.5x6), (7x5.5), (7.5x5), (8x4.5), (8.5x4), (9x3.5), (10x3), (11x2.5), (12x2)mm. Overall Length 95mm.

Special Order Only
Mercedes-Benz 140 589 02 33 00 Instrument Cluster Pull hooks, Wiha, Germany. For the newer cars. 182mm long. Set of 2. For Chassis MODEL: 124, 126, 129, 140, 164, 168, 170, 201, 202, 203, 208, 209, 210, 219, 240, 251, 414, 463, 639, 906.
$32.50
(Picture)
Mercedes-Benz 140 589 16 63 00 Removal lever of wood covering on door lining.
$42.50
(Picture)
Mercedes-Benz 210 589 00 14 00 Special sleeve tool for ignition lock cylinder
$45.00
(Picture)
M0059
*
Sir Tools Pin Kit set is needed for the proper removal of ignition lock. Applicable: Chassis - W124, W126, W201.
$26.95
(Picture)
M0045
*
Sir Tools turning tool. This tool is needed for the proper removal and replacement of the protective cover from the ignition and steering lock. Flat rubber insert protects and allows for a firm grip. Chassis W123, W124, W126.
$43.95
(Picture)
M0080
210 589 00 07 00
639 589 01 07 00
Sir Tools Claw Wrench Turning Tool is needed for the proper R&R of protective cover from ignition / steering lock. 33mm diameter with 4 tabs 15mm wide. Applicable: Chassis - 129, 140, 164, 171, 199, 202 since 1-6-1997, 203, 208, 209, 210, 211, 215, 219, 220, 221, 230, 240, 245, 251, 414, 463, 639.
$46.95
(Picture)
M0082 202 589 00 14 00
126 589 07 14 00
Sir Tools Turning Tool is needed for the proper R&R of protective cover from ignition / steering lock. Double end. W123, W124, W126, W129, W140, W163, W170, W202, W210.
$79.95
(Picture)
. .
Brake
.

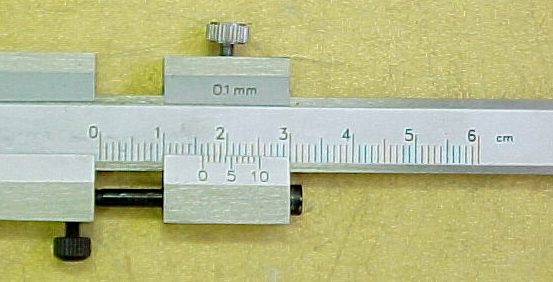

Horex
2240-104
140 589 00 19 00 Brake disc caliper gauge. Mode of special steel with satin chromed reading parts. Locking screw. Measures 0-60mm. Accuracy 0.1mm
$59.99
(Picture)
Hazet
2784-1


Brake Caliper Socket Mercedes C-Class type 204. Short 7mm hex bit with 3/8" drive.

$30.50
Hazet
 4968-9
129 589 02 03 00 Brake Bleeder Wrench. This tool is around 8" long and features 2 ends at different angles that will allow you to open the bleeder screws without having to  remove the wheels. Both ends are 9mm.
$41.30
(Picture)
Matra
T10145
000 589 52 43 00 Brake Piston Reset Tool, used to spread calipers to allow room for new pads. Fine quality tool. Made in Germany! Same as KUKKO 126-00. Current replacement for 111 589 07 37 00 and 123 589 00 37 00

See VW Page
KUKKO
126-03
000 589 50 37 00 Piston Rotating Pliers, to rotate brake caliper piston to 20 degree.
See
Kukko

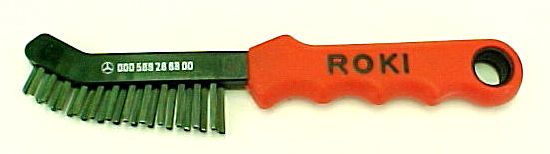

Mercedes-Benz 000 589 26 68 00 Mercedes-Benz steel wire brush with stiff steel bristles arranged in two rows. It is around 220mm (8 3/4") long. Heavy duty plastic handle that is around 11mm (7/16") wide at the bristle end. This brush is extra thin and made to clean out brake calipers. Made by ROKI of Germany.

$17.99
(Picture)

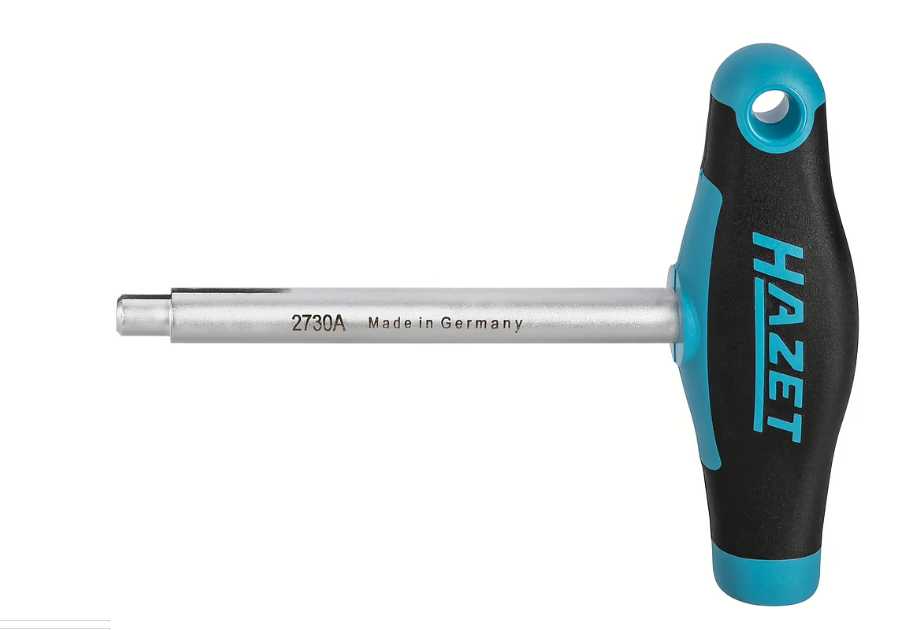

Mercedes-Benz 112 589 09 61 00 HAZET 2730 brake spring assembly tool. For dismounting and mounting the fixing springs of hand brake shoe on cars with disk brakes in the rear.
$69.99
(Picture)
Mercedes-Benz
123 589 13 33  00 Disk Brake Pad pry bar. Made by Kukko part #123 Special tip.
$59.99
(Picture)
Mercedes-Benz 601 589 07 63 00 Plastic Brake Caliper wedge. To hold back brake caliper piston. Set of 2.
$49.99
(Picture)
Mercedes-Benz 116 589 01 62 00 Special pull hook for emergency brake shoe springs. Similar to Hazet 4964-1.

$19.99
(Picture)
Matador
0854 00 01
*
Brake caliper file with black plastic grip-handle. 240mm long. Special type of file with one smooth side.
$39.00
(Picture)
Stahlwille
108/175x4
*
Parallel Pin Punch for brake safety pins. 4mm
$13.58
(Picture)
Stahlwille
 3006
140 589 03 09 00
STAHLWILLE size 9mm, length 110mm, Brake Bleeding Spanner. This wrench has a swivel handle with transparent, acid-proof plastic hose that has an adapter. Use on car brake systems without having to remove the wheel. No Longer Available from Stahlwille!!
$121.50
(Picture)
. .
Camshaft
.
M 0083
111 589 03 15 00
Sir Tools retaining pins (2 pair), Connected by a flexible Hose, for holding camshaft tight in installed position (25 degrees after ignition TDC). M111, M119
$38.95
(Picture)
Mercedes-Benz 112 589 00 01 00-SET Mercedes 3 Piece Cam Securing Set. Used to adjust and lock the cams. This set includes 1 cam adjusting wrench 38mm (112 589 00 01 00) and 2 cam alignment plates (112 589 01 32 00 & 112 589 00 32 00). Good for Mercedes Engine-M112, M113; 1998 and up.
$289.99
(Picture)

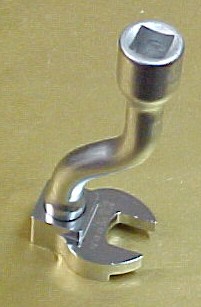

Mercedes-Benz
116 589 01 01 00
Special wrench for holding camshaft.
Price On Request
(Picture)
Mercedes- Benz
119 589 00 01 00
Double open end wrench 26.5mm x 27.5mm, length 256 mm for turning camshaft to assembly position. For engines 104 & 119.

Price
on Request
(Picture)
Mercedes- Benz  271 589 00 10 00
Torx T100 socket with security hole, used to remove and replace the camshaft adjuster central valve. With 1/2" drive, Length 98mm.


$39.99
(Picture)

Mercedes- Benz

MB271-Set

271 589 00 61 00
271 589 01 40 00


Camshaft set with 2 tools. For M271 engine. Camshaft retainer 271 589 00 61 00 and 271 589 01 40 00 timing chain retainer. Cost estimated around $575.00 Special Order Only!
.

Price on Request

M0008 110 589 03 31 00 Sir Tools. Chain Tensioner - (Rigid) is needed for the proper R&R of cam shaft and its housing while checking and adjusting cam shaft timing. It is applicable on Mercedes Engine - M 110, 6 cylinder engines with dual cam shafts.
$34.95
(Picture)
. .
Clutch
.
Hazet
2757-12
140 589 00 03 00
HAZET 12mm flare nut for oil pressure pipe on clutch operating cylinder on all standard gearboxes.*No Longer Available. Only 1 in stock.
$52.80
(Picture)
Mercedes-Benz
115 589 07 23 00
Clutch Wear Gauge.
$17.50
(Picture)
   .
.
Cooling
.
Esgen
12942-XL

003 589 03 37 00
Hose Clamp Pliers. Remote Control. Includes locking mechanism. Body 250mm (10") long. Cable 550mm (22") long. With special sliding tip used to grap the spring clamp.  Please wear safety goggles!
See Esgen Page
Hazet
 4800-3
* Adapter for cooling system tester. For Mercedes.
$88.80
(Picture)
KL-0362-1 * Klannn Radiator Blanking Plug Set. Necessary for radiator repairs to prevent leakage of transmission fluid while radiator is removed. Each plug is 35mm long with 19mm hex and 16x1.5mm threads.
$120.62
(Picture)
KL-0366-6
120 589 02 01 00 Special thin 65mm open end wrench for radiator fan hub on Engine 103, 104, 119, 120. Overall length 400mm (16"). And  6mm thick. Made by Klann.
$114.48
(Picture)
KL-0366-7
113 589 00 40 00
Reaction Wrench required to remove the radiator fan hub. Measures 410mm and has three holes. The reaction spanner is bolted to the front of the hub. The poly-V belt is not in place and cannot be used to lock the hub. Use for Mercedes C- and E- class engines M111 (4 cylinder 4 valve), M112, M113, M119. Made by Klann.
$62.94
(Picture)
Mercedes-Benz 103 589 00 40 00 Special Socket for fan clutch. Engine M103, M104.
Price on Request
(Picture)
Mercedes-Benz 103 589 01 09 00 Extra short 8mm bit, 3/8 drive, 24mm long. For mounting screws of fan clutch. For engine M103, M104, M119, M120, OM602.91/93/94/96, OM603.91/93/96/97, OM605, OM606. Same as Stahlwille 3049-8
$18.99
(Picture)
Mercedes-Benz 119 589 00 03 00 Coolant Preheater tool made by Carl Walter of Germany. Crowfoot 46mm 1/2" drive.
Price on Request
(Picture)
Mercedes-Benz
119 589 00 09 00
Stahlwille special 22mm 1/2" drive socket with 1.2 degree tapered inside, for removing coolant plug to install coolant pre-heater.
Price on Request
(Picture)
Mercedes-Benz 124 589 00 91 00 Engine Coolant Expansion Tank Test Cap. 57mm. RENK system. Type 107, 123, 124, 126, 129, 140, 170, 201, 202, 210, 211, 215, 219, 220 ,221, 230 , 240, 461, 463, 901, 902, 903, 904.  NOTE: Please inspect your engine. There are two different types of caps used on some models.

$49.99
(Picture)

Mercedes-Benz 124 589 24 21 00 Engine Coolant Pressure Test Pump. 0-2.5 Bar. With pressure hose and quick connect coupling. All Models. Note: Adapter needed, not included in this price. This is the pump and hose only.

Price on
 Request
Mercedes-Benz  163 589 01 91 00
Pressure Test Cap for the coolant Expansion Reservoir. Type 163, 211, 230.


Price on

Request

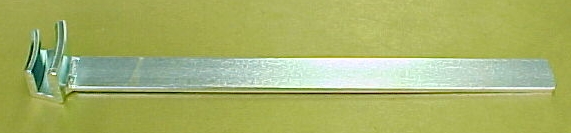

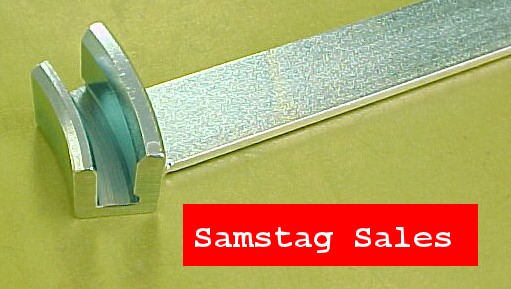

Sauer 608 93 400 603 589 00 40 00 Bracing tool for fastening fan hub. Engines 602.91 /93 /94 /96 /98, 603.91 /93 /96 /97, 604, 605, 606, 611. About 13-3/4" long.

$99.99
(Picture)
M0040
103 589 00 40 00
Sir Tools Locking Hook is needed for securing the visco fan coupling during R&R of 8mm hex fastener without removing the radiator. It is applicable on Engine - M 103 Note: See also tool number 103 589 01 09 00 if you need the short 8mm hex bit socket.
$21.50
(Picture)
Sauer
 608 93 50
103 589 00 40 00

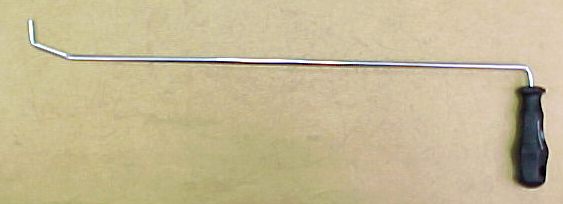

Deluxe Locking Hook with handle for visco fan coupling. Extra long 430mm (17").  Black plastic handle. It is applicable on Engine - M 103, M104. Note: See also tool number 103 589 01 09 00 if you need the short 8mm hex bit socket. SOLD OUT!
$47.99
(Picture)
Sir Tools
1036T
113 589 00 01 00
Sir Tools thin wrench, 36mm. Only 8mm thick. 12" in length. Can be used in conjuction with the counter holder 113 589 00 40 00. The factory tool is made to use with a torque wrench. This Sir Tools version does not have this feature. Engine M11, M112, M113, M604.
$47.00
(Picture)
Stahlwille
3008
120 589 14 07 00
Stahlwille Special fan clutch tool with spinning 8mm bits. Special Order! Call or eMail.
$103.99
(Picture)

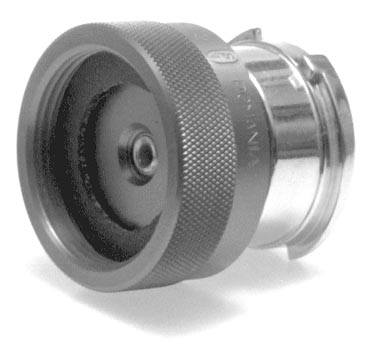

VZ 32 * Sir Tools Expansion Tank Adaptor is needed for pressurizing the liquid cooling system. "Anodized Aluminum"!! Applicable: M - Class, '98+. Models with male threads on filler neck of expansion tank.
$34.95
(Picture)
. .
Crankshaft
.
Mercedes-Benz
112 589 00 40 00
Crankshaft harmonic balancer pulley holder. For removal and replacement of the crankshaft bolt, M112 (6cyl), M113 (8cyl) and M137 (12cyl) engines, as found on E320, E430 etc. With 3 Pin configuration. Not for supercharged AMG! Special Order Only!
Price
on
Request
M0033 202 589 00 33 00 Sir Tools Extractor for spacer ring at the pulley side of crank shaft. M102, M110, M114, M115, M116, M117, M130, M180, OM615, OM616, OM617
$184.95
(Picture)
Mercedes-Benz 230 589 00 40 00
Crankshaft harmonic balancer pulley holder. For super charged AMG engines with heavy duty pulley. For Chassis 240, 230, 219.

Pin Sleeve Outside Diameter: 15mm
Overall Length: 270mm
Depth From Pin Tip to Bottom of Hole: 120mm
Diameter of Pin Centerline: 85mm
Diameter of Main Tube: 100mm


$ 229.95
Mercedes-Benz 272 589 00 07 00
Vibration Damper Counterholder for engine 272. Used when removing the crankshaft center bolt. Mercedes Sprinter with 3.5L V6 DOHC 24V M272. And 350 series cars from 2004 and up. Please Note: Depending on your location, this item could ship UPS Ground. Special Order Only!

$229.99
(Picture)
Mercedes-Benz 617 589 00 14 00
Sleeve used to center front cover and oil pan to the crankshaft on diesel engine 617.95
Inside lip 64mm, oustide diameter 74mm, length 60mm. As needed on old 300SD (W116), 300SD (W126), 300 D Turbo (W123), 300CD Turbo (W123), 300 TD Turbo (W123)
Price on
Request
(Picture)

.123456789101111 12301230120120123
Cylinder Head
.
Hazet
990SLg-12
617 589 00 10 00
HAZET Cylinder Head Socket, 12-point XZN, 1/2" drive, 140mm long.  (Round shaft). Good for engines (102.92 /93 /96 /97 /98 /99), 103, 104, (110.92 /98 /99), 119, 120, 615, 616, (617.91 /93 /95)
$62.30
(Picture)
Hazet
986SLg-8
000 589 33 07 00
HAZET Cylinder Head Socket, 1/2" drive 8mm hex bit, 119mm long, for cylinder head bolts on M115, M116 and M117 engine
$44.80
(Picture)
Hazet
986Lg-10
000 589 05 07 00
001 589 61 09 07
HAZET cylinder head socket. 140mm long, 10mm hex. For Engine M110.92, M110.98, M110.99, M115.97, OM615, OM616, OM617.91, OM617.95
$49.50
(Picture)
Hazet
 2751
601 589 00 10 00
HAZET Screwdriver Socket 1/2" drive. For XZN-10 screws on the W201 Diesel cylinder head (190D), and  the drive shaft of W201 cars. (190, 190E). Engines  112, 113, 137, 275, 601, (602.91 /93 /94 /96 /983), (603.91 /93 /96 /97), 604, 605, 606, (612.965 /966), 613.960, (628.960 /962 /963), 629, (646.951 /961 /962 /963), 647.961, 648.961 Please inspect your bolts before ordering!
$64.20
(Picture)
Mercedes-Benz 119 589 00 10 00 Stahlwille 3004. Cylinder head socket 1/2" drive M12 XZN, 55mm long for 24 valve engines. 300SL-24, 500SL, 300E-24, 300CE-24, 300TE-24. M104, M119, M120. Similar to HAZET 2752.
Price on Request
(Picture)
Stahlwille
1054TX-T55
000 589 03 10 00 Cylinder Head Socket. 1/2" drive T55 torx. 130mm long. Used on engine 112, 113, 155, 275, 612.965. Similar to Hazet 992Slg-T55.
$35.25
(Picture)
Mercedes-Benz 000 589 10 68 00 Cylinder head brush for cleaning valve guides. 20mm x 10mm bristle. 250mm long overall.
$6.29
(Picture)
Mercedes-Benz 000 589 34 07 00 Cylinder head Socket. Carl Walter brand. With 1/2" drive and 8mm hex key, 108mm long, with special "dogleg" bend. For V8 gas engine M116, M117. No Longer Available from Mercedes.
$32.50
(Picture)
Mercedes-Benz
116 589 00 13 00
Special Bent 8mm hex socket, 1/2" drive, for V8 head repair. With spare bits. Matador Germany. Engine M116, M117. Special Order Only!!
Price on
Request
(Picture)
M0044
605 589 00 33 00
Sir Tools Rail Pin Puller Guide is needed for the proper extraction of rail pins from cylinder head. Designed with a thrust bearing to ease the pulling action. Especially useful in restricted spaces where other pullers and slide hammers won't fit. Comes equipped with a 6mm extractor pin. It is applicable on Engine - M102, M110, M115, M116, M117, M130, OM601, OM602, OM603, OM615, OM616, OM617.
$79.95
(Picture)
M0049
116 589 20 33 00
Sir Tools Impact Type Rail Pin Puller. Needed for the proper extraction of rail pins from cylinder head while out of the car. This heavy duty master kit comes complete with a set of (5) extractor pins and its own easy to hold, hand sized slide hammer. This set includes the following:
M 0049-A
6x50mm Extractor Pin. MB# 116 589 01 34 00
M 0049-B
6x150mm Extractor Pin. MB# 116 589 02 34 00
M 0049-C
8x150mm Extractor Pin. MB# 616 589 00 34 00
M 0049-D
10x100mm Extractor Pin. MB# 116 589 03 34 00
M 0049-E
6x100mm Extractor Pin. MB# 102 589 00 34 00
M 0049-SH
Slide Hammer Assembly Only.

$149.95
(Picture)
Matador
7059 00 11
* Matador XZN Impact Socket with 1/2" drive in the M12 size. Made by Matador Germany. Good for cylinder head bolts on Mercedes 300 Diesel cars with engine OM617 and other cars with engine OM615, M102 or M103. 140mm (5.5") long.
$32.50
(Picture)
Stahlwille
1054/10
000 589 05 07 00
STAHLWILLE Cylinder head socket. 140mm long, 10mm hex
$23.64
(Picture)
Stahlwille
 3054-8G
000 589 34 07 00
STAHLWILLE Cylinder head socket, 1/2" drive 8mm hex key, 105mm long, with special bend. M116, M117. No Longer Available.
$36.93
(Picture)
Stahlwille
 3054-8L
000 589 33 07 00
STAHLWILLE Cylinder head socket, 1/2" drive 8mm hex key, 130mm long, for engine M115, M116, M117. No Longer Available
$34.70
(Picture)
Stahlwille
 3054X-M10
601 589 00 10 00
STAHLWILLE Cylinder head socket, XZN triple square, M10, around 140mm long for diesel engine 601, 602, and 603. Also for the drive shaft of W201 cars. (190, 190E).
$32.56
(Picture)
Stahlwille
 3054X-M12
617 589 00 10 00
STAHLWILLE Cylinder head socket, XZN triple square, M12, around 140mm long. With round shaft. Good for Engines (102.92 /93 /96 /97 /98 /99), 103, 104, (110.92 /98 /99), 119, 120, 615, 616, (617.91 /93 /95)
$32.35
(Picture)


Diagnostic Equipment

Mercedes-Benz 000 589 00 21 00 Breakout box 189 Pin, all models. Price estimated  $2,500.00 call or email for current discount price. Includes 3 breakout boxes and set of 3 numbered pin overlay charts. Two adapter cable with 63 small round pins. One adapter cable with 37 large round pins and case.
x
Price on
Request
Diagnostic * We are not offering new diagnostic equipment at this time. However, we are gathering information on some of the older Mercedes factory diagnostic equipment. And we are buying and selling some of the older factory equipment used prior to year 2000. We maintain a list of people with equipment to sell and people wanting to buy the older equipment. We would be happy to add you to our list! We have some information on the old Hand Held Tester (HHT). For more information click here, or on the link at the right.
More Info
. .
Diesel
.
BU  900-8673 900 589 86 73 00
Injection Pump Timing Lock Pin. Engines OM615, OM616, OM617 up to 1982.
$69.99
(Picture)

BU 936-0223 936 589 02 23 00
636 589 02 23 00
Overflow Pipe Drip Tube, for Diesel start of delivery timing. OM 615, 616, 617.91 to 1983.
$45.99
(Picture)

Hazet
4555N
001 589 65 09 00
HAZET, 27mm 12 point special socket 1/2" drive. For injection nozzles on diesel engines, with special relief section to accommodate the small leakage return tubes. OM601, OM602, OM603, OM615, OM616, OM617.91, OM617.93, OM617.95, OM621.
$89.20
(Picture)
KOKEN
KO4133



617 589 01 09 00
KoKen special 1/2" drive socket with 33 teeth for removing and mounting the pressure valve holder on the injection pump of Mercedes-Benz diesel passenger cars 601, 602, 603, 605, 606, 615, 616, 617. Made in Japan.
$39.50
(Picture)

4M-028 617 589 01 09 00 4M-028 Special 1/2" drive socket with 33 teeth for removing and mounting the pressure valve holder on the injection pump of Mercedes-Benz diesel passenger cars 601, 602, 603, 605, 606, 615, 616, 617. Made by (MMMM) Brand from Europe. Similar to Factory Tool and similar to the
HAZET 4556 tool.

$47.50
(Picture)

4M-008 615 589 00 07 00
old numbers:
312 589 00 07 00
912 589 00 07 00 915 589 00 07 00
4M-008 PreChamber Ring Socket. With 2 parts. For the proper R&R of  threaded ring which secures pre-chamber in cylinder head. Applicable on engine type - OM 615, OM 616, OM 617.91 / 93/ 95. Made by (MMMM) Brand from Europe. Similar to Factory Tool.

$79.99
(Picture)

KL-0057-1 615 589 00 07 00
old numbers:
312 589 00 07 00
912 589 00 07 00 915 589 00 07 00
Klann KL-0057-1  PreChamber Ring Socket. For the proper R&R of  threaded ring which secures pre-chamber in cylinder head. Applicable on engine type - OM 615, OM 616, OM 617.91 / 93/ 95. Made in Germany!


$139.99
(Picture)
KLANN
KL-0369-11
*
Milling Cutter Pre-Combustion chamber sealing face. Engine OM601, OM602, OM603, OM604, OM605, OM606
$638.19
(Picture)
4M-009 604 589 01 09 00 4M-009 Multi-spline socket. 1.5 x58mm, for pre-chamber repair of all diesel since 1989. Splines with 28mm diameter, with a 6 point hex on the top to turn with your 27mm wrench or socket. Engines 601, 602, 602.91, 603, 604, 605, 606, 661, 662. Be sure to also see the Milling Cutter that you may need to use if the sealing face needs cleaning, click here.


$65.99
(Picture)

MATADOR
7053 00 06
604 589 01 09 00
Matador 7053 00 06 1/2" drive multi-spline socket. 1.5 x58mm, for pre-chamber repair of all diesel since 1989. Engines 601, 602, 602.91, 603, 604, 605, 606, 661, 662. Be sure to also see the Milling Cutter that you may need to use if the sealing face needs cleaning, click here. Spline with 28mm outside diameter. Out of Stock. Shopping Cart Off. See 4M-009 above.
$57.99
(Picture)
KLANN
KL-0369-4
602 589 00 33 02 Klann KL-0369-4 Double Ended extractor tip. With M22x1 and M22x1.5 threads. Used to remove the pre-chamber from the diesel cylinder head. Engines OM 601, 602.91 /93 /94, 603.91 /93 /96 /97, 604, 605, 606, 615, 616, 617.91 /93 /95. Must be used with your slide hammer. This tool has M12 threads for a metric slide hammer. If you need a metric slide hammer ask for a Klann KL-0049-200 hammer with KL-0049-2008 adapter.

$52.46
BU602-0033A * Impact hammer for use with Pre-chamber extractor. 2.5KG and M12x1.75 threads.


$89.95
BU602-0033B * Impact hammer adapter female 5/8"x18tpi to male M12x1.75 threads.
$32.50
(Picture)

Mercedes-Benz 602 589 00 33 02
+
667 Slide Hammer
Mercedes Factory Tool. Double Ended extractor tip. With M22x1 and M22x1.5 threads. Used to remove the pre-chamber from the diesel cylinder head. Engines OM 601, 602.91 /93 /94, 603.91 /93 /96 /97, 604, 605, 606, 611, 612, 613, 615, 616, 617.91 /93 /95, 640, 642, 647, 648. This tool has M12 threads for a metric slide hammer. The factory type slide hammer is included. We have ONE available at this price. Call or email to order!

$195.00




Mercedes-Benz
000 589 77 03 00
HAZET 1/4" dr 12 point 14mm crowfoot. Same as HAZET tool number 4550-14. It is for the injection pipe cap nuts on 4-cylinger diesel engines. 601, 190D, C 200D, E 200D, Turbo-Diesel, 603, G300D, G350D, turbo, off road cars, E300D, Turbo, S350 turbo-diesel. For diesel engines, 601, 602, 602.097, 604, 605, 606, 611.980, 612, 613, 628, 669.
$59.99
(Picture)
Mercedes-Benz
601 589 05 14 00
Special Sleeve to assemble diesel pump.  We have 1 left!
$418.75
(Picture)
4M-065
601 589 05 21 00
4M-065 Made by (MMMM) Brand from Europe. Similar to Factory Tool. Special locking nut for diesel injection pump camshaft. Engine OM601, OM602, OM603, OM605, OM606, OM617.
$39.99
(Picture)
Mercedes-Benz 615 589 00 07 00 Pin Wrench Socket for threaded ring of prechamber. For diesel engine OM 615, OM 616, OM 617.91/.93/.95
http://www.samstagsales.com/mercedes/mb615589000700x.jpghttp://www.samstagsales.com/mercedes/mb615589000700z.jpg
Price on Request

Mercedes-Benz 617 589 08 21 00 Diesel Timing Static Position Indicator. AB timing light. "Positionsgeber". A position sensor for static start of delivery measurement of injection pump according to governor impulse method. For Diesel Engine 601, 602.91 /.93 /.94 /.96, 603.91 /.93 /.96 /.97, 605, 606, 617.93 /.95 No Longer Available
(Picture)

Mercedes-Benz
636 589 02 23 00
Old Number:
936 589 02 23 00
Overflow pipe for diesel injection pump adjustment using the start of delivery method. Good for diesel engine OM615, OM616 and OM617.91  No Longer Available from Mercedes
$79.99
(Picture)




. .
Drive Shaft
.
HAZET
6450D-41
201 589 00 01 00
Special 41mm torque wrench insert tool for drive shaft. 14x18 mounting.
Gedore DIN894-41
*
Gedore single open end wrench, 41mm, drive shaft lock nut. 344mm long, 13.8mm thick.
$35.19
(Picture)
Gedore DIN894-46
*
Gedore single open end wrench, 46mm, drive shaft lock nut. 380mm long 14.8mm thick. Needed on chassis 107, 123, 124, 126, 129, 140, 201, 202. Used as a substitute for factory tool 126 589 00 01 00
$46.28
(Picture)
. .1111111111111
Electrical
.
Mark-Line®
  SSXZ-10112
601 589 00 10 00
602 589 00 10 00

Generator Combination Socket by Esgen of Germany. 110mm in length. With XZN-10 triple square socket with 1/2" drive and 33 tooth nut with 17mm drive. Made together as one tool. For BOSCH Alternators found on VW, Audi, BMW, Ford, Mercedes, Porsche, Volvo etc.
$34.50
(Picture)

Mercedes-Benz



129 589 01 09 00
Bulb insertion tool for instrument cluster. Plastic 70mm long.

Price on
Request
(Picture)
Mercedes-Benz
A124 580 00 10
Fuse Kit. Set of 9. Kit comes with a quantity 6 of #8 fuse, quantity 2 of #16 fuse and quantity 1 of #25 fuse.
$16.99
(Picture)
. .
Engine
.
BU 116-0140 116 589 01 40 00 Crankshaft lock. Engine 110.92/98/99, 115.97, 116, 117, 119, 615, 616, 617.91/93/95, aftermarket tool.
$149.99
(Picture)
Hazet
2747
*
HAZET 5mm, extra long, 3/8" drive hex bit, 160mm **No Longer Available. Only 2 in stock.
$51.47
(Picture)
Hazet
2748
*
HAZET 6mm, extra long 3/8" drive hex bit. 220mm **No Longer Available.
$53.87
(Picture)
Hazet
2761
617 589 00 16 00
HAZET special 8-ball extension for turning the engine. **No Longer Available from HAZET, we have a few left!
$38.82
(Picture)
Hazet
2761-Set
*
This is a special 3 piece set for engine turning, put together by Samstag Sales. It includes the HAZET 2761 type 8-ball extension. HAZET no longer makes the push-thru ratchet, so we include a GEDORE model 1993 Z-94 ratchet with plastic grip and 1/2" drive. And we include a Stahlwille 51-27mm socket that is listed for engine turning and for diesel injection nozzles on OM615, OM616, OM617, OM621
$135.95
(Picture)
Klann
KL-0182-10 A
* Klann KL-0182-10 A -- Universal Flywheel Lock. 130mm in length. **Call or email for your discount price!!

$348.70
(Picture)

Mercedes-Benz
112 589 03 40 00
Flywheel Lock for crankshaft at starter ring gear. Mountain starter holes. For RHS or LHS.  Engines 112, 113, 137.
Price on
Request
(Picture)
Mercedes-Benz
601 589 02 40 00
Flywheel Lock for crankshaft. For Engines 102, 103, 104, 111, 601, 602.91 /93 /94 /96 /983, 603.91 /93 /96 /97, 604, 605, 606, 611 /980, 612, 613.
Price on Request
(Picture)
Mercedes-Benz
602 589 00 40 00
Flywheel lock. OM662, OM647.981, OM612.981,  OM611.987, OM611.981, OM602.981, OM601.981, OM601.970, OM601.942. **Special Order Only!!
Price On Request
Stahlwille
11069-1
000 589 51 37 00 Piston ring pliers, for rings 50-100mm in size.
$57.65
(Picture)
Wilbär 8380  000 589 37 37 00 Piston ring pliers with replaceable tips. Spring return handles. With stop screw and gap gauge.

Price on
Request
Wilbär 8380E
*
Piston ring plier replacement tips. Sold in pairs.

$39.99
. .
Exhaust
.
. . . .
. .
Fuel & Injection
.
Diesel Pump 1037
*
Diesel Injection nozzle pressure tester. With M12 and M14 adapters.
(Click on image to see full view)
$529.99
(Picture)
M0035A * Gas tank socket 46mm. 1/2" drive. Use this to remove fuel tank filter and fuel gauge sending units. Aftermarket brand.
$76.00
(Picture)
Esgen
12937-9
171 589 00 37 00
"CLIC" type fuel hose clip pliers. For fuel filter, etc. See our Mark-Line page. Click here.
More
Info
Hazet
1010-22
*
HAZET 3/4" drive 22mm hex bit, gas tank drain.

$49.99
(Picture)
Hazet
2757-22
*
HAZET 22mm crowfoot  with 3/8" drive, special socket for fuel line screws at the gasoline tank. For Chassis type 124 E-Class, 126 S-Class, 129 S-Class, and 201 model 190. *No Longer Available.
$71.42
(Picture)
Hazet
4516
000 589 14 11 00
HAZET K-Jetronic fuel mixture adjustment tool. 3mm hex, 376mm long. *No Longer Available.
$21.86
(Picture)
AMF
49064
000 589 14 11 00
Good for CIS Fuel Injection mixture adjustment. T-handle 200mm in length, 3mm hex key.
$10.50
(Picture)
Hazet
4550-1
000 589 68 03 00
HAZET 12 point open ring socket 1/2" dr 17mm, 120mm long, for injection manifold. Type 100, 130, 314, 360, 360h, 352A, 346/355, 401, 402, 403, 407h, 615, 616, 617
$131.80
(Picture)
Hazet
4550-22
606 589 00 09 00 Hazet 4550-22 Special Socket for diesel injector nozzle found on diesel engine OM 604, 605, 606. With 1/2" drive, cutout side, 22mm 6 point socket, Length 110mm.
$94.50
(Picture)

KL-0121-38
163 589 00 37 00
Klann Fuel Line Pliers Mercedes M-Class. Klann has improved the design of these pliers by adding a special bend for easier access to the quick coupler. These are around 9" (230mm) long overall. With black plastic comfort handles. Chrome plated jaws. These are for the same job as Mercedes factory tool 163-589-00-37-00. Also good for VW-Audi, Fiat, and Opel, needing this type of pliers.

$47.50
(Picture)
KL-0186-14 K * Injector Nozzle Puller Set. (Universal) M14x1.5 external thread, M17x1 Internal Thread. For Mercedes OM611, OM612, OM613, OM628*, OM629*, OM642*, OM646, OM647, OM648  engine. *NOTE: Due to limited space use of this tool might require removal of the engine.  Call or email for your discount price! $1997.92
(Picture)
KL-0369-20 A * Injector Seat Reamer. Milling Cutter Tool set for injector nozzle seat. CDI Common Rail Diesel engine OM611, OM612, OM613, ,OM639, OM646*, OM647, OM648, OM651, OM668, Smart R660. (*Not for 646 EVO) Call or email for your discount price! $611.88
(Picture)

KL-0369-41 * Injector Nozzle Puller with claw and Slide Hammer. For injector nozzles that do not fit very
tightly.
Mercedes Sprinter 5 Cylinder Diesel 2.7L, CDI OM611, OM612, OM613, OM646*, OM647, OM648. *NOT OM646 EVO.

$410.55
Discount
$319.76
(Picture)
KL-0369-45 * Injector Nozzle Puller for difficult to remove injectors. Mercedes Sprinter 5 Cylinder Diesel 2.7L, CDI OM611, OM612, OM613, OM646*, OM647, OM648. *NOT OM646 EVO.


$426.34
Discount Price
$319.76

KL-0369-45 K
* Injector Nozzle Puller Set. Mercedes CDI OM611, OM612, OM613, OM646*, OM647, OM648. *NOT OM646 EVO. Sprinter 5 Cylinder Diesel 2.7L. With Slide Hammer and Hook, Puller with Spindle, Thread Tap, Seat Milling Tool, Compressed Air Adapter for glow plug hole and plastic storage case.
Call or email for your discount price!

$1,993.54
(Picture)

KL-0369-51 * Screw tap M6 with drill-bit. This is intended for re-threading and cleaning the tapped holes and retaining the nozzle holder assembly. Important procedures before re-installing an injector nozzle. This is suitable for Mercedes CDI engines OM 611, 612, 613, 646*, 647 and 648 etc. (*Not suitable for OM 646 EVO) Length is 100mm and M6 thread
$72.59
(Picture)

Discount Price
$59.99
KL-0369-462 * Milling Cutter Tool set for injector nozzle seat with compressed air adapter. CDI diesel engine OM611, OM612, OM613, OM646*, OM647, OM648, OM668. (*Not for 646 EVO)
$719.34
    (Picture)
Mercedes-Benz

000 589 40 37 00
Fuel and vacuum line clamp. 20mm. MB Logo.
$19.99
(Picture)
Stahlwille
51-27
001 589 65 09 00 Extra Deep 27mm, 1/2" drive socket for injection nozzles on diesel. OM601, OM602, OM603, OM615, OM616, OM617.91, OM617.93, OM617.95, OM621.
$45.50
(Picture)

Stahlwille
51-30
000 589 75 09 00 Extra Deep 30mm 1/2" drive socket for injection nozzles on diesel. Trucks, OM314, OM352A, OM360, OM360A, OM346/355.
$46.01
(Picture)

Mercedes-Benz 102 589 06 63 00 Double connection M 8 x 1mm / M 12 x 1.5mm for connecting tester 103 589 00 21 00 to lower chamber of CFI fuel quantity actuator M 8 x 1mm for measuring lower chamber pressure.
$11.50
(Picture)
164-0107 164 589 01 07 00 Fuel Delivery Slotted Wrench for lock ring on fuel pump/sending unit. Massive 190mm outside diameter, 22 fingers, 1/2" drive. For M-Class W164 from 2005-2011. And R-Class W251 Chassis. Aftermarket Tool at a much better price than a factory tool.

$179.00
(Picture)




Mercedes-Benz






203 589 01 07 00

Fuel pump sending unit claw wrench, 4 prong. For chassis 163, 203. Also for some newer BMW.
Distance across inside the tool is 139mm. Width of prongs 30mm.
http://www.samstagsales.com/mercedes/mb203589010700.jpg


$169.99
(Picture)

Mercedes-Benz 210 589 01 07 00 Pin Wrench, 5mm pin, for fuel level sensor. W140 and W210
$114.99
(Picture)
Mercedes-Benz 601 589 00 08 00 Splined wrench, used to turn the injection pump.
$119.99
(Picture)
Mercedes-Benz 606 589 00 09 00 Mercedes Special Socket for diesel injector nozzle, OM 604, 605, 606. With 1/2" drive 22mm, Length 110mm. Please Note: This is a Carl Walter tool.

$211.00
Elora
776L-1
606 589 00 09 00
Elora 776L-1 Special Socket for diesel injector nozzle, OM 604, 605, 606. With 1/2" drive 22mm, Length 110mm.

$89.99
Mercedes-Benz 611 589 00 33 00 Injector Nozzle Puller Claw. For nozzles that are not stuck in place. With M12x1.75 threads. To be used with an impact hammer--Not Included. If you need a metric impact hammer, see the KUKKO KS-22-01 set, click here.

NOTE: For difficult to remove injectors, see Klann KL-0369-45.
$172.89


Glow Plug




Mark-Line

131001



*
Mark LINE®  Reamer for cleaning the heating chamber glow plug area when changing glow plugs in aluminum cylinder heads of the CDI Diesel Engine. For glow plug with M10x1 thread size. Tip 5.8mm with three deep longitudinal grooves to hold grease and a stop to prevent the tool from going to far. To prevent combustion residues from falling into the combustion chamber, coat the tip with heavy grease and remove and wipe off the reamer as needed. Good for Mercedes Diesel CDI including Sprinter OM611.



$39.50
(Picture)


Hazet
 2530




001 589 78 09 00



HAZET Diesel Glow Plug socket with universal joint, for 10mm glow plugs on CDI engine. With 3/8" drive and around 140mm long. Engine 611/981/987, 612, 613, 628, 646, 648, 668, 648.960 in model 220. Also good for VW.

$100.70
(Picture)
Hazet
4760-1


*

Glow Plug Socket, 3/8" drive 152mm long. For Glow Plugs 12mm, on W201 and W202 with 4 valve. Also used on Opel, BMW and Ford. For diesel engine OM601, OM602, OM603, OM606. Special Order.
$89.99
(Picture)

Hazet
 4760-5
  611 589 00 37 00
Glow Plug Socket Pliers. Engine 611.981, 611.987, 612.966, 613, 628, 646, 647, 648.

$126.00
(Picture)
KL-0132-5 K * Klann 12mm Glow Plug Hole Thread Repair Kit. For OM604, OM605, OM606 diesel engine. Call for your discount price!
$289.49
(Picture)


KL-0369-13


*
Glow Plug Reamer 7mm. For cleaning the area between cylinder and pre-combustion chamber on Mercedes four valve engines OM604, OM605, OM606 with glow plug threads size M12x1.25. Made by Klann in Germany.

$179.99
(Picture)

KL-0369-15
*
Glow Plug Reamer. For CDI OM611, OM612, OM613, OM628, OM646---NOT 646 EVO,  OM647, OM648. Glow plug thread size M10x1. Call for your discount price!  $228.08

KL-0369-251 A
*
Reamer diameter 4.8mm with Holder M8x1 (adjustable). Suitable for the Fiat 2.3 L JTD (F1AE0481C), 1.3 L JTD (188 A9000); Opel/Vauxhall 1.3 L (Z13DT); Mercedes (OM642, OM640); Smart (OM639); Volvo 2.4D (D 5244 T2); VW AG 2.0 L TDI (AZV, BKD, BDJ); PSA 2.7 L HDI (DT 17) diesel engines.    Special Order Only! Delivery 4 weeks.

$169.99
KL-0369-30 K * Broken Glow Plug Repair Kit. OM 611, OM612, OM613, OM646 but not OM646 EVO engine, OM647, OM648. For example Mercedes Sprinter I5 DOHC 20V 2.7L engine. Call for your discount price!
$2,789.63
(Picture)
KL-0369-31 K
Broken Glow Plug Repair Kit. OM 611, OM612, OM613, OM646 but NOT OM646 EVO engine, OM647, OM648. For example Mercedes Sprinter I5 DOHC 20V 2.7L engine. Similar to kit
KL-0369-30 K but WITHOUT the tools and parts needed to repair any damaged threads in the head.
Call for your discount price!
$1,949.67
KL-0369-33 K * Broken Glow Plug Repair Kit for Mercedes CDI diesel engine OM640 and OM642 with glow plug thread M8x1. As found in Sprinter with 3.0 Liter with OM642 engine. Call for your discount price! $2,717.26
(Picture)

KL-0369-33-1 K
* Upgrade Kit for Broken Glow Plug Repair. If you already own the KL 0369-30 K , then this kit will allow you to do Mercedes CDI diesel engine OM640 and OM642 with glow plug thread M8x1. Call for your discount price! $2,008.89

Mercedes-Benz

601 589 00 53 00
Diesel Glow Plug Hole Reamer, 12 x 1.25mm. For engine OM601, OM602, OM603, OM615, OM616, OM617. For "Pencil" Type. Special Order Only
Price On Request
(Picture)
Mercedes-Benz 617 589 00 53 00 Diesel Glow Plug Hole Reamer, 18 x 1.5mm with 3/8" drive. For early Model OM615, OM616, OM617, OM 601. For large type glow plugs.
Price on Request
(Picture)
Mercedes-Benz

900 589 01 99 00 CDI Diesel Broken Glow Plug Repair Kit M8 M10, engine OM642 OM648.
$3,400.00+
   Call for          Price
. .
Intake
.
.Mercedes-Benz 112 589 02 62 00 Dowel Pin set to hold intake pipe gasket when centering the supercharger and intake manifold. Set of 4 pins and handle. For engine 112, 113, 155.
Price on Request
(Picture)
. .
Mechanic Tools
.
Mercedes-Benz 001 589 76 09 00 Torx Socket Set in black plastic case. Made by Hazet Germany. Made of Chrom-Vanadium steel. Includes the below sockets:

1/2" drive - Type 900 - E24, E20, E18, E16, E14
3/8" drive-  Type 880 - E14, E12, E11, E10, E8
1/4" drive - Type 850 - E11, E10, E8, E7, E6, E5, E4

xx

Price on Request
(Picture)
. . . .
.12345678910111 .1234567891011
Oil Service
.
.
????
Not sure which oil filter wrench you need, and don't know which engine you have? email us with your year, model and VIN and we will look it up.
 email
Now
Gedore
 IN 19-14
*
Gedore 14mm hex bit for oil drain. 1/2" drive. 60mm long.
$23.18
(Picture)
Hazet
985-14
*
HAZET 14mm hex bit for oil drain plug. 1/2" drive. Solid 1 piece construction. Burnished tip.
$31.90
(Picture)
Hazet
 2169
103 589 02 09 00
HAZET Wrench, Oil filter, 74.4mm, 14 point, 3/8" drive, and 27mm outside hex drive. For Mann and Knecht filters. Also Mercedes-Benz Engine, M102, M103, M104, M110, M111,  M119, M120, M613, series C, E since 6/95. And new ML class and Sprinter 5 cylinder diesel.
$42.40
(Picture)
Hazet
 2169-11
642 589 00 09 00
Hazet Oil Filter Wrench, 84mm, 14 point, 1/2" drive and 24mm outside hex drive. For Mercedes-Benz diesel engines 3.0 L V6, engine 642, from C-class amd ML 320 CDI, GL 320 CDI, R320 CDI, E320 Bluetec. Also for Jeep Grand Cherokee 3.0 V6 Diesel.
$74.30
(Picture)
Hazet
 2169-27
*
Hazet Oil Filter socket, shallow 27mm, 6 point, 3/8" drive, for type 168 A-Class.*No Longer Available. Only 1 left in stock.
$42.28
(Picture)
Hazet
 2169-36
606 589 01 09 00
HAZET 36mm 6-point, extra shallow, socket 3/8" drive for oil filter cap on Mercedes-Benz Diesel Engines OM604, OM605, OM606. Also good for Volkswagen VR6 engine. BMW Mini, BMW M52 6-cylinder, BMW M60 8-cylinder, BMW M70 12-cylinder.
$57.40
(Picture)
Hazet
 2760
000 589 24 07 00
HAZET oil service wrench for older cars. 14mm hex, 17mm box end. For Mercedes engine 100, 110, 115, 116, 117, 615, 616, 617.  For Chassis 107, 123, 124, 126, 129, 163, 170, 201, 202, 203, 208, 210, 215, 220.
$89.40
(Picture)
Hazet
 2760-2
117 589 02 07 00
HAZET oil service wrench for newer cars. 14mm hex, 13mm box end.  Mercedes engine 102, 103, 104, 110, 115, 116, 117, 119, 120, 123. For Chassis 107, 123, 124, 126, 129, 140, 170, 201, 202, 203, 208, 210, 215, 220.
$104.20
(Picture)
Ko-ken
2430M-5
*
Swivel 5mm hex for Mercedes Oil Pan. 1/4" drive, black finish. Made in Japan.
$39.99
(Picture)
Matador
 0429 00 08
*
MATADOR New style oil filter wrench-for 12 round slots-3/8" drive. Metal. This is a lower priced version of the factory tool 103 589 03 09 00. This is a special socket for the new style Perflux oil filter type 102 184 05 01 used on Mercedes.
$24.50
(Picture)
Mercedes-Benz
103 589 02 09 00
Oil Filter Wrench, 74mm, 14 point, 22mm drive. Made by Matador. For engine 102, 103, 104, 111, 112, 113, 119, 120, 137, 155, 272, 273, 275, 276, 278, 285, 611, 612, 613, 628, 646, 647, 648, 651.  Also for other gas and diesel cars with black plastic cap on the filter housing. From 1990 and up needing this style of wrench. And new ML Class and Sprinter 5 cylinder diesel. To see the bottom click here.
$42.99
(Picture)
Mercedes-Benz
103 589 03 09 00
Klann New style oil filter wrench--for 12 half round slots-3/8" drive. This is a special socket for the new style 76mm diameter Perflux oil filter type 102 184 05 01 used on Mercedes. This is the extra heavy duty factory tool.
Price on Request
(Picture)
Mercedes-Benz
116 589 02 07 00
Special 5mm T-handle for oil pan bolts on old cars.
Price on Request
(Picture)
Mercedes-Benz 120 589 06 21 00
Engine Oil Dipstick. For Engine 103.943 /984 /985, 104, 111, 119, 120, 137, 603.913 /963 /97, 604, 605, 606, 611, 612, 613, 628, 612.965, 647, 648, 629
Price On Request
Mercedes-Benz
120 589 07 21 00
Oil measuring rod. Dip Stick. Engine 112, 113, 271, 272, 646, 647, 648, 651 Special order only.  Special Order Only
xxx
Price on Request
Mercedes-Benz
606 589 01 09 00
Oil filter wrench 36mm, extra shallow, for OM606 used in 1995 W124 E300 diesel, 96-97 W210 E300 diesel and 1998 E300 turbodiesel. Also engine OM604, OM605. This can be a HAZET 2169-36 with MB Logo or a Matador 429-2 with MB Logo
$37.50
(Picture)
M0011
*
Oil Seal Arbor is needed for the proper installation of oil seal on pulley side of crank shaft. Applicable: Engine M 103, OM 601, OM 602, OM 603. No Longer Available.
$42.95
(Picture)
. .
Oxygen Sensor
.
Hazet
 4680-2
111 589 03 09 00
HAZET oxygen sensor socket, 1/2" drive, 22mm, 6 point with slot in side. Overall length 110mm.
Engine 104, Engine 111.
$133.60
(Picture)
Mercedes-Benz
000 589 71 03 00
Socket used to remove the heated oxygen sensor on the M104 engine and others. Stahlwille 440-22mm with MB logo. 3/8" drive. Chassis W107, W123, W126, W169, W201, W211, W215, W230, W251, W463; Chassis W220 with engine 112, 113, 648, 275; Chassis W203, W209 with engine 112, 113, 271; Chassis W164, W221 with engine 629.
$76.00
(Picture)
. .
Pliers
.
. . . .
. .
Radio
.
Mercedes-Benz 900 589 07 22 00 New! Mercedes-Benz Audio Test CD (can be used with any audio system). Used by Mercedes as part of the Pre-Delivery Inspection procedure. This CD also has a selection of tracks used to locate distortion in a particular frequency range. And it includes a selection of test tracks in different genres of music like Latin, Drum Solo, Jazz, Female Vocal, Male Vocal, Rock, Electronic, Mood Music, Hip Hop and Logic 7 Demo.
Price on Request
Mercedes-Benz
963 589 01 05 00
New #
000 589 88 63 00
Becker Radio removal tools, also for some A/C control panels and instrument cluster on 2002 S class, etc.
$13.99
(Picture)
. .
Spark Plug
.
Hazet
 1849-1
103 589 00 37 00
HAZET Spark Plug Pliers, remove plug wires on hot engine. Engines 102.92 /93 /96 /97 /98 /99, 103, 104, 110.92 /98 /99, 115.97, 116, 117.
$115.90
(Picture)
. . HAZET 2771 wrench. 17mm open end. Mercedes now lists this tool as the offical tool to aid in the removal of the spark plug connectors on the newer M112 and M113, V-6 and V-8 engines. You pry against the connector and the valve cover with it. It makes a knuckle busting job quite easy.
More
Info
Hazet
 4766
112 589 01 09 00
HAZET spark plug socket 16mm, with 3/8" flex  drive. With spring clip to hold the spark plug. Good for engine 112, 113, 137, 155, 271, 273, 275.
$103.70
(Picture)
Hazet
 4767KF
117 589 02 09 00
HAZET Spark Plug Socket. 13/16". NOT engines 615, 616, 617 and M102.
$214.30
(Picture)
Mercedes-Benz
119 589 02 09 00
Spark Plug Wrench with spring clamp. 16mm 3/8" drive. With 2 outside guide collars to ensure correct alignment. For engine M104, M120, M119. Made by HAZET. Hazet number 2776.
Price
on Request
(Picture)
Mercedes-Benz 272 589 01 33 00 Spark Plug Connector Puller, Engine 272.980, 272.985 and 272.990. Made by HAZET of Germany.

$49.99
(Picture)

Matador
0569 00 01
103 589 00 37 00
Matador Germany Spark plug boot plier, 220mm, duel compound handle in black and blue. Used for removing spark plug sockets, even on a hot engine. Engines 102.92 /93 /96 /97 /98 /99, 103, 104, 110.92 /98 /99, 115.97, 116, 117.  For a side view click hereSALE!

SALE!
$39.99
$57.00
(Picture)
. .
Starter Tools
.
Mercedes-Benz
123 589 02 10 00
Special swivel socket, 1/2" drive 10mm hex bit. For mounting and dismounting the starter. Same as Hazet 2755. This is the Mercedes factory tool by HAZET with Mercedes Logo. No longer available from HAZET or Mercedes-Benz.
$89.99
(Picture)
MM-622 003 1004 . MotoMeter Switch Grip, used to turn over the engine by using the starter motor.
$123.10
(Picture)
. .
Steering
.
BMW
3029
601 589 04 33 00
Sir Tools Heavy Duty Separator is needed for the proper disassembly of ball joints of drag links and tie rods. 107, 123, 126.
$98.95
(Picture)
KLANN
KL-0321
*
Klann Ball Joint Extractor Tool. For quick and easy separation of the ball joint at the drag link. For models W123, W124, W126, W129, W201 chassis. *No Longer Available.
$218.86
(Picture)

KLANN
KL-0326-12
* Ball Joint Press Kit with Hydraulic Cylinder. For support joint of the steering knuckle. W220 (S-Class), W211 (E-Class) Chassis. Special order only. $1,516.82
(Picture)
KUKKO
204-1
* Pitman arm puller. Heavy duty puller with side holding clamp.
SEE
KUKKO
PAGE

Mercedes-Benz
000 589 44 33 00
Ball Joint tool puller. Kukko 128/2. Fork 23mm, working height 48mm.
Price on Request
(Picture)
Mercedes-Benz 108 589 02 33 00 Steering Pump Pulley Puller. R107, W123, W126

Price on
Request
Mercedes-Benz
116 589 06 21 00
This screw is used to hold the steering gear in the exact center when changing the steering gear, or steering wheel. Don't try changing the gear without it! For W107, W116, W126 chassis.
$59.99
(Picture)
Mercedes-Benz
124 589 03 33 00
Tie Rod Ball Joint tool. 21.5mm fork. Inside working height 50mm. For Chassis W220, W230, W211, W215, W219, W202, W203, W209, W123, W124, W126,  W107.  Thrust Piece 129 589 10 63 00 or 201 589 05 63 00 needed for some models. Not included.
$175.95
(Picture)
Mercedes-Benz
129 589 10 63 00
Thrust Piece. 240, 245.20, 245.23, 216, 221, 230, 197, 202, 210, 168, 169, 170, 129, 140, 163, 124.
Price on Request
Mercedes-Benz
140 589 00 63 00
Thrust pieces M14 x 1.5 used to protect hexagon socket for pullers 140 589 00 33 00 and 202 589 02 33 00. Group 46/33 Application Note: Model 140 only for special-protection package. Model 171 with puller 124 589 03 33 01 or 124 589 03 33 00. Group 33/32 Application Note: For puller 124 589 03 33 00, 601 589 04 33 00 and spreader 201 589 01 31 00.
$59.90
(Picture)
Mercedes-Benz
201 589 05 63 00
Thrust Piece.  230, 220, 215, 210, 208, 203, 201, 202, 140, 170, 124.
$64.00
Mercedes-Benz
202 589 02 33 00 Puller for supporting joint on steering knuckle (in conjunction with thrust piece 140 589 00 63 00).
$249.99
(Picture)
4M-012 116 589 04 62 00 4M-012 Ball Joint Press is needed for the installation of the ball joint into the steering knuckle. For old Mercedes Chassis W116, W123, 126. Made by (MMMM)  Brand from Europe. Extra nice, high quality, very heavy duty.

$399.99
(Picture)
518 5683 900 589 01 27 00 REMA Toe Spreader "Spurdruecker". Adjusts from 42"-58" long. No Longer Available.
Stahlwille 11041-2
*
STAHLWILLE Size #2 Ball Joint Separator, 23mm opening.
$95.96
(Picture)
. .
Suspension-Shocks
.
BMW
3030
*
Lower Wishbone heavy duty Ball Joint extractor. For 116, 123, 126. For other models see 129 589 03 43 00. See Klann KL-0320 on sale! Click here.
$109.95
(Picture)
Hazet
 2780-1
203 589 00 07 00 Special Suspension socket. Hole is 14mm diameter. Outside diameter of the pins is 17mm. Pins are 2.5mm wide. With 22mm drive.
$49.90
(Picture)
FourM
4M-113
203 589 00 07 00 Special Suspension socket. Hole is 14mm diameter. Outside diameter of the pins is 17mm. Pins are 2.5mm wide. With 19mm drive.  Made by (MMMM) Brand from Europe. Similar to Factory Tool.

$24.99
(Picture)

Hazet
 2780-16
*
Shock absorber tool. Slide insert 16mm. Use with the Hazet torque wrench 6291-2CT (not included). Chrome plated. Type 202 C Class & 210 E Class vehicles built after 1999. *No Longer Available. Only 1 left in stock.
SALE
$79.99
$113.70
(Picture)
Hazet
 4900
*
Safety Spring Vice Set, extremely high capacity 26000N, suitable for impact wrenches, maintenance-free, application possible even when strut unit is installed. Different jaw sets are available. To see a set of jaws click here. *No Longer Available.

Hazet
 4900-17/2
*
Plate Set, for spring compressor, MB 2003 E-Class 4-Matic, etc. *No Longer Available.
$806.66
(Picture)
KL-0025-1K
202 589 01 31 00
Front Coil Spring Compressor Set for MB W116, W123, W124, W126, W129, W140, W170, W171, W201, W202, W208, W210 (not W210 4Matic) and W211. Long tool body with plates in fitted case. Made in Germany by KLANN.
More Info
KL-0025-200 202 589 02 31 00 Rear Coil Spring Compressor. Short Tool Body. Plates not included.
Price on
Request
KL-0165-25
*
Klann Ball Joint Extractor Size 2. For E-Class (W211), CLS (W219), S-Class (W220) and SL (W230) lower suspension ball joint. Fork Opening 24mm.  Special Order

$470.20
$349.99
KL-0356-1
* Bush extractor tool for Mercedes that is used for the removal and replacement of both front and rear sub-frame mounting metalastic bushes. An advantage to using this bush extractor, is that the bushes may be replaced on the car without the need to lower the rear sub-frame. Suitable for Mercedes W201 and W124 service vehicles.

Click on picture
$749.17
Klann
KL9002 MB
*
For new models, Klann suggests the spring compressor set  KL9002 MB set with these parts:
Call for your Discount Price!!!!
KL-9002-100 Telescopic Spring Compressor Body
KL-9001-11 set of jaws M-Class
KL-9001-15 set of jaws type W210 4-Matic
KL-9001-17 set of jaws type E Class W211
KL-9001-92 set of jaws type W203 C-Class W209 CLK

$3,785.30
KL-0320
116 589 09 33 00
KLANN Lower Wish-bone heavy duty Ball Joint extractor. Fork opening 27mm, for Chassis W116, W123, W126. Highest quality German tool. Clearance----While supplies last!!!! For a tool to press in a new ball joint, see 4M-012.
$290.76
$97.50
(Picture)




KL-0326-20





385 589 00 07 00
KLANN, Toothed Socket for ball joint retaining nut found on the steering knuckle of the M-Class (W163) Chassis. Tabs 5x7mm.



$114.95
(Picture)
KL-0350-42
*
Klann front wishbone bushing extractor with hydraulic cylinder. W210 bushing.
$2,412.42
KL-0165-12
*
KLANN Special 24mm lower wishbone ball joint tool W140
$398.27
(Picture)
Matador
0721 00 03
*
Matador bushing extractor for MB models W201 and W124. Setting and extracting of bushing of the rear axle.
$137.00
(Picture)
M0079 * Sir Tools Metal Clad Bushing R&R Kit needed for the proper R&R of FRONT metal-clad rubber mount bushings of rear axle carrier subframe. Incorporating a thrust bearing to ease the pulling or pushing action, reduces the wear & tear of the tool, ensuring longevity. This Bushing Tool comes complete with all the proper components to efficiently get the job done right. Applicable: Mercedes chassis - W124, W129, W201, W202, W140. No Longer Available.
$295.00
(Picture)
Mercedes-Benz
116 589 01 09 00
Special Socket 24mm 1/2" drive, 450mm long. Used with the front spring compressor for old W107 Chassis. The spring compressor is no longer available, but there are 5 sockets left in Germany.
Price
on
Request
Mercedes-Benz
129 589 03 43 00
Lower wishbone ball joint press. (Old number 107 589 01 43 00) For W107, W124, W129, W201, W211, W230. Special Order only. (See Also Klann tool KL-0039-751 for this job, if only doing W124, W129 or W201)
Price
on
Request
Mercedes-Benz
202 589 00 09 00
Hazet Socket wrench, 17 mm with oval socket for shock piston rod. For loosening and tightening upper shock absorber mount. With 9x12mm attaching point  on the side for use with a torque wrench. Type model C, type 202, model E type 210, model SLK type 170. NOTE: Same as Hazet 2780. NOTE: SPECIAL ORDER ONLY!!
Price on
Request
(Picture)

Mercedes-Benz


385 589 00 07 00

Socket for slotted nut on ball joint W163, W64 & W251 chassis. Special Order Only. See the Klann Brand Tool, in stock, just click here.
Price
On
Request
Sir Tools
 M0062
*
Sir Tools Metal Clad Bushing Press Kit is needed for the proper installation of bushings into the front lower control arms. Incorporating a thrust bearing to ease the pulling / pushing action, reduces the wear & tear of the tool ensuring longevity. This Bushing Tool comes complete with all the proper components to efficiently get the job done right. Applicable: Chassis - W 116, W 123, W 124, W 126, W 129, W 201.
$289.95
Sir Tools
 M0074
*
Sir Tools Metal Clad Bushing R&R Kit is needed for R&R of differential sub-frame bushings. This is the most efficient unit on the market. The driver nut incorporates a thrust bearing which eases the press action. This reduces wear & tear of the tool, ensuring longevity. Applicable: Chassis - W 124, W 129, W 140, W 201. Heavy-duty storage case included.
$138.95
. .
Test Cable
.
Mercedes-Benz 000 589 00 21 00
Breakout Box. Test Box with adapter cables. 189-PIN. All Models. Replacement for old tool number 124 589 00 21 00 and 129 589 00 21 00. (Picture 1)  (Picture 2)
Price on
Request
(Picture)

Mercedes-Benz
102 589 04 63 00
Special Test Cable idle speed diagnostics.
$42.50
(Picture)
. .
Timing Chain
.
Mercedes-Benz 000 000 00 00 00 Special tools for timing chain work.
More Info
Mercedes-Benz 103 589 01 63 00
Swaging Jaws for Gas engines. Chain Guide F2 and Thrust Piece D11. Must be used with factory tool 602 589 00 39 00 (Not included).
Price on
Request
(Picture)
Mercedes-Benz   271 589 00 31 00
Timing Chain Tension Key. Special key used to take the tension off the timing chain tension device.
Heavy duty plastic, 20mm thick, 180mm long.


$79.99
(Picture)


Mercedes-Benz


272 589 03 63 00

Assembly Link used during replacement of the timing chain. For engine 272.

$34.50
(Picture)


Mercedes-Benz
602 589 01 40 00
MB timing chain tool. Engine OM601, OM602, OM603. Approx. 140mm Long. Special Order.
Price on
Request
(Picture)
Mercedes-Benz
602 589 02 40 00
Timing Chain threading link set. For Diesel or Gas. Set of 3 links.
$79.98
(Picture)
Mercedes-Benz
602 589 02 63 00
Temporary assembly Link.
$149.99
(Picture)

Mercedes-Benz 602 589 03 63 00
Swagging Jaws
$239.99
(Picture)

Mercedes-Benz 604 589 00 40 00 Special retaining device for timing chain on chain sprocket for pulling timing chain into engine (retaining device prevents timing chain from jumping on chain sprocket). OM604, OM605, OM606.

$99.99
(Picture)
Mercedes-Benz 616 589 02 40 00 Retaining plate for timing chain of the injection adjuster. Diesel Engine OM615, OM616, OM617.91, OM617.93, OM617.95

$57.99
(Picture)

BU272-0039 * Mercedes riveting timing chain tool set. The timing chaing tool can be used to press rivets and external lugs of dip-type fasteners of duplex roller chain and also to rivet double timing chaings. Set comes with 9 pieces. The chain press set is for 271, 272 and 273 engines.


$269.85
(Picture)

KL-0343
*
Mounting Device for Timing Chains. OM615, OM616, OM617.
 $159.99
(Picture)
M0002
*
Extractor tip, for pulling chain tensioners, Engine M110
$24.95
(Picture)
M0037
*
Chain Guide designed for efficient and proper installation of timing chains. It is applicable on V-8 engines. Old Engine M116 M117.
$94.95
(Picture)
M0050
602 589 00 39 00
Sir Tools Crimping / Press Kit is needed for the proper assembly of timing chain master link. Used in conjunction with Adapter Bit  #M 0050-A or M 0050-B. Adapter Bits are sold separately!! NOTE: Please select an "A" or "B" adapter bit below.
$189.00
(Picture)
M0050-A
*
Sir Tools Dual Row Adaptor Bit is needed for crimping the master link of dual row timing chains. Applicable: Engine - OM 601, OM 602, OM 603, OM 615, OM 616, OM 617.
$53.90
(Picture)
M0050-B
*
Sir Tools Single Row Adaptor Bit is needed for crimping the master link of single row timing chains. Applicable: Engine - M 102, M 103, M 116.
$51.90
(Picture)
. .
Transmission
.
B1924 * B1924 Automatic Transmission Filler Kit. With 7 Liter Capacity. For Mercedes 722.9 Transmission. Also VW/Audi, Posrche, and other cars.

$299.99
(Picture)

STNA
B7200
*
B7200 Shift Shaft Bushing Installer Pliers. Aftermarket brand, supplied by Stahlwille North America. 250mm (10") long.
$49.99
(Picture)
Hazet
1000-41
116 589 02 09 00
HAZET 41mm 3/4" drive 6 point socket for transmission main shaft nut
$77.80
(Picture)
Hazet
 2756-17
123 589 02 19 00
HAZET flex socket, 17mm with 1/2 drive 100mm long. For Standard Gearbox Mounting.
No Longer Available from HAZET, WE HAVE ONE LEFT!!!
$95.94
(Picture)
Hazet
 900TZ-30
*
HAZET Deep 30mm 1/2" drive 12 point socket. Overall length of 82mm. These have a nice compact thin-wall design. The 30mm size is recommended for the transmission drive shaft flange nut on Mercedes and BMW. It is also for the pinion drive shaft flange nut of the differential on BMW cars.
$56.60
(Picture)

Mercedes-Benz

000 589 88 33 00

Schrem 54-200  Self Locking 2-arm gear puller 120x125mm. This is the famous "Record" puller with self locking arms. The arms can be turned around for internal pulling. The end of the traverse contains a spring ball to allow easy removal of the arms and prevent the arms from slipping off during handling. Due to the mounting angle of the arms, the higher the spindle force, the stronger the arms are locked into place. This puller is made with strong chrome-alloy steel and heat treated, allowing for a slender design.

$179.99
(Picture)
Mercedes-Benz 126 589 02 09 00 Special Deep 30mm, 3/4" Drive, 12 point socket. For nut at transmission shaft. With special round bore for precise alignment, and 3/4" drive for extra torque. For transmission 711.101/11/202, 716.0/1/2/6, 717.0/40/41/42/43/44/45/46.
$199.99
(Picture)
Mercedes-Benz 140 589 15 21 00 Test Dip Stick for Transmission, newer cars. With Plastic handle. And special tip. For all vehicles with the electronic transmission 722.6 **Special Order
Price on Request
(Picture)
Mercedes-Benz 140 991 00 55 Plastic locking clip for transmission filler cap.
$2.99
(Picture)
Mercedes-Benz 168 589 01 21 00 Dipstick for determining fluid level in 722.7 transmissions. 845mm (33 1/4") in length.
$139.99
(Picture)
Mercedes-Benz

210 589 00 37 00
Pliers for lock rings of shift linkage. Used on numbers 722.0, 722.1, 722.4, 722.5, 722.6 transmission. Similar to Hazet 2725 tool. No Longer Available.
NLA
M0026
115 589 01 07 00
Pin Wrench Socket needed for R&R of grooved nut on drive pinion shaft flange of differential. 1/2" drive. It is applicable on Chassis - W107, W114, W115, W116, W123, W126. Models with constant velocity joint axles. A = 41.50mm B = 35.00mm C= 7.50mm
$67.95
(Picture)
M0028
*
Sir Tools Pin Wrench Socket is needed for R&R of grooved nut on front differential counter shaft. 1/2" drive. It is applicable on Transmission-G76/18, G76/18A,  G76/18C,  G76/27,  G76/27A,  G76/27-5.  A=43.75mm  B=36.50mm C=5.75mm
$39.95
(Picture)
M0029
*
Pin Wrench Socket is needed for R&R of grooved nut on transmission drive shaft flange. 1/2" drive. It is applicable on Transmission - K4A 025 With size A=38.00mm, B=32.25mm, C=6.00mm This item has been discontinued by Sir Tools. We only have one left.

$61.95
(Picture)
M0030
111 589 00 07 00
Pin Socket Wrench, 1/2" drive, for grooved nut on drive pinion shaft flange of differential on cars with old type swing axle. With size A=35.25mm, B=24mm, C=7.75mm.
$59.99
(Picture)
M0032
115 589 08 07 00
Pin Wrench Socket for grooved nut of transmission drive shaft flange. 1/2" drive. Transmission K4C025, W4B025, K4A040. A=42.50mm, B=35.25mm, C=5.50mm.
$65.95
(Picture)
120 589 01 07 00
6-Pin Socket for old W121 type 190SL
Click
Here for
More
Info.

.12345678910111 12301230120120123
Trunk Toolkit
.123456789
Mercedes-Benz
000 581 02 38
Large 9-1/2" waterpump pliers for toolkit, Heyco type 300. With Logo.

$39.95
(Picture)
Mercedes-Benz
000 581 03 17
Toolkit screwdriver. Made by FELO of Germany. Black plastic handle. With 2 blades. Phillips tip PH2 and PH3. Flat blade 7mm and 4mm. About 190mm (7-1/2")long.
$24.99
(Picture)

Mercedes-Benz 123 780 00 48 Sunroof emergency tool. 16mm drive, 123, 124, 126, 201 chassis R4.79 W3.75
$9.99
(Picture)
Mercedes-Benz
129 581 00 66
Emergency top retractor tool for 129 chassis. 9" in length. For type 300SL, SL320, 500SL, SL500, 600SL, SL600 from years 1990-2002.
$32.50
(Picture)
Mercedes-Benz
140 583 00 15
Tire Jack, W107, W114, W115, W116, W123, W124, W126, W140, W201. (Ship 6 pounds).
Price on Request
(Picture)
Mercedes-Benz
A126 403 00 74
Mercedes-Benz 12mm Wheel Mounting Pin, a real back saver! For old models.
$15.99
(Picture)
Mercedes-Benz
A203 585 00 01
Tool Bag, Blue Cloth with flap and tie strings.  About 5"x12".
$24.99
(Picture)

Mercedes-Benz
A204 581 00 74
Mercedes-Benz 14mm Wheel Mounting Pin, a real back saver! For 1992 thru current model S-class. And M-Class.
$18.79
(Picture)
Mercedes-Benz
202 899 01 80
Emergency sunroof crank. Special bent 4mm hex key. For Type C220, C230, C280, etc. From 1994-2000.
$9.99
(Picture)
Mercedes-Benz  A208 899 00 80 Emergency Top tool. 1998-2003 CLK320 CLK430 CLK55 AMG Cabriolet. Wrench with 10mm open end and 9mm hex key. About 9 inches long.

$39.50
(Picture)

. .
Valve
.
Hazet
 791-5
000 589 53 57 00
Valve Stem seal pliers
$133.90
(Picture)
Hazet
2768-1
110 589 00 01 00
HAZET 1/2 drive 17mm valve adjust crowfoot. For old  6 cylinder engines M100, M110, M114, M115, M123, M130. Model Type 200/8, 220/8, 250/8, 250SE, 250SL, 250CE, 280S/8, 280SE/8, 280SL/8, 300SEL/8 2.8L, 300SEL/8 6.3L, 600, 280, 280E, 280C, 280CE, 280S, 280SE (160, 185 PS). Similar to SW 3011-17.
$169.30
(Picture)
Mercedes-Benz
615 589 00 01 00

HAZET 2769-Set diesel valve adjust wrench set. These are the Mercedes factory tools. This is a set of 2 wrenches. These are the 14mm HAZET wrench part number 2769 (225mm long) with Mercedes number 615 589 00 01 00 These are good for Mercedes type OM615 (200D, 220D), OM616 (240D, 240TD), OM617 (240D 3.0, 300SD USA, 300GD, 300D, 300TD, 300CD USA), OM615 (406D), OM616 (207D, 307D, 407D). These are No longer available from HAZET or Mercedes, we have a few sets left!

$199.99
(Picture)
Hazet
2769-3
615 589 00 03 00 HAZET 2769-3 Valve Spring Retainer Wrench. 170mm long. No Longer Available!

(Picture)
Hazet
 2770-2
000 589 39 07 00
HAZET Crowfoot Wrench 14mm with 1/2" drive. For valve adjustment on older 6 cyl gas engine cars with M180 engine and Unimog 404. Around 110mm long overall. No Longer Available from
HAZET. See Stahlwille
3545-14. Click here.
$105.46
(Picture)
 Hazet
 2770-4
116 589 02 01 00
HAZET Crowfoot Wrench 17mm with 1/2" drive and special cut-out bottom. For Mercedes V8 gas engines M116 and M117 with solid lifters. NO LONGER AVAILABLE From HAZET. We sent our last one back to Germany to service a W109 chassis. See the picture below of the W109 car driving down the road in Germany. {Click on the picture for a larger view}.
Note: To see the new version of the factory tool,  just click here.

Driving a W109 Mercedes in Germany
$xxx.xx
(Picture)
Hazet


116 589 02 01 00

Used HAZET 17mm valve adjust wrench for old Mercedes-Benz V8 gas engine.  This is the old HAZET type 329-4 wrench with special cut-out bottom and 1/2" drive. This is the old tool number, same as the new HAZET 2770-4 tool. This tool is good for Mercedes V8gas engines M116 and M117 with solid lifters. Samstag Sales is proud to offer this hard-to-find old tool in excellent used condition.  SOLD! None available at this time.

$ 99.99
(Picture)
 Hazet
 2771
110 589 01 01 00
HAZET Valve Adjustment Wrench. 17mm open end. For the M110 engine found in cars 280, 280C, 280E, 280CE, 280S, 280SE, 280SL, 280SLC. Mercedes now lists this tool as the offical tool to aid in the removal of the spark plug connectors on the newer M112 and M113, V-6 and V-8 engines. You pry against the connector and the valve cover with it. It makes a knuckle busting job quiet easy.
$95.60
(Picture)
Mercedes-Benz 102 589 00 09 00 Valve adjusting wrench with 13mm hexagon and built in Phillips screwdriver, size PH2. Engine 102.92/93/96/97/98/99 as found in type W201 chassis cars 190 E 2.3 Liter. Same as HAZET 2767
Price on Request
(Picture)
Mercedes-Benz
111 589 25 61 00
Valve Spring compressor kit. Suitcase with 19 parts. Good for 86 and up diesel, or 92 and up gas engines. Engine M104, M111, M112, M113, M119, M120, M155, M166, M271, OM601, OM602, OM603, OM604, OM605, OM606, OM611/980, OM668, OM612.965 -SPECIAL ORDER!!
Price on
Request
Mercedes-Benz 116 589 02 01 00 Special 2 piece Crowfoot Wrench 17mm with 1/2" drive and special cut-out bottom. Made with a Stahlwille 3505 special extension and a custom machined 17mm Crowfoot. For Mercedes V8 gas engines M116 and M117 with solid lifters. Please note: The 3505 dogleg extension has a stud type of lock, the crowfoot has a hole used to release the lock. Do NOT use the extension on a regular socket! It will snap in place and you will not be able to remove the socket! No Longer Available!

No
Longer
Available
(Picture)
Mercedes-Benz
116 589 06 63 00
Magnetic finger used to remove valve keepers. Special order.

Price on
Request
(Picture)
Mercedes-Benz 617 589 00 40 00 Feeler gauge red plastic handle. (Handle ONLY--front and back piece) Same as 617 589 00 40 01.
**No Longer Available !

$12.99
(Picture)
Mercedes-Benz 617 589 00 23 00 Feeler Blade .10mm, cold engine intake. **Limited Quantity. To Be Discontinued!!

$1.99
Mercedes-Benz 617 589 01 23 00 Feeler Blade .15mm, warm engine intake. **Limited Quantity. To Be Discontinued!!
$4.50
Mercedes-Benz
117 589 00 23 00
Feeler Blade .20mm, warm engine intake with outside temp below -20 degree C. **Limited Quantity. To Be Discontinued!!
$1.99
Mercedes-Benz
117 589 01 23 00
Feeler Blade .25mm, cold engine exhaust. **Limited Quantity. To Be Discontinued!!
$1.99
Mercedes-Benz 617 589 02 23 00 Feeler Blade .30mm **Limited Quantity. To Be Discontinued!!
$15.99
Mercedes-Benz 617 589 03 23 00 Feeler Blade .35mm **Limited Quantity. To Be Discontinued!!

$4.29
Mercedes-Benz 617 589 04 23 00 Feeler Blade .40mm **Limited Quantity. To Be Discontinued!!
$3.99
Mercedes-Benz
601 589 02 43 00
Valve Stem Seal install tool. OM601, OM602/981, OM603
$57.50
(Picture)
M0024
117 589 06 23 00
Sir Tools Go-no-Go Gauge. Needed for checking hydraulic valve lifters. V8 engines 1976 and up. Excluding M119.

$69.99
(Picture)
M0025 102 589 04 21 00 Sir Tools Dial Gauge Holder. Needed for checking hydraulic valve lifters. Used with your dial indicator. Applicable to engines M102.92 /93/ 96 /97 /98 /99 and M103.
$84.00
(Picture)
M0042
116 589 00 43 00
Sir Tools Valve Stem Seal Installer - (9mm)
$39.99
(Picture)
M0043 116 589 01 43 00 Sir Tools Valve Stem Seal Installer - (11mm)
$39.99
(Picture)
M0067 110 589 04 61 00 Sir Tools Valve Spring Compressor for old 6 cylinger engine type 110.92 /98 /99 This tool is  discontinued! No longer available.
$199.95
(Picture)
M0068
123 589 03 61 00
110 589 06 23 00
Sir Tools Valve Spring Compressor 4, 6 and V8 engines with single camshaft. For Engine 115.97, 116, 117.

$209.95
(Picture)
M0069
111 589 18 61 00
102 589 10 63 00
102 589 01 61 00
103 589 00 61 00

Sir Tools Valve Spring Compressor for engine M102, M103
$295.00
(Picture)
Stahlwille
 3545-14

000 589 39 07 00 Crowfoot Wrench 14mm with 1/2" drive. For valve adjustment on older 6 cyl gas engine cars with M180 engine and Unimog 404. Around 125mm long overall. Made of 2 parts. A Stahlwille 3505 1/2" drive dogleg extension. And a Stahlwille 3540-14 crowfoot 14mm with 1/2" drive. These 2 parts together are the Stahlwille number 3545-14 tool. Please note: The 3505 dogleg extension has a stud type of lock, the crowfoot has a hole used to release the lock. Do NOT use the extension on a regular socket! It will snap in place and you will not be able to remove the socket!

$99.99
(Picture)

. .
Water Pump
.
Hazet
 2740
* HAZET Screwdriver Socket with Universal Joint. With 6mm hex bit. For water pump M103 M104. Water hose connection M103 up to M120. Intake Pipe M601, M603 and M604. No Longer Available from HAZET. Sold Out!
$132.69
(Picture)
. .
Wheels - Lug Wrench
.
1509-450
000 581 17 58 00
HEYCO Special Tyre Lever. 450mm (18") long. Special foot.
$82.37
(Picture)
 1509-600
000 581 21 58 00
HEYCO Special Tyre Lever. 600mm (24") long. Special foot.
$150.90
(Picture)
HAZET
902SLg-17
126 589 04 09 00 Hazet Mercedes Benz 17mm wheel nut impact socket.
$46.90
(Picture)
HAZET
904SLg-17


199 589 01 09 00
Extra Long 17mm Lug socket, with plastic sleeve on the outside and plastic plug on the inside to protect your expensive rims. 1/2" drive impact, 130mm long. Made by HAZET! Replacement for old number 230 589 01 09 00

$199.10
(Picture)

KLANN
KL-0100-5610
* Long Lug Nut Socket. Special convex pattern for GLK (W204), E-Class (W211, W212, W207), SLK (W172), M-Class (W164, W166), CL-Class (W216), S-Klasse (W221, W222) and Maybach.  With 1/2" drive and protective plastic sleeve to prevent damage to the expensive wheel. About 88mm (3-1/2") long. To fit lug bolt part number 000 990 54 07.

$49.99
(Picture)

Mercedes-Benz
140 581 03 01
Lug wrench, 17mm. by HEYCO. With locking ball to fit spark plug handle (not included)
$23.50
(Picture)
Mercedes-Benz
000 990 54 07
Lug bolt. Special convex pattern for Maybach. W221 S-Class, late model CL-Class. 70mm long.
$14.00
(Picture)

BU000-5407 * Lug Nut Socket. Special convex pattern for Maybach. W221 S-Class, late model CL-Class. with 1/2" drive. 45mm (1-3/4") long. To fit lug bolt part number 000 990 54 07.
$37.50
(Picture)

. .
Windshield
.
Hazet
 4850-1
003 589 03 63 00 Washer nozzle adjust tool, with 6mm magnetic tip. It has a protective cap for the adjusting needle and a pocket clip. No longer avaliable from MB.
$25.10
(Picture)
. .
Wrench
.
Gedore
 IN34-5x6
*
Gedore Swivel Head Allen Wrench. 5mm x 6mm, frequently used size on older Mercedes.
$85.67
(Picture)
Hazet
 0-2700/117
*
HAZET tool set, recommended by HAZET for Mercedes Cars, 117 tools. To see the list click here. The tool picture is for example only. Some tools have been improved and will vary slighlty from the photo. All tools in the list are included.
Price On Request
Stahlwille 730R/5DC
001 589 72 21 00
STAHLWILLE Service-Manoskop Torque Wrench, 3/8" drive, general service work. Capacity 6-50 Nm. 96502005
$532.83
Stahlwille 730R/12DC
001 589 66 21 00
STAHLWILLE Service-Manoskop Torque Wrench, 1/2" drive. Capacity 25-130 Nm. 96502012
$589.37
Stahlwille 735/20DC
000 589 10 99 32
STAHLWILLE Ratchet insert tool, 1/2" drive. Use with Service-Manoskop wrench.
$113.80
(Picture)
.
HOME Quick Search SEARCH email Samstag
How To Order
Web Special
Car Manuals Unimog Tools
MB Tool Ref



Copyright © 1997-2014  Samstag Sales
