Mercedes-Benz Timing Chain Tools

Samstag Sales can special order the tools for Mercedes-Benz timing chain repair. To do the job properly as envisioned by the Mercedes engineers, it requires a suitcase full of tools. If you must do this job, it would be best to have these tools.  Please consult your service manual before contacting us. To make sure you are seeing the latest update, please hit reload on your browser. All timing chain tools are special order.

Last Update: September 3, 2019
Brand MB No.
Description
**POR=Price on Request**
Price
Mercedes-Benz 000-589-58-43-00 Rivet tool duplex roller chain. POR
Mercedes-Benz 103-589-01-63-00 Swaging jaws for Gas engines. With thrust piece D2 and chain guide F2.
000 589 58 43 00 Rivet Tool Duplex
Price on
Request
(Picture)
Mercedes-Benz 112-589-09-63-00 Swaging jaws with thrust piece D5 and chain guide F1. Duplex chain. Engine 102, 104, 110, 111, 112, 113, 116, 117, 119, 120, 275, 611, 612, 613, 629, 642, 646, 647, 648, 668.
112 589 09 63 00 Swaging Jaws with D5 thrust piece Chain Guide F1
Price on
Request
(Picture)

Mercedes-Benz 271-589-00-31-00 Key used to take the tension off the timing chain tensioning device. Engine 271.
Price on
Request
Mercedes-Benz 271-589-01-40-00 Timing Chain Retainer at Camshaft, Engine 271 Price on Request
Mercedes-Benz 271-589-01-63-00 Assembly Insert D3 and F3 , Engine 271 ,  272 (V6),  273 (V8). No Longer Available
Mercedes-Benz 271-589-02-40-00 Assembly Link
No Longer Available
Mercedes-Benz 271-589-02-63-00 Assembly Inserts D10 and F10 , Engine 271 No Longer Available
Mercedes-Benz 271-589-05-63-00 Assembly Inserts F13 and D16, Engine 271 No Longer Available
Mercedes-Benz 271-589-09-63-00 Assembly Link. Used to pull in the new chain. Not to be left in the engine! Engine 271.
Price on Request
Mercedes-Benz 271-589-10-63-01 Pressure pins 2,4mm No Longer Available
Mercedes-Benz 272-589-00-39-00 Link Assembly Basic Tool Engine 272 (V6). No Longer Available. See 642-589-00-33-00

Price on
 Request
Mercedes-Benz 272-589-00-63-00 Assembly Inserts D12 and F11 and 2 centering forks. Engine 272 (V6).
Price on
 Request
Mercedes-Benz 272-589-01-63-00 Assembly Guide F4 , Engine 272  (V6) and 273 (V8).
Price on Request
Mercedes-Benz 272-589-03-63-00 Assembly link used during replacement of the timing chain, For engine 272 (V6)

Price on Request
Mercedes-Benz 602-589-00-39-00 Link assembly tool Diesel and Gas
No Longer Available.
See New number 642-589-00-33-00
602 589 00 39 00 Link Assembly Tool Diesel and Gas
Price on
  Request
(Picture)
Mercedes-Benz 602-589-00-98-00 Carrying Case without tools.
602 589 00 98 00 Carrying Case
Price on
Request
(Picture)
Mercedes-Benz 602-589-01-40-00 Timing chain retainer (at cam gear)
602 589 01 40 00 Timing Chain Retainer
POR
(Picture)

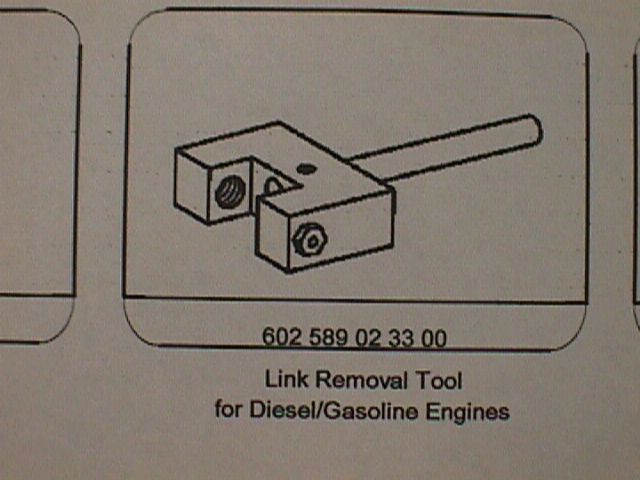

Mercedes-Benz 602-589-02-33-00 Link removal tool Diesel and Gas
602 589 02 33 00 Link Removal Tool Diesel and Gas
POR
(Picture)

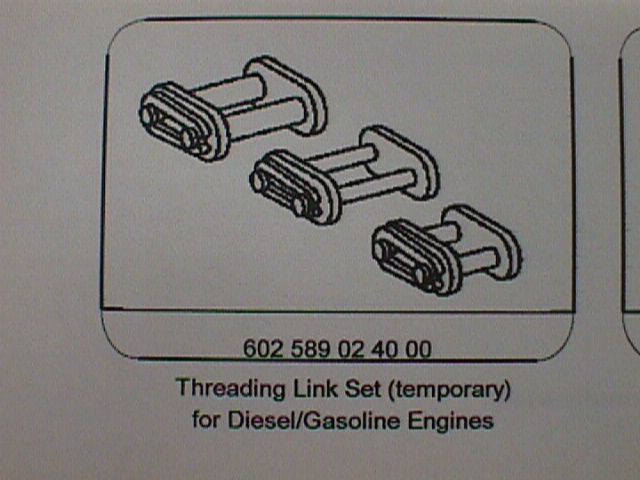

Mercedes-Benz 602-589-02-40-00 Threading link set (temporary) for Diesel and Gas
602 589 02 40 00 Temporary Threading Link Set Diesel and Gas
Price on
Request
(Picture)
Mercedes-Benz 602-589-02-63-00 Assembly link (temporary) for Diesel and Gas and swaging jaws for Diesel engines. D9 and F5.
602 589 02 63 00 Temporary Assembly Link for Diesel and Gas
POR
(Picture)
Mercedes-Benz 602-589-03-63-00 Thrust Piece for Diesel engines. Part D8. To be used with F1 chain guide.
602 589 03 63 00 D8 Thrust Piece for Diesel Engines
POR
(Picture)
Mercedes-Benz 602-589-04-63-00 Mandrel, link remover for diesel
No Longer Available
602 589 04 63 00 Mandrel Link Remover for Diesel
(Picture)
Mercedes-Benz 602-589-04-63-01 Link removal pins for Diesel.
Special order from Germany.
602 589 04 63 01 Link Removal Pins for Diesel
(Picture)
Mercedes-Benz 602-589-05-63-00 Mandrel link remover for Gas
602 589 05 63 00 Mandrel Link Remover for Gas Engines
POR
(Picture)
Mercedes-Benz 602-589-05-63-01 Link removal Pins for Gas Engines.
602 589 05 63 01 Link Removal Pins for Gas Engines
(Picture)
Mercedes-Benz 604-589-00-40-00 Timing chain retainer (at cam gear)
604 589 00 40 00 Timing Chain Retainer
POR
(Picture)
Mercedes-Benz 642-589-00-33-00 Riveting Tools, Sub for 272 589 00 39 00 Engine 272 (V6).
Price on
 Request
