| KUKKO

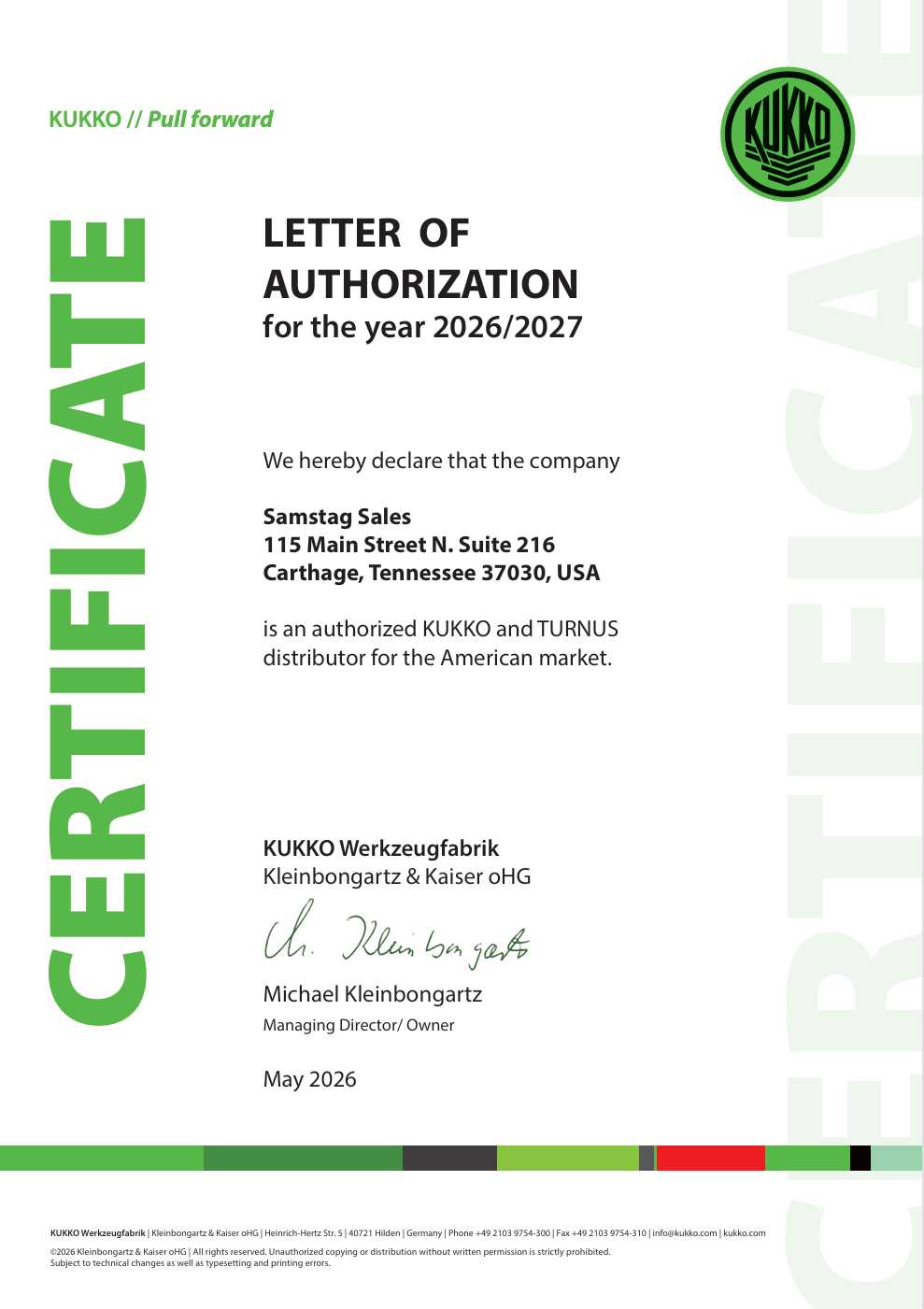

is a German manufacturer of pulling tools. Samstag
Sales is an Authorized
Distributor
of
Kukko
tools. KUKKO has a complete line of gear
pullers and bearing extractors. The TURNUS division
has a good selection of hand tools with an extensive
selection of clamps, tin snips, and other cutting
tools. If not in stock, Samstag Sales can special
order any of these tools for you. Please email
for stock status and a quote on any KUKKO or TURNUS
tool. |
| Last
Kukko Update: May 17, 2023 |
| HOME | Quick Search | SEARCH |
email Samstag |
|
Request Quote |
|
|
FREE Shipping!
Buy $25.00 or more of in stock items using our
shopping cart, and get free shipping to the lower 48
States. |
||||
| Part_No
|
|
|
| Advertising |
||

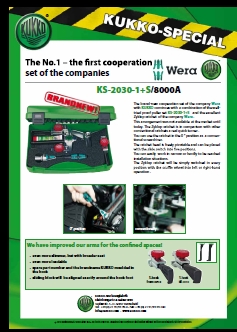

| Download the KUKKO Catalog or Spare Parts List! |
{Click on the image to start a
download}
 |
FREE
|
| KUKKO Brekina VW Tool Van |
Miniature
Brekina KUKKO VW Tool Van. This is a small Brekina
toy. It looks like a Type 2 VW Panel Van.
About 1-3/4" Long. It features the KUKKO
colors and KUKKO name. No Longer Available from
KUKKO.   |
$39.00 |
| ___________ |
|
******** | ||||||||||||||||
| 31-1 | KUKKO 31-1 Steering wheel puller. Mercedes
Style. For 30-60mm (1-1/4 to 2-3/8") column
diameter. With 5 interchangeable insert
rings. |
|||||||||||||||||
| 102-1 | KUKKO 102-1 Piston Pin driver. Pistons
40-100mm. Includes 3 supplementary pressure
pads.
 |
|||||||||||||||||

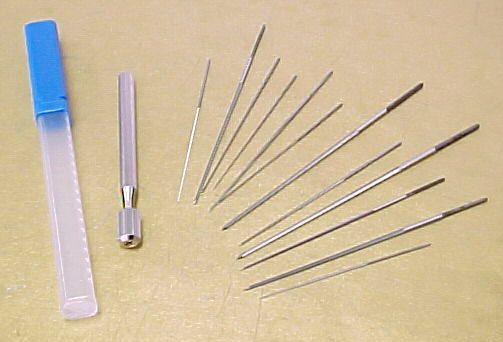

| 245-004 | KUKKO 245-004 "Turnus" Jet reamer Set.
This set contains 12 tapered reamers and a sturdy
steel handle. Sizes included are .6mm, .65mm, .7mm,
.75mm, .8mm, .9mm, 1.0mm, 1.1mm, 1.3mm, 1.5mm,
1.7mm, 1.9mm. A sturdy steel handle is included..
Since these tools are used by hand the results
depend on the skill of the user. Good for carburetor
work or use on other small jets. A nice plastic
storage tube is included.
 |
|||||||||||||||||
| 229-2 229-3 |
Hydraulic Hub
Puller. For pulling all 4 and 5 hole hubs on almost
all passenger cars. More
Info. |
229-2 $604.00 229-3 $804.90 |
||||||||||||||||
| 230 | Flange Type
Slide Hammer Axle Puller. For bolts up to
14mm. Bolt spacing 100-150mm. Hammer weight
3.8Kg Length 265mm.  |
$396.30 | ||||||||||||||||
| K-222-1/7 |
Kukko K-222-1/7 Seal
Pulling Set (radial shaft seal) in case. Used for the
extraction of radial shaft seals, oil seals, sealing
sleeves, seals, bearing seals, and shaft gaskets.
|
$450.40 |
||||||||||||||||
| ___________ |
|
|
| Type 69 Series | Kukko 69
Series ball bearing extractor sets "Universal". The
tight fit of the bearing adapter facilitates secure
removal by placing an even load on the inner and
outer bearing rings. The ball bearing cage must be
destroyed to insert the adapters. You must drill an
access hole.  |
MORE INFORMATION |
|
|
Kukko 70 Series Deep-Groove ball bearing
extractors that are used for quick and easy removal of
ball bearings mounted on shafts in housings. Parts
sold separately! You will need the basic
extractor and a set of arms. See
the sections below. PLEASE NOTE: This series of tools will only work on bearings made to German specifications! Please check your bearing before buying this tool. types 6300-6317 * types 6403-6415
|
|
| Ball
Bearing Extractors - Series 70 Basic Tool |
||
| 70-1 | KUKKO 70-1 Extractor. Sold
without arms. Suitable sets of arms for this item:
70-711, 70-712, 70-713 (see below) |
|
| 70-2 | KUKKO 70-2 Extractor. Sold
without arms. Suitable sets of arms for this item:
70-721+70-722 (see below) |
|
| 70-3 | KUKKO 70-3 Extractor. Sold without arms. Suitable sets of arms for this item: 70-731+ 70-732 (see below) |
|
| 70-4 | KUKKO 70-4 Extractor. Sold without arms. Suitable sets of arms for this item: 70-4730 + 70-4731, 70-4733 + 70-4734 (see below) |
|
| ________ |
Ball
Bearing Extractors - Series 70 Arms |
||||
| Type 70 Arms |

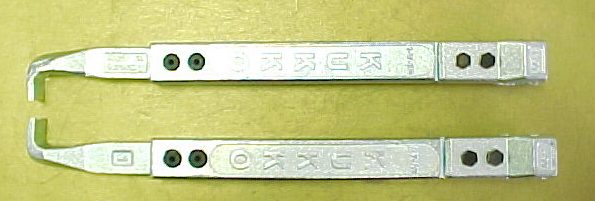

KUKKO type 70 Pulling Arms for
extractors, in sets of 4 each. Spacer rings included
with select sets of arms.
PLEASE NOTE: This series of tools will only work on bearings made to German specifications! Please check your bearing before buying this tool.  |
|
|||
| 70-711 | KUKKO 70-711 Set of 4 Arms,
150mm in length each. No spacer rings. Good for
bearing sizes 6000, 6001, 6002, 6003, 6200. Use with
extractor 70-1. |
$187.00 |
|||
| 70-1 & 70-711 Set | KUKKO 70-1 Extractor,
with KUKKO 70-711 Set of 4 Arms, 150mm in length
each. No spacer rings. Good for bearing sizes 6000,
6001, 6002, 6003, 6200. |
$283.90 |
|||
| 70-712 | KUKKO 70-712 Set of 4 arms, 150mm in length each. 6 spacer rings, Good for bearings sizes 6004, 6005, 6006, 6201, 6202, 6203, 6300. Use with extractor 70-1. | $210.80 | |||
| 70-713 | KUKKO 70-713 Set of 4 arms, 170mm in length each, 5 spacer rings, Good for bearing sizes: 6204, 6205, 6301, 6302, 6303. Use with extractor 70-1. | $210.80 | |||
| 70-721 | KUKKO 70-721 Set of 4 arms, 180mm, in length each, 1 spacer ring, good for bearing sizes: 6007, 6008, 6009, 6010, 6013. Use with extractor 70-2. | $210.80 |
|||
| 70-722 | KUKKO 70-722 Set of 4 arms, 180mm
in length each, 4 spacer rings good for bearing sizes:
6011, 6012, 6206, 6207, 6304, 6306. Use with extractor
70-2.  |
$210.80 |
|||
| ★ | |||||
| 70-2 & 70-722 Set | Kukko 70-2 Extractor with
Kukko
70-722 Set of 4 arms, 180mm in length each, 4 spacer
rings good for bearing sizes: 6011, 6012, 6206,
6207, 6304, 6306. This is also a VW specialist tool
used for Volkswagen rear
wheel bearing on Old VW Type 1, 2, 3, Porsche 356
and some VW Dune Buggy. Note:
This tool will only work on bearings made to German
specifications. Sub-standard bearings do not have
enough metal in them for the tool to grip. Check
your bearings! See the KUKKO VIDEO showing the procedure.
|
$299.99 |
|||
| 70-731 | KUKKO 70-731 Set of 4 arms, 217mm in length each, 6 spacer rings, good for bearing sizes: 6208, 6209, 6210, 6307, 6403, 6407. Use with extractor 70-3. | $327.60 |
|||
| 70-732 | KUKKO 70-732 Set of 4 arms, 217mm in length each, 9 spacer rings, good for bearing sizes: 6211, 6212, 6308, 6309, 6310, 6311, 6404, 6405, 6406, 6408. Use with extractor 70-3. | $327.60 |
|||
| 70-4730 | KUKKO 70-4730 Set of 4 arms, 217mm in length each, 4 spacer rings, good for bearing sizes: 6014, 6015, 6016, 6017. Use with extractor 70-4. | $734.90 |
|||
| 70-4731 | KUKKO 70-4731 Set of 4 arms, 217mm in length each, 6 spacer rings, good for bearing sizes: 6019, 6020, 6214, 6215. Use with extractor 70-4. | $857.00 |
|||
| 70-4734 | KUKKO 70-4734 Set of 4 arms, 290mm in length each, 1 spacer ring. good for bearing sizes: 6021, 6409. Use with extractor 70-4. | $377.60 |
|||
| 70-4733 | KUKKO 70-4733 Set of 4 arms, 290mm in length each. 19 spacer rings, good for bearing sizes: 6216-6222, 6312-6317, 6410-6415. Use with extractor 70-4. |
$1,890.50
|
|||
| Inductive
Heater
- Ball Bearing |
||
 |
||
| T-AW-20 |
Internal
Bearing
size 20, 35, 60mm for Mobile Service. |
Price on Request |
| T-AW-40 |
Internal
Bearing
size 15, 20, 35, 60, 70mm for Workshop. |
Price on Request |
| Ball Bearing
Puller - "PULLPO" the Octopus of Pullers. |
||
 |
||
| K-70-A | "PULLPO" Ball
bearing puller set. Self tensioning with mechanical
pressure screw. For inside bearing diameter of 3/8" -
1-3/16" inch (10-30mm). For bearing numbers 6000-6006,

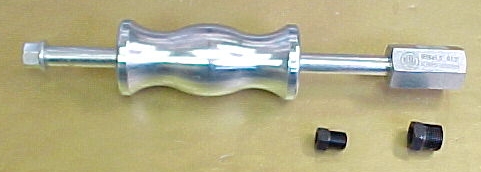

6200-6205, 6300-6304. For a slide hammer to use with
this set, see KUKKO 22-0-1
hammer  |
$1,017.20 |
| K-70-B |
"PULLPO" Ball bearing puller set. Self tensioning with mechanical pressure screw. For inside bearing diameter of 5/8"- 3-7/8" inch (17-100mm). For bearing numbers 6007-6020, 6206-6212, 6305-6311, 6403-6408. | $1,462.90 |
| K-70-C |
"PULLPO" Ball bearing puller set. Self tensioning with mechanical pressure screw. For inside bearing diameter of 3/8" - 3-7/8" inch (10-100mm). For bearing numbers 6000-6020, 6200-6212, 6300-6311, 6403-6408. | $2,317.30 |
| 70-01 |
"PULLPO" Ball bearing
puller. Special cross-beam design allows spread
adjustment of the pulling jaws. Mechanical pressure
spindle. Used with 70-011 and 70-012. |
$204.20 |
| 70-02 |
"PULLPO" Ball bearing
puller. Special cross-beam design allows spread
adjustment of the pulling jaws. Mechanical pressure
spindle. Used with 70-021 and 70-022. |
$254.30 |
| 70-011-S |
Pulling hook set. The
proven KUKKO claw in a newly developed, modern jaw
design. Pulling jaws developed for precise mounting
in bearing tracks for optimal support and better
extension force. Pulling jaws are made of two parts,
dowel pin is hammered into the upper end of the jaw.
For bearing numbers 6000-6004, 6200-6202, 6301. |
$388.30 |
| 70-012-S |
Pulling hook set. The
proven KUKKO claw in a newly developed, modern jaw
design. Pulling jaws developed for precise mounting
in bearing tracks for optimal support and better
extension force. Pulling jaws are made of two parts,
dowel pin is hammered into the upper end of the jaw.
For bearing numbers 6005-6006, 6203-6205, 6300,
6302-6304. |
$432.80 |
| 70-021-S |
Pulling hook set. The
proven KUKKO claw in a newly developed, modern jaw
design. Pulling jaws developed for precise mounting
in bearing tracks for optimal support and better
extension force. Pulling jaws are made of two parts,
dowel pin is hammered into the upper end of the jaw.
For bearing numbers 6007-6013, 6206, 6210, 6211,
6306, 6307. |
$763.20 |
| 70-022-S |
Pulling hook set. The
proven KUKKO claw in a newly developed, modern jaw
design. Pulling jaws developed for precise mounting
in bearing tracks for optimal support and better
extension force. Pulling jaws are made of two parts,
dowel pin is hammered into the upper end of the jaw.
For bearing numbers 6014-6020, 6207-6209, 6212,
6305, 6308-6311, 6403-6408. |
$795.30 |
| ******************* |
Ball Joint Tools |
|
| 127-2 |
Kukko
127-2 Ball joint extractor, working width 33mm,
height 58mm. For Porsche Cayenne older than March
2010; VW Touareg 2003>; Seat Ibiza 2008>; Seat
Leon 2013> |
$122.10 |
| 127-3 | Kukko
127-3 Ball joint extractor, working width 34mm,
height 63mm. For VW Touareg, years 2003-2009;
Mercedes Sprinter; VW-LT 1998; Fiat Ducato 1994
 |
$127.30 |
| 127-4 | Kukko
127-4 Ball joint extractor, working width 37mm,
height 58mm. For VW Touareg, ab Bj. 2010; Audi Q7 ab
Bj. 2007 |
$158.70 |
 |
||
| 128-1 |
Kukko 128-1 Ball joint extractor, working width 18mm, height 38mm. | $76.60 |
| 128-2 | KUKKO 128-2 Ball
joint tool tie rod puller. Fork width 23mm. Working
Height 48mm. Same as Mercedes tool 000 589 44 33 00
  |
|
| 128-3 | Kukko 128-3 Ball joint extractor, working width 29mm, height 60mm. | $138.70 |
| 128-4 | Kukko 128-4 Ball joint extractor, working width 40mm, height 106mm. | $185.70 |
| 128-5 | Kukko 128-5 Ball joint extractor, working width 50mm, height 106mm. | $271.90 |

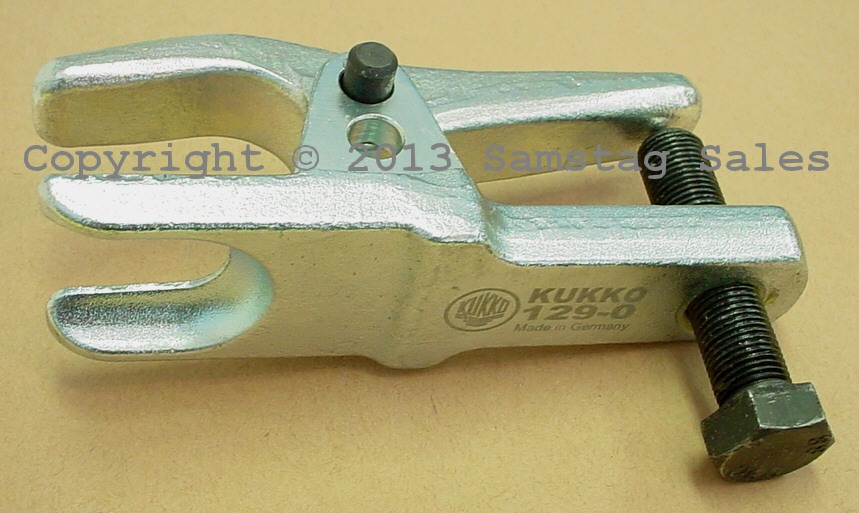

129-0 |
KUKKO 129-0
Adjustable ball
joint extractor. 20mm fork. 2 stage opening to
50mm. |
$198.70 (Picture) |
| 129-0-25 | KUKKO 129-0-25
Adjustable ball
joint extractor. 25mm fork. 2 stage opening to
50mm. For VAG, Universal, Kleinere Modelle |
$198.70 |

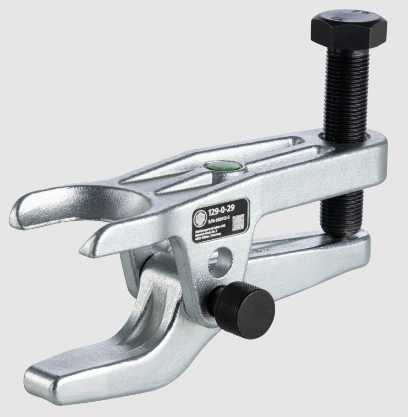

| 129-0-29 | KUKKO 129-0-29
Adjustable ball
joint extractor. 29.5mm fork. 2 stage opening to
50mm. For Polo (02); Golf (04/05); Caddy; A 2 (01); A
6 (98); A 8 (94); Passat (06); TT (99); Touran (04);
LY (97) |
$198.70 |
| 129-0 DC-1 |
KUKKO 129-0-DC-1
Adjustable ball
joint extractor. 20mm fork. 2 stage opening to
50mm. For Mercedes C & E |
$282.90 |
| 129-0 DC-2 |
KUKKO 129-0-DC-2
Adjustable ball
joint extractor. 20mm fork. 2 stage opening to
50mm. For Smart |
$220.70 |
| 129-1 | KUKKO 129-1
Adjustable ball joint extractor. 18-22mm fork. 50mm
opening quick and simple action.
|
$153.90
(Picture) |
| 129-1 B-1 |
KUKKO 129-1-B-1
Adjustable ball joint extractor. 30mm fork. 50mm
opening quick and simple action. For BMW |
$193.10 |
| 129-2 | KUKKO 129-2
Adjustable Triple Jaw ball joint extractor. Jaw width
sizes 16mm, 22mm, 32mm. Opening to 70mm |
$191.60 |
| 129-3-A | KUKKO 129-3-A
Adjustable ball joint extractor. Working width 30mm,
opening to 65mm. For ALU |
$235.80 |
| 129-3-A-32 | KUKKO 129-3-A-32
Adjustable ball joint extractor. Working width 32mm,
opening to 65mm. For ALU-Fahrwerke, A 8 ab 03 (hinten) |
$240.70 |
| 129-3-A-34 | KUKKO 129-3-A-34
Adjustable ball joint extractor. Working width 34mm,
opening to 65mm. For ALU-Fahrwerke, A 8 ab 03 (vorne) |
$235.40 |
| 129-3 | KUKKO
129-3
Adjustable ball joint extractor, lever type. Working
width 31mm, opening to 70mm. Universal for medium sized
trucks, buses and construction vehicles.
|
$258.30 |
| 129-3-H | Kukko 129-3-H Adjustable
Ball Joint Extractor with hydraulic spindle. Working
width 31mm, opening to 70mm. Max force 10 tons. |
$530.40 |
| 129-4 | KUKKO
129-4
Adjustable ball joint extractor, lever type. Working
width 40mm, opening to 85mm. Universal for large sized
trucks, buses and construction vehicles. |
$275.60 |
| 129-4-H | Kukko 129-4-H Adjustable
Ball Joint Extractor with hydraulic spindle. Working
width 40mm, opening to 85mm. Max force 15 tons. |
$751.30 |
| 129-5 | Kukko 129-5 Adjustable Ball
Joint Extractor for heavy trucks. Working width 36mm,
opening to 70mm. |
$500.50 |
| 129-5-H | Kukko 129-3-H Adjustable
Ball Joint Extractor with hydraulic ram, for heavy
trucks. Working width 36mm, opening to 70mm. Max force 15 tons.  |
$979.20 |
| 129-5-45 | Kukko 129-5-45 Tie and
Connection Rod Joint Puller for heavy trucks. Working
width 35-45mm, opening to 120mm. |
$624.50 |
| 129-5-50 | Kukko 129-5-45 Tie and
Connection Rod Joint Puller for heavy trucks. Working
width 50mm, opening to 120mm. |
$698.80 |
| 129-5-45 H10 |
Kukko 129-5-45-H10 Tie and
Connection Rod Joint Puller with hydraulic lift
cylinder. Working width 35-45mm, opening to 120mm. Max
Force 10 Tons. See YHP-326 Set needed to operate puller.  |
$1,260.10 |
| 129-5-45 H20 |
Kukko 129-5-45-H20 Tie and
Connection Rod Joint Puller with hydraulic lift
cylinder. Working width 35-45mm, opening to 120mm. Max
Force 20 Tons See YHP-326 Set needed to operate puller. |
$1,444.00 |
| 129-5-50 H10 |
Kukko 129-5-50-H10 Tie and
Connection Rod Joint Puller with hydraulic lift
cylinder. Working width 50mm, opening to 120mm. Max
Force 10 Tons See YHP-326 Set needed to operate puller. |
$1,332.60 |
| 129-5-50 H20 |
Kukko 129-5-50-H20 Tie and
Connection Rod Joint Puller with hydraulic lift
cylinder. Working width 50mm, opening to 120mm. Max
Force 20 Tons See YHP-326 Set needed to operate puller. |
$1,516.20 |
| 129-6 | Kukko 129-6 Ball Joint
Extractor for trucks. Removable jaw with sizes 24mm,
32mm, 47mm. |
$1,653.30 |
| 129-36-H |
Kukko 129-36-H Tie and
Connecting Rod Joint Puller with Hydraulic Lift
Cylinder. Working width 36mm, opening to 60mm. Max Force 10 Tons. See YHP-326 Set needed to operate puller.  |
$1,767.00 |
| 135-1 | Kukko 135-1 Fork Separators
for ball joints. Fork width 18mm. |
$102.10 |
| 135-2 | Kukko 135-2 Fork Separators for ball joints. Fork width 23mm. | $102.10 |
| 135-3 | Kukko 135-3 Fork Separators for ball joints. Fork width 29mm. | $102.10 |
| 135-4 | Kukko 135-4 Fork Separators for ball joints. Fork width 39mm. | $102.10 |
| 135-5 | Kukko 135-5 Fork Separators for ball joints. Fork width 45mm. | $102.10 |
| Bearing
Install Set |
||
| 71 | KUKKO 71 Bearing Fitting
Tool Kit made of heavy duty steel. 33 impact rings
made of extra strong steel, 5 strike pipes made of
extra strong steel, and 1 dead blow hammer. Internal
bearing size 3/8" - 2". Strike pipe internal
diameter sizes: 19/32", 25/32", 1-3/16", 1-9/16",
2-5/32". All strike pipes are 8-7/8" tall. |
$2,784.00 |
| 71-L |
KUKKO 71-L Bearing Install Set , Fitting Tool
Kit. Light Weight set for Field Service.
For quick, precise and secure installation of bearings
and seals. With 33 impact rings of shockproof plastic,
3 striking pipes, and 1 Dead Blow Hammer. For inside
bearing size 10-50mm (3/8" - 2" inch). Outside
size 26-110mm (1-1/32"-4-3/8" inch). Weight 6.34Kg (14 pounds). Special Order. Delivery estimated 7-10 days.  |
$1,540.50 |
| . |
|
. |
| 15-00 | KUKKO 15-00 Bearing
Separator. Jaw opening is 6mm-40mm width is 40mm. The
15-00 bearing separator is combinable with the 18-00 pulling device. |
$115.20 |
| 15-0 | KUKKO 15-0 Bearing Separator. Jaw opening is
5mm-60mm width is 60mm. The 15-0 bearing separator is
combinable with the 18-0 pulling
device.
 |
|
| 15-1 |
KUKKO 15-1
Bearing Separator. Jaw opening is 12mm-75mm width is
75mm. The 15-1 bearing separator is combinable with 18-1 pulling
device. |
$161.90 |
| 15-2 |
KUKKO 15-2 Bearing Separator. Jaw opening is 22mm-115mm width is 115mm. The 15-2 bearing separator is combinable with the 18-2 , 18-2-B pulling device. |
$251.00 |
| 15-3 |
KUKKO 15-3 Bearing Separator. Jaw opening is 25mm-155mm width is 155mm. The 15-3 bearing separator is combinable with the 18-3, 18-3-B pulling device. (Note: See also set 15-C) |
$406.00 |
| 15-4 |
KUKKO 15-4
Bearing Separator. Jaw opening is 30mm-200mm width is
200mm. The 15-4 bearing separator is combinable with
the 18-4, 18-4-B pulling
device. |
$1,152.60 |
| 15-5 | KUKKO 15-5
Bearing Separator. Jaw opening is 30mm-250mm width is
250mm. The 15-5 bearing separator is combinable with
the 18-5, 18-5-B pulling
device. |
$1,642.70 |
| 17-0 | KUKKO 17-0 Bearing Separator with quick
action pressure screw. Jaw opening is 5mm-60mm width
60mm. The 17-0 bearing separator is combinable with 18-0.
 |
|
| 17-1 | KUKKO 17-1 Bearing Separator with quick action pressure screw. Jaw opening is 12mm-75mm width 75mm. The 17-1 bearing separator is combinable with the 18-1. | |
| 17-2 | KUKKO 17-2 Bearing Separator with quick action
pressure screw. Jaw opening is 22mm-115mm width 115mm.
The 17-2 bearing separator is combinable with the 18-2. |
|
| 17-3 | KUKKO 17-3
Bearing Separator with quick action pressure screw.
Jaw opening is 25mm-155mm width 155mm. The 17-3
bearing separator is combinable with the 18-3. ***Special Order Only |
$573.60 |
| Bearing
Separator - Pulling Device |
||||||||||||||||
| 18-00 | KUKKO 18-00 Pulling Device that is combinable with the 15-00, bearing separators. Jaw opening 25mm-100mm height 60mm bolt size 12mm. | $106.30 | ||||||||||||||
| 18-0 | KUKKO 18-0 Pulling Device that is combinable
with the 15-0, 17-0
bearing separators. Jaw opening 50mm-110mm height
71mm-150mm bolt size 13mm. |
|||||||||||||||
| 18-1 | KUKKO 18-1 Pulling Device that is combinable
with the 15-1, 17-1
bearing separators. Jaw opening 60mm-150mm height
122mm-200mm bolt size 19mm.
|
|||||||||||||||
| 18-2 | KUKKO 18-2 Pulling Device that is combinable
with the 15-2, 17-2
bearing separators. Jaw opening 60mm-200mm height
125mm-250mm bolt size 22mm. |
|||||||||||||||
| 18-3 |
KUKKO 18-3 Pulling Device that is combinable with the 15-3, 17-3 bearing separators. Jaw opening 80mm-300mm height 144mm-300mm bolt size 27mm. (Note: See also set 15-C) . |
$476.90 |
||||||||||||||
| 18-4 | KUKKO 18-4
Pulling Device that is combinable with the 15-4 bearing separator. Jaw opening
120mm-380mm height 134mm-350mm bolt size 36mm. |
$1,146.00 |
||||||||||||||
| 18-5 | KUKKO 18-5
Pulling Device that is combinable with the 15-5 bearing separator. Jaw opening
150mm-440mm height 225mm-400mm bolt size 41mm. |
$1,667.20 |
||||||||||||||
| Type 18-AS Screw Adapters |
 |
See Sets Below |
||||||||||||||
| 18-0-AS |
Kukko 18-0-AS Set
of screw adapters. Set includes 6 pins. Thread sizes (
M4-M5-M6-M8-M10-M12 ) Will fit 18-0 or 18-1 Pulling
Device. With parts:
|
$207.30 |
||||||||||||||
| 18-2-AS |
Kukko 18-2-AS Set
of screw adapters. Set includes 6 pins. Thread sizes (
M8-M10-M12-M14-M16-M18 ) Will fit 18-2 Pulling Device. |
$319.70 |
||||||||||||||
| 18-3-AS | Kukko 18-3-AS Set
of screw adapters. Set includes 6 pins. Thread sizes (
M14-M16-M18-M20-M22-M24 ) Will fit 18-3 Pulling
Device. |
$449.70 |
||||||||||||||
| 19-00-P |
Kukko 19-00-P Pair of
extension pins for pulling device 18-00. Pins are 95mm long. |
$32.00 |
||||||||||||||
| 19-1-P | Kukko 19-1-P Pair of
extension pins for pulling device 18-0 and 18-1. Pins are 100mm long.  |
$37.10 | ||||||||||||||
| 19-2-P | Kukko 19-2-P Pair of
extension pins for pulling device 18-2. Pins are 100mm long. |
$47.20 | ||||||||||||||
| 19-3-P | Kukko 19-3-P Pair of
extension pins for pulling device 18-3. Pins are 100mm long. |
$70.60 | ||||||||||||||
| 19-4-P | Kukko 19-4-P Pair of
extension pins for pulling device 18-4. Pins are 200mm long. |
$102.10 | ||||||||||||||
| 19-5-P | Kukko 19-5-P Pair of
extension pins for pulling device 18-5. Pins are 200mm long. |
$129.50 | ||||||||||||||
| 204-0 | KUKKO 204-0 Bearing Puller 2-Arm with separating claw and side clamp. 50mm wide x 70mm reach. | $190.20 |
||||||||||||||
| 204-02 | KUKKO 204-02 Bearing Puller 2-Arm with
separating claw and side clamp. 90mm wide x 100mm
reach. |
$294.10 (Picture) |
||||||||||||||
| 204-V | KUKKO 204-V "Cobra" puller for bearing inner
race of stub axle. With 2-jaws and side clamp. Special
tip with press piece. 90mm wide by 100mm
reach. Applicable to VW and other models. |
$271.90 (Picture) |
| Bearing Separator
- Sets |
||
| Type 15 Sets |
See Overview of the type 15 Sets. | |
| 15-K |
Kukko 15-K Bearing
Separator Set. Includes 15-0
separator with working range 50-110mm; 18-0
pulling tool with working width 71-250mm and reach of
8-60mm; and one pair of 19-1-P
extensions, 100mm long. Comes in an i-Boxx case. |
$419.10 |
| 15-A | Kukko 15-A Bearing
Separator Set. Includes 15-1
separator with working range 60-150mm; 18-1
pulling tool with working width 122-300mm and reach of
12-75mm; and one pair of 19-1-P
extensions, 100mm long. Comes in an i-Boxx case. |
$586.50 |
| 15-B | Kukko 15-B Bearing
Separator Set. Includes 15-2
separator with working range 60-200mm; 18-2
pulling tool with working width 125-350mm and reach of
22-115mm; and one pair of 19-2-P
extensions, 100mm long. Comes in a L-Boxx case. |
$712.80 |
| 15-C | KUKKO 15-C
Bearing Separator Set. Includes 15-3
separator with working range 80-300mm; 18-3
pulling tool with working width 144-400mm and reach
of 25-155mm; 1 pair of 19-3-P
extensions, 100mm long. Comes in a Metall case.  |
$1,128.00 (Picture) |
| 15-D | Kukko 15-D Bearing
Separator Set. Includes 15-4
separator with working range 120-380mm; 18-4
pulling tool with working width 134-550mm and reach of
30-200mm; and one pair of 19-4-P
extensions, 200mm long. Comes in a Metall case. |
$2,699.60 |
| 15-E | Kukko 15-E Bearing
Separator Set. Includes 15-5
separator with working range 150-440mm; 18-5
pulling tool with working width 225-600mm and reach of
30-250mm; and one pair of 19-5-P
extensions, 200mm long. Comes in a Metall case. |
$3,427.20 |
Type 17 SETS |
See Overview of the type 17 Sets. | |
| 17-K |
KUKKO 17-K
Separating Set with Quick Clamping Pressure Spindle.
With parts 17-0
Separator, 18-0
Pulling Device, 19-1-P
Extension Set, and small i_Boxx case. |
$505.30 |
| 17-A |
KUKKO 17-A
Separating Set with Quick Clamping Pressure Spindle.
With parts 17-1
Separator, 18-1
Pulling Device, 19-1-P
Extension Set, and small i-Boxx case. |
$604.10 |
| 17-B |
KUKKO 17-B Separating Set with Quick Clamping Pressure Spindle. With parts 17-2 Separator, 18-2 Pulling Device, 19-2-P Extension Set, and Large L-Boxx case. | $868.60 |
| 17-C |
KUKKO 17-B Separating Set with Quick Clamping Pressure Spindle. With parts 17-1 Separator, 18-1 Pulling Device, 19-1-P Extension Set, and Metall case. | $1,215.70 |
| . |
|
. |
| 123 | KUKKO 123 Disk Brake Pad Pry Bar with special
tip. Same as Mercedes 123 589
13 33 00
 |
$51.00 |
| 126-00 | KUKKO 126-00 Brake Caliper Piston Reset Tool.
Used to force the brake caliper piston back to make
room for the new brake pads. Good for Audi, BMW,
Mercedes-Benz, Porsche, Volkswagen with disc brakes.
Pads are 50mm wide.  |
|
| 126-01 | KUKKO 126-01 Brake pad puller. With 2
adjustable arms and 5mm pins. Overall about 140mm
(5-1/2") long. With 100mm (4") wide handle. It has a
green plastic dip handle.
 |
|
| 126-02 | KUKKO 126-02 Brake Piston Clamp, used to
hold the brake cylinder piston in place with brake
shoes removed. Good for Porsche 356 with drum brakes.
Same as old Porsche Special Tool Number P47. |
|
| 126-03 | KUKKO 126-03 Brake Piston rotating pliers.
With 3 position adjustment and plastic dip handles.
With special jaws
to grip the piston. **SPECIAL ORDER ONLY!! |
|
| 126-15 | Kukko
126-15 brake piston retractor. For 6-Piston Brake
Calipers. With a universal fit, the retractor is
suitable for the following vehicles: Touareg,
Phaeton, Porsche Cayenne, Audi A8, Q7, BMW M3,
etc. |
$356.90 |
| Cylinder
Liner Puller |
||
| 16 |
KUKKO 16 Cylinder Liner Puller Set. With 16-21
Puller and 16-22 Counterstay. Weight 7.6Kg |
$1,145.60 (Picture) |
| 16-21 |
KUKKO 16-21
Cylinder Liner Puller Device 60-155mm (2-3/8"-6-1/8") |
$662.20 |
| 16-22 | KUKKO 16-22
Counterstay to use with 16-21 puller. |
$483.50 |
| K-16 |
Kukko K-16 Cylinder Liner
Puller Set in a Case. With 16-21 Puller , 16-22
Counterstay, 16-22-V Spindle Extension, Tube of
Grease, and case. For inside diameter 60-155mm.
Depth 125-250mm. Pulling 7 Tons Max. |
$1,210.50 |
fffffffffffff |
Engine Tools |
|||
| |
Wilbär
Engine Tilting Hoist "URANOS" by
KUKKO. Used for directing the incline of the
engine during removal and replacement. Contact us
with your shipping address for a price quote with
shipping cost direct from Germany.
|
|||
| W-3180 | Tilting Hoist "URANOS"
Weight Limit 2000Kg (4400 pounds) |
Price on Request |
||
| W-3188 | Tilting Hoist "URANOS" Weight Limit 500Kg (1100 pounds) | Price
on Request |
||
| W-6066 | Engine assembly stand
for double-sided mounting, consisting of 1 motorized
bearing stand, 1 counter bearing stand, 2 yokes, 4
support arms, 4 clamping claws and 2 connecting
tubes
 |
Price on Request |
||
| W-6067 | Engine assembly stand
for unilateral clamping, consists of 1 driven bearing
block, 1 spreading rail with disc, brackets and
bolts,1 outrigger. |
Price on
Request |
fffffffffffff |
Flange Spreader |
|
 |
||
| 160-1-P | Kukko 160-1-P Universal
spreader for spreading of flanges and similar parts of
all types and sizes. Range of jaws 80-250mm. (Pair) |
$757.70 |
| 160-2-P | Kukko 160-2-P Universal
spreader for spreading of flanges and similar parts of
all types and sizes. Range of jaws 250-1200mm. (Pair) |
$1556.00 |
| . | ||
| 165-E |
Kukko 165-E Universal
spreader for spreading of flanges and similar parts of
all types and sizes. Range of jaws 10-75mm (3/8" to 3"),
Max load of 2 metric tons.
 |
$2,485.10 |
| . |
|
. |
| Please Note:
Due to technical and safety reasons, replacement arms
are available in sets only. |
||
Kukko
pullers
are specified by the maximum width and reach as
measured and shown here. |
||
|
Gear Pullers - Confined
Space - Spare Arms
|
||||||||||||||||||||
| . | KUKKO Spare Arm Sets for confined spaces. For type
20 Puller. Special Order Only.
|
on Request |
||||||||||||||||||
| 1-91-P | KUKKO 1-91-P Puller arms for confined
spaces. 100mm (4") length. Use with puller type 20-1
or 20-10. Narrow
tips. Tips 30mm wide, with 6mm lip as measured
inside.
 |
|||||||||||||||||||
| __________ |
Gear Pullers - Standard - Spare Arms | |||||||||||||
KUKKO Spare Arm Sets. For type 20 Puller.
|
Price on Request |
|||||||||||||
| 1-90-P | KUKKO 1-90-P Standard Length arms for
type 20-1 or 20-10 puller. 100mm (4"). See Finger Size Here. |
$85.00 (Picture) |
||||||||||||
| 1-190-P | KUKKO 1-190-P Extra-long arms for type 20-1
or 20-10 puller. 200mm (8"). See finger size here.
 |
|||||||||||||
| 1-250-P | KUKKO 1-250-P Extra-long arms for type 20-1
or 20-10 puller. 250mm (10"). See finger size here.
|
|||||||||||||
| 1-V-150-P | KUKKO 1-V-150-P Extension
Arm Set 150mm (6"inch) for Pullers 20-1
or 20-10. Also used in arms 1-250-P.
 |
$92.70 |
||||||||||||
| 2-150-P |
KUKKO 2-150-P
Spare Puller Arm Set 150mm (6"). For type 20-2 and
20-20 puller.
 |
$153.90 | ||||||||||||
| 2-V-150-P |
KUKKO 2-V-150-P
Two Bolt, Extension Arm Set for Pullers 20-2 or 20-20.
150mm long. Set of 2 extensions. Please
NOTE: Kukko has changed the design on the
pullers to use ArmLock Technology. The new design has
a "T" type of attachment with one bolt. The old style
was straight with two bolts. This
tool has the 2 bolt design. Please check your
puller arms before buying this set! The arms will look
like the old 20-20 puller, to see it click here.
Only 1 left. |
$124.99 (Picture) |
||||||||||||
| 2-V-150-P | KUKKO
2-V-150-P One Bolt, Extension Arm Set for Pullers 20-2
or 20-20. 150mm long. Set of 2 extensions. Please NOTE: Kukko has
changed the design on the pullers to use ArmLock
Technology. The new design has a "T" type of
attachment with one bolt. The old style was straight
with two bolts. This tool has
the 1 bolt design with "T". Please check your
puller arms before buying this set! This part is needed to make the 2-300-P arms.  |
$131.00 (Picture) |
||||||||||||
| 3-200-P | KUKKO 3-200-P Standard
Length. Spare Arm Set 200mm (8" inches). For type
20-3, 20-30, 20-4, 20-40 puller. |
$327.10 |
||||||||||||
| 3-300-P | KUKKO 3-300-P Spare Arm Set 300mm (11-13/16").
For type 20-3, 20-30, 20-4, 20-40 puller. Note: Due to
the weight, this item could ship UPS Ground. We will
ship the best way. |
$396.70 |
||||||||||||
| Gear Pullers - Spare Arms - Quick Adjust | ||||||||||||||
| 2-P | Standard pulling
hooks with Quickadjust in various lengths. |
More Info |
||||||||||||
| 1-92-P |
Kukko 1-92-P Spare Arm
Set, 100mm long. For Kukko 20-1+, and 20-10+ pullers. |
$86.80 |
||||||||||||
| 1-192-P |
Kukko 1-192-P Spare Arm
Set, 200mm long. For Kukko 20-1+, and 20-10+ pullers. |
$181.80 |
||||||||||||
| 1-252-P |
Kukko 1-252-P Spare Arm
Set, 250mm long. For Kukko 20-1+, and 20-10+ pullers. |
$184.80 |
||||||||||||
| 2-152-P |
Kukko 2-152-P Spare Arm
Set, 150mm long. For Kukko 20-2+, and 20-20+ pullers. |
$163.40 |
||||||||||||
| 2-302-P |
Kukko 2-302-P Spare Arm
Set, 300mm long. For Kukko 20-2+, and 20-20+ pullers. |
$301.70 |
||||||||||||
| 3-202-P |
Kukko 3-202-P Spare Arm
Set, 200mm long. For Kukko 20-3+, and 20-30+ pullers. |
$401.20 |
||||||||||||
| 3-302-P |
Kukko 3-302-P Spare Arm
Set, 300mm long. For Kukko 20-3+, and 20-30+ pullers. |
$435.20 |
||||||||||||
| 3-402-P |
Kukko 3-402-P Spare Arm
Set, 400mm long. For Kukko 20-3+, and 20-30+ pullers. |
$458.40 |
||||||||||||
| 3-502-P |
Kukko 3-502-P Spare Arm
Set, 500mm long. For Kukko 20-3+, and 20-30+ pullers. |
$520.70 |
||||||||||||
| Gear Pullers - Basic | ||
| Kukko pullers are
specified by the maximum width and reach as measured
and shown here. |
||
| 20-1 | KUKKO 20-1 Adjustable 2-Arm puller,
90mm wide x 100mm reach. (3-17/16" x 3-15/16") Made in
Germany. Pressure Screw Size: M14x1.5 Threads.
|
|
| 20-10 | KUKKO
20-10 Puller 2-Arm, 120mm wide x 100mm reach.
(4-23/32" x 3-15/16"). Pressure Screw Size: M14x1.5
Threads. See Finger Size Here. |
|

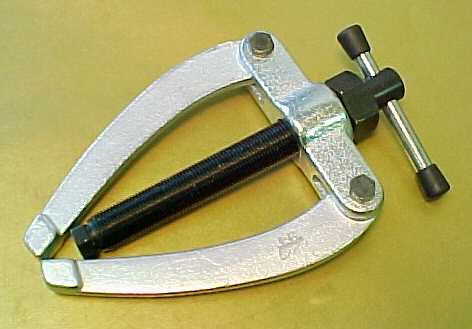

| 20-2 | KUKKO 20-2
Puller 2-Arm, 160mm wide x 150mm reach. (6-5/16"x
5-29/32"). Pressure Screw Size: G1/2" Threads.
|
$297.00 (Picture) |

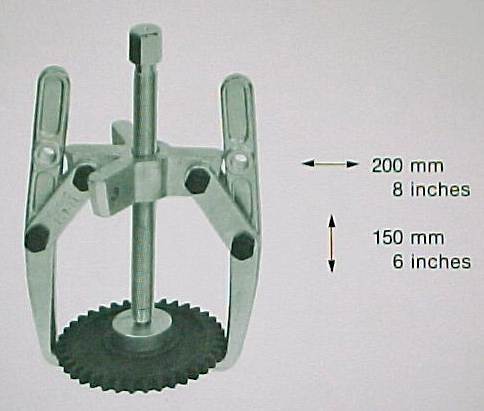

| 20-20 | KUKKO 20-20 Puller
2-Arm, 200mm wide x 150mm reach.
(7-7/8"x 5-29/32") Pressure Screw Size: G1/2"
Threads. This puller comes with arms 2-150-P,
Pressure Screw 621220, and Cross Bar 20-20-T.  |
$326.70 (Picture) |
| 20-3 | KUKKO 20-3 Sliding-arm universal puller with
constantly parallel claws, type 20. Serves both as
outside, inside, and centrical, and excentrical
pulling. Uniform load distribution with excellent hold
on the part to be pulled. 250mm wide (10") x 200mm
(8") reach. (9-27/32" x 7-7/8") Pressure Screw Size:
G3/4" Threads.
 |
$593.90
(Picture) |
| 20-30 | KUKKO
20-30 Puller 2-Arm, 350mm wide x 200mm reach.
(13-25/32"x 7-7/8"). Pressure Screw Size: G3/4"
Threads. With Arms (3-200-P)
and Pressure Screw (626300)
Please NOTE: some people
in the laundry supply business list this tool as
16-1/2" wide. The overall length of the crossbar is
about 16-1/2", but the working distance is closer to
13-25/32" inch, due to the width of the arms.
 |
$653.30 (Picture) |
| 20-4 | KUKKO 20-4 Puller 2-Arm, 520mm wide x 200mm reach. (20-15/32" x 7-7/8"). Pressure Screw Size: G 1" Threads. | $1,187.80 |
| 20-40 | KUKKO 20-40 Puller 2-Arm.
650mm wide x 300mm reach. (25-5/8"x 11-13/16") .
|
$2,019.30 |
| 20-40-AV | KUKKO 20-40-AV Puller
2-Arm with Adjustable
Reach. 650mm (25-5/8") wide, Adjustable
Reach 300-500mm (11-7/8"- 19-3/4"). Maximum
Load of 12 Metric Tons. Screw 633500 BSPP British
Whitworth Pipe Thread Size G 1" with thread diameter
33.249mm. |
$2,214.20 |
| 20-5 | KUKKO 20-5 Puller 2-Arm , 750mm wide x (400-700mm) reach. (29-1/2"x 15-3/4" to 27-9/16"). With adjustable reach. Pressure Screw Size: G 1-1/8" Threads. | Price on Request (Picture) |
| KUKKO Type 20 Spare Arm Sets |
Price on Request |
|
| 20-S | KUKKO Gear Pullers, Type 20 , Slender Arms. |
More Info |
| Type
41 |
KUKKO Type 41 Universal 2-Jaw Puller with
Swiveling Jaws.  |
More Info |
41-0 |
KUKKO 41-0 Mini
Swivel-Arm 2-Arm Gear Puller 60mm wide x 40mm reach.
Pressure Screw Size: M10 Threads. Popular size used on
Printing Equipment. Cross-reference to Heidelberg
66.024.010
 |
$54.20 (Picture) |

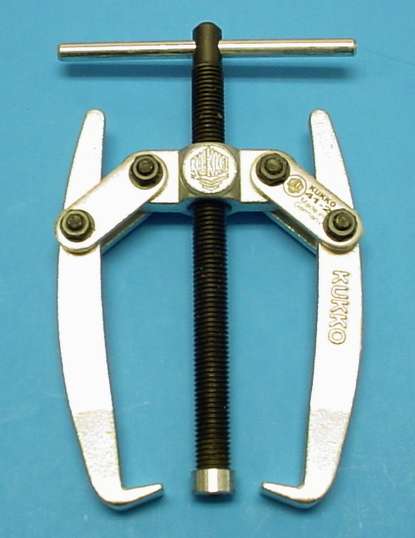

| 41-2 | KUKKO 41-2 Puller, 2-Arm 80mm wide x
80mm reach. Pressure Screw Size: M9 Threads. |
| Type 44 |
Type 44
Puller 2-Arm. Self-centering pulling hooks. Two
sided spindle tip.  |
|
| 44-1 |
Type 44-1
Puller 2-Arm. Self-centering pulling hooks. Two
sided spindle tip. Width 100mm , Reach 100mm. Load 3
ton max. Bolt head 13mm. |
$88.00 |
| 44-2 |
Type 44-2 Puller 2-Arm. Self-centering pulling hooks. Two sided spindle tip. Width 120mm , Reach 120mm. Load 5 ton max. Bolt head 17mm. | $140.10 |
| 44-3 | Type 44-3 Puller 2-Arm. Self-centering pulling hooks. Two sided spindle tip. Width 160mm , Reach 160mm. Load 6 ton max. Bolt head 19mm. | $214.50 |
| Type 204 |
 |
|
| 204-1 | KUKKO
204-1 Puller 2-Arm with holding side clamp,
range 80mm wide x 90mm reach. Pressure Screw Size:
M18x1.5 Threads. Good for Pitman arm removal on
steering gear.  |
$214.50 |
| 204-2 | KUKKO 204-2 Puller 2-Arm with holding
side clamp, range 100mm wide x 100mm reach. Pressure
Screw Size: G1/2" Threads.
 |
|
| 204-3 | KUKKO 204-3 Puller 2-Arm with holding
side clamp, range 150mm wide x 140mm reach. Special Order Only. |
$398.90 |
| 205-02 |
KUKKO 205-02 Puller 2-Arm. 250mm wide, 220mm
reach. Pressure Screw Size: G1/2" Threads.
 |
|
| 210-1 |
KUKKO 210-1 Separator-Puller 2-Arm
with side clamp, 95mm wide, 170mm maximum reach.
Pressure Screw Size: Whitworth Pipe G1/2" Threads.
Same as tool VAS251009 supplied by Volkswagen. Needed
for dismantling and assembly of gearbox. One side has
pulling claws, the other side has separating claws.
Adjustable reach with 4 positions. Pull force 5
ton. |
|
|
|
Pressure
Screw
|
|
 See the Reference Table for a complete list of pressure screws and applications. |
||
| 600-17 | KUKKO 600-17 Pressure Pad
Brick Set. Set of 3 in size 20mm, 32mm 41mm. Modular
system, the pressure pads can be combined with each
other. For the support of the pressure screw
with a hollow shaft.  |
$40.00 (Picture) |
| Kukko K-600 |
Kukko K-600-XXX Sets of
interchangeable pressure pads. Universal for all shaft
forms, 3 different forms of pressure screw pressure
pads. A total of 3 different pressure pads, modular
system allowing pads to be combined with each other.
For the support of the pressure spindle with a hollow
shaft. |
|
| K-600-014 New Number K-600-A |
Kukko K-600-A Pressure
Pad Set, for size M12-M14. Includes size 14mm Plate
tool, 12.5mm Large Tip tool, and 14mm Concave tool and
6.4mm pressure tool holder. Also included are three
pressure pads with diameters of 20mm, 32mm, and 41mm. |
$224.10 |
| K-600-018 New Number K-600-B |
Kukko K-600-B Pressure Pad Set, for size M16-M18. Includes size 18mm Plate tool, 15.5mm Large Tip tool, and 18mm Concave tool and 10.4mm pressure tool holder. Also included are three pressure pads with diameters of 20mm, 32mm, and 41mm. | $224.10 |
| K-600-025 New Number K-600-C |
Kukko K-600-C Pressure
Pad Set, for size M20, G1/2", G5/8", G3/4" pressure
screw. Includes size 25mm Plate tool, 25.5mm Large Tip
tool, and 26mm Concave tool and 12.5mm pressure tool
holder. Also included are three pressure pads with
diameters of 20mm, 32mm, and 41mm. |
$293.60 |
| K-600-035 New Number K-600-D |
Kukko K-600-D Pressure Pad Set, for size 1" - G1-1/8". Includes size 35mm Plate tool, 36mm Large Tip tool, and 38mm Concave tool and 18.9mm pressure tool holder. Also included are three pressure pads with diameters of 20mm, 32mm, and 41mm. | $334.10 |
| 612140 | KUKKO 612140 Spare Tip for Pressure Screw.
Used in 20-1, 20-10, 30-1, 30-10 Pullers |
$46.00 |
| 614135 | KUKKO 614135 Spare Pressure Screw with
M14x1.5 metric threads, 135mm long, with 17mm hex on
top. Includes tip 612140.
For
gear pullers: 12-1, 30-1, 30-10+, 30-1-2, 30-10,
30-10+, 30-10-2, 32-1, 33, 112-2, 201-1, 202-1, 203-1,
30-1-S, 30-1+S, 30-10-S, 30-10+S, 30-10SP, 30-1-S-T,
30-10-S-T, 30-1+S-T, 30-10+S-T, with M14x1.5 thread
|
|
| 614160 | KUKKO 614160
Spare Pressure Screw with M14x1.5 metric threads,
160mm long, with 17mm hex on top. Includes tip 612140.
For gear pullers: 20-1, 20-10, 20-10-V, 44-2, 45-2,
112-20, 113-20, 205-01, 206-01, 207-01, 208-01, 209-01
, 20-1-S, 20-10-S, 20-1+S, 20-10+S, with M14x1.5
threads.
|
$93.00
|
| 614250 | KUKKO 614250 Spare Pressure Screw with M14x1.5 metric threads, 250 mm long, with 17mm hex on top. Includes tip 612140. For gear pullers: K-2030-10, K-2030-10-S, K-2030-10+S, K-2030-10-S-T, 70-2, 201-S, 202-S , with M14x1.5 threads. | $93.00 |
| 616180 |
KUKKO 616180
Spare Tip for Pressure Screw. Used in 12-2, 18-1,
32-2, 110-2, 110-20 |
$46.00 |
| 620260 | KUKKO 620260 Spare Tip for Pressure Screw.
Double End. Used in 20-2, 20-20, 20-3, 20-30 Pullers |
$46.00 |
| 621220 | KUKKO 621220 Spare Pressure Screw. BSSP
(British Standard Pipe Parallel) 55 degree, G
1/2" threads 20.995mm x 210mm long, 14TPI, with 22mm
hex on top. Includes tip 620260.
(Replaced 620220) For pullers 20-20-3, 20-20+3, 30-2,
30-2+, 30-2-3, 30-20, 30-20+, 30-20-3, 31-1, 31-2,
200-U, 201-2, 202-2, 203-2, 205-02, 206-02, 207-02,
208-02, 209-02, 210-1, 210-01, 301-3, 301-4, 20-2-S,
20-2+S, 20-20-S, 20-20+S, 20-20SP, 30-2-S, 30-2+S,
30-20-S, 30-20+S, 30-20SP, 17-3, 18-2, 20-2, 20-20,
20-2+, 20-20+, 20-2-S, 20-20-S, 30-2, 30-20, 30-2+,
30-20+, 30-2-S, 30-20-S
|
$139.00
|
| 626300 | KUKKO 626300
Spare Pressure Screw with BSSP (British Standard Pipe
Parallel) 55 degree, G 3/4" threads 26.441mm x
300mm long, 14TPI, with 27mm hex on top. Includes tip
620260.
For gear pullers: 18-3, 20-3, 20-3+, 20-3-3, 20-3-4,
20-3-5, 20-30, 20-30+, 20-30-3, 20-30-4, 20-30-5,
30-3, 30-3+, 30-3-3, 30-3-4, 30-3-5, 201-3, 201-4,
202-3, 202-4, 203-3, 203-4, 205-1, 206-1, 207-1,
20-3-S, 20-3+S, 20-30-S, 20-30+S, 20-30SP, 30-3-S,
30-3+S, 30-3SP. With new dual end tip, pointed and
round. Pull out the tip to switch it to the
other end. This is the current sub for old part number
626280.
|
$186.00 |
| |
Gear Puller - Quick Adjust - 2 Arm | |
| 20-1+ |
KUKKO 20-1+
Quick Adjust Puller. 2-Arm. Arm width and height: 90mm
x 100mm (3-5/8"x 4")  |
$193.00 |
| 20-10+ |
KUKKO 20-10+
2-Arm Quick Adjust Puller. Arm width and height: 120mm
x 100mm (5"x 4") |
$229.30 (Picture) |
| 20-2+ |
KUKKO 20-2+
2-Arm Quick Adjust Puller. Arm width and height: 160mm
x 150mm (6"x 6") |
$304.70 |
| 20-20+ |
KUKKO 20-20+ 2-Arm Quick
Adjust Puller. Arm width and height: 200mm x 150mm
(8"x 6")
 |
$334.40 |
| 20-3+ |
KUKKO 20-3+ 2-Arm
Quick Adjust Puller. Arm width and height: 250mm x
200mm (10"x 8") |
$659.80 |
| 20-30+ |
KUKKO 20-30+
2-Arm puller, type 20 PLUS quick-adjusting.
Has knobs
to help loosen and adjust puller arms quickly without
a wrench. Arm width and height: 350mm x 200mm (14" x
8"). Pressure Screw Size: G3/4" Threads. |
$653.30 |
| |
Gear Puller - Quick Adjust - 2 Arm -
Slender |
|
| 20-1+S | KUKKO 20-1+S
2-Arm SLENDER Quick Adjust Puller. Working width and
height: 90mm x 100mm (3 5/8" x 4") |
$222.70 |
| 20-10+S | KUKKO 20-10+S
2-Arm SLENDER Quick Adjust Puller. Technology for
confined spaces. Working width and height: 120mm x
100mm (5" x 4"). Pressure Screw Size: M14x1.5 Threads.
With new reversible
tip, round and pointed tip. With arm number 1-93-P. With slender fingers, see the size here.
(
Pic2 ) (
Pic3) ( Pic4
) |
$245.00 |
| 20-2+S |
KUKKO 20-20+S 2-Arm SLENDER Quick Adjust Puller. Arm width and height: 160mm x 150mm (6" x 6") | $377.80 |
| 20-20+S |
KUKKO 20-20+S
2-Arm SLENDER Quick Adjust Puller. Arm width and
height: 200mm x 150mm (8" x 6") |
$399.90 |
| 20-3+S |
KUKKO 20-3+S
2-Arm SLENDER Quick Adjust Puller. Arm width and
height: 250mm x 200mm (10" x 8") |
$724.70 |
| 20-30+S | KUKKO 20-30+S
2-Arm SLENDER Quick Adjust Puller. Arm width and
height: 350mm x 200mm (14" x 8") |
$719.20 |
| Gear
Puller
- Quick Adjust - 2+3 Arm - Slender - SETS |
||
| KS-2030-1-193+S |
KUKKO
KS-2030-1-193+S Confined Space Gear Puller Set with
parts to make a 2-Arm or 3-Arm puller, 90x100mm
(3-5/8" x 4") and 90x200mm (3-5/8" x 8"). This set
will do the work of 4 pullers, (20-1+S ),
(20-1-2+S), (30-1+S), (30-1-2+S). Supplied in a Kukko
plastic case. Special
Order.
 |
$651.00 |

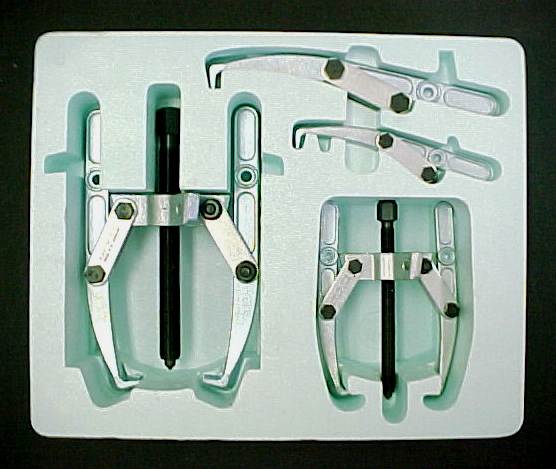

| K-2030-10+S |
Kukko
K-2030-10+S Set of two and three arm pullers
with narrow jaws. Opening of 120-130mm with a height
of 100-350mm Quick-Adjust. Special Order. |
$1,082.40 |
| |
Gear Puller - Quick Adjust - 3 Arm | |
| 30-1+ |
KUKKO 30-1+ 3-Arm
Quick Adjusting Puller. Arm width and height: 90mm x
100mm (3-5/8" x 4") |
$270.00 |
| 30-10+ |
KUKKO 30-10+
3-Arm Quick Adjusting Puller. Arm width and height:
130mm x 100mm (5" x 4") |
$251.50 |
| 30-2+ |
KUKKO 30-2+ 3-Arm
Quick Adjusting Puller. Arm width and height: 160mm x
150mm (6" x 6") |
$438.90 |
| 30-20+ |
KUKKO 30-20+
3-Arm Quick Adjusting Puller. Arm width and height:
200mm x 150mm (8" x 6") |
$465.30 |
| 30-3+ |
KUKKO 30-3+ 3-Arm
Quick Adjusting Puller. Arm width and height: 250mm x
200mm (10" x 8") |
$897.40 |
| Gear Puller -
Quick Adjust - 3 Arm - Slender |
||
| 30-1+S |
KUKKO 30-1+S
3-Arm SLENDER Quick Adjust Puller. Arm width and
height: 90mm x 100mm (3-5/8" x 4") |
$311.80 |
| 30-10+S |
KUKKO 30-10+S
3-Arm SLENDER Quick Adjust Puller. Arm width and
height: 130mm x 100mm (5" x 4") |
$343.00 |
| 30-2+S |
KUKKO 30-2+S
3-Arm SLENDER Quick Adjust Puller. Arm width and
height: 160mm x 150mm (6" x 6") |
$512.10 |
| 30-20+S |
KUKKO 30-20+S
3-Arm SLENDER Quick Adjust Puller. Arm width and
height: 200mm x 150mm (8" x 6") |
$567.40 |
| 30-3+S | KUKKO 30-3+S
3-Arm SLENDER Quick Adjust Puller. Arm width and
height: 250mm x 200mm (10" x 8") |
$1,049.10 |
| Gear Puller - Self-Centering 2 or 3 Arm |
||
| 43-2 |
KUKKO 43-2 Small 2-Arm
Puller. Self Centering. With 70mm wide x 70mm
reach. Pressure Screw Size: M9 Threads.
 |
$76.60 |
| 44-3 |
Kukko 44-3 Self
centering 2-Arm Puller with AutoGrip Technology.
160mm wide x 160mm reach. Special Order.
 |
$214.50 |
| 45-1 | KUKKO 45-1 Self-Centering
3 Jaw Puller. 100mm x100mm (3-7/8"x3-7/8"). |
$134.20 |
| 45-2 | KUKKO 45-2
Self-Centering 3 Jaw Puller. 120mm x120mm (4-3/4"x4-3/4").  |
$200.90 |
| 45-3 |
KUKKO 45-3 Self-Centering
3 Jaw Puller. 160mm x160mm (6-3/8"x6-3/8"). |
$300.30 (Picture) |
| 45-4 |
KUKKO 45-4 Self-Centering
3 Jaw Puller. 250mm x200mm (9-7/8"x7-7/8"). |
$423.60 |
| 45-5 |
KUKKO 45-5 Self-Centering
3 Jaw Puller. 300mm x250mm (11-7/8"x9-7/8"). |
$527.20 |
| 45-6 |
KUKKO 45-6 Self-Centering
3 Jaw Puller. 375mm x275mm (14-3/4"x11"). |
$918.10 |
| 45-7 |
KUKKO 45-7 Self-Centering
3 Jaw Puller. 600mm x350mm (23-5/8"x13-3/4"). |
$1,268.60 |
| 845-1-B |
KUKKO 845-1-B
Universal 3-Jaw puller with short hydraulic spindle
and self-centering jaws. |
Price on Request |
| Gear Puller - Swiveling - 3 Arm |
||
| KUKKO 202-1 |
KUKKO 3-Jaw
Puller. with Reversible double-end Jaws. With 85mm
reach and 150mm spread.  |
$146.70 |
| KUKKO Type 206 |
KUKKO 3-Jaw
Puller, with adjustable reach. See Size Chart to select a tool.  |
Price on Request Size Chart |
| KUKKO 207 |
KUKKO 3-Jaw
Puller. Available in size 120mm up to 1000mm (39"
inches). With 2 and 3 Jaw combination cross bar.  |
More Info |
| Kukko 207-00 |
Kukko 207-00 Puller. 3
jaw, 120mm spread size, 100mm reach. |
$109.40 |

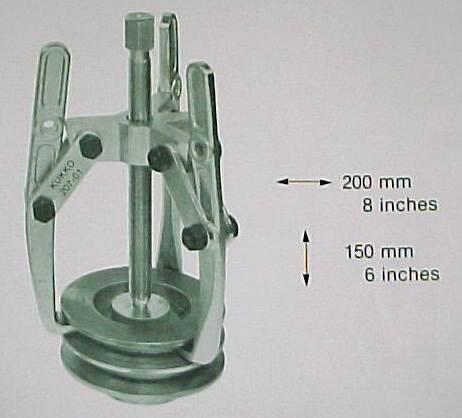

| Kukko 207-01 | Kukko 207-01 Puller. 3 jaw, 200mm spread size, 150mm reach. | $147.60 |

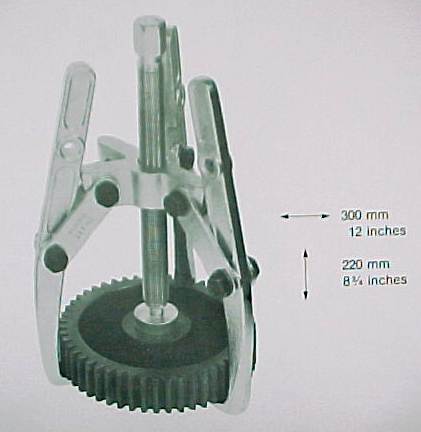

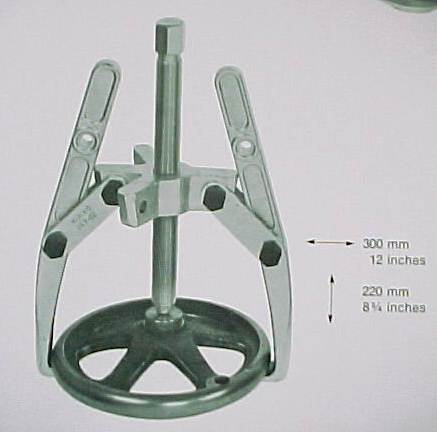

| Kukko 207-02 | Kukko 207-02 Puller. 3 jaw, 300mm spread size, 220mm reach. | $245.50 |
| Kukko 207-1 | Kukko 207-1 Puller. 3 jaw, 400mm spread size, 280mm reach. | $522.60 |
| Kukko 207-2 | Kukko 207-2 Puller. 3 jaw, 450mm spread size, 400mm reach. | $635.10 |
| Kukko 207-3 | Kukko 207-3 Puller. 3 jaw, 550mm spread size, 540mm reach. | $851.10 |
| Gear Puller
- Hydraulic - 2 Arm |
||
| Kukko 20-B |
Kukko 20-B Universal 2-jaw
puller with long hydraulic spindle and mechanical
pressure screw (for select sizes). |
|
| Kukko 20-2-B |
Kukko 20-2-B Gear Puller -
2 Arm. 160mm spread and 150mm arm length. Rated 7 Tons.
Comes with 12mm mechanical pressure screw. |
$723.80 |
| Kukko 20-20-B |
Kukko 20-20-B Gear Puller - 2 Arm. 200mm spread and 150mm arm length. Rated 7 Tons. Comes with 12mm mechanical pressure screw. | $753.50 |
| Kukko 20-3-B |
Kukko 20-3-B Gear Puller - 2 Arm. 250mm spread and 200mm arm length. Rated 10 Tons. Comes with 12mm mechanical pressure screw. | $1,085.80 |
| Kukko 20-30-B |
Kukko 20-30-B Gear Puller - 2 Arm. 350mm spread and 200mm arm length. Rated 10 Tons. Comes with 12mm mechanical pressure screw. | $1,145.20 |
| Kukko 20-4-B |
Kukko 20-4-B Gear Puller -
2 Arm. 520mm spread and 200mm arm length. Rated 15 Tons.
Mechanical pressure screw not
included. |
$2,174.70 |
| Kukko 20-40-B |
Kukko 20-40-B Gear Puller
- 2 Arm. 650mm spread and 300mm arm length. Rated 15
Tons. Mechanical pressure screw
not included. |
$3,006.10 |
| KUKKO 20-4-H |
KUKKO 20-4-H
Gear Puller. 2-Arm, 520mm x (300-500mm) adjustable
length arms. With Hydraulic action. Rated 15 tons. Special Order!  |
$2,348.40 |
| KUKKO 20-40-H |
KUKKO 20-40-H Gear Puller. 2-Arm, 650mm x (300-500mm) adjustable length arms. With Hydraulic action. Rated 15 tons. | $2,980.80 |
| KUKKO 20-5-H |
KUKKO 20-5-H
Gear Puller. 2-Arm, 750mm x (400-700mm) adjustable
length arms. With Hydraulic action. Rated 20 tons. ( More
Information ) |
$4,863.50 |
| Grease | ||
| 699904 | KUKKO
699904 Special Sliding Grease for pressure spindles
and screws. KUKKO KSF-69 Green. Small
tube 2-7/8" long with 4g. |
$25.60 |
| 699915 | KUKKO
699915 Special Sliding Grease for pressure spindles
and screws. KUKKO KSF-69 Green. Small
tube 4" long with 15g. |
$25.60
|
| Hand Vice | ||
| 101-100 | Turnus 101-100
hand vice. 100mm long. Jaws
40mm wide, 18mm opening |
|
| 101-120 |
Turnus 101-120
hand vice. 120mm long. Jaws 45mm wide x 22mm
opening. |
$82.00 |
| 101-130 |
Turnus 101-130 hand vice. 130mm long. Jaws 48mm wide x 25mm opening. | $88.20 |
| 101-145 |
Turnus 101-145 hand vice. 145mm long. Jaws 52mm wide x 28mm opening. | $92.80 |
| 101-160 |
Turnus 101-160 hand vice. 160mm long. Jaws 58mm wide x 35mm opening. | $97.40 |
| 101-180 |
Turnus 101-180 hand vice. 180mm long. Jaws 60mm wide x 40mm opening. | $111.40 |
| 101-200 | Turnus 101-200 hand vice. 200mm long. Jaws 65mm wide x 45mm opening. | $139.20 |
| 102-120 |
Turnus 102-120 Hydraulics with pointed jaw for clamping workpieces. Serrated surface inside the jaw, wingnut, covered captive round steel spring, joint guide. Overall length 120mm, Jaw 13mm wide x 20mm opening. | |
| 103-160 |
Turnus 103-160 Hand vice
with wrench, with wide jaw, hexagonal nut and wrench
for clamping workpieces. Internal side of jaw is
serrated with prismatic incision. Overall length
160mm, 58mm wide x 35mm jaw opening. |
$97.40 |
| 103-180 |
Turnus 103-180 Hand vice with wrench, with wide jaw, hexagonal nut and wrench for clamping workpieces. Internal side of jaw is serrated with prismatic incision. Overall length 180mm, 60mm wide x 40mm jaw opening. | $148.50 |
| 103-200 |
Turnus 103-200 Hand vice with wrench, with wide jaw, hexagonal nut and wrench for clamping workpieces. Internal side of jaw is serrated with prismatic incision. Overall length 200mm, 65mm wide x 45mm jaw opening. | $185.60 |
| 106-180 | Turnus 106-180 Double Strong Hand Vice. Overall Length 180mm. 68mm wide x 40mm jaw opening | $208.80 |
| 106-200 | Turnus 106-200 Double Strong Hand Vice.
Overall Length 200mm. 70mm wide x 45mm jaw opening |
$252.10 |
| 107-200 | Turnus 107-200 Hand Vice,
Overall length 200, 85mm wide x 50mm jaw opening. |
$276.90 |
| 109-160 |
Turnus 109-160 Hand Vice for Machinist. 160mm long. 65mm wide x 40mm jaw opening. | $204.20 |
| 109-180 | Turnus 109-180 Hand Vice for Machinist. 180mm long. 70mm wide x 40mm jaw opening. | $250.60 |
| 109-200 | Turnus 109-200 Hand
Vice for Machinist. 200mm long. 80mm wide x 50mm jaw
opening. Note:
More
Information. |
$301.60 More Information |
| 109-250 |
Turnus 109-250 Hand Vice for Machinist. 250mm long. 90mm wide x 60mm jaw opening. | $451.60 |
| 112-125 |
Turnus 112-125 Small Stem
File Vice, with pointed jaw for clamping workpieces
in combination with series 520. Overall Length
125mm, 30mm wide x 30mm jaw opening. |
$79.80 |
| 112-150 | Turnus 112-150 Small Stem File Vice, with pointed jaw for clamping workpieces in combination with series 520. Overall Length 150mm, 40mm wide x 35mm jaw opening. | $103.50 |
| 113-115 |
Turnus 113-115 Pin Vice. 115mm long with knurled handle. 16mm wide jaws. Chrome plated steel. | $53.40 |
| 113-116 | Turnus 113-116 Pin Vice. 115mm long with knurled handle. 7mm wide jaws. Chrome plated steel. | $53.40 |
113-130 |
Turnus 113-130 Pin Vice.
130mm (5") long with knurled handle. 20mm (13/16") wide jaws.
Chrome plated steel.  |
$61.70 (Picture) |
| 113-131 |
Turnus 113-131 Pin Vice. 130mm long with knurled handle. 10mm wide jaws. Chrome plated steel. | $61.70 |
| Hydraulic
Tools |
||
Hydraulic
Tools Catalog. ( Download
) KUKKO has an amazing selection of Hydraulic
pullers with force up to 75 t.  |
DOWNLOAD CATALOG |
|
|
800
|
Short
Hydraulic Spindles.  |
Price on Request |
| . |
||
| 8-01 |
Type 8-01
Long Hydraulic Spindle. 10 Ton, Used with puller
type 12-4, 12-5, 18-2, 20-2, 20-20, 30-2, 30-20,
41-5, 42-5, 205-02, 206-02, 207-02.  |
$427.90 |
| 8-02 | Type 8-02
Long Hydraulic Spindle. 12 Ton. Used with
puller type 12-6, 12-7, 18-3, 20-3, 20-30,
30-3, 205-1, 205-2, 205-3, 206-1, 206-2, 206-3,
207-1, 207-3, 207-3. |
$490.40 |
| . |
||
| 9-1 | Auxiliary Hydraulic Ram.
Used to increase the pressure for mechanical pulling
devices. 37mm diameter. 10 Ton Max |
$305.20 |
|
9-2
|
Auxiliary Hydraulic Ram.
Used to increase the pressure for mechanical pulling
devices. 50mm diameter. 15 ton Max |
$379.00 |
| 9-3 | Auxiliary Hydraulic Ram. Used to increase the pressure for mechanical pulling devices. 80mm diameter. 30 ton Max | $920.50 |
| YHP-326 |
Kukko Hydraulic Hand
Pump, Gauge and Hose Set. Included YHP-320 Hydraulic
Hand Pump. Holds 900 Cubic Cm of oil, Max Force 50
Tons; YF-200 Hose 2m length; YM-325 Pressure Gauge
rated at 700 Bar |
$1,024.70 |
| . |
|
********* |
|
||
| 21-0 | KUKKO 21-0 Internal
bearing
puller. For size 5 to 8mm. (13/64-5/16") 73mm in
length. With M7 Thread. |
$116.60 (Picture) |
| 21-00 | KUKKO 21-00 Internal bearing
puller. For size 6 to 10mm. (1/4-25/64") 73mm in
length. With M7 Thread. |
$116.60
|
| 21-01 | KUKKO 21-01 Internal bearing
puller. For size 8 to 12mm. (5/16-1/2") 73mm in
length. With M7 Thread.
 |
$116.60
(Picture) |
| 21-02 |
KUKKO 21-02
Internal bearing puller. For size 10-14mm.
(13/32-9/16") 73mm in length. With M7
Thread. |
$116.60 |
| 21-1 | KUKKO 21-1 Internal bearing
puller. For size 12-16mm. (31/64-5/8") 72mm in
length. With M7 Thread. Cross Reference: (000 589 24 33 00) |
$116.60
|
| 21-2 | KUKKO 21-2 Internal bearing
puller. For size 14-19mm. (35/64-3/4") 72mm in
length. With M7 Thread.
|
$116.60
|
| 21-3 | KUKKO 21-3 Internal bearing
puller. For size 18-23mm. (23/32-29/32") 89mm in
length. With M10 Thread.
|
|
| 21-4 | KUKKO 21-4 Internal bearing
puller. For size 20-30mm. (7/8"-1-7/64") 92mm in
length. With M10 Thread.
|
|
| 21-5 | KUKKO 21-5 Internal bearing
puller. For size 28-40mm. (1-7/64"-1-29/64") 101mm
in length. With M10 Thread.
|
|
| 21-6 | KUKKO 21-6 Internal bearing
puller. For size 35-46mm. (1-27/64"-1-13/16") 113mm
in length. With 15-16G thread. It is 15mm
diameter, 16 TPI, with Whitworth 55 degree thread
angle.
 |
|
| 21-7 | KUKKO 21-7 Internal bearing
puller. For size 45-58mm, (1-25/32"- 2-19/64") 135mm
in length. With 15-16G thread. It is 15mm
diameter, 16 TPI, with Whitworth 55 degree thread
angle.
|
|
| 21-8 | KUKKO 21-8 Internal bearing
puller. For size 56-70mm. (2-13/64- 2-3/4") 133mm in
length. With 15-16G thread. It is 15mm
diameter, 16 TPI, with Whitworth 55 degree thread
angle.  |
|
| 21-9 | KUKKO 21-9 Internal bearing
puller. For size 70-100mm. (2-3/4- 3-15/16") 166mm
in length. With G1/2" Whitworth Pipe Thread. |
|
| 21-89 |
KUKKO 21-89 Internal Extractor. For bores of 56-110mm (2
1/4-4 3/8"). 185mm in length. With 1/2"
Whitworth Pipe Thread. This tool is used with a 22-0-2
slide hammer on 22-4
counterstay that is NOT included.
 |
$567.00 (Picture) |
| 21-90 |
KUKKO 21-90 Internal Extractor. This
extractor has two bores for jaw attachment. Inner
holes for bores of 100-150mm (4-6") and outer holes
for bores of 150-200mm (6-7 7/8"). 220mm in length.
With 3/4" Whitworth Pipe Thread. This
tool is used with a 22-0-2 slide hammer or 22-5
counterstay that is NOT included. *Special Order Only. |
$741.10 (Picture) |
| Internal Bearing Puller Sets | ||
| 24-A |
KUKKO 24-A Bearing
Pulling and Extracting Tool Set. For pulling
bearings, gears and discs and for extracting
interior bearings, outer bearing rings and bushings.
Set contains exterior pulling device, internal
extractor, counter supports and pulling device
chunk. Arm width size 2-3/8" - 3-1/2", internal
bearing sizes 3/16" - 1-7/8". Set includes: 20-1,
43-1, 22-1, 22-2, 21-1, 21-2, 21-3, 21-4, 21-5,
26-1, and 23. |
$1,782.80 |
| 24-B |
KUKKO 24-B Bearing
Pulling and Extracting Tool Set. For pulling
bearings, gears and discs and for extracting
interior bearings, outer bearing rings and bushings.
Set contains exterior pulling device, internal
extractor, counter supports and pulling device
chunk. Arm width size 2-3/8" - 5-7/8", internal
bearing sizes 3/16" - 2-3/4". Set includes: 20-1,
20-2, 43-1, 22-1, 22-2, 21-1, 21-2, 21-3, 21-4,
21-5, 21-6, 21-7, 21-8, and 23. |
$2,607.30 |
| 24-C | KUKKO 24-C Bearing Pulling and Extracting Tool Set. For pulling bearings, gears and discs and for extracting interior bearings, outer bearing rings and bushings. Set contains exterior pulling device, internal extractor, counter supports and pulling device chunk. Arm width size 2-3/8" - 5-7/8", internal bearing sizes 3/16" - 2-1/4". Set includes: 20-1, 20-2, 43-1, 22-1, 22-2, 22-4, 21-1, 21-2, 21-3, 21-4, 21-5, 21-6, 21-7, 21-89, and 23. | $3,399.80 |
| Type 25 |
 |
|
| 25-A |
KUKKO 25-A
Internal Extractor Set. Range 12-46mm. With 2
counterstays and 6 extractors. For more info see the
Product
Data
Sheet.
Shipping
16 pounds, 18" x 15" x 7" boxed |
$1,112.80 |
| ★ | ||
| 25-B |
KUKKO 25-B Internal
Extractor Set. For internal bearing sizes 3/16" -
2-3/4" (12-70mm). Set includes: 22-1, 22-2, 21-1,
21-2, 21-3, 21-4, 21-5, 21-6, 21-7, and 21-8. Note: contact us with your
address for a total and shipping options. |
$1,567.00 (Picture) |
| 25-C |
KUKKO 25-C Internal Extractor Set. For internal bearing sizes 3/16" - 4-3/8". Set includes: 22-1, 22-2, 22-4, 21-1, 21-2, 21-3, 21-4, 21-5, 21-6, 21-7, and 21-89. | $2,304.30 |
| 25-D |
KUKKO 25-D Internal Extractor Set. For internal bearing sizes 3/16" - 2-3/4". Set includes: 22-1, 22-2, 21-1, 21-2, 21-3, 21-4, 21-5, 21-6, 21-7, and 21-8. | $1,055.10 |
| 27-A |
KUKKO 27-A
Universal Puller Set with Slide Hammer. Includes
Segment Type Internal Extractors. Bearing inner
diameter range 9.5-48mm , Bearing Cage Type Puller,
Slide hammer with M12 Threads, 204-0 Cobra Puller
with side clamp, Screw adapter size M3, M4, M5, M6,
M8, M10 . For more info see the Product
Data
Sheet.
 |
$1,753.50 |
| TYPE 28 |
 |
|
| 28-A
|
KUKKO 28-A
Set with Slide Hammer, Internal Extractors, and
dowel pins. Bearing inner diameter range
6-19mm. Slide hammer 900g weight with M12
threads. Pins size M3, M4, M5, M6, M8, M10, M12,
M14, M16, M18 . For more info see the Product
Data
Sheet. |
$743.70 |
| 28-B |
KUKKO 28-B Set with Slide Hammer, Internal Extractors, and dowel pins. Bearing inner diameter range 12-40mm. Slide hammer 1.7 Kg weight with M16x1.5 threads. Pins size M8, M10, M12, M14, M16, M18, M20, M22, M24 . | $919.80 |
| Type 28-C 28-D |
 |
|
| 28-C | KUKKO 28-C Set with Slide
Hammer, Internal Extractors, and dowel pins, and
Counterstay. |
$1,541.90 |
| 28-D | KUKKO 28-D Set with Slide Hammer, Internal Extractors, and dowel pins, and Counterstay. | $1,951.90 |
| |
Internal Bearing Puller - Counterstay |
|
| 22-1 | KUKKO 22-1 Counterstay to use with
Internal bearing extractors, bearings from size 5mm
to 40mm. Working size 55mm spread and 120mm reach.
Combinable with 21-0, 21-00, 21-01, 21-02, 21-1,
21-2, 21-3, 21-4, 21-5, 21-0-E, 21-1-E, 21-2-E,
21-3-E, 21-4-E. Includes Adapter Reducer Collar GA7-10
|
|
| 22-2 | KUKKO 22-2 Counterstay to use with
Internal bearing extractors, bearings from size 18mm
to 70mm. Working size 100mm spread and 165mm reach.
Combinable with 21-3, 21-4, 21-5, 21-6, 21-7, 21-8,
21-0-E, 21-1-E, 21-2-E, 21-3-E, 21-4-E, 21-5-E,
21-6-E, 21-7-E. Includes Adapter Reducer Collar GA10-1516 |
|
| 22-3 | KUKKO 22-3 Counterstay to use with
Internal bearing extractors, bearings from size 36mm
to 100mm. Working size 180mm spread and 280mm reach.
Consists of parts 22-3-T Cross Bar, and 022-306
Spindle, 22-3-1-P set of Arms.Combinable with 21-6,
21-7, 21-8, 21-9. |
|
| 22-4 | KUKKO 22-4
Counterstay with feet. Working size 200mm spread and
205mm reach. This is for use with 21-89 internal
extractor. Combinable with 21-89. Shipping (11
pounds, 16"x12"x4") Contact us with your shipping address to
order. |
$387.40 (Picture) |
| 22-5 |
KUKKO 22-5 Counterstay with feet. Working size 300mm spread and 260mm reach. This is for use with 21-90 internal extractor. Combinable with 21-90. Special Order Only. | $436.20 |
| |
Internal Bearing Puller - Segment Type |
|||
| 21-0-E | Kukko 21-0-E INTERNAL
EXTRACTOR Segment grip type. With 2 Segments.
Diameter 4.8-6.5 mm  |
$116.60 |
||
| 21-00-E | Kukko 21-00-E INTERNAL
EXTRACTOR Segment grip type. With 2 Segments.
Diameter 6.8-9.5 mm |
$116.60 |
||
| 21-01-E | Kukko 21-01-E INTERNAL
EXTRACTOR Segment grip type. With 2 Segments.
Diameter 9.5-12.5 mm |
$116.60 |
||
| 21-1-E | KUKKO 21-1-E INTERNAL
EXTRACTOR Segment grip type. With 3 Segments.
Diameter 12-16 mm |
$116.60 |
||
| 21-2-E | KUKKO
21-2-E INTERNAL EXTRACTOR Segment grip type. With 3
Segments. Diameter 14-19 mm
|
$116.60 |
||
| 21-3-E |
KUKKO 21-3-E INTERNAL
EXTRACTOR Segment grip type. With 3 Segments. Diameter 18-23 mm |
$116.60 |
||
| 21-4-E |
KUKKO 21-4-E INTERNAL
EXTRACTOR Segment grip type. With 4 Segments. Diameter 24-34 mm  |
$116.60 |
||
| 21-5-E |
KUKKO 21-5-E INTERNAL
EXTRACTOR Segment grip type. With 4 Segments. Diameter 34-48 mm |
$130.50 |
||
| 21-6-E | KUKKO
21-6-E INTERNAL EXTRACTOR Segment grip type. With 6
Segments. Diameter 48-63 mm |
$146.20 |
||
| 21-7-E | KUKKO 21-7-E INTERNAL
EXTRACTOR Segment grip type. With 6 Segments.
Diameter 63-78mm, 120mm long.  |
$195.80 Picture |
| . |
|
. |
| 139-1 | KUKKO 139-1 Key Lifter used to pull keys
out of the slot on shafts. Working range
5-35mm. The tool is 110mm tall by 122-144mm wide
depending on setup. Turn one knob to grab the key,
turn the other knob to pull the key out! Makes a
tough job easy with no damage to the shaft.
  {Click on picture for a larger view} |
|
| . | Needle Bearing Extractor. For extracting needle bearings from crankshaft, casings, etc. | . |
| 21-42 | KUKKO 21-42 Needle
Bearing
Extractor. Working range 12.5-21mm (1/2"-55/64") for
shaft size 14 mm (9/16") 92mm in length. Used with a
slide hammer or counterstay that is not included.  |
$162.70
(Picture) |
| NON-Sparking
Tools |
||
KUKKO TURNUS NON- Sparking |
Type 1007F
Non-sparking wrenches for use in areas containing
combustible or easily ignitable vapors. The metal
alloy has been tested by the German Federal Institute
for Materials Research and Testing in Berlin Germany. Also available are screwdrivers, Hex keys, hammers, pliers, adjustable wrenches, single open end wrenches, sockets, and ratchet.  |
Price on Request |
| . |
|
. |
| 54-2 |
KUKKO 54-2 Double-edged
Mechanical nut splitter for nuts 3/8" - 1. 1/16".
For nuts in classes 5, 6, and 8. |
$157.20 |
| 54-2-M |
Replacement blades for
KUKKO 54-2. |
$93.00 |
| 54-3 |
KUKKO 54-3 Double-edged
Mechanical nut splitter for nuts 3/4" - 1. 3/8".For nuts in classes 5, 6,
and 8. |
$204.60 |
54-3-M |
Replacement blade for
KUKKO 54-3. |
$93.00
|
| K-54-B |
KUKKO K-54-B
Mechanical Nut Splitter Set, with tools 54-2 and
54-3, and spare replacement blades. More
Info
 |
$519.60 |
| Type
55 Single Edge |
||
| 55-0 | KUKKO 55-0 Mechanical
nut
splitter for nuts 4-10mm. 5/32" - 13/32"
|
$108.60
|
| 55-0-M | Replacement blade for KUKKO 55-0. | |
| 55-1 | KUKKO 55-1 Mechanical
nut splitter for nuts 10-18mm. 7/16" - 11/16"  |
$130.50 |
| 55-1-M | Replacement blade for KUKKO 55-1. | |
| 55-2 |
KUKKO 55-2
Mechanical nut splitter for nuts 19-27mm,
3/4" to 1-1/16". For nuts in class 6 and below.
 |
$141.40
|
| 55-2-M |
Replacement blade for KUKKO 55-2 | |
| 55-3 |
KUKKO 55-3 Mechanical nut splitter for nuts 1. 1/16" - 1. 3/8". For nuts in class 6 and below. | $182.20 |
| 55-3-M |
Replacement blade for KUKKO 55-3. | |
| 55-4 |
KUKKO 55-4 Mechanical nut splitter for nuts 1. 1/4" - 2". For nuts in class 6 and below. | $608.70 |
| 55-4-M |
Replacement blade for KUKKO 55-4. | |
| ★ | ||
| K-55-B | KUKKO K-55-B Mechanical Nut Slitter Set with
Case. Includes splitter 55-1, 55-2, 55-3, Thread
File 97-1, and spare chisels 55-1-M, 55-2-M, 55-3-M.
To split nuts M6 to M24. Contact us for your discount price!  |
$625.60 |
| Type
56 Hydraulic |
||
| 56-1 |
KUKKO 56-1 Single-edged
Grease Hydraulic nut splitter for nuts 1/4" -
7/8". |
$348.10 |
| 56-2 |
KUKKO 56-2 Single-edged
Grease Hydraulic nut splitter for nuts 7/8" - 1.
3/8". |
$643.70 |
| 56-3 | KUKKO 56-3 Single-edged
Grease Hydraulic nut splitter for nuts 1. 1/16" - 1.
7/8" |
$940.60 |
| . |
|
. |
| 211T505 | Turnus 211T505 set of Tamper-Proof Torx
"L" shape keys. TX9-TX 40. Eight pieces.
|
|
|
334-030X
|
Turnus 334-030X Tool
Marker. 27mm Diameter. Brass. Price for bag of 9 markers. Limited
Quantity. SALE!
 |
$7.50 (Picture) |
| 991-160 | WINKELGREIF
991-160 cable cutters. 160mm long.
Spring action handles. No longer available. Only 1 left. |
$40.80
(Picture) |
| . |
|
. |
| UFP-2 |
For disassembly and extraction jobs, the
application of greater force is often necessary. It
can happen that whole parts abruptly detach
themselves, that parts break, disassemble themselves
and debris starts flying around uncontrollably. To
prevent these potential risks of an accident, KUKKO
accident protection tarps can be used to safely
enclose workpieces and tools before any force is
applied. Size 1500mm (59-1/16" inch) x 670mm
(26-3/8" inch). Supplied in a storage case.  |
| .
|
|
. |
| 995-200 | TURNUS 995-200
Industrial/Professional
scissors. Drop-forged and hardened. Made with
special tool steel with polished cutting edges and
black painted handles. Designed for cutting thick
paper and cardboard, thin rubber, leather and
textiles. 200mm long (8"). High quality shears. Special Order |
|
| 995-250 |
WINKELGREIF
995-250 Industrial/Professional
scissors.
Drop-forged and hardened. Made with special tool
steel with polished cutting edges and black painted
handles. Designed for cutting thick paper and
cardboard, thin rubber, leather and textiles. 250mm
long (10"). High quality shears. Special Order |
| |
Screw Clamps |
|
| 469-0100-050 |
Turnus 469-0100-050 All
steel screw clamp with wood handle. 100x50mm Other sizes available upon request. |
$22.60 |
| 476K0300-140 |
Turnus 476K0300-140 Heavy U-clamp. All-steel
heavy duty fitters clamps with non-slip device.
300x140mm Other sizes available upon request. |
$230.20 |
| |
Turnus 505K040 Deep
throad clamp. Low torque cast iron screw clamp with
steel locking handle. 400x200mm Other sizes available upon request. |
$95.10 |
| SETS - Wall Mount |
||
| WT-018 | KUKKO WT-018 Set of
Puller product range - Internal Extracting - TOP |
Price on Request. |
| _____________ |
Slide Hammer |
|||||||||
| G-22 | KUKKO 3-K handle for
slide hammers. With M12 threads. Length 155mm. With
3 component plastic handle. For improved control
during the removal process.
 |
$65.00 |
||||||||
| 02210021 New Number: GA7-10 |
KUKKO GA7-10 Adapter Reducer. SIZE: (M7 Female) x (M10 Male) Adapter. Used with Counter stay for 22-1 and will fit puller 21-0, 21-00, 21-01, 21-02, 21-1 and 21-2 |
$22.30 |
||||||||
| 02220021 New Number: GA10-1516 |
KUKKO GA10-1516 Adapter Reducer. SIZE: (M10 Female) to ( 15-16G Male Whitworth Threads) Used with Counter stay 22-2 and will fit puller 21-3, 21-4, 21-5, 21-40 to 21-46. Please Note: 15-16G is 15mm diameter 16 threads Whitworth 55 degree. Bizarre but true.  |
$22.30 |
||||||||
| GA12-3 |
Kukko GA12-3 Adapter.
Size M12 female to M3 male. |
$22.30 |
||||||||
| GA12-4 |
Kukko GA12-4 Adapter.
Size M12 female to M4 male. |
$22.30 |
||||||||
| GA12-5 |
Kukko GA12-5 Adapter.
Size M12 female to M5 male. |
$22.30 |
||||||||
| GA12-6 |
Kukko GA12-6 Adapter.
Size M12 female to M6 male. |
$22.30 |
||||||||
| GA12-8 |
Kukko GA12-8 Adapter.
Size M12 female to M8 male. |
$22.30 |
||||||||
| GA12-10 | Kukko GA12-10 Adapter.
Size M12 female to M10 male. |
$22.30 |
||||||||
| 02230021 New Number: GA1516-12 |
KUKKO G1516-12
Adapter Reducer. SIZE: (15-16G Female Whitworth Threads) to (R1/2" Male Whitworth Pipe Thread) Adapter. Used with the 22-0-1 Slide Hammer and will fit puller 21-6, 21-7, and 21-8.  |
$22.30 |
||||||||
| VM12-7 | Kukko VM12-7 Double
Female Adapter. SIZE: M12 x M7 Outside 19mm hex by 35mm long.  |
$28.00 |
||||||||
| 02200152 New Number VM12-10 |
KUKKO VM12-10 Double Female Adapter. SIZE: ( M12-1.75 thread) x (M10-1.5 thread). Outside 19mm hex by 35 mm long.  |
$28.00 |
||||||||
| 02201252 New Number VM12-1516 |
KUKKO (02201252) VM12-1516 Double Female Adapter. SIZE: (M12 Threads) x (15-16G Whitworth Threads). Outside 24mm hex by 35 mm long.  |
$28.00 |
||||||||
| VM1615-12 | Double female adapter
M16x1.5 to G-1/2" threads. Old Part Number 02200921 |
$62.20 |
||||||||
| 22-1-AS | KUKKO 22-1-AS Slide
Hammer Adapter Set. Threaded Inserts. Size M4, M5, M6,
M8, M10, M12 threads. All with M10 mounting. Can be
used with 22-0 or 22-0-1 Slide hammer, and 22-1 or
22-2 Counterstay. |
$95.20 | ||||||||
| 22-0-05 | KUKKO
22-0-05 Slide Hammer with .5Kg (1.1 pounds) slide
weight. With M12 threads. Includes a double female
Adapter M12-M10 part ( VM12-10
) , and adapter M10 male to M7 female, part ( GA7-10 ). For 21-0 to 21-2
internal pullers and 21-0-E to 21-4-E segment type
pullers. Overall length 270mm. Slide Weight 60mm long.
Same as old number 22-0. |
$117.70 (Picture) |
||||||||
| 22-0-17 | KUKKO 22-0-17
Slide Hammer with 1.7Kg (3.75 pounds) slide weight. This
hammer is to be used with bearing pullers 21-3 to 21-9
and 21-40 and up. With M16x1.5 threads. Same as old
number 22-0-1. And 3 adapters:
 |
$322.60 (Picture) |
||||||||
| 22-0-10 | Kukko 22-0-10 slide
hammer with .925Kg
( 2 pounds) slide weight. M12x1.75 metric threads. Same as old KS-22-01-GH.  |
$160.50 |
||||||||
| 22-0-1-G-C | Kukko 22-0-1-G-C Slide
Hammer with 1.7Kg (3-3/4
pounds) slide weight. Slide rod connection M16x1.5
metric threads. Internal threads of M16x1.5 - G1/2".
For use with thread adapter sizes male G1/2" - female
15-16G, and male 15-16G - female M10. |
$289.00 |
||||||||
| 22-0-50 | KUKKO 22-0-50 Slide
Hammer with 5Kg
(11 pounds) slide weight. For use with
internal pullers 21-89 and 21-90. Threads G1/2" and
G3/4" Whitworth Pipe. With adapter (Part #0210954),
and nut (Part#22-0-2-52).
Length 700mm. Same as old number 22-0-2. Please note: Call
or email us for your discount price with to your
address.  |
$387.40 (Picture) |
||||||||
| 22-0-2-100 | KUKKO 22-0-2-100
Additional add-on 3Kg (6.6 pounds) weight for hammer
22-0-2. Special Order Only! |
$231.50 |
||||||||
| KS-22-01 | KUKKO KS-22-01 Slide Hammer Unit with
M12x1.75 metric threads. Weight .925Kg. For
internal extractors and needle bearing extractors of
the type and size 21-1 to 21-8, 21-40 to 21-46,
21-0-E to 21-7-E. Also for parallel keys and dowel
pins. Complete with padded case and 6 male adapters
M3, M4, M5, M6, M8, M10 and 3 female adapters M7,
M10 and 15-16G. Use this tool when space does not
allow for the use of the traditional counterstay.
SPARE PARTS: GA12-3 Male Threaded Adapter M12 to M3 (old #223101) GA12-4 Male Threaded Adapter M12 to M4 (old #223102) GA12-5 Male Threaded Adapter M12 to M5 (old #223103) GA12-6 Male Threaded Adapter M12 to M6 (old #223104) GA12-8 Male Threaded Adapter M12 to M8 ( old #223105) GA12-10 Male Thread Adapter M12 to M10 (old #223106) VM12-7 Double Female Adapter M12 / M7 (02200752) VM12-10 Double Female Adapter M12 / M10 (02200152) VM12-1516 Double Female .. M12/15x16G (02201252) KS-22-01-GH Slide Hammer |
|||||||||
| . | ||||||||||
| KS-22-01-UNC | KUKKO KS-22-01-UNC Slide
Hammer Unit with M12x1.75 metric threads.
Weight .925Kg. Can be used with internal extractors
and needle bearing extractors of the type and size
21-0 to 21-8, 21-40 to 21-46, 21-0-E to 21-7-E. Also
for parallel keys and dowel pins. Complete with
padded case and 5 male adapters in inch sizes 1/4"-20,
5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 and 3 female
adapters M7, M10 and 15-16G. Use this tool when
space does not allow for the use of the traditional
counterstay.
 |
|||||||||
| KS-22-02 | KUKKO KS-22-02
Slide Hammer Unit. Weight .9Kg. For extracting
bushings and components with threads (dowel-pins,
parallel-keys, bolts, etc.) Complete with padded
case and 6 male adapters: M6, M10, M8x1, M10x1,
M12x1, M15x1.5; and 3 female adapters: 15x16G, M10,
and M7. SPARE PARTS:
GA12-6 Male Adapter M12/M6 GA12-10 Male Adapter M12/M10 GA12-81 Male Adapter M12/M8x1 GA12-101 Male Adapter M12/M10x1 GA12-121 Male Adapter M12/M12x1 GA12-1515 Male Adapter M12/M15x1.5 VM12-1516 Female Adapter M12/15x16G VM12-10 Female Adapter M12/M10 VM12-7 Female Adapter M12/M7 Ks-22-01-GH Slide Hammer |
$251.00 (Picture) |
||||||||
| ______________ |
|
. |
| . | These stamps are sized by the height of the
cutting edge. Depending on the depth of the strike
you will need to allow some additional space around
the letter.
 |
. |
| 329-202 | Turnus 329-202 steel stamping letter set, 27 stamps, 2mm tall. Special Order Only!!! | |
| 329-203 | Turnus 329-203 steel stamping letter set, 27 stamps, 3mm tall. Special Order Only!!! | |
| 329-206 | Turnus 329-206 steel stamping letter set,
27 stamps, 6mm tall. |
|
| 329-208 | Turnus 329-208 steel stamping letter set,
27 stamps, 8mm tall. |
$100.60
|
| 331-002K | Turnus 331-002K steel stamping lower-case
letter set, 27 stamps, 2mm tall. The extra character
is the German letter ß (is used for the
representation of an /s/ in a syllable onset)  |
Sale!!
$69.00 $103.80 |
| . |
|
. |
| . |
.  |
. |
| 328-102 | Turnus 328-102 steel stamping number set, 9 stamps, 2mm tall. Special Order Only! |
$17.90
|
| 328-103 | Turnus 328-103 steel stamping number set, 9
stamps, 3mm tall. Special Order Only!
 |
|
| 328-104 | Turnus 328-104 steel stamping number set, 9 stamps, 4mm tall. Special Order Only! |
$20.00
|
| 328-105 | Turnus 328-105 steel stamping number set, 9 stamps, 5mm tall. Special Order Only! |
$22.10
|
| 328-106 | Turnus 328-106 steel stamping number set, 9 stamps, 6mm tall. Special Order Only! |
$23.60
|
| 328-107 | Turnus 328-107 steel stamping number set, 9 stamps, 7mm tall. Special Order Only! | |
| 328-108 | Turnus 328-108 steel stamping number set, 9 stamps, 8mm tall. Special Order Only! |
$32.30
|
| 328-110 | Turnus 328-110 steel stamping number set, 9
stamps, 10mm tall. Special Order Only!
|
$42.70
|
| 328-112 | Turnus 328-112 steel stamping number set, 9
stamps, 12mm tall. |
$50.60
|
| 330-0025 |
Turnus 330-0025 steel stamping number set, 9 stamps, 2.5mm tall. Special Order Only! | $25.40 |
| 330-501 | Turnus 330-501 steel stamping number set,
9 stamps, 1mm tall. Extra strong steel.
|
$40.00
|
| 330-5015 | Turnus 330-5015 steel stamping number
set, 9 stamps, 1.5mm tall. Extra strong steel.

 |
$31.00
|
| 330-5025 | Turnus 330-5025 steel stamping number set, 9 stamps, 2.5mm tall. Extra strong steel. Special Order Only! |
$31.00
|
| 332-353 |
Turnus type 332
inspection number stamp. With 6 digits. For RailRoad
inspection, etc. Available size 2mm , 3mm, 4mm. Remove
the side lock pin to spin the number wheels.
Expensive? Yes. Please sit down before you call. Special Order Only!  |
Price on Request |
| 333-030 | Turnus type 333
Type Holder Set. Numbers and Letters. Avaiilable size
1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm. Supplied in a
plastic case. Expensive? Yes. Please sit down before
you call. Special
Order
Only!  |
Price on Request |
| . |
|
. |
| 327-020 |
Turnus 327-020 Stencils. 20mm tall. Numbers
0-9. |
$16.30
|
| . | Stud Extractors |
. |
| 51-1 | KUKKO 51-1 Stud Extractor. Working range 5-10mm stud diameter. Drive
hex 19mm. |
$101.20 |
| 51-2 | KUKKO 51-1 Stud Extractor. Working range 8-19mm stud diameter. Drive hex 19mm. | $154.20 |
| 51-3 | KUKKO 51-1 Stud Extractor. Working range 18-25mm stud diameter. Drive hex 19mm. | $182.80 |
| 52 | KUKKO 52 Stud
Puller with extra wide working range. 5mm - 19mm. Drive hex 19mm.
 |
$251.40 ( More Info ) |
| 53-6 |
KUKKO 53-6 Stud Remover
6mm. |
$105.20 |
| 53-7 |
KUKKO 53-7 Stud Remover 7mm. |
$105.20 |
| 53-8 |
KUKKO 53-8 Stud Remover 8mm. |
$105.20 |
| 53-10 |
KUKKO 53-10 Stud
Remover 10mm. Chrome-Vanadium steel with chrome
plating. Uses 1/2" inside drive or 21mm on the
outside. This design uses 3 rollers to grab the stud
in either direction. |
$105.20 (Picture) |
| 53-12 |
KUKKO 53-12 Stud Remover 12mm. |
$101.60 |
| 53-14 |
KUKKO 53-14 Stud Remover 14mm. |
$121.70 |
| 53-16 |
KUKKO 53-16 Stud Remover 16mm. |
$163.80 |
| 53-24 |
KUKKO 53-24 Stud Remover 24mm. |
$799.40 |
| 53-30 | KUKKO 53-30 Stud Remover 30mm. |
$1,067.80 |
| . |
|
. |
| Kukko 97 |
Kukko Type 97 Thread
Files for reworking and cleaning damaged internal and
external threads. |
|
| Kukko 97-1 |
Kukko 97-1 DIN-ISO
thread file with metric sizes 0.8, 1, 1.25, 1.5, 1.75,
2, 2.5, and 3mm. |
$165.60 |
| Kukko 97-2 | Kukko 97-2 Whitworth +
BSF thread file with inch sizes 10, 11, 12, 14, 16,
18, 20, and 24". |
$165.60 |
| Kukko 97-3 | Kukko 97-3 SAE / UNF
thread file with inch sizes 11, 12, 14, 16, 18, 20,
and 24". |
$165.60 |
| Kukko 97-4 | Kukko 97-4 Whitworth /
Rohrgewinde thread file with inch sizes 11, 14, 19,
and 28". |
Whitworth Page |
| KD714-1 | "BUCKI" Thread restore tool. For 12mm to 25mm diameter shaft. For right or left hand threads. *No Longer Available from KUKKO. Sold out. |
| . |
|
. |
| Type 1900 |
Kukko Type 1900 Europäer
for pressing and clamping several work pieces.
Adjustable and open-jawed wrench with serrated
gripping jaws on one side for attaching round or
multi-angle objects. Soft plastic protective caps
improve the grip in the case of metallic objects. The
tool also features a inch and millimeter scale, and a
locking system. Pull the handle away from the head to
lock your desired setting. |
|
| Kukko 1900-30 |
Kukko 1900-30 Wrench,
span of the parallel screw clamp 30mm, closed length
150mm, width of head 60mm, depth of 21mm. |
$148.50 |
| Kukko 1900-50 |
Kukko 1900-50 Wrench, span of the parallel screw clamp 50mm, closed length 175mm, width of head 150mm, depth of 21mm. | $171.70 |
| Kukko 1900-75 |
Kukko 1900-75 Wrench, span of the parallel screw clamp 75mm, closed length 250mm, width of head 95mm, depth of 34mm. | $250.60 |
| 407-A | Stubby wrench set of 10 with
plastic holder. Bi-hexagonal drive and same size of
opening on both ends. Includes sizes 10mm-19mm.
Great for use where access is limited. Benefits
include ratchet-like tightening in cramped spaces,
quick engagement and release and edge protective
profile that grips the flat of the nut. **No Longer Available. See Cornwell WCMXS110ST for a similar set.  |
(Picture) |
| Samstag
Sales is an authorized distributor of German quality
KUKKO and TURNUS tools. See our Authorization
Certificate signed by the Owner Michael Kleinbongartz! |
 |
|
KUKKO News
|
| HOME | Quick Search | SEARCH | email Samstag |
|
