Whitworth is an old British standard for screw threads and sizes. You need the Whitworth size tools to work on your old Austin, Rolls-Royce, Jaguar, MG, BSA or other old British made automobile or motorcycle. Samstag Sales can supply you with a small range of Whitworth hand tools. Please email for stock status. Please click on the price to see a picture. Underlined prices have a picture.
Whitworth
Size
Reference
Whitworth tools can be hard to identify. Please make sure the tools will fit your application before ordering. To help you identify the correct size. Please check our reference table. Just click here.
.
HOME Quick Search SEARCH
email Samstag How To Order
Web Special

Size Reference



 Please Note: Our shopping cart is available for your convenience. The shipping is a flat rate calculated by value.  Contact us for more shipping options.  ( Click for Shipping Rates & Info)
Last Update: July 22, 2014
.

You can search for a British tool on this page by using your web browser's find feature. For example, if you are using Internet Explorer 8, you can click on Edit in the menu bar at the top of the page, then click on (Find on this page), and type in the box what you are searching for.  A fast way to bring up the search box is to hold down the (CTRL) key and type the letter "F".
Quick
Search
.
Web Special!!!

Elora 205-W 1/4 Combination Wrench 1/4W. Around 175mm (7") long. Chrome-Vanadium Steel.

Buy this today for the LOW Web Special Price of $ 15.99 !!
To order use the handy shopping cart button, call (615) 735-3388 or email.

MANF. NO
BRAND and DESCRIPTION
{Click on the price to see a picture}
PRICE
.
Thread Tools
.
Horex 2618-102
Horex 2618-102 Whitworth Screw Pitch Gauge. Whitworth threads according to DIN 11. 28 blades. 4-62
Whitworth Sizes
62G 18G 5/16
60G 1/16
16G 3/8
48G 3/32 14G 7/16
40G
13G
36G
12G
32G 5/32 11G 5/8
30G
10G 3/4
28G
9G 7/8
26G
8G 1"
25G 7G 1 1/8 1 1/4
24G 3/16 7/32 6G 1 3/8 1 1/2
22G
5G 1 5/8 1 3/4
20G 1/4
4 1/2 G 1 7/8 2
19G
4G 2 1/4  2 1/2
$7.99



Horex 2618-104 Horex 2618-104 Combined metric and Whitworth thread screw pitch gauge. 52 blades. 0.25-6.00/4-62/8-28.

$13.50
(Picture)



Horex 2618-112 Horex 2618-112 Screw Pitch Gauge. BSF threads. Size 4-26
$9.99
(Picture)

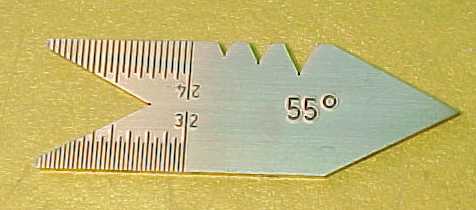

Horex 2636-101 Horex 2636-101 Whitworth 55º, lathe gauge.
$9.99
KUKKO 97-4

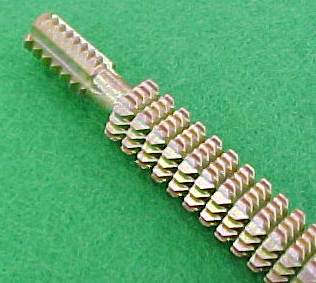

KUKKO 97-4 Thread File. Thread Restore File for Whitworth G Pipe Thread. Marked GAZ. With 4 cutting sizes.
For Pipe Size  1/8" with 28TPI.
For Pipe Size 1/4"or 3/8" with 19TPI.
For Pipe Size  1/2", 5/8", 3/4", 7/8"  with 14 TPI.
For Pipe
Size >1 for pipes 1" and above with 11 TPI.

$134.95



EXACT
50510
EXACT 50510 Thread File. Thread Restore Tool for Whitworth. For size 10, 11, 12, 14, 16, 18, 20, 24 Whitworth threads. Sharp teeth .

$59.99
(Picture)
.
British Pattern Hammers
.
Picard
0001001-0100
PICARD 0001001-0100 English Pattern Cross Pein Hammer. With 100g (3-1/2 oz) head. Wooden Handle. Overall Length of 270mm (10-1/2"). Same as KUKKO-TURNUS part number 346EP0100. Made in Germany!

$29.98
(Picture)

Habero
532H-1/2
Gedore "Habero" 532H-1/2, British Pattern Engineers' Hammer, 1/2 pound, hickory handle, with red metal protective band, head fastened with a pin. British Standard B.S. 876. No Longer Avaliable, we have 1 Left.
$39.99
(Picture)


.
GEDORE Germany- 1/4" drive British Sockets
.
Gedore
20 8BA
Gedore 20 8BA 1/4" Drive British Association Socket *Limited Quantity *No Longer Available from Gedore.
$11.09
Gedore
20 7BA
Gedore 20 7BA 1/4" Drive British Association Socket *Limited Quantity *No Longer Available from Gedore.
$11.09
Gedore
20 6BA
Gedore 20 6BA 1/4" Drive British Association Socket *Limited Quantity *No Longer Available from Gedore.
$11.09
Gedore
20 5BA

Gedore 20 5BA 1/4" Drive British Association Socket *Limited Quantity *No Longer Available from Gedore.
$11.09
Gedore
20 4BA
Gedore 20 4BA 1/4" Drive British Association Socket *Limited Quantity *No Longer Available from Gedore.
$11.09
Gedore
20 3BA
Gedore 20 3BA 1/4" Drive British Association Socket *Limited Quantity *No Longer Available from Gedore.
$11.46
Gedore
20 2BA
Gedore 20 2BA 1/4" Drive British Association Socket. Only available in 20 BA-9 Set below.
$11.46
Gedore
20 1BA
Gedore 20 1BA 1/4" Drive British Association Socket *Limited Quantity *No Longer Available from Gedore.
$11.46
Gedore
20 0BA
Gedore 20 0BA 1/4" Drive British Association Socket *Limited Quantity *No Longer Available from Gedore.
$11.46
Gedore
20 BA-9 Set
Gedore 20 BA-9 Set 1/4" Drive British Association Socket Set, set of 9 sockets. With size 0BA, 1BA, 2BA, 3BA, 4BA, 5BA, 6BA, 7BA, 8BA. *On Sale *Limited Quantity *No Longer Available from Gedore Germany.

SALE!
$69.99

$89.99
(Picture)
.
Ko-ken Japan- 3/8" drive Whitworth  Sockets
.
Ko-ken
KO3405W-1/8
Ko-ken KO3405W-1/8 3/8" drive, 12 point, Whitworth Socket 1/8W
$12.00
Ko-ken
KO3405W-3/16
Ko-ken KO3405W-3/16 3/8" drive, 12 point, Whitworth Socket 3/16W
$12.00
Ko-ken
KO3405W-1/4
Ko-ken KO3405W-1/4 3/8" drive, 12 point, Whitworth Socket 1/4W
$12.00
Ko-ken
KO3405W-5/16
Ko-ken KO3405W-5/16 3/8" drive, 12 point, Whitworth Socket 5/16W
$12.00
Ko-ken
KO3405W-3/8
Ko-ken KO3405W-3/8 3/8" drive, 12 point, Whitworth Socket 3/8W
$12.00
Ko-ken
KO3405W-7/16
Ko-ken KO3405W-7/16 3/8" drive, 12 point, Whitworth Socket 7/16W
$12.00
Ko-ken
KO3405W-1/2
Ko-ken KO3405W-1/2 3/8" drive, 12 point, Whitworth Socket 1/2W
$12.00
Ko-ken
KO3405W-9/16
Ko-ken KO3405W-9/16 3/8" drive, 12 point, Whitworth Socket 9/16W
$12.00
Ko-ken
KO3405W/8

SET
Ko-ken KO3405W/8 SET 3/8" drive Whitworth Socket Set. Set of 8 sockets, with 12 point, size 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16. Marked with BS numbers also.
$89.99
(Picture)
.
GEDORE Germany- 1/2" drive Whitworth Sockets
.
Gedore
D19-3/16W
Gedore D19-3/16W 1/2" drive, Whitworth Socket 3/16W, 12 point, chrome
$18.36
Gedore
D19-1/4W
Gedore D19-1/4W 1/2" drive, Whitworth Socket 1/4W, 12 point, chrome
$17.08
Gedore
D19-5/16W
Gedore D19-5/16W 1/2" drive, Whitworth Socket 5/16W, 12 point, chrome
$18.93
Gedore
D19-3/8W
Gedore D19-3/8W 1/2" drive, Whitworth Socket 3/8W, 12 point, chrome
$21.33
Gedore
D19-7/16W
Gedore D19-7/16W 1/2" drive, Whitworth Socket 7/16W, 12 point, chrome
$23.65
Gedore
D19-1/2W
Gedore D19-1/2W 1/2" drive, Whitworth Socket 1/2W, 12 point, chrome
$24.75
Gedore
D19-9/16W
Gedore D19-9/16W 1/2" drive, Whitworth Socket 9/16W, 12 point, chrome
$25.70
Gedore
D19WWSet-7
Gedore D19WWSet-7 1/2" drive, Whitworth Socket Set. Set of 7 sockets. Includes 3/16w, 1/4w, 5/16w, 3/8w, 7/16w, 1/2w and 9/16w.
$147.50
(Picture)
Gedore
D19-5/8W
Gedore D19-5/8W 1/2" drive, Whitworth Socket 5/8W, 12 point, chrome
$31.14
Gedore
D19-11/16W
Gedore D19-11/16W 1/2" drive, Whitworth Socket 11/16W, 12 point, chrome
$31.14
(Picture)
Gedore
D19-3/4W
Gedore D19-3/4W 1/2" drive, Whitworth Socket 3/4W, 12 point, chrome. For Rolls-Royce Axle nut.
$31.14
(Picture)

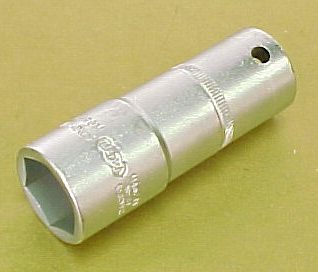

ELORA
771-LTW
Elora 771-LTW 1/2" drive, Whitworth Lug Nut Socket, 7/16W (1/2BS), chrome, 6 points. Made in West-Germany.  No longer available from Elora, we have 1 left!
$24.00
.
GEDORE Germany- 3/4" drive Whitworth Sockets
--Special Order Only --
.
Gedore
D32-1/2W
3/4" drive, Whitworth Socket 1/2W, 12 point chrome-No Longer Available!
$46.20
Gedore
D32-9/16W
3/4" drive, Whitworth Socket 9/16W, 12 point chrome-No Longer Available! $46.20
Gedore
D32-5/8W
3/4" drive, Whitworth Socket 5/8W, 12 point chrome-No Longer Available! $46.20
Gedore
D32-11/16W
3/4" drive, Whitworth Socket 11/16W, 12 point chrome-No Longer Available! $50.16
Gedore
D32-3/4W
3/4" drive, Whitworth Socket 3/4W, 12 point chrome-No Longer Available! $50.16
Gedore
D32-13/16W
3/4" drive, Whitworth Socket 13/16W, 12 point chrome-No Longer Available! $52.80
(Picture)

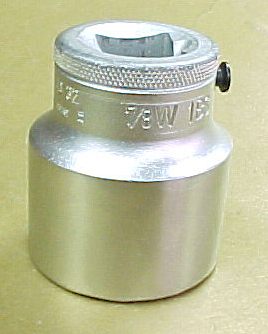

Gedore
D32-7/8W
3/4" drive, Whitworth Socket 7/8W, 12 point chrome.  Only 1 left!
$56.76
SALE
$39.99
(Picture)
Gedore
D32-1W
3/4" drive, Whitworth Socket 1W, 12 point chrome-No Longer Available! $85.80
Gedore
D32-1-1/8W
3/4" drive, Whitworth Socket 1-1/8W, 12 point chrome-No Longer Available! $99.00
Gedore
D32-1-1/4W
3/4" drive, Whitworth Socket 1-1/4W, 12 point chrome-No Longer Available! $112.20


GEDORE Germany- 1" drive Whitworth Sockets



Gedore
D 21 15/16W
(6178730)
Gedore D 21 15/16W (6178730) 1" drive, Whitworth Socket 15/16W, 12 point chrome-Clearance-Call or email to order.
$59.00
Gedore
D 21 1W
(6178810)
Gedore D 21 1W (6178810) 1" drive, Whitworth Socket 1W, 12 point chrome-Clearance-Call or email to order. $75.00
Gedore
D 21 1.1/8w
(6179030)
Gedore D 21 1.1/8w (6179030) 1" drive, Whitworth Socket 1.1/8W, 12 point chrome-Clearance-Call or email to order. $75.00
Gedore
D 21 1.1/4W
(6179110)
Gedore D 21 1.1/4W (6179110) 1" drive, Whitworth Socket 1.1/4W, 12 point chrome-Clearance-Call or email to order. $75.00
Gedore
D 21 1.3/8W
(6179380)
Gedore D 21 1.3/8W  (6179380) 1" drive, Whitworth Socket 1.3/8W, 12 point chrome-Clearance-Call or email to order. $79.00
Gedore
D 21 1.1/2W
(6179460)
Gedore D 21 1.1/2W (6179460) 1" drive, Whitworth Socket 1.1/2W, 12 point chrome-Clearance-Call or email to order. $89.00
Gedore
D 21 1.5/8W
(6179540)
Gedore D 21 1.5/8W (6179540) 1" drive, Whitworth Socket 1.5/8W, 12 point chrome-Clearance-Call or email to order. $89.00
Gedore
D 21 1.3/4W
(6179620)
Gedore D 21 1.3/4W (6179620) 1" drive, Whitworth Socket 1.3/4W, 12 point chrome-Clearance-Call or email to order. $99.00
Gedore
D 21 2W
(6179700)
Gedore D 21 2W (6179700) 1" drive, Whitworth Socket 2W, 12 point chrome-Clearance-Call or email to order. $175.00

Special Service Tools


Klann
KL-1780-12 KA
Klann KL-1780-12 KA Locking Tool Set. To prevent the camshafts from turning or to keep them in a specific position and to adjust the timing belt tensioner when changing a timing belt or during engine repairs. Applicable for Rover 2.0 and 2.5 V6 TwinCam engines (KV6) engines Rover 45, 75 and Land Rover Freelander.

Call for your discount price!

$798.29


Suspension & Shocks

KL-0026 Front Coil Spring Compressor Jaguar XJ-6. Call or email for your discount price!!

$896.98
.
Tap & Die Sets, BSF , BSW
.
Exact
EX00836
Exact of Germany. Exact EX00836 BSW 3/8" Hand Tap. With 16 TPI. Set of three. High-speed steel.

$37.50
Exact
EX00832
Exact of Germany. Exact EX00832 BSW 5/16" Hand Tap. With 18 TPI. Set of three. High-speed steel.

$29.99
Exact
EX00820
Exact of Germany. Exact EX00820 BSW 3/16" Hand Tap. With 24 TPI.  Set of three. High-speed steel.

$24.99
Exact
EX00828

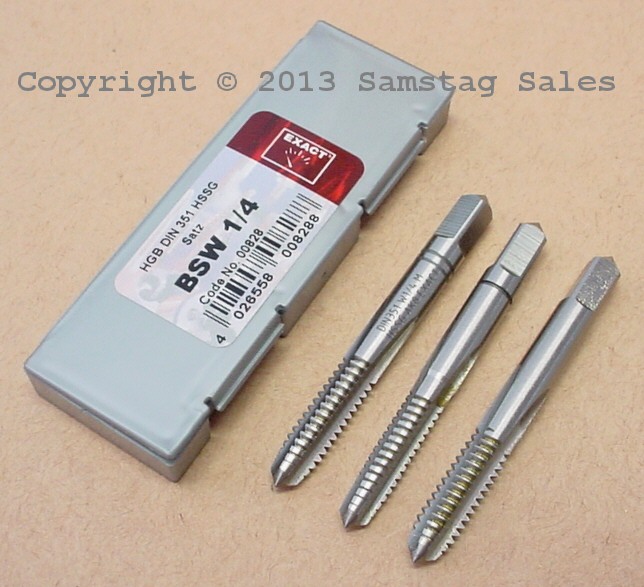

Exact of Germany. Exact EX00828 BSW 1/4" Hand Tap. With 20 TPI. Set of three. High-speed steel.

$24.99
















EXACT  05178

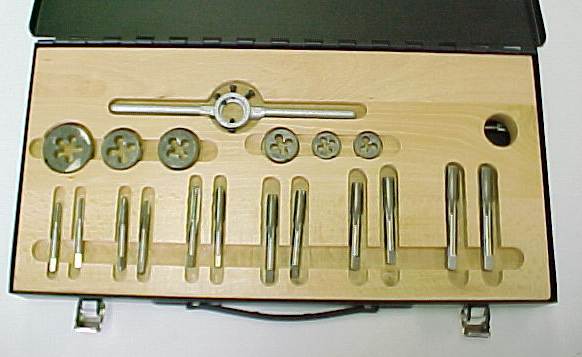

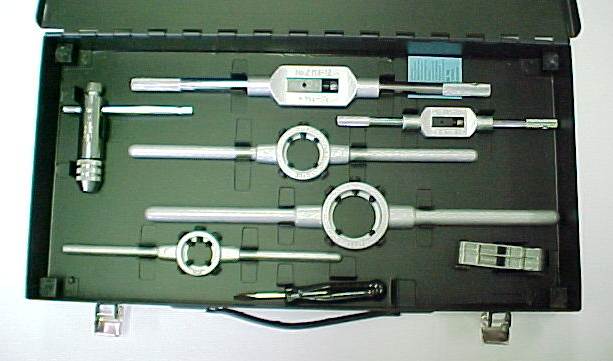

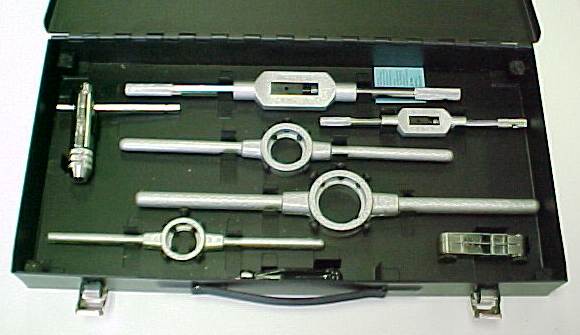

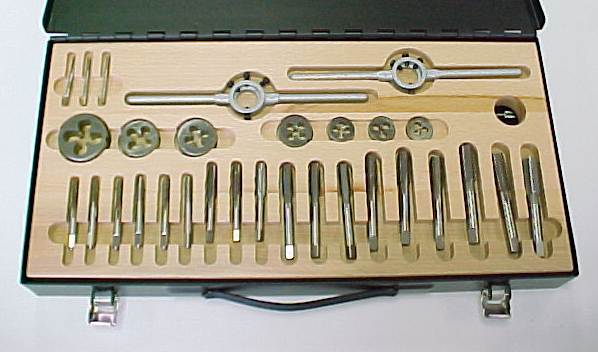

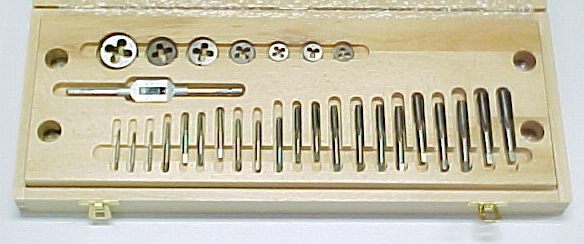

EXACT 05178 BSW tap and die set in a nice wooden case with lift out tray. The top tray includes hand taps and dies for Whitworth size 1/8W, 3/16W, 1/4W, 5/16W, 3/8W, 7/16W and 1/2W. For each tap size you get a taper tap, 2nd tap and plug tap. Also in the top tray is a small tap wrench. The bottom tray includes 5 die stocks to hold the dies in size 20x5, 20x7, 25x9, 30x11, 38x14 and a large tap wrench. The taps and dies are made with HSS High Speed Steel. Supplied by EXACT GmbH of Remscheid Germany and made in the European Economic Area.



Price on Request
.
12345678901234
GEDORE Germany- Whitworth Combination Wrenches
.

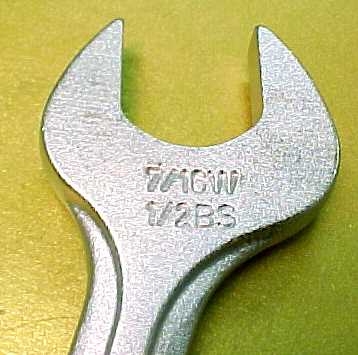

. Markings for the BS and W size. For more info, see the size reference table.
.
.
.
Gedore
1B-1/8W
Gedore 1B-1/8W Combination Wrench 1/8W, 138mm in length, 4.3mm thick open end.
$22.23
Gedore
1B-3/16W
Gedore 1B-3/16W Combination Wrench 3/16W, 158mm in length, 5mm thick open end.
$24.93
Gedore
1B-1/4W
Gedore 1B-1/4W Combination Wrench 1/4W, 185mm in length, 6mm thick open end.
$27.17
Gedore
1B-5/16W
Gedore 1B-5/16W Combination Wrench 5/16W, 210mm in length, 6.7mm thick open end.
$32.79
Gedore
1B-3/8W
Gedore 1B-3/8W Combination Wrench 3/8W, 245mm in length, 7.7mm thick open end.
$38.66
(Picture)
Gedore
1B-7/16W
Gedore 1B-7/16W Combination Wrench 7/16W, 280mm in length, 8.7mm thick open end.
$44.68
Gedore
1B-1/2W
Gedore 1B-1/2W Combination Wrench 1/2W, 305mm in length, 9.3mm thick open end.
$56.02
Gedore
1B-7 W

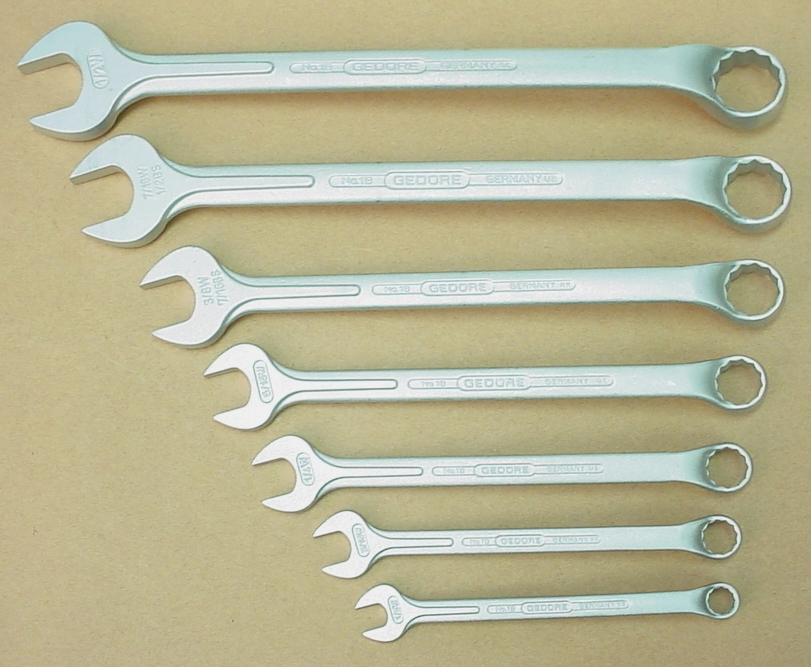

Gedore 1B-7 W Combination Wrench Set of 7 wrenches, Size 1/8W, 3/16W, 1/4W, 5/16W, 3/8W, 7/16W, 1/2W
$239.99
(Picture)
Gedore
1B-9/16W
Gedore 1B-9/16W Combination Wrench 9/16W, 340mm in length, 10.3mm thick open end.
$60.29
Gedore
1B-5/8W
Gedore 1B-5/8W Combination Wrench 5/8W, 370mm in length, 11.0mm thick open end.
$70.93
Gedore
1B-11/16W
Gedore 1B-11/16W Combination Wrench 11/16W, 390mm in length, 11.2mm thick open end. Needed on new Bentley GT Belt Tensioner.
$82.17
Gedore
1B-10W
Gedore 1B-10W Combination Wrench Set of 10 wrenches, Size 1/8W, 3/16W, 1/4W, 5/16W, 3/8W, 7/16W, 1/2W, 9/16W, 5/8W and 11/16W.
$413.88
Gedore
1B-3/4W
Gedore 1B-3/4W Combination Wrench 3/4W, 412mm in length, 11.8mm thick open end.
$96.99
.
Elora Germany- Whitworth Combination Wrenches
.
Elora
205-W 1/4
Combination Wrench 1/4W. Around 175mm (7") long. Chrome-Vanadium Steel.


$19.99

Elora
205-W 11/16
Combination Wrench 11/16W. Around 15" long. Chrome-Vanadium Steel.
$78.99
(Picture)

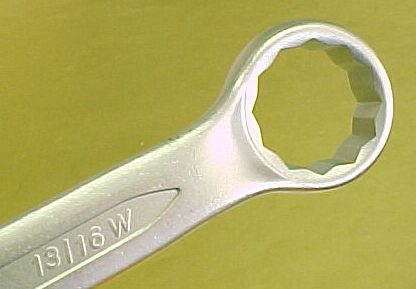

Elora
205-W 13/16
Combination Wrench 13/16 W,  460mm long.  No Longer Available.
$117.99
(Picture)
Elora
205-W 7/8
Elora 205-W 7/8 Combination Wrench 7/8 W ,  460mm long. No Longer Available.
$117.99
(Picture)
.
GEDORE Germany- Whitworth Deep Offset Box  Wrenches
.
. Markings for the BS and W size. For more info, see the size reference table.
.
Gedore
2-1/8x3/16W
Gedore 2-1/8x3/16W Double Ended Offset Ring Spanner, 12 point box ends. 195mm in length.
$29.15
Gedore
2-3/16x1/4W
Gedore 2-3/16x1/4W Double Ended Offset Ring Spanner, 12 point box ends. 212mm in length.
$32.79
Gedore
2-1/4x5/16W
Gedore 2-1/4x5/16W Double Ended Offset Ring Spanner, 12 point box ends. 225mm in length.
$33.37
Gedore
2-5/16x3/8W
Gedore 2-5/16x3/8W Double Ended Offset Ring Spanner, 12 point box ends. 245mm in length.
$38.44
Gedore
2-3/8x7/16W
Gedore 2-3/8x7/16W Double Ended Offset Ring Spanner, 12 point box ends. 285mm in length.
$48.65
Gedore
2-7/16x1/2W
Gedore 2-7/16x1/2W Double Ended Offset Ring Spanner, 12 point box ends. 305mm in length.
$55.65
(Picture)
Gedore
2-1/2x9/16W
Gedore 2-1/2x9/16W Double Ended Offset Ring Spanner, 12 point box ends. 325mm in length.
$62.69
Gedore
2-7 W
Gedore 2-7 W Double Ended Offset Ring Spanner, Set of 7 wrenches, 1/8W-9/16W
$289.99
(Picture)
Gedore
2-9/16x5/8W
Gedore 2-9/16x5/8W Double Ended Offset Ring Spanner-SPECIAL ORDER, 12 point box ends. 345mm in length.  $68.68
Gedore
2-9/16x11/16W
Gedore 2-9/16x11/16W Double Ended Offset Ring Spanner-SPECIAL ORDER, 12 point box ends. 345mm in length.  $68.43
Gedore
2-5/8x3/4W
Gedore 2-5/8x3/4W Double Ended Offset Ring Spanner-SPECIAL ORDER, 12 point box ends. 370mm in length.  $78.42
.
GEDORE Germany- Whitworth Double Open End Spanner
.
. Markings for the BS and W size. For more info, see the size reference table.
.
Gedore
6-1/8x3/16W
Gedore 6-1/8x3/16W Double Open End Wrench 1/8 x 3/16W, 157mm in length. 4.5mm thickness.
$14.51
Gedore
6-3/16x1/4W
Gedore 6-3/16x1/4W Double Open End Wrench 3/16 x 1/4W, 172mm in length. 5.0mm thickness.
$17.61
Gedore
6-1/4x5/16W
Gedore 6-1/4x5/16W Double Open End Wrench 1/4 x 5/16W, 190mm in length. 5.5mm thickness.
$19.21
Gedore
6-5/16x3/8W
Gedore 6-5/16x3/8W Double Open End Wrench 5/16 x 3/8W, 205mm in length. 6.0mm thickness.
$20.83
(Picture)
Gedore
6-3/8x7/16W
Gedore 6-3/8x7/16W Double Open End Wrench 3/8 x 7/16W, 236mm in length. 7.0mm thickness.
$26.72
Gedore
6-7/16x1/2W
Gedore 6-7/16x1/2W Double Open End Wrench 7/16 x 1/2W, 205mm in length. 7.5mm thickness.
$28.67
Gedore
6-1/2x9/16W
Gedore 6-1/2x9/16W Double Open End Wrench 1/2 x 9/16W, 266mm in length. 8.0mm thickness. **No Longer Available!
$32.64
Gedore
6-7 W
Gedore 6-7 W Double Open End Wrench. Set of 7 wrenches. Sizes 1/8x3/16, 3/16x1/4, 1/4x5/16, 5/16x3/8, 3/8x7/16, 7/16x1/2, 1/2x9/16W. **No Longer Available!
$159.99
(Picture)
Gedore
6-9/16x5/8W
Gedore 6-9/16x5/8W Double Open End Wrench 9/16 x 5/8W, 280mm in length. 8.5mm thickness.
$36.06
Gedore
6-9/16x11/16W
Gedore 6-9/16x11/16W Double Open End Wrench 9/16 x 11/16W, 280mm in length. 8.5mm thickness.
$39.86
Gedore
6-5/8x3/4W
Gedore 6-5/8x3/4W Double Open End Wrench 5/8 x 3/4W, 302mm in length. 9.0mm thickness.
$46.70
Gedore
6-11/16x3/4W
Gedore 6-11/16x3/4W Double Open End Wrench 11/16 x 3/4W, 302mm in length. 9.0mm thickness. **Special Order
$46.70
Gedore
6-3/4x7/8W
Gedore 6-3/4x7/8W Double Open End Wrench 3/4 x 7/8W, 328mm in length. 9.4mm thickness. **Special Order
$86.92
Gedore
6-7/8x1W
Gedore 6-7/8x1W Double Open End Wrench 7/8 x 1W, 360mm in length. 10.0mm thickness. **Special Order
$117.89
.
ELORA Germany- BA  Double Box Wrenches
.
Elora
113S-3BA
Set of 3 double box end, shallow offset wrenches. Sizes include: 6BAx4BA, 4BAx2BA, 2BAx0BA. NO LONGER AVAILABLE!!!
$49.50



.
ELORA Germany- BA  Double Open End Spanner
.

Elora
156BA-5x4
Elora 156Ba-5x4 British Association Double Open End Spanners, BA5 x BA4, 80mm long (not in the set below)

$13.50

Elora
156BA-1x0
Elora 156BA-1x0 British Association Double Open End Spanners, BA1 x BA0, 105mm long
$14.75
Elora
156S-5BA
Elora 156S-5BA Set of 5 type BA wrenches. with size 8x6, 6x4, 5x3, 4x2, 1x0
$67.50
(Picture)
.
ELORA Germany- BA  Combination Spanner
.



Elora
202BA-6
Elora 202BA-6 British Association Combination Spanner, BA-6, 80mm long
$16.75
Elora
202BA-4
Elora 202BA-4 British Association Combination Spanner, BA-4, 90mm long
$17.50
Elora
202BA-2
Elora 202BA-2 British Association Combination Spanner, BA-2, 100mm long *No Longer Available. $18.25
Elora
202BA-0
Elora 202BA-0 British Association Combination Spanner, BA-0, 110mm long
$18.98
(Picture)
Elora
202S 4BA
Elora 202S 4BA Combination wrench set consisting of 6, 4, 2 and 0 BA sizes.
$59.99
(Picture)
HOME Quick Search SEARCH email Samstag How To Order Web Special

Size Reference



Copyright © 1997-2014  Samstag Sales
