Volkswagen & Audi
Special Service Tool Reference

( Need to buy tools? $$$ click here)

NOTE: This page is for reference only. To see a page with prices click here. This page is here to help you identify VW-Audi special service tools you may need, or old tools you may find. Many of the older tools are no longer available. This table is not complete. We are adding numbers as time and information becomes available. We do not guarantee this information is 100% accurate. Please consult your factory service information for the application to your car. Please email us for a quote on any VW-Audi hand tool
Last Update: March 25, 2024
How To
Search For a
VW Tool
You can search for a tool on this page by using your web browser's find feature. For example, if you are using Internet Explorer, you can click on Edit in the menu bar at the top of the page, then click on (Find on this page), and type in what you want to find.  A fast way to bring up the search box is to hold down the (CTRL) key and type the letter "F". On a Mac computer enter "Command" + "F".
.
Tool #
Volkswagon - Audi Special Tools
Tool number reference table.
Weight
Quick search
10
3200
3300
T
US
V
VAG
VW

.

( Need to buy tools? $$$ click here)
KLANN
KL-0271-1

Fog light adjuster. VW Golf III and Vento. All VW-Audi with Tri-wing, 6mm screws. Similar to old tool PP 15-250-300.

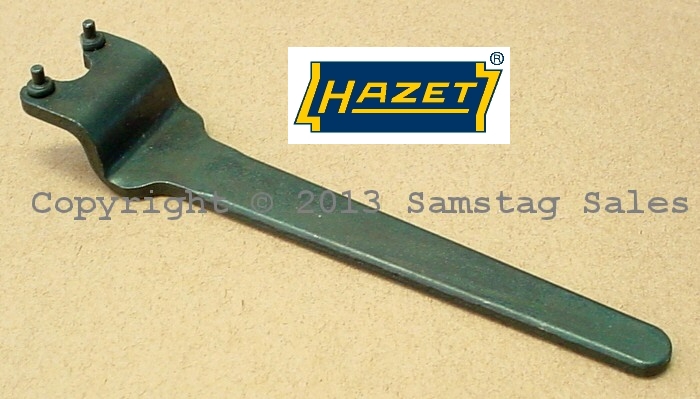

V159 Pin Wrench for timing belt tension. (Same as HZ2587)

.
V-170 V/170 Puller Hooks w/Tensioner
.
V172 Hooks for Kukko 21-10
see KK
V/176 Ball Joint Extractor. 25mm fork, deep throat.
.
V182 .
.
V183 Bit Insert
.

( Need to buy tools? $$$ click here)

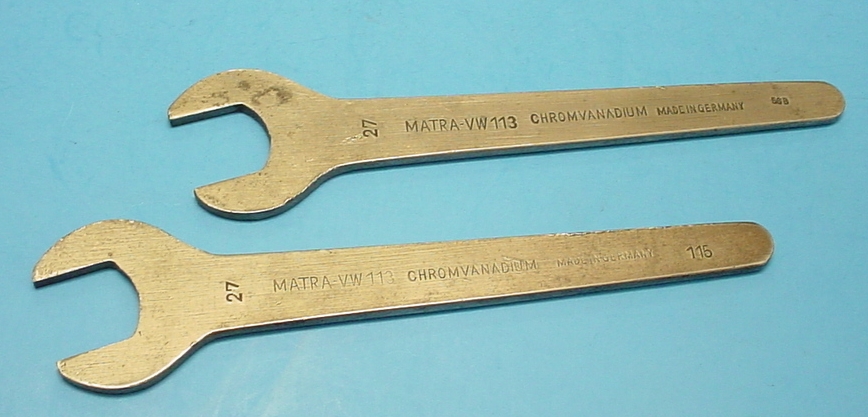

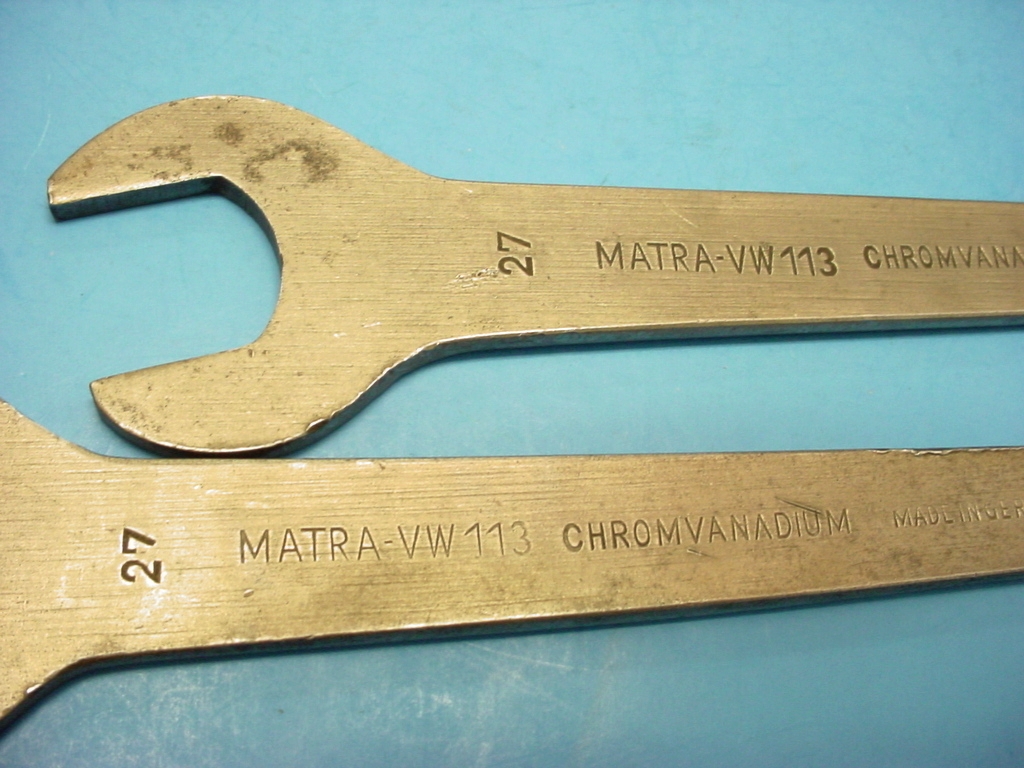

VW113 This set is for Type 1 + Type 2 VW Front Wheel Bearing Adjustment. Made by MATRA. At one time Matra was the official supplier of tools to Volkswagen. These are flat thin 27mm wrenches. About 9-1/4" long (235mm).


VW123c/1 Volkswagen Matra VW123c/1 Piston Ring Compressor 85.5mm to 86.5mm Piston, Type 3 VW Square Back and Fast Back,  Marked 5375.

.

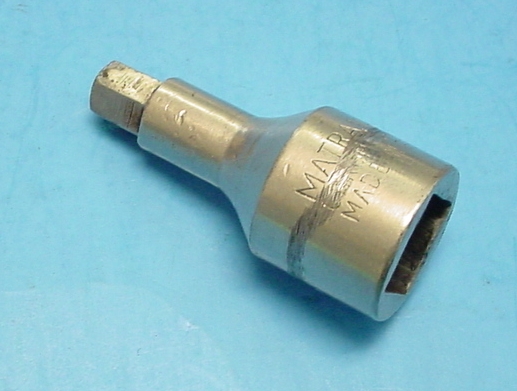

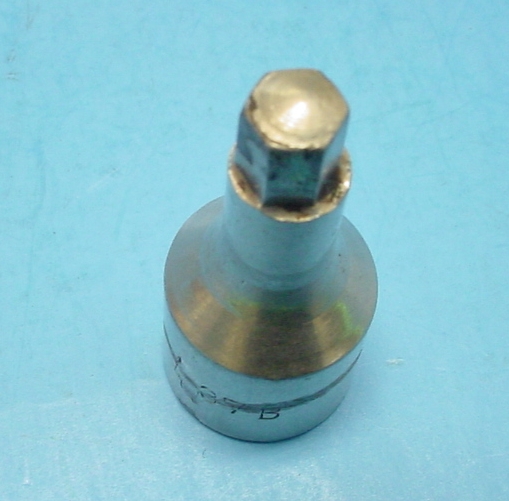

VW156
Connecting Rod Bolt Socket 8mm Hex Key with 1/2" drive, some cars.  And front torsion bar center locks.

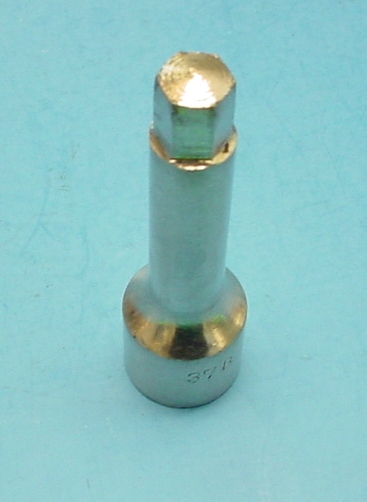

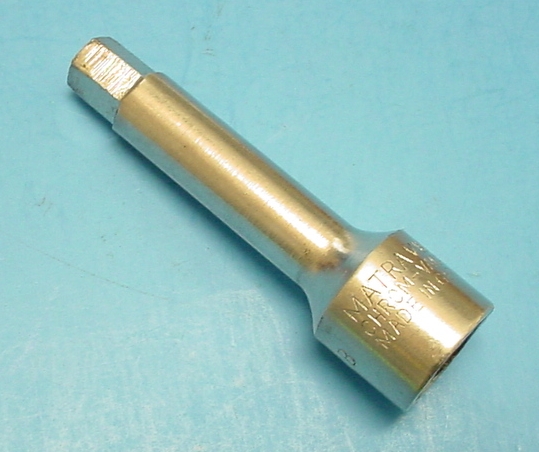

VW157
Cylinder Head Bolt Socket 10mm Hex Key for Type 1 VW. With 1/2" drive, 80mm long. Matra Made in Germany. Also marked 37B


VW160 Radio Removal Clips
.
VW161 A Circlip Pliers
.
VW190 Arbor
.
VW191 Arbor
.
VW195 Arbor
.

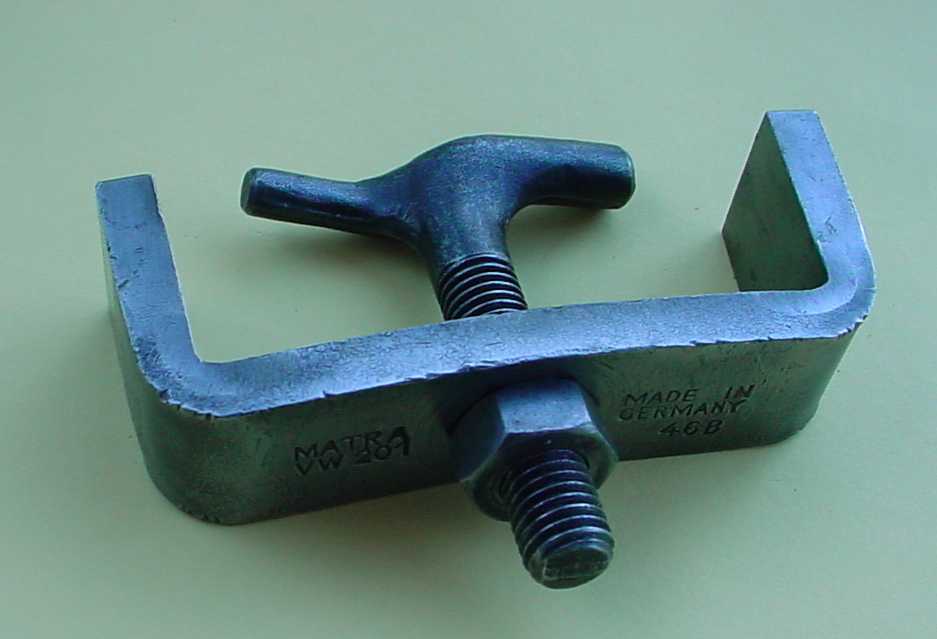

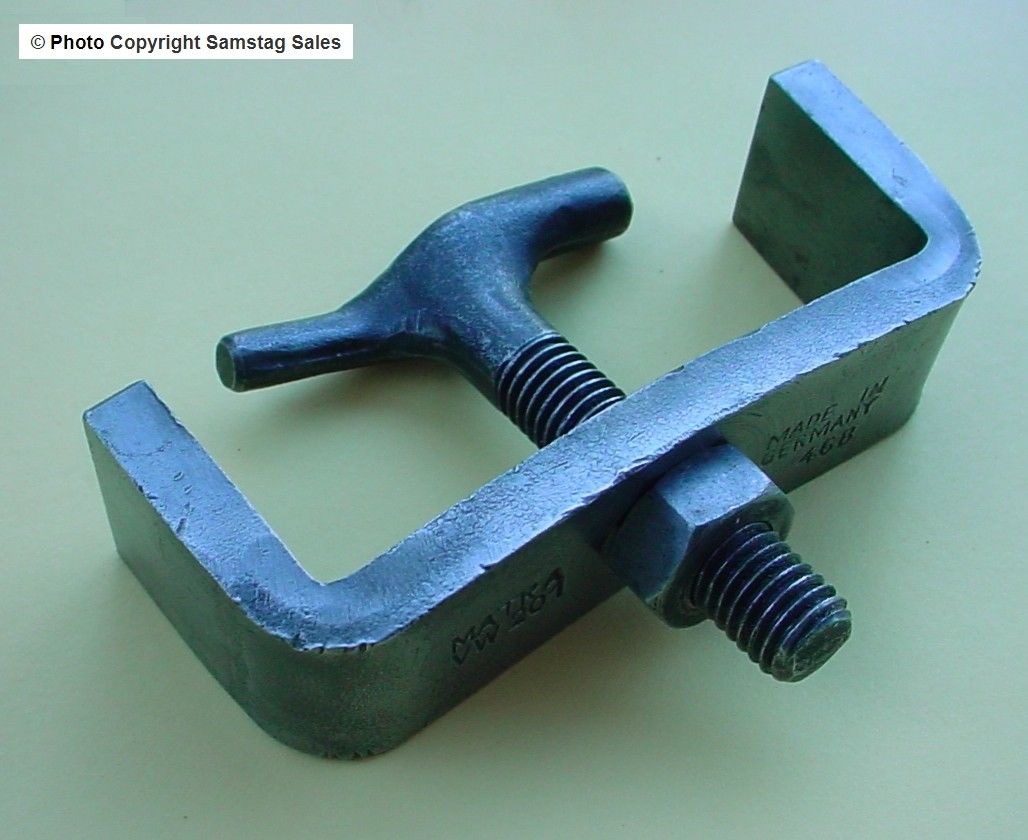

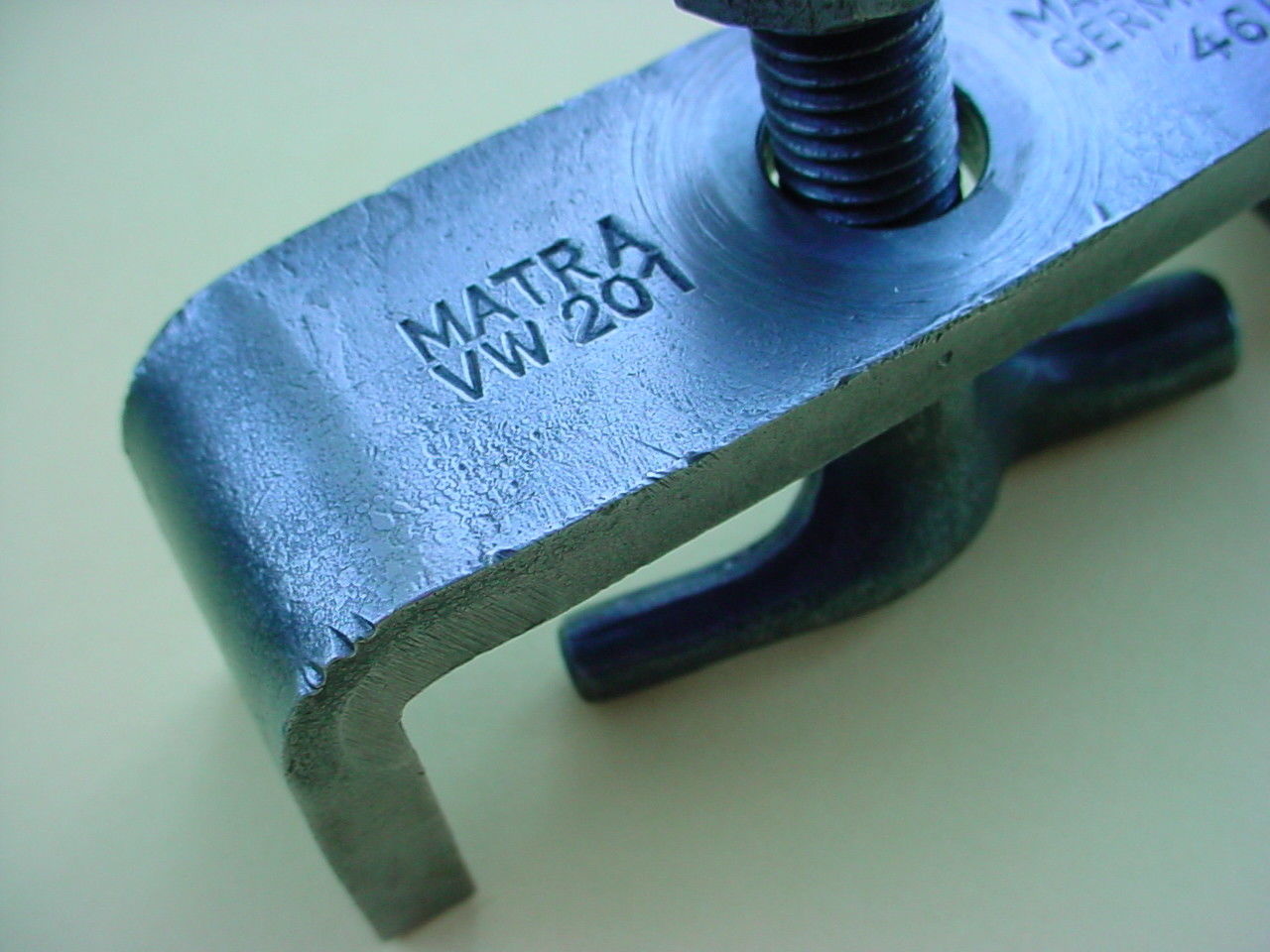

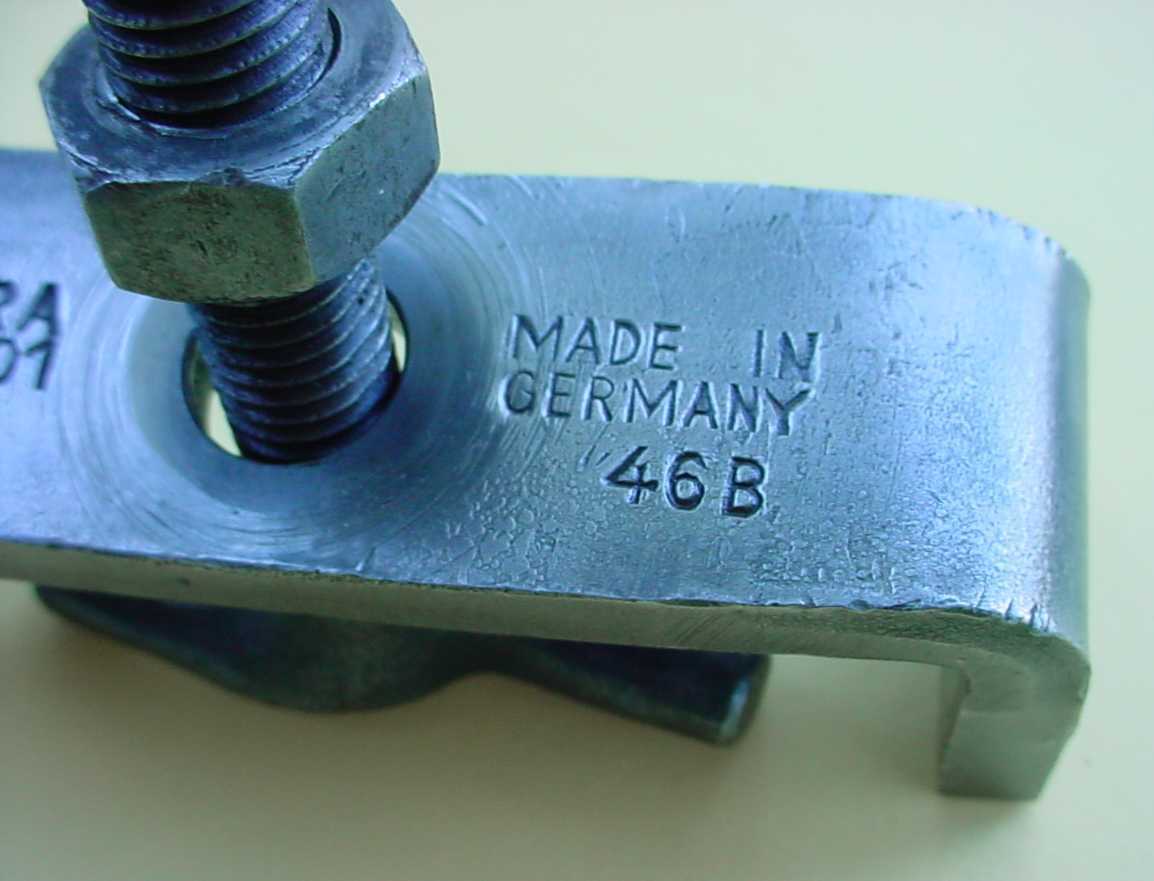

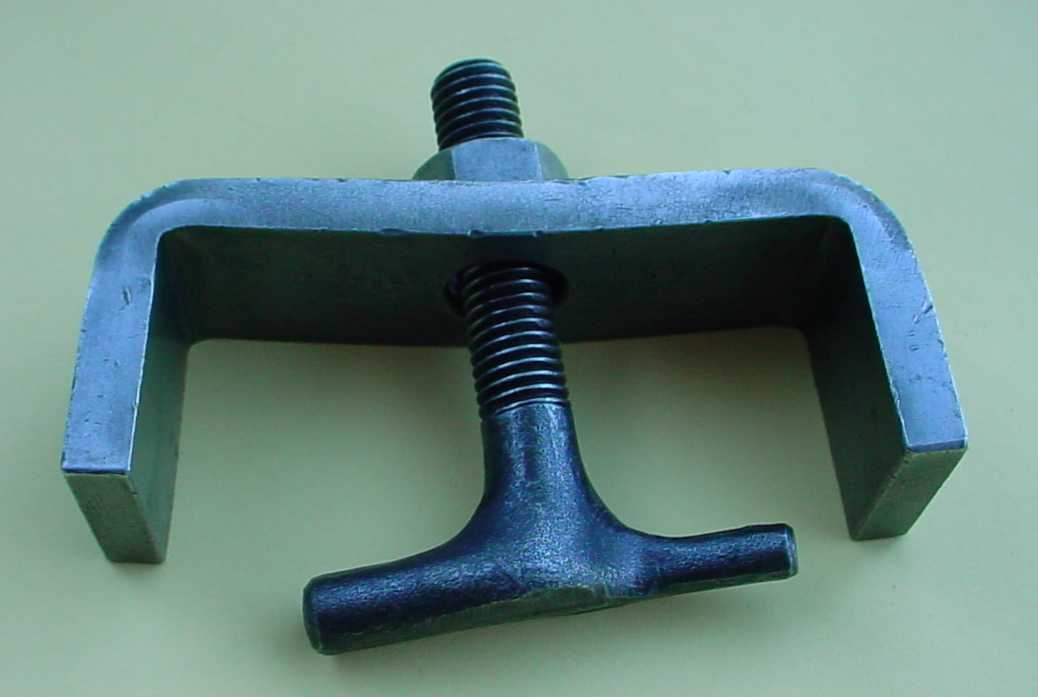

VW201 Puller - Oil Pump, also drive flange on transmission. NOTE: Some later versions are supplied with 2 T-handles.


( Picture 2( Picture 3( Picture 4( Picture 5)
.
VW204 B Arbor
.
VW207 Drift, Pistol Pin
.
VW210 Gauge Belt Tensioner
.
VW215 C Flywheel Retainer
.
VW222 A Pilot Drift
.
VW228 B Puller
.
VW240 A Driver
.
VW244 B Driving Sleeve
.
VW248 Drift
.
VW261 Protractor
.
VW267 A Removal Tool-Ball Joint
2550g
VW278 B Wrench
.
VW284 Driver/Sleeve
.
VW293 .
.
VW294 B Shift Fork Fixture Set (11 PC)
.

( Need to buy tools? $$$ click here)
VW294 B-1 Lock Device
.
VW294 B-2 Set-Up Plate
.
VW294 B-3 Set Of Four Studs - 116 MM
.
VW294 B-4 Set Of Four Studs - 106.6 MM
.
VW294 B-5 Spacer
.
VW294 B-6 Spacer, Inner-77 MM
.
VW294 B-7 Adjustment Ring
.
VW294 B-8 Mounting Ring
.
VW294 B-9 Adapter Ring-5.4 MM
.
VW294 B-10 Adjustment Spacer
.
VW295 Needle Bearing Drift
.
VW295 A Needle Bearing Drift
.
VW296 Removal Tool
.
VW307 A Holding Fixture
.
VW307 A-7 Locking Flywheel
.
VW309 Holding Plate
.
VW313 Holding Fixture
.
VW340 Spring Compressor
.
VW340-5 dapter
.
VW340-6 Thread Rods
.
VW340-7 Hooks, Long
.
VW351 Holding Appliance
.
VW352 Adapter
.
VW352-4 A Strap
.
VW353 Transmission Support
.
VW381 Ring & Pinion Tool Set, Type 2
.
VW381-3 A Spindle
.
VW381-5 A Clamping Piece
.
VW381-7 Push On Pin
.
VW381-8 Bridge
.
VW381-11 Locking Bar
.
VW381-13 Extension Pin 52MM
.
VW381-14 Special Wrench
.
VW381-15 Special Wrench
.
VW382 Special Socket&Measuring Tools
.
VW382-3 Clamping Piece
.
VW382-6 Special Wrench
.

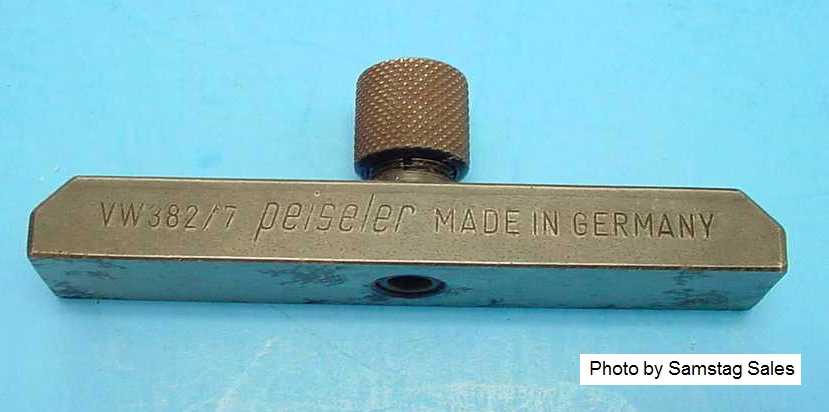

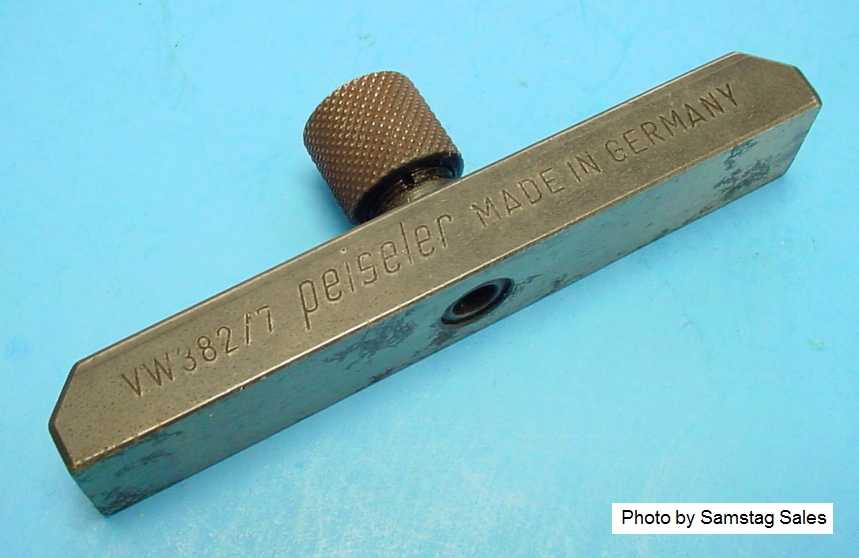

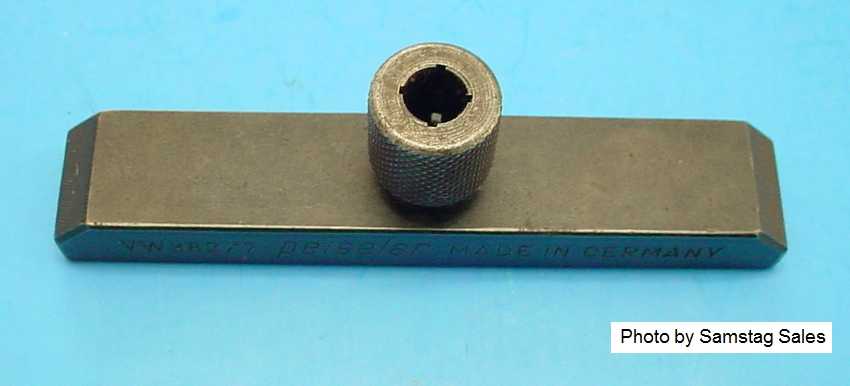

VW382-7 Measuring Bar. Volkswagen Peiseler VW382/7 Measuring Bar. Used with your dial indicator to measure the Drive Flange Depth. Also used to measure the cylinder head gasket thickness on Vanagon Diesel.



.
VW382-8 Extension Pin, 22MM
.
VW382-10 Extension Pin, 6MM
.
VW385-1 Measuring Bar
.
VW385-1-3 Plastic Piece
.
VW385-2 Centering Disc, 61MM DIA.
.
VW385-3 Centering Disc, 69MM
.
VW385-4 Centering Disc, 75/74 MM
.
VW385-13 Measuring Pin-19MM
.
VW385-14 Measuring Rod-30MM
.
VW385-15 Extension Pin 9.3MM
.
VW385-16 Extension Pin 12.3MM
.

( Need to buy tools? $$$ click here)
VW385-17 Magnetic Plate 50MM DIA.
.
VW385-19 Spring Support
.
VW385-20 Extension Pin 3MM
.
VW385-22 Setting Gauge
.
VW385-25 Setting Gauge
.
VW385-28 Setting Gauge
.

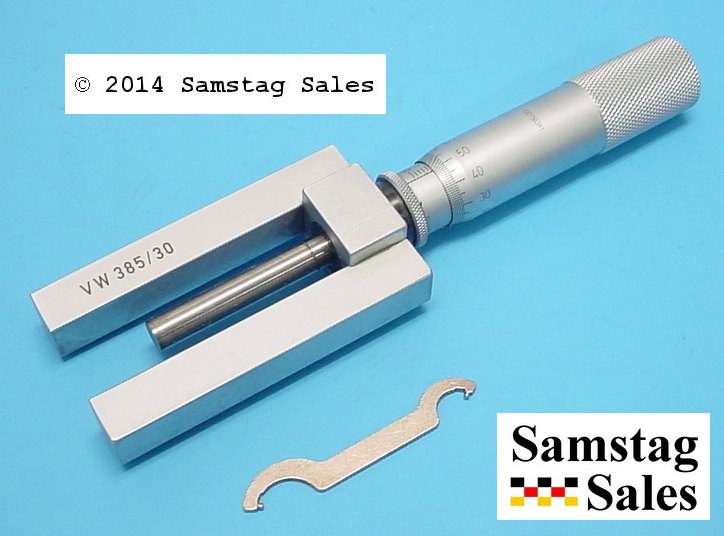

VW385-30 Master Gauge-Adjustable. Needed to set the position of the pinion bearing.

512g
VW385-32 End Gauge
.
VW385-33 End Gauge
.
VW385-40 Box For Universal Mandrel Set
.
VW386 A Clamping Piece
.
VW387 Dial Gauge Holder
.
VW388 Measuring Lever
.
VW391 Puller
.
VW401 Thrust Plate for manual transmission work,etc.
.
VW402 Thrust Plate for manual transmission work, etc.
.
Part Description
Weight
VW407 Punch. Outer race of taper roller bearing. Press wheel hub. 267mm Long.
2795g
VW408 A Punch, Press out drive pinion shaft on manual transmission.
.
VW409 Punch, Main shaft into clutch gear, etc. for manual transmission work.
.
VW411 Punch
.
VW412 Thrust Disc
.
VW415 A Tube, 60 MM DIA.
.
VW416 B Tube, 37 MM DIA.
.
VW418 A Tube, 31.5MM DIA.
.
VW420 Tube, 28 MM DIA., 210 MM
.

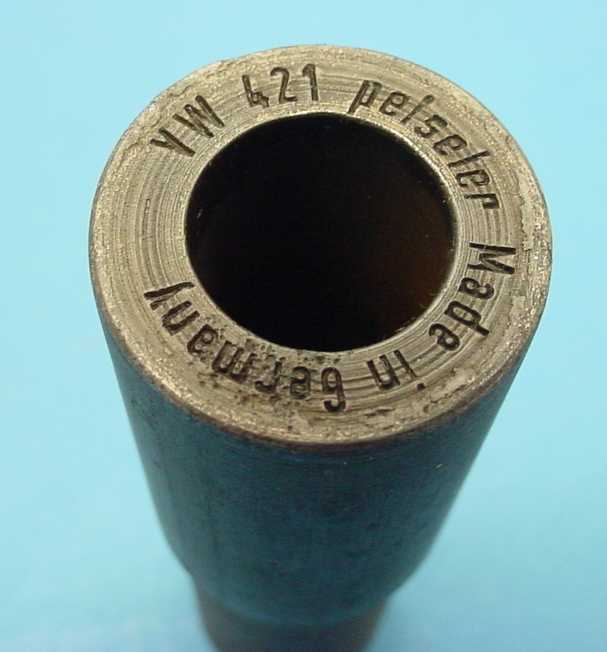

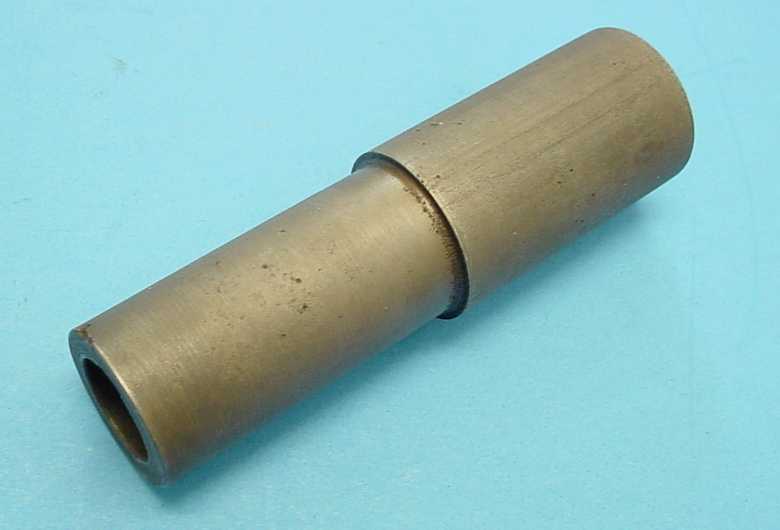

VW421 Press Piece Made in Germany by Peiseler . The big end is 28mm diameter , length is 100mm.


TYPE 1 VW
-----------------
For shock absorber eye bushing.
Steering damper Bushing
Remove 3rd gear from main shaft, synchromesh
Install Clutch Pedal Shaft Bushings
Install ball bearing on commutator side of generator

TYPE 2 VW
-----------------
For lower king pin bushing.


.
VW422 Tube, Split
.
VW423 Sleeve
.
VW426 Tube Trans. Drive Shaft
.
VW428 A Guide Tube
.
VW429 Thrust Ring
.
VW431 Thrust Pad 16.5/28MM DIA.
.

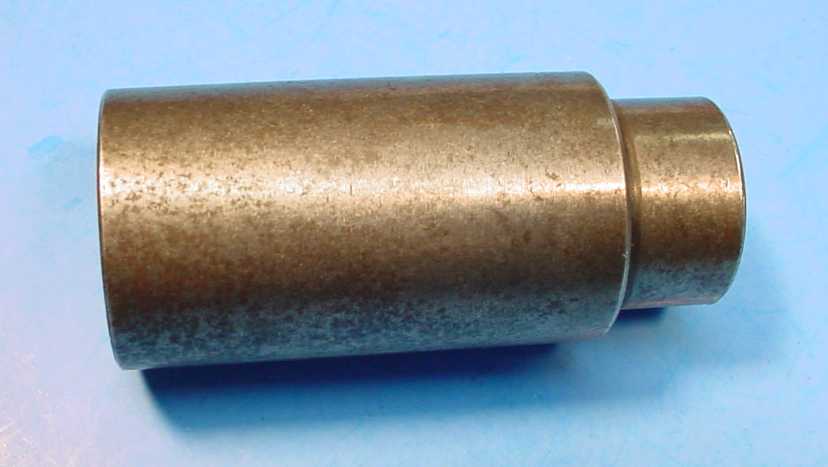

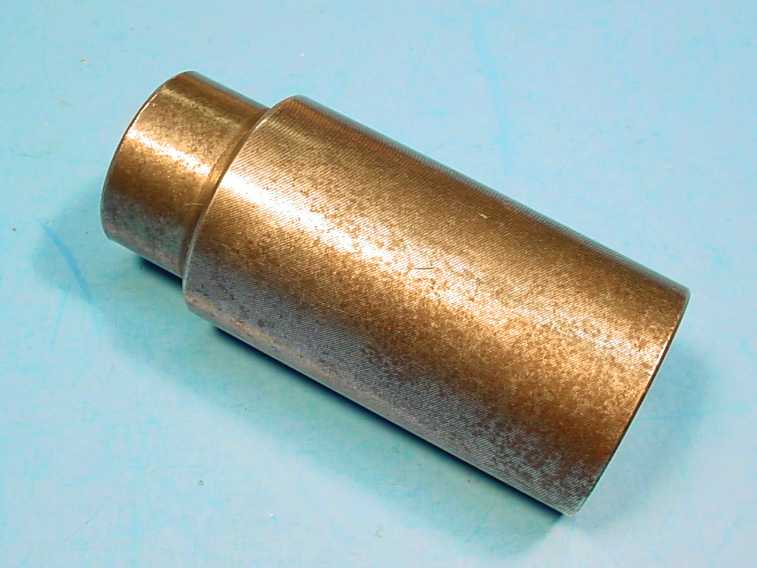

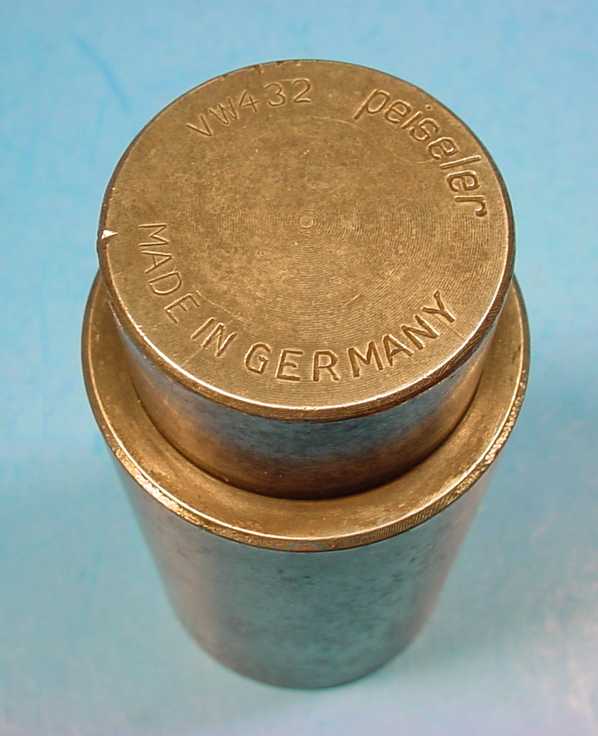

VW432 Arbor 50 MM Diameter bushing press. Press in rubber bushing of the control arm. Install bonded bushing in the wheel bearing housing. Install rear drum inner bearing race.  Made by Peiseler of Germany.


.
VW433 Thrust Pad, CON. 8/65
.
VW434 Arbor
.
VW436 A Guide Pin
.
VW439 Guide Pin
.
VW440 Support Ring
.

( Need to buy tools? $$$ click here)
VW441 Base Block
.
VW442 Thrust Pad
.
VW447 H Thrust Pad
.
VW447 I Thrust Pad
.
VW454 Thrust Tube
.
VW455 Thrust Tube
.
VW456 A Gear Carrier Support (3PC)
.
VW457 Support Channels
.
VW458 Thrust Plate
.
VW459 Press Appliance
.
VW460-3 Press Fixture
.
VW463-2 Split Tube
.
VW470 Thrust Ring
.
VW471 Peening Tool
.
VW472 Thrust Piece & Sleeve
.
VW473 Thrust Piece
.
VW474 Thrust Pad
.
VW508 Thrust Pad
.
VW510 Thrust Pad
.
VW511 Thrust Pad
.
VW512 Thrust Pad
.
VW516 Tube, 42 MM DIA.
.
VW517 Threaded Spindle
.
VW519 Sleeve
.
VW521-4 Locking Sleeve
.
VW521-7 Bushing 26 / 28 MM
.

( Need to buy tools? $$$ click here)
VW521-8 Bushing 26 / 30 MM
.
VW522 Sleeve-Press Tool
.
VW524 Wrench - Two Pin Spanner ( see HAZET 2593-4)
.

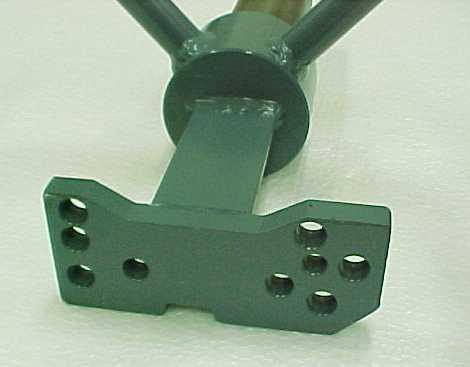

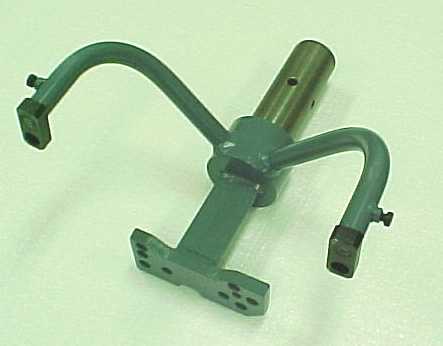

VW540 Engine Holding Fixture. boxed 385mm x 250mm x 390mm. Used with 313 Bench Clamp. The VW540 has been discontinued.
..
8235g

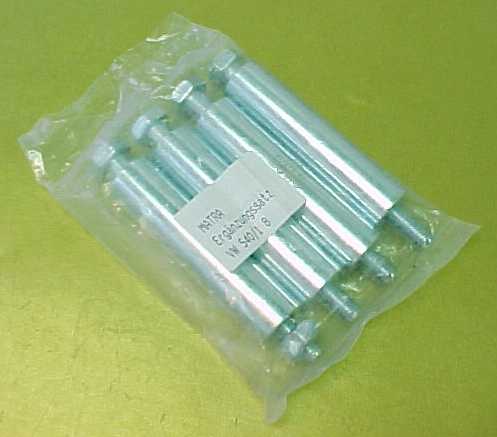

VW540-1B Spacers, 100mm long.
1640g

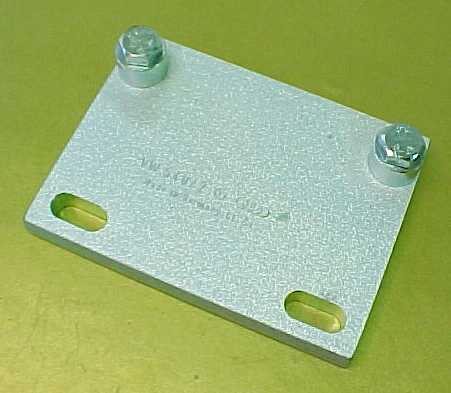

VW540-2 Plate, 160mm long.
2245g
VW541 Valve Spring Tensioner (3PC)
.
VW541-1A Lever
.
VW541-2 Bar
.
VW541-3 Base Plate
.
VW541-5 Valve Spring Tensioner
.
VW542 Guide Piece
.
VW544 Y-Hook spanner Wrench ,Automatic gearbox
.
VW545 Drift
.
VW545-2 Adapter
.
VW546 Tappet Tensioner-spring compesssor, to be used with 10-208 shim pliers.
.
VW547 Clutch Pilot Disc
.
VW548 Clamping Piece
.
VW549 A Measuring Mandrel
.
VW551 Oil Seal Driver
.
VW552 Tensioner Hooks (2)
.
VW554 Arbor, Thrust Piece
.
VW558 Flywheel Lock Adapter
.
VW637-2 Grease Cap Puller
.
VW674-2 Socket Wrench - R&R Switches
.
VW681 Extractor Lever
.
VW771 Slide Hammer-Complete Set
.
VW771-1 Slide Hammer
.
VW771-13 Pulling Hook
.
VW771-14 Bushing
.
VW771-15 Threaded Piece
.
VW771-37 Additional Part For VW771
.
VW785-1B Transmission Support
.
VW792 Installation Arbor
.
VW801 Holding Fixture
.
VW802 Stop Bar
.
Part Description
Weight

( Need to buy tools? $$$ click here)
10-201 Flywheel Retainer
10-202 Puller
.
10-203 Oil Seal Driver
.
10-204 Valve Stem Seal installer, See New Number US5042.
.
10-205 Mounting Sleeve
.
10-206 Drift
.
10-208A Disk Pliers
.
10-212 Storage Tray
.
10-213A .
.
10-215 .
.
10-221 Extractor
.
10-222A Engine Support Bridge
.
10-222A/1 Bracket For Engine, 13" length
2600g
10-222A/2 Additional Hooks.
.
10-222A/3
10-222A-4

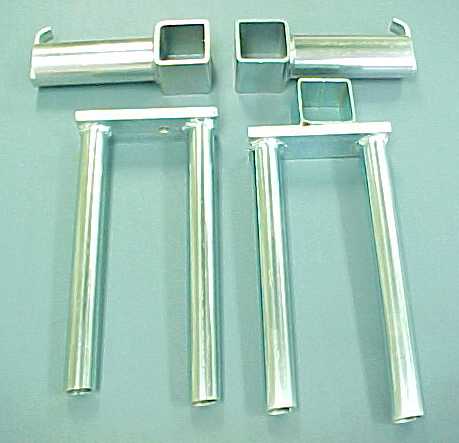

10-222A/3 Engine Support Adaptor Tube, 10-222A/4 Engine support 15" length
2100g
10-222A-5 Adaptor Plates, 11" length
1795g

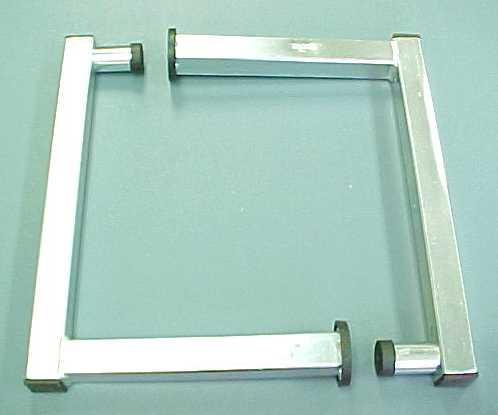

10-222A-6 L Bracket, Set of 2, 19" length
2600g.

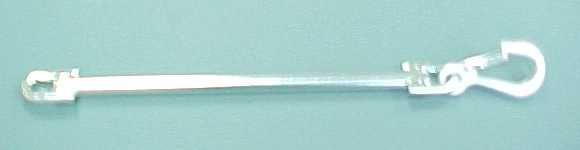

10-222A-7 Rod and Hooks, 20" length

716g

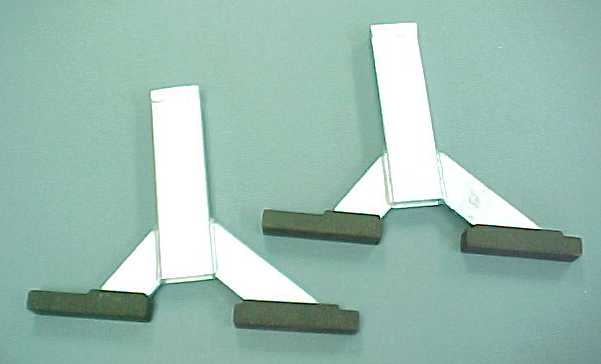

10-222A-8 Engine Support Feet, 9" length
3030g

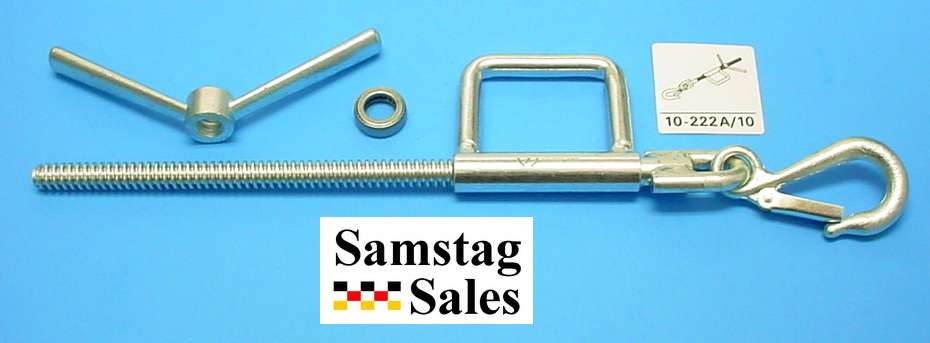

10-222A/10
Set of 1 brackets, 1 spinner nut,  and 1 Rod with Hook, 21" length. Order 2 of number 10-222A/10.

2860g
10-222A-11 .
.
10-222A-12 .
.
10-508 Assembly Mandrel
.
10-9 Assembly Ring
.
Part Number Description
Weight

( Need to buy tools? $$$ click here)
2003 Seal Installer .
2003-1 Seal Press Sleeve .

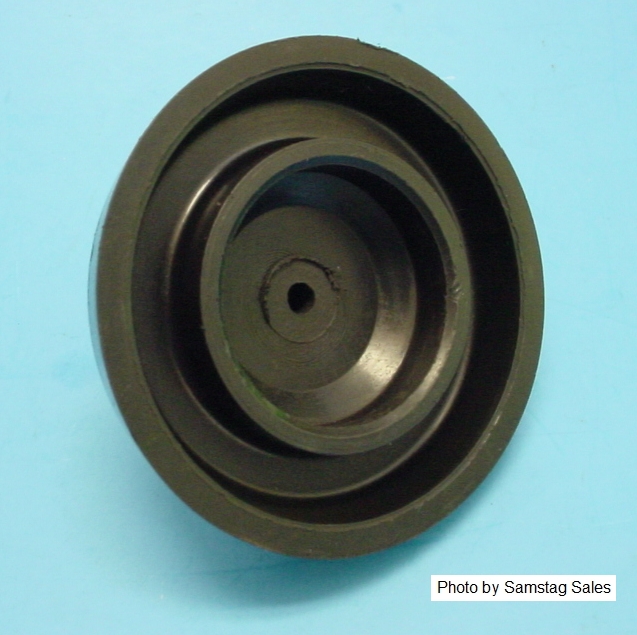

2003/2A Seal Press Sleeve. Used to install Crankshaft Oil Seal on Flywheel Side of 1.6L and 1.8L engines.  Used with 2003/1.

.
2003-3 Seal Installer .
2004 Gearbox Holder .
2005 Punch .
2006A Thrust Ring .
2007 Thrust Pad .
2008A Tray .
2010 Sleeve .
2011 Support Bridge .
2012A Wrench .
2024A Engine Sling .

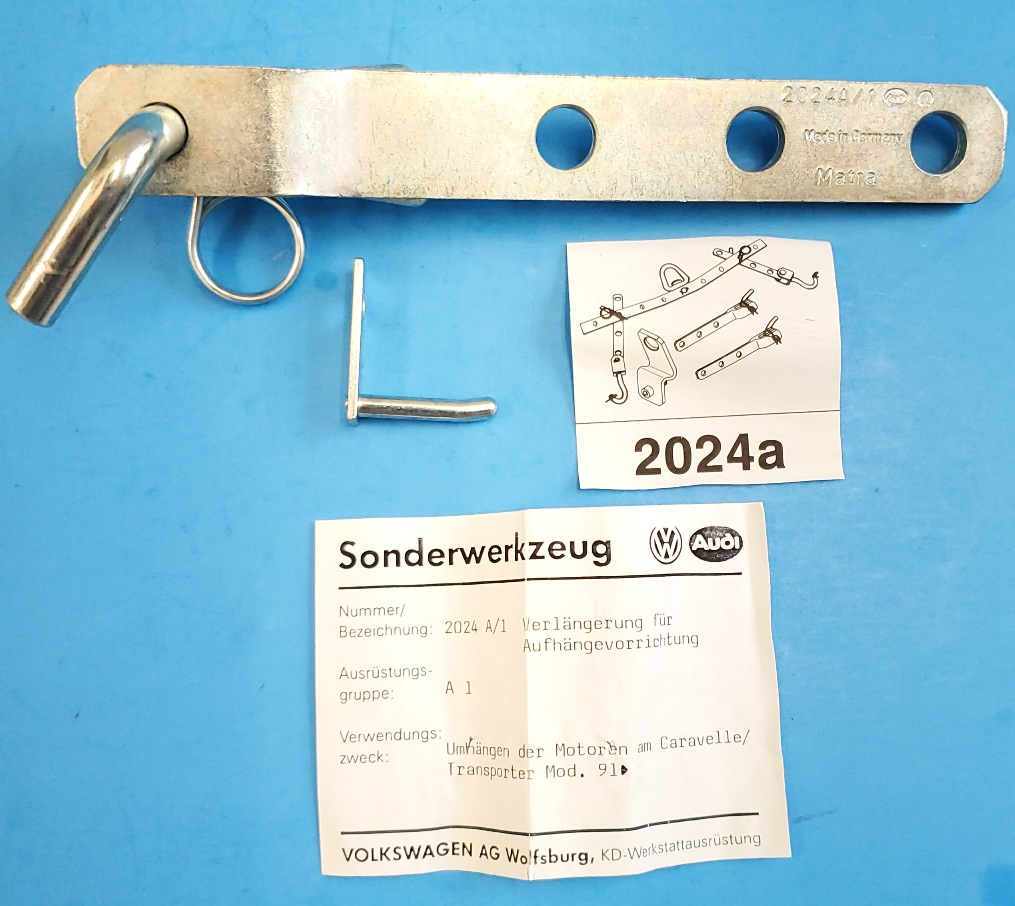

2024A/1 Bracket for engine sling. Part of superseded 2024B set.

.
2026 Mandrel .
2033 Arbor .
2036 Adjustable Rod .
2037 Valve Spring Compressor .
2038 Limit Gauge .
2039 Press Tool .
2040 Press Tube .
2050 Thrust Plate .
2051 Arbor .
2052 Holding Fixture .
2054 Thrust Plate .
2055 Sleeve .
2056 Mandrel .
2058 Sleeve .
2062 Driver .

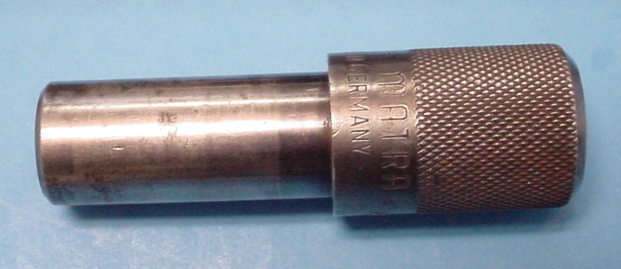

2064 Lock Pin Diesel Injection Pump.

.

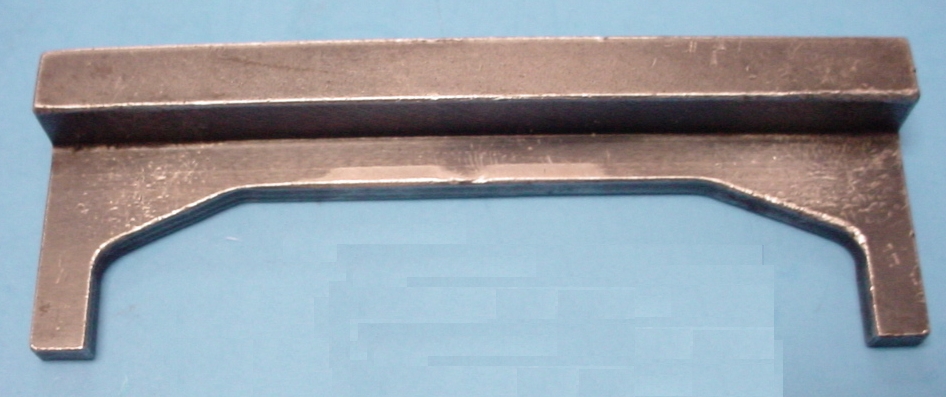

2065A Camshaft Setting Bar for Diesel Engine Timing.


.
2066 Dial Gauge Adapter .
2066-5 Extension Pin 100MM .
..
2068A Adj. Gauge TDC .
2069
Tube socket 2069 or  40-201B. Size 28mm with 1/2" Drive. Shock absorber cartride Audi 80 since '92, Audi 90 since '87.


2069A Tube Socket 33mm for Shock Cartridge removal,  33mm. Ship 5 pounds

.
2070 Spring Strut Compressor .
2070-1 Shock Support Tool .
2073 Gearshift Gauge .
2074 Installation Mandrel .
2075 Heater Claw .
2076A Heater Template .
2078 Tappet Tensioner .
2079 Wrench .
2080A Sleeve .
2082 Installation Mandrel .
2084 Counter Holder .
2085 Seal Puller - General Useage .
2085-1 Adapter .
2086 Extractor hook, for removing oil seal from 5 cylinder engine. .
2587 Special Wrench .
30-4 Pressure Cap .
30-11 Thrust Pad .
30-14 Sleeve .
30-20 Drive Sleeve .
30-21 Sleeve .
30-22 Guide Sleeve .
30-23 Press Tube .
30-24 Drift .
30-100 Press Tube .
30-204 Installing Ring .
30-205 Thrust Pad .
30-207 Puller-Rillex V12-2 (special order from Germany) .
30-211A Bracket .
30-212 Drift .
30-504 Thrust Pad .

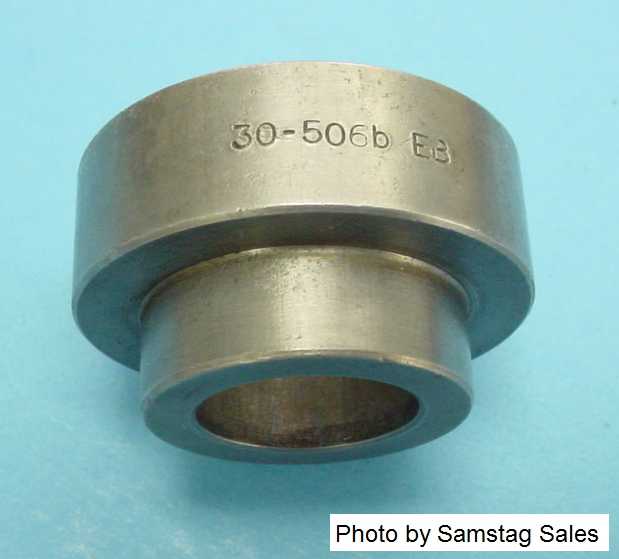

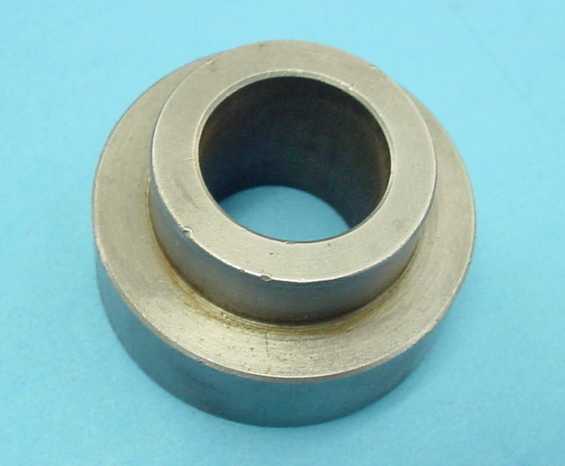

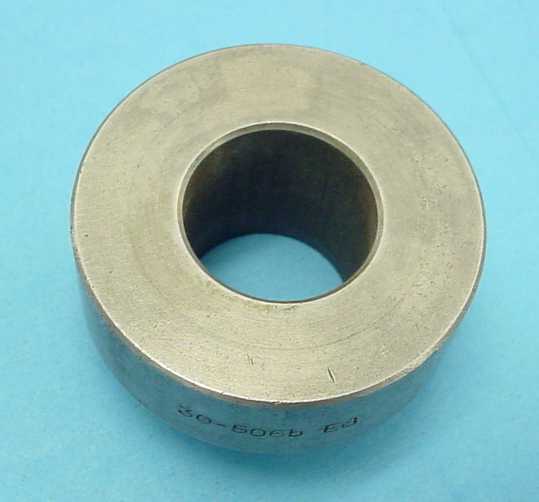

30-506B Press Support for installing pinion needle bearing in Gear Carrier housing for 4 and 5 speed manual transmission type 091/1 or 094.

.
30-555 Thrust Pad .
3005 Thrust Pad .
3013 Seal Driver .
3014 Gearshift Gauge .
3015 Reamer .
3016 Speedometer Drive Wrench .
3017A Rear Shock Absorber Strut Wrench, Passat, (HZ 2593Lg-17) .
3019A Headlight Washer Aiming Tool .
3021 Protractor .
3022 Clamping Device .
3026 Mandrel .
3028 Retainer .
3032 Puller .
3032-9A . .
3034 Puller .
3035 Injector Line Wrench (HAZET 4560) .
3036 Retainer Wrench, 380mm long.
932g

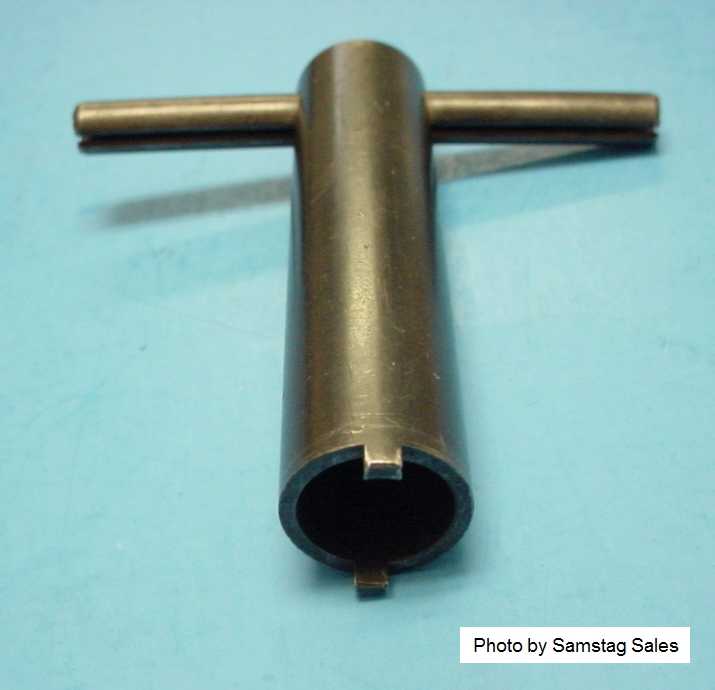

3038 Special Wrench. Used to adjust the shift fork for the 5th Gear of manual transmission. Outside diameter of the tube 16mm. Length 70mm. With 2 small tabs about 3mm wide.

45g
3039 Sleeve .
3040 Special Wrench .
3042 Puller .
3046 Puller .
3047A Slide Hammer .
3048 Gauge - Gearshift Linkage
.
3049A Exhaust Spring Clamp Spreader.

.
3051 Press Tool .
3052 Adapter .
3053 Guide Tube .
3054 . .
3057 Shift Gauge-No Longer Available .
3058 Engine Support .

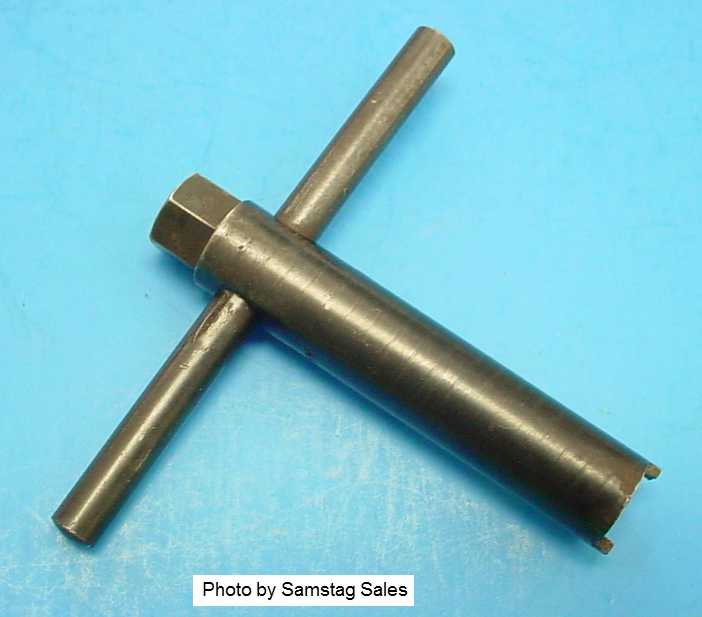

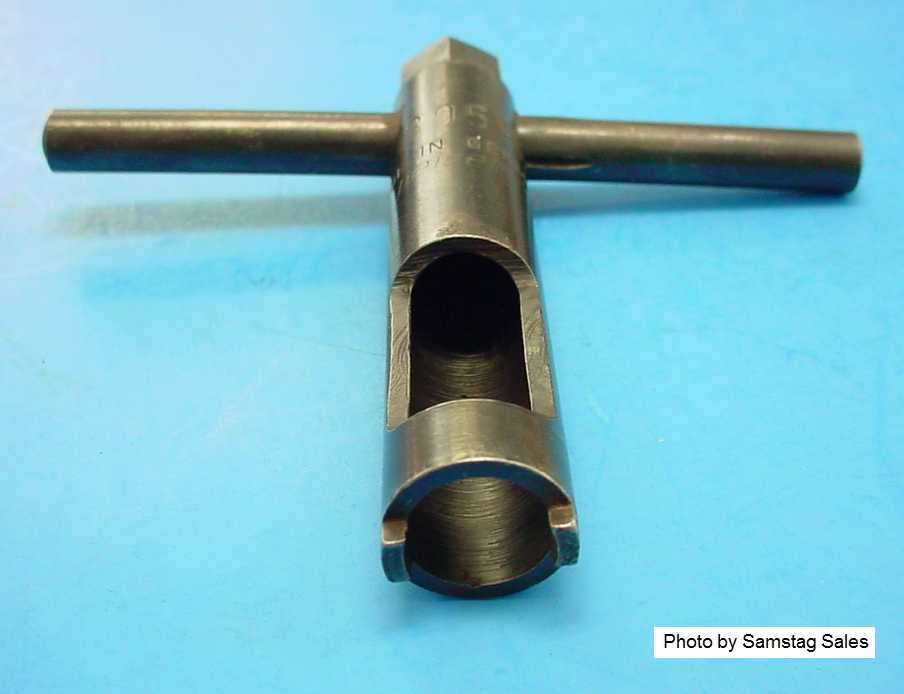

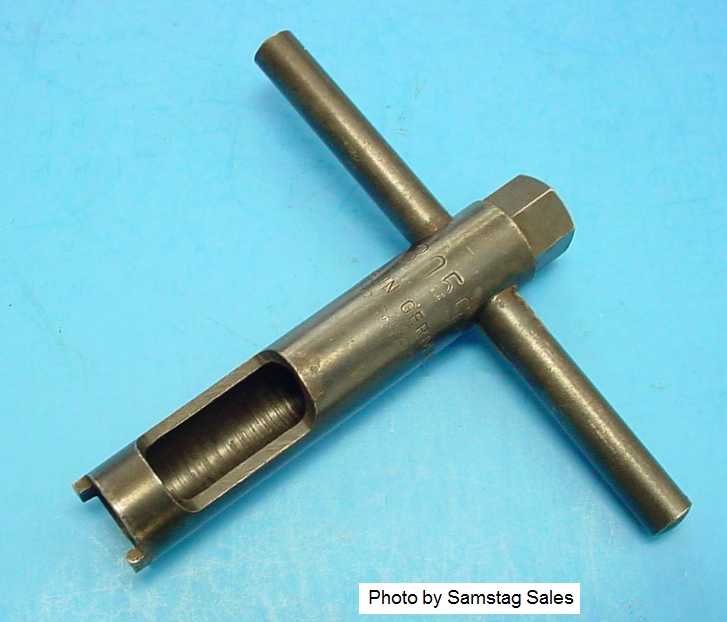

3059 Special Wrench. Volkswagen 3059 Wrench for Shift Fork of 5th Gear 5 Speed 020 Gearbox. This is an old tool made by Peiseler. For manual transmission as found on old Golf, GTI, and Jetta from the 1980's and 1990's. Outside diameter of the tube is 16mm. Overall the tool is about 87mm (3-7/16") Long.

.
3060 Gauge (2) .
3062 Thrust Pad .
3066 Seal Installer Set - Rear Diff .
3066-1 Thrust Pad - Differential Seal .
3066-2 . .
3067 Flywheel Retainer .
3070 Guide Pins & Handle-11, 12 MM .
3070-7 Guide Pins - 11 MM X 1.5P .
3070-9 Guide Pins 12MM .
3072 Tensioner Rear Lid Springs
.
3075 Locking Bar .
3076 Locking Bar .
3077 Socket 19MM .
3078 Special Wrench 22MM .
3079 Counter Holder .
3083 Arbor .
3084 Protractor .
3084-1 Magnetic Base .
3086 Installation Mandrel .
3087 Wrench .
3088 Arbor .
3090 Connecting Rod Support .
3091 Mandrel .
3092 Puller .
3093 . .
3094 . .
3096 Bushing Mandrel .
3097 Spreading Tool .
3098 Lever - Camber Adjustment .
3099 Spur Belt Spreading .
3102 Holding Retainer - 1.9L Engine .

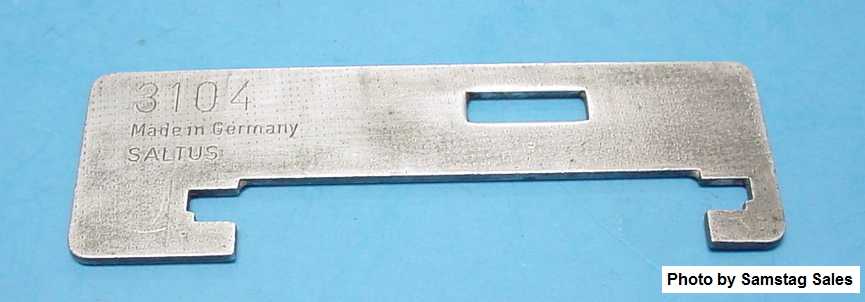

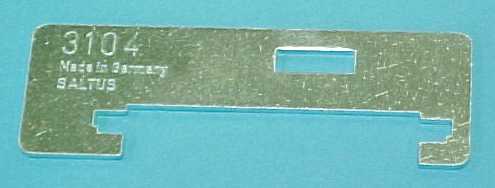

3104 Gearshift Gauge. Discontinued. 3104 Gearshift Linkage Gauge for manual 020 transmission. Made by SALTUS in Germany.

Volkswagen 3104 Gearshift
                        Gauge - Samstag Sales
36g
3106 . .
3107 Pry Hook .
3109 Puller .
3110 Press Support .
3111 Bushing Press .
3111-1 . .
3111-2 . .
3111-3 . .
3111-4 . .
3111-5 Supplementary Kit To 3111 .
3111-6 Supplementary Kit To 3111 .
3111-7 Supplementary Kit To 3111 .
3111-8 Supplementary Kit To 3111 .
3111-9 Supplementary Kit To 3111 .
3111-10 Supplementary Kit To 3111 .
3111-11 Compression Disk .
3111-12 Compression Bushing .
3112 T Wrench 13MM .
3113A . .
3114 Door Augment Device .
3114-2 Replacement Stud (8MM/10MM) .
3115 Spanner Wrench .
3116 Clamping Sleeve .
3117 Spring Retainer .
3118 Press Support .
3120 Reamer - 7MM .
3121 Drift .
3122B Spark Plug Removal Tool .
3123 Backing Plate .
3124 Thrust Pad .
3125-5 Replacement Tips For 3125 .
3125A Windshield Washer Aiming Tool .
3126 Wedge-Roof Molding Install .
3128 Bushing Puller .
3128-1A Installation Piece .
3129 Seal Driver .
3132 Retainer .

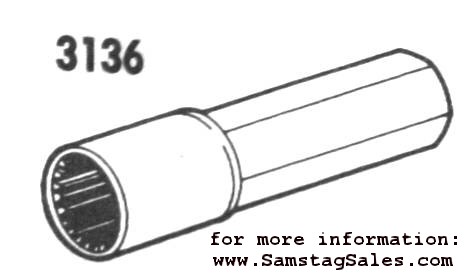

3134 Adjusting Lever - Rear Toe .
3136 Pinion Wrench. To remove pinion nut found in the final drive at the front. - No Longer Available


.
3138 Drift .
3139 Alignment Fixture - 4W Dr. Shaft .
3139-3 . .
3140A Wedge Set .
Part Description
Weight
3141 'T'-Handle - Install Front Shocks
3142 Seal Driver- Drive Shaft Flange
.
3143 Seal Driver- Front Wheel Bearing
.
3144 Press Support - R&I Wheel Brg's.
.
3145 Handle- Hold Dr. Shaft Flange
.
3146 Press Support - R&R Ball Joints
.
3147 Engine Support Adapter
.
3148 .
.
3148-2 Press Piece
.
3149 Pulley Retainer- V-belt removal
.
3151 Assembly Fixture
.
3152 Spring Clip - R&R Clutch Pedel
.
3155 Ring Nut Spanner
.
3158 Drift Sleeve
.
3159 Reamer - Piston Pin
.
3162 Oil Seal Fitting Tool
.
3163 3 Pronged Puller
.
3167 Spacer Gauge
.
3168 Tensioner
.
3176 Clutch Centering Mandrel, and crankshaft needle bearing press.
.
3177 Clamp
.
3178 Centering Plate
.
3179 Adjusting Tool
.
3180 Retainer
.
3183A Socket Wrench
.
3184 Removal Device
.
3185 Long T-Handle 10mm Socket for Oil Pan Bolts.
.
3186 Special Socket Wrench 21MM , same as (HZ2593-21mm)
.
3187 Assembly Sleeve
.
3188 Press Tool Support Plate
.
3190A Mandrel for Centering clutch plate Audi A3 1997 , 5-speed manual gearbox 02J
.
3191 Belt Tension Damper for G-Charger Engines.
.
3192 Shift Linkage Gauge
.
3192-1 .
.
3193 Shift Linkage Gauge
.
3194 Press Tool
.

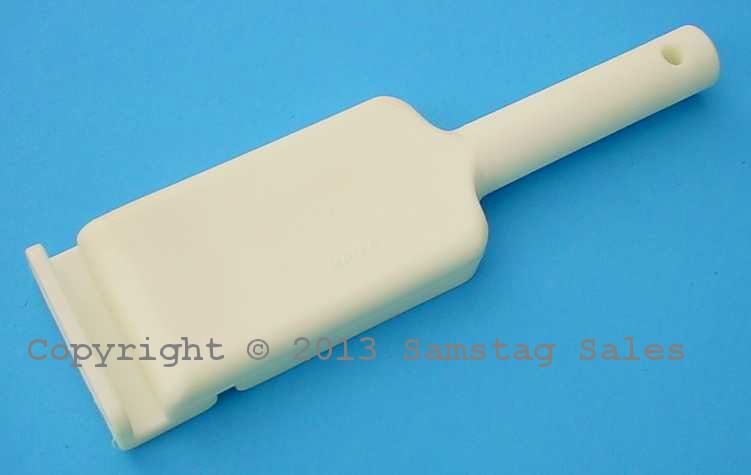

3195 Fitting/Removing Lever - Discontinued. No Longer Available. Tool used to fit or remove the sliding rood panal lining on VW Corrado. 200mm (8") long and 60mm (2-3/8") wide. White plastic.

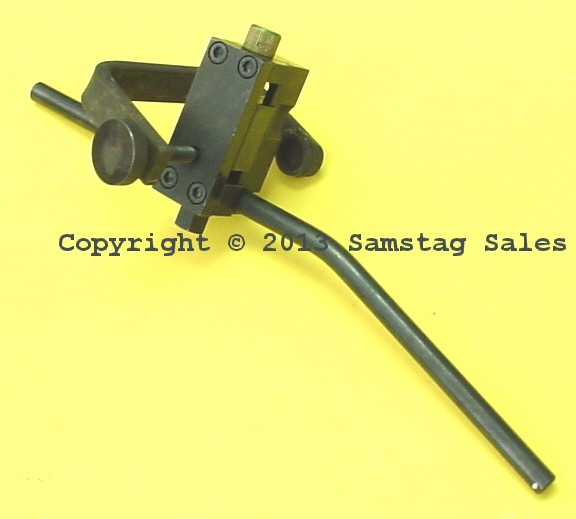

3196 Adjusting Device. Front Wheel Camber.
.
3197 Special Wrench
.
3198 Puller
.
3199 Locating Fixtures
.
32-105 Retaining Nut
.
32-108 Mandrel
.
32-109 Driving Sleeve
.
32-110 Arbor
.
32-111 Driving Sleeve
.
32-112 Measuring Gauge
.
32-114 Thrust Disc
.
32-119 Sleeve
.
32-121 Tray
.
32-124 Adjusting Wrench 2.5MM
.

( Need to buy tools? $$$ click here)
3200 Socket Wrench
.
3201 Alignment Gauge
.
3202 Retractor
.
3203 Seal Remover
.
3204 Drift- (replaced by T10060)
.
3206 Press Piece
.
3207 Pressure Spindle
.
3208 Suction Cup
.
3209 Transmission Support
.
3211 Locating Fixtures
.
3212 Spanner Wrench
.
3213 Alignment Fixture
.
3214 Pump Removal Tool
.
3215 O Ring Installation Tool
.
3217 Special wrench for fuel sending unit (KUKKO) 3 prong.
462g
3218 Wrench
.
3220 Hinged Socket
.
3227 Engine Bracket
.
3228 Socket Wrench Insert SW41
.
3230 .
.
3231 .
.
3233 Adjusting Gauge
.
3235 Press Device New Number (T10246)
.
3236 Press Piece
.
3240 Seal Extractor
.
3241 Seal Installer
.
3241-5 .
.
3242 Crankshaft Holder
.
3243 Camshaft Holder
.
3244 Pressing On Device
.
3246 Spring Retainer
.
3247 Hex Ball Socket
.
3248B .
.
3249 Hex Ball Socket
.

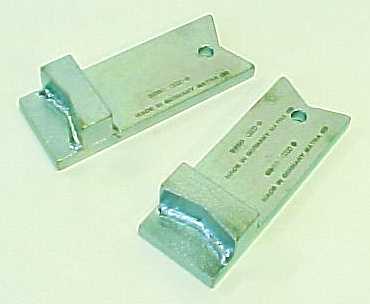

3250 Support Frames, set of 2, 135mm long
1290g
3251 Support Bracket
.
3252 Box Wrench (46MM)
.
3252A .
.
3253 Wheel Bearing Assembly Set
.
3254 Open End Wrench
.
3255 Adjusting Fixture
.
3256 Vibration Damper Bracket
.
3257 Special socket, 1/2" drive, 140mm long. For torsion bar adjustmert. HAZET 2583
556g
3258 Shift Lever Gauge
.
3259 Tube
.
3260 Disk
.
3261 Plug Insert
.
3263 .
.
3264 Bearing Driver
.
3265 Seal Installer
.
3266 Seal Installer
.
3267 Assembly Ring
.
3268 Camshaft Ruler
.
3269 Engine Support
.
3270 Camber Adjustment Tool
.
3271 Torx-Key
.
3272 Reset and Screwout Tool
.
3272/1 .
.
3273 Vibration Damper Support Bkt.
.
3274 Adapter
.
3275 Internal Extractor
.
3276 Pressure Device
.
3278 Piston Installation Tool
.
3279 Locking Bar
.
3280 Piston Ring Clamping Strap
.
3282 Transmission Support
.
3282-1-4 Adjustment Plates
.
3282-2 Adjustment Plate
.
3282-3 Adapter Plate
.
3282-4 Adjustment Plate
.
3282-5 Adjustment Plate
.
3282-6 Adjustment Plate
.
3282-8 Adjustment Plate
.
3282-10 Adjustment Plate
.
3282-13 Adjustment Plate
.
3282-14 Adjustment Plate
.
3282-18 Adjustment Plate
.
3282-19 Adjustment Plate
.
3282-23 .
.
3282-25 .
.
3282-30 .
.
3282-48 Adapter
.
3282-99 Transmission Support Kit
.
3283 Hub Puller
.
3284 Adjustment Device
.
3285 Gearshift Lever Gauge
.
3286 Shift Lingage Gauge
.
3287 Ejection Device F/Steering Rod ( replaced by 3287A)
.
3287A Ball Joint Puller
.
3288 Assembly Device
.
3289 Brake Pedel Release Tool
.
3290 Subframe Support Assm. Device
.
3291 Assembly Device
.
3292 Assembly Device
.
3293 Lower Control Arm Assm. Device
.
3294 VL Rear Axle Assm. Device
.
3295 Thrust Piece
.
3296 Tube
.
3297 .
.
3298-USA Alignment Fixture 4W Dr. Shaft
.
3299 Ribbed Belt Install. Tool
.
3300A Engine Support, used when installing the 096 transmission
.
3301 Assembly Tool
.
3302 Peening Punch
.
3303 Tensioner . No Longer Available.

.
3304 .
.
3306A Pressure Piece, shaft seal on 10F and 018 auto trans with AWD.
.
3307 Fuel Pump Wrench, 375mm long.
722g
3308 RPM Sensor Adjustment Tool
.
3309 Release Tool
.
3310 Socket
.
3312 Open End Spanner
.
3313 Adapter
.
3316 Radio Removal Tool
.
3317 Spring Retainer
.
3318 Unlocking Tool
.
3319 Pressure Piece
.
3320 Door Adjusting Wrench
.
3320-2 .
.
3320-3 .
.
3321 .
.
3322 .
.
3323 Pressure Piece
.
3325 .
.
3326 .
.
3327 .
.
3328 .
.
3329 .
.
3335 Hydraulic Line Connect Tool
.
3336 Transmission Support Jig.
.
3337 Ring Spanner 7-Piece Set
.
3337-9 .
.
3340 .
.
3341 Camshaft locating fixture.  95mm.
1075g

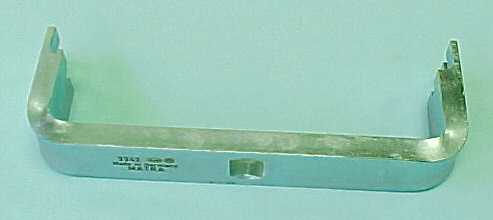

3342 Matra, Union Nut tool, 1/2" drive, 175mm long.
446g
3343 .
.
3345 Press Tool
.
3346 .
.
3347 .
.
3348 .
.
3349 .
.
3350 .
.
3351 .
.
3352 Adjusting Gauge
.
.
Part Number
Description
Weight

( Need to buy tools? $$$ click here)
3352A . .
3353 Specialty Socket Wrench .
3354 . .
3355 See Elora 1151-32 ring wrench automatic belt tensioner on 2.5 ltr. TDI engine .
3357 Triple Square Socket Driver .
3358B . .
3359 Rig Pin .
3362 . .
3364 . .
3365 . .
3366 Chain Adjust Bracket. Used to remove and install chain adjuster. .
3367 . .
3369 Support Tool .
3370 . .
3371 Adjustment Gauge .
3372 Installation Device .
3373 Lever .
3374 . .
3375 . .
3376 Diesel Injector Socket SW27 .
3378 Fitting Sleeve .
3379 Socket Wrench Insert SW16 .
3381 Oil Line Installer, 120mm long.
82g
3382 Right Sealing Ring Installer .
3383 Double Sealing Ring Installer .
3384 Assembly Mandrel .
3385 Sealing Ring Installer .
3387 Timing Belt install tool. Double-Pin Wrench. 250mm long.
224g
3391 Camshaft Locking Bar V6 , 6-valve engine Audi A4
2215g
3392 . .
3393 Testing Mandrel
602g
3398 . .
3400 . .
3402 . .
3403 . .
3403-1 . .
3404 . .
3405 Alignment Fixture 4W Dr. Shaft .
3406 . .
3407 . .
3408 . .
3409 . .
3410 Cylinder Head Socket (See HZ 990SLG-10) .
3411 Support Tool for assembly work, set of 2.
180g.
3412 . .
3415 . .
3415-1 . .
3416 . .
3417 Oil filter wrench-HAZET, 1/2 drive, 14 flats.  .
3418 . .
3419 . .
3420 wheel bearing assembly tool.
165g
3422 . .
3423 . .
3424 Spreader. Used to separate suspension strut from wheel bearing housing. .
3438 . .
3450 . .
3450-2A . .
3450-3 . .
3452 Polydrive Key , replaced by T10070 .
3454 . .
3455 . .
3456 . .
3457 . .
3459 . .
40-20 Sleeve .
40-21 Sleeve .
40-22 Thrust Piece .
40-27 Thrust Piece .
40-103 Sleeve .
40-105 Thrust Piece .
40-200 . .
40-201B Tube socket, suspension work 28mm, 1/2" drive. .
40-203-1 Split Tube .
40-204A Press Block .
40-550 Hooks (2) .
41-1 . .
43-1 . .
44-2 Kukko Puller 120MM Max See KK .
50-200 Socket for rear strut. With 10mm hole. 3mm slots. 17mm outside hex. 14mm long.

.
80-200 Pry Lever - RMV Outside Mirror, 280mm long.
174g
88750 Oxygen Sensor Wrench .
9204 Oil Filter Wrench .
.
Part Description
Weight

( Need to buy tools? $$$ click here)
T10001 Shock Absorber Set
T10005 .
.
T10006 Releasing Tool
.
T10007 Refractometer
.
T10009 Assembly
.
T10010 Socket Wrench
.
T10011 Special Screwdriver for door locks.
.
T10012 Engine/Trans. Support
.
T10014 Engine Support
.
T10019 .
.
T10020 Toothed Belt Tensioner
.
T10021 Tension Appliance
.
T10027 Locking pin for adjusting selector mechanism
.
T10029 Spark Plug Connector Tool, replacement for number 3277.  This is the VW version of the  HZ1849-6 tool.
.
T10030 Assembly Tool
.
T10030/1 .
.
T10030/1A .
.
T10030/2 .
.
T10030/3 .
.
T10030/4 .
.
T10030/5 .
.
T10030/6 .
.
T10031 Support
.
T10034 Assembly Tool
.
T10035 Multipoint Socket
.
T10036 Support
.
T10037 Puller
.
T10047 Assembly Tool
.
T10049 Thrust Piece
.
T10053 Assembly Tool
.
T10053/2 .
.
T10057 Radio Tool
.
T10058 Hex Ball Socket
.
T10060 Mandrel
.
T10062 Support
.
T10066 Wrench, Haldex Clutch  filter on an Audi TT, trans 02C and 02M.
.
T10070 Polydrive socket for cylinder head.
.
T10072 Socket Wrench
.
T10078 Release Tool
.
T10092 Tensioning Bolt
.
T10094  Remove ignition coils
.
T10112 Spark Plug Socket Remover for New beetle 2.0 engine.
.
T10221a Puller Coolant Pump Gear

304g
T10222a Puller water pump


404g
T10225 Wrench to set engine timing
.
125g
T10127 For adjusting washer jet sprays
.
T10165 Brake Piston Reset Tool. replacement for 3272 .
T40001 Puller
.
T40004 Wheel Lock Key Set
.
T40005 Camshaft Adjustment Tool
.
T40007 Thrust Piece
.
T40008 Thrust Piece
.
T40009 Tightener Puller Wrench
.
T40010 Ball Join Puller
.
T40011 .
.
T40012 Adapter
.
T40021 Adjusting tool, for Camber Audi TT 1999 and up, Audi S3
676g
T40022 Adjusting tool
3760g
T40039 remove ignition coils
.
T40094



( Need to buy tools? $$$ click here)
VAG1274 Cooling System Tester
.
VAG1274-2 Diesel Adapter
.
VAG1274-3&4 Adapter
.
VAG1274-8 .
.
VAG1274-9 .
.
VAG1274-10 .
.
VAG1274-99 Pressure Tester Kit
.
VAG1275 .
.
VAG1301 .
.
VAG1306 .
.
VAG1310A .
.
VAG1310-1 Adapter M7
.
VAG1310-3 Adapter M6
.
VAG1310-6 M 10 Adapter
.
VAG1310-7 VAG1310 Retrofit Kit
.
VAG1310-25 .
.
VAG1315A-1 .
.
VAG1315A-2 .
.
VAG1315A-4 Measuring Cable
.
VAG1318 K-Jetronic tester  .
VAG1318-1 Pressure Gauge Adapter
.
VAG1318-10 Adapters VAG1318/10,11,12
.
VAG1318-11 Adapter VAG1318/11
.
VAG1318-13 Hose Adapter VAG1318/13
.
VAG1318-15 Adapter
.
VAG1318-17 .
.
VAG1318-23 Fuel Line Feed Adapter
.
VAG1318-25 .
.
VAG1318-2 Replacement Pressure Gauge
.
VAG1318-3 T-Hex Wrench 3MM
.
VAG1318-4 Banjo Adapter
.
VAG1318-5 Storage Box
.
VAG1318-6&7 .
.
VAG1318-8 Pressure Hose With Connectors
.
VAG1318-9 Valve Adapter
.
VAG1318-96 Fuel Inj. Pressure Gauge-CIS
.
VAG1318-97 Pressure Gauge Adapter Set
.
VAG1318-99 Fuel Inj. Pressure Gauge Set
.
VAG1323A Compression Tester F / Diesel
.
VAG1332-5 .
.
VAG1342 .
.
VAG1343 .
.
VAG1348-1A Adjusting Jig
.
VAG1348-2B Fuel Measuring Unit
.
VAG1348-3 Remote Control Connection
.
VAG1348-31 Conversion Kit
.
VAG1348-32 Adapter Cable
.
VAG1348-99 CIS Performance Analyzer
.
VAG1351 .
.
VAG1354-1 Hose Lead
.
VAG1354-13 Pressure Reducer
.
VAG1354-2 Banjo Bolt
.
VAG1356 .
.
VAG1356-1 .
.
VAG1356-2 .
.
VAG1356-3 .
.
VAG1356-4 .
.
VAG1356-5 .
.
VAG1367-5 Oxygen Sensor Test Harness
.
VAG1367-6 Connector Cable For O.T. Sensor
.
VAG1367-9 .
.
VAG1367-7 TDC Sensor For VAG 1367
.
VAG1367-8 Inductive Pickup Adapter
.
VAG1381-10 .
.
VAG1381-12 Adapter For VAG1323A
.
VAG1381-8 .
.
VAG1381-9 .
.
VAG1383A .
.
VAG1389A-1 .
.
VAG1390 .
.
VAG1397A Turbocharger Tester
.
VAG1402 Power Steering Tester
.
VAG1402-1A .
.
VAG1402-2 Adapter Set
.
VAG1402-3 Adapter
.
VAG1402-6 Adapter Hose
.
VAG1441 Pressure Gauge
.
VAG1441-02 Bolt And Washers For VAG1441
.
VAG1441-1 Adapter
.
VAG1441-99 Pressure Gauge/Limiter Set
.
VAG1459B Hydraulic wheel bearing tool
.
VAG1459B/1 .
.
VAG1459B/2 Supplementary set used with V.A.G 1459
.
VAG1466B Electrical Circuit Tester
.
VAG1466-8 .
.
VAG1473 Voltage Divider (Harness Adapter)
.
VAG1474 .
.
VAG1501 Test Harness
.
VAG1523A .
.
VAG1527B Voltage Tester
.
VAG1550-1 .
.
VAG1550-2 .
.
VAG1551
Diagnostic System. More Info Click here.



VAG1551-1 Diagnostic Cable
.
VAG1551-11 .
.
VAG1551-3C Diagnostic Cable
.
VAG1551-US9 Program Card
.
VAG1552 Mobile Scan Tool
.
VAG1552-11 Program Card
.
VAG1558 Temperature Tester
.
VAG1575 .
.
VAG1582 Taper Roller Bearing Puller
.
VAG1582-10 Attachment To VAG1582
.
VAG1582-2 Gripping Piece
.
VAG1582-3 Attachment To VAG1582
.
VAG1582-4 Attachment To VAG1582
.
VAG1582-5 Attachment To VAG1582
.
VAG1582-6 Attachment To VAG1582
.
VAG1582-8 Attachment To VAG1582
.
VAG1582-9 Attachment To VAG1582
.
VAG1590 Water Pump Wrench
.
VAG1594-20 Test Adapter 14 Pole
.
VAG1594-23 ABS Brake Travel Test Adapter
.
VAG1594C Connector Test Kit
.
VAG1598-01 Adapter
.
VAG1598-2 Adapter
.
VAG1598-3 Adapter
.
VAG1598-4 Adapter
.
VAG1598-5 Adapter
.
VAG1598-6 Adapter
.
VAG1598-7 Adapter
.
VAG1598-8 Adapter
.
VAG1598-9 Adapter
.
VAG1598-10 Adapter
.
VAG1598-11 Adapter
.
VAG1598-12 Adapter
.
VAG1598-13 Adapter Cable
.
VAG1598-14 Test Box (Basic Unit)
.
VAG1598-15 Case
.
VAG1598-18 Adapter
.
VAG1598-19 Adapter (960-Pin) OBD II
.
VAG1598-20 Adapter (88-Pin) ABS 5 System
.
VAG1598-21 Adapter (68-Pin)
.
VAG1598-22 Adapter (68-Pin)
.
VAG1598-25 Adapter (32 Pin)
.
VAG1598-27 Adapter For Bosch ABS 5.3
.
VAG1598-29 Adapter (18-Pin)
.
VAG1598-31 Adapter (121 Pin)
.
VAG1598A Test Box
.
VAG1619 Airbag Tester
.
VAG1622-23 Retainer And Puller
.
VAG1630 Digital Potentiometer
.
VAG1637 Adapter
.
VAG1669 Hex Extension
.
VAG1682 CV - Joint Boot Clamp Tool
.
VAG1687 .
.
VAG1687-1 .
.
VAG1702 Pressure Gauge For Auto. Transmission
.
VAG1710 Bosch ABS Tester
.
VAG1712 Front Axle Support
.
VAG1719 A/C Clutch Set
.
VAG1739 Side Window Installation Tool
.
VAG1742 Rear Window Installation Tool
.
VAG1752 Spring Compressor Kit
.
VAG1752-1 Spring Compressor
.
VAG1752-2 Spring Mounting Tool
.
VAG1752-3 2 Spring Holders (60-130MM)
.
VAG1752-4 2 Spring Holders (80-165MM)
.
VAG1752-6 Spring Holder For A8
.
VAG1752-7 Spring Holder For A4
.
VAG1752-8 Adjustment Gauge For Struts
.
VAG1755 Window Removing Kit
.
VAG1763 Compressor Tester
.
VAG1767 Ignition Tester
.
VAG1767-3 .
.
VAG1785 Adapter Set
.
VAG1786 Air Conditioning Adapter Set
.
VAG1821 Igniter For Airbag
.
VAG1878 Universal Straightening Bar. [ HAZET 1973/4 ]
.
VAG1907 BoltF/Steering Centering
.
VAG1908 Removal Tool F/AC Shaft Seal
.
VAG1917 Fender Protectors
.
VAG1921 Hose Clip Pliers
.
VAG1922 Spark Plug Connect. Pliers
.
VAG1923 Open End Spanner Insert for fitting and removing the Audi A8 track rod. (special HAZET 38mm 1/2" dr crowfoot)
.
VAG1924 ATF Filler Tool
.
VAG1925 Spacer
.
VAG1925-3 Adapters (Two In Set)
.
VAG1925-4 Adapter
.
VAG1925-6 Adapter For VAG1925
.
VAG1926 A8 Camber Adjusting Tool
.
VAG1937 Torx Insert
.
VAG1952 Torx Screwdriver Insert T30
.

( Need to buy tools? $$$ click here)
.

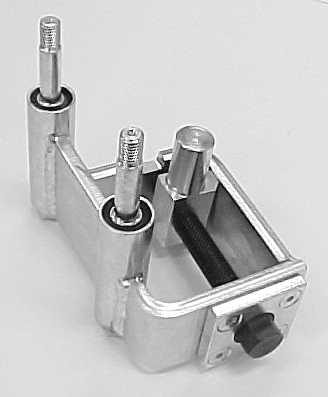

VAS1941 Camber Adjustment Tool
2000g
VAS1978 Wiring Harness Repair Kit .
VAS1978-1 Crimp Tool
.
VAS1978-2 Crimp Tool Die
.
VAS1978-3 Wire Stripper
.
VAS1978-4 Terminal Tool
.
VAS1978-5 Press Tool
.
VAS1978-6 Installation / Press Tool
.
VAS1978-7 Press Tool
.
VAS1978-8 Press Tool
.
VAS1978-10 Installation Tool
.
VAS1978-11 Installation Tool
.
VAS1978-12 Installation Tool
.
VAS1978-13 Installation Tool
.
VAS1978-14 Heat Gun
.
VAS1978-15 Adapter For Heat Gun
.
VAS1978-19 Replacement Tubes For VAS1978/5
.
VAS1978-20 Replacement Tubes For VAS1978/6
.
VAS1978-21 Replacement Tips
.
VAS1978-22 Replacement Tips For VAS1978/7
.
VAS1978-23 Replacement Tips For VAS1978/8
.
VAS1978-24 Crimp Insert For VAS1978-1
.
VAS1978-25 2-Slot Contact-CU/Crimp Tool
.
VAS1978-30 Supplementary Kit For VAS1978
.
VAS1978-31 Supplementary Kit
.
VAS1978-AR Airbag Repair Kit
.
VAS5045 Battery Fill Bottle
.
VAS5051-2 Adapter Cable
.
VAS5056A Auxiliary Airbag Tester,  replaced by VAS5056B,
Current number for this tool VAS5056C
.
VAS5056-2 Adapter Cable
.
VAS5061 Airbag Adapter
.
VAS5068 Airbag Adapter For Audi A8
.
VAS5094 Airbag Adapter
.
VAS5146 Pressure Plate
.
VAS5255 Test Adapter (2 Pin)
.
VAS5256 Test Adapter (2 Pin)
.
VAS5256-1 Test Adapter (2 Pin)
.
VAS5257 Test Adapter (3 Pin)
.
VAS6017A K-lead adapter
.
JC1000 New Beetle Airbag Removal Tool
.
JC2000 Spacer Gage
.

( Need to buy tools? $$$ click here)
US065 Seal Driver - Trans Side Cover
.
US067 Lever - Adj. Frt. Wheel Camber
.
US1008A Compressor
.
US1008A-1 Replacement Band
.
US1015 Same as Kukko 204-1
See KK
US1018 Depth Gauge 300MM
.
US1025 Outside Micrometer 0-25MM
.
US1026 Dial Indicator 039MM-TRAVEL 5MM
.
US1027 Dial INDICATOR 058MM TRAVEL 10MM
.
.
US1030 Straight Edge 500MM
.
US1032-S Set Inside Micrometer 50-100MM
.
US1033-S Inside Micrometer Set 18-100MM
.
US1038 Multi-Pt. Socket -8MM
.
US1041 .
.
US1050 Outside Micrometer 25-50MM
.
US1055 Outside Micrometer 50-75MM
.
US1056 Allen Wrench 10MM
.
US1057 Caliper Square 300MM
.
US1058 Extension Dial 3MM
.
US1059 Extension Dial 6MM
.
US1060 Extension Dial 14MM
.
US1061 Extension Dial 18MM
.
US1062 Extension Dial 21MM
.
US1063 Extension Dial 28MM
.
US1064 Turning Torque Wrench
.
US1065 Torque Wrench-0-50IN/LBS 3/8DR
.
US1071 Extension Dial 30MM
.
US1075 Outside Micrometer 75-100 MM
.
US1080 Battery Filler
.
US1098 Protractor
.
US1109 Ring
.
US1123 CIS Fuel Injector Kit
.
US1123-1 11MM 3/8 Dr. Allen Wrench
.
US1123-2 12MM 3/8 Dr. Allen Wrench
.
US1123-3 13MM 3/8 Dr. Allen Wrench
.
US1123-4 CIS Injector Puller
.
US1123-5 10MM 3/8 Drive Allen Wrench
.
US2598 Box Wrench 12MM-90 Degree
.
US2775 Deep Socket Wrench 27MM (HAZET 4555N)
.
US40-103 Press Tube - RMV Frt Bushings
.
US406 V-Blocks
.
US4406 .
.
US4450 Driver Set - Oil Seal
.
US4450A Handle
.
US4450-1 Driving Base 44MM
.
US4450-2 Driving Base 51MM
.
US4450-3 Driving Disc 70MM
.
US4450-4 Driving Disc 78MM
.
US4450-5 Driving Disc 66MM
.
US4450-6 Driving Disc 70MM
.
US4450-7 Driving Disc 58MM
.
US4450-8 Driving Disc 31MM
.
US4452 Puller
.
US4462 Oil Filter Wrench
.
US4462-1 Strap For Wrench
.
US4463 Socket, 27 MM
.
US4463A Plug Wrench
.
US4470A Transmission Support
.
US4476 Disc Pliers
.
US4488 Wrench
.
US4489 J-Hooks (Pick-Up) - Set Of Two
.
US4493 Special Wrench
.

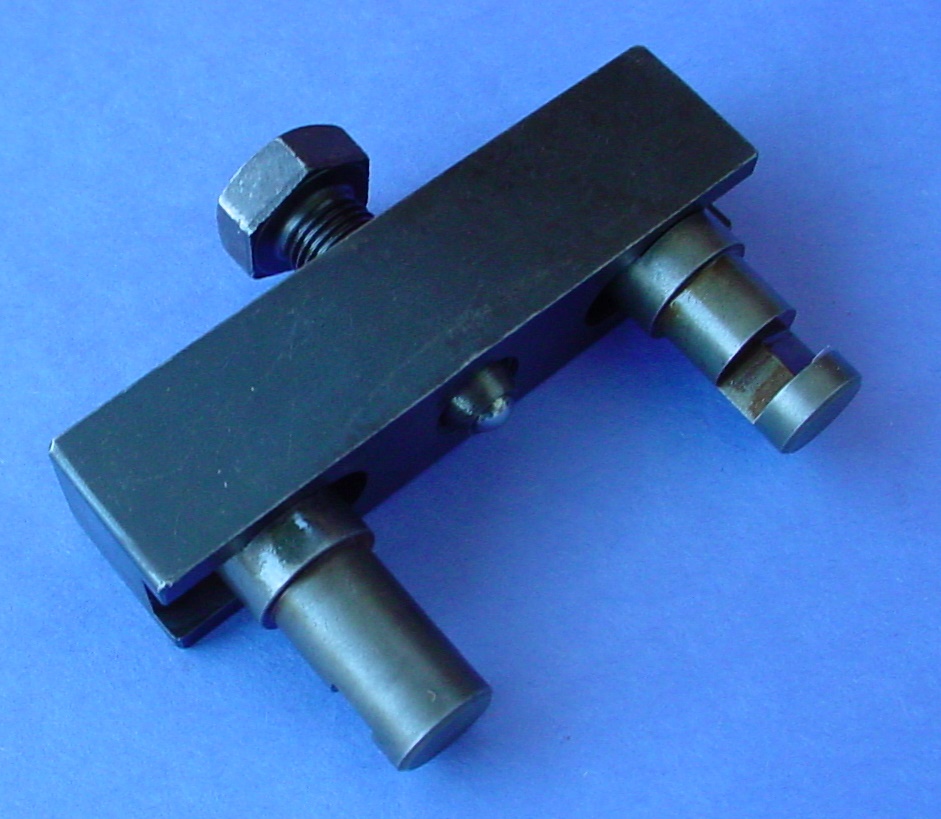

US4493 Puller for Diesel Injection Pump Drive Gear. ( Picture 2 )

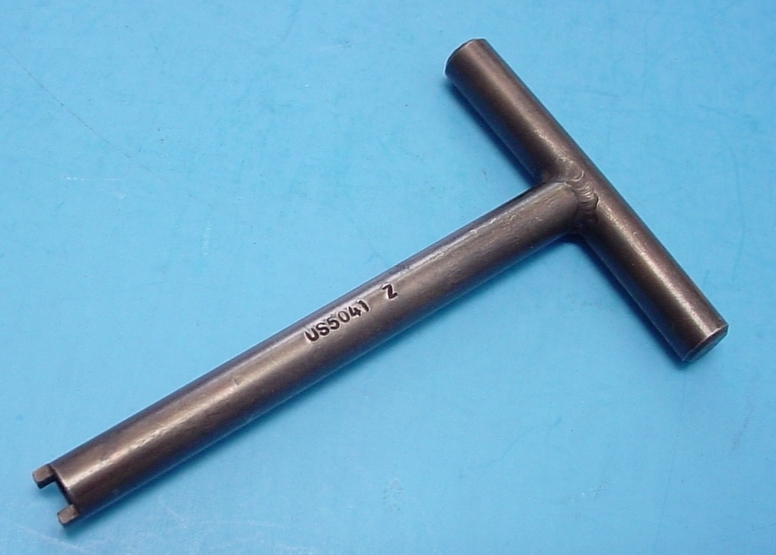

US5041
Valve Stem Seal Installer. Outside diameter is 8mm.  Length is about 3-1/2" inch. Marked US5041 Z. Maybe the "Z" is for Zelenda.


US5042 Stem Seal Installer, replacement for old tool 10-204
.
US5043 Clutch Adj.
.
US5044 12MM Multi-Pt. Socket
.
US5045 Split Socket-22MM
.
US5047 T-Wrench - Main Jet
.
US5062 Thrust Pad
.
US5156-1 SPanner Socket - Frt Shocks
.
US5693-8 Bushing Puller - Rear Suspen.
.
US5709-2 Lever - Door Stop Springs
.
US75 Valve Seat Recon. Set
.
US8034 Injector Tester - Gas Engines
.
US8034-7 Adapter - Injector Tester/KE3
.
US8038 .
.
US8050 Driver Set
.
US8050-1 Handle
.
US8050-2 Driving Disc - 60MM
.
US8050-3 Driving Disc - 78MM
.
US8050-4 Driving Disc - 71MM
.
US8050-5 Driving Disc - 53MM
.
US8050-6 Driving Disc - 55MM
.
US8050-8 Knurled Nut
.
US8050-9 Driving Disc 25 x 50MM
.
US8050-10 Driving Disc 27 x 60MM
.
US8050-11 Bolt M12 x 20
.
US8050-12 .
.
US8050-13 .
.
US9000 Sunroof Seal Adjustment Tool
.
US9010 Seat Zipper Tool Kit
.
US9025 .
.
US9201A .
.
US9204 Millibar Vacuum Gauge Set
.
US9208 .
.
US9208-1 .
.
USG16A .
.
12-1 Kukko Three Arms Puller
See KK
12-2 Kukko Three Arms Puller
See KK
12-3 Kukko Three Arms Puller
See KK
15-1 Kukko Separator
See KK
15-2 Kukko Separator
See KK
17-0 Kukko Separator
See KK
17-1 Kukko Separator
See KK
17-2 Kukko Separator
See KK
17-3 Kukko Separator
See KK
18-0 Kukko Separator Puller
See KK
18-1 Kukko Separator Puller
See KK
18-2 Kukko Separator Puller
See KK
18-3 Kukko Separator Puller
See KK
20-1 Kukko 2-Arm Puller
See KK
20-10 Kukko 2-Arm Puller
See KK
1-250-P Kukko Extended Arms
See KK
1-90-P Kukko Puller Arms
See KK
21-1 Kukko Puller 12-14.5MM
See KK
21-2 Kukko Extractor 14.5-18.5MM
See KK
21-3 Kukko Extractor 18.5-23.5MM
See KK
21-4 Kukko Extractor 23.5-30MM
See KK
21-5 Kukko Extractor 30-37MM
See KK
21-6 Kukko Extractor 37-46MM
See KK
21-7 Kukko Extractor 46-58MM
See KK
22-1 Kukko Support
See KK
22-2 Kukko Support
See KK
128-1 Kukko Ball Joint Puller
See KK
128-2 Kukko Ball Joint Puller
See KK
204-1 Kukko Puller Steer Arm (same as US1015)
See KK
204-2 Kukko Puller Steer Arm
See KK

( Need to buy tools? $$$ click here)
HOME Quick Search
SEARCH
eMail Samstag How To Order
VW page
Copyright © 1997-2024 Samstag Sales
