Samstag Sales is an authorized dealer for Brockhaus. Brockhaus is the manufacturer of the Heuer®Vise.  These are high quality, precision tools that are Made in Germany. Samstag Sales can special order any Brockhaus vise for you. A $500 Minimum order would apply. Please contact us for more information.

 Last Update: May 31, 2023
HOME
Quick Search
 SEARCH
email Samstag
How To Order

Quick Search
Bench Vise Details
Catalog - FREE Prism Jaws
Collapsible Mount Protective Jaws
Collapsible Lift Rotary Table
Compact Vise Rubber Lined Jaws
Felt Lined Jaws Special Jaws
Fibre Lined Jaws Table Clamp
Folding Mount Vise Compact
Lift Vise with Fixed Jaws
Neutral Jaws Vise with Replaceable Jaws
Polyurethane Prism Jaws

FREE Catalog !
To download a Brockhaus catalog in PDF format click
here or on the image below.


.

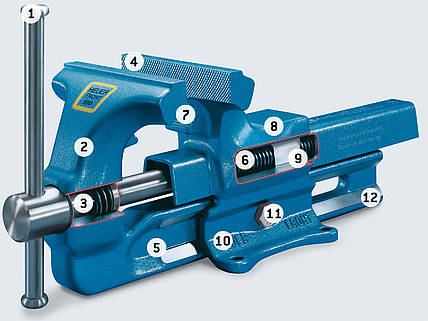

 Heuer® Bench Vise Details

  1. Galvanized spindle keys with riveted steel
  2. Drop-forged front clamp
  3. Protected precision spindle bearing
  4. Surface-hardened jaws
  5. Slim but stable guide rail (forged) provides enhanced clamping depth
  6. High, optimally distributed clamping force by centrally arranged, protected spindle with rolled double-action trapezoid thread for quick opening and closing
  7. Standard in forged jaws
  8. Drop-forged rear jaw with spe-anvil
  9. In forging strong spindle nut
  10. Forged guide tabs
  11. Through a central screw adjustable guide
  12. Internal dual-prism guide, therefore no pollution and damage.Large, fully machined guide surfaces ensure precision and long life

  .
Compact Vise with Replaceable Jaws.

Part
Number
Size
1234567894545
Kg  / Lbs
118001 Heuer 4-3/4" (120mm) compact vise with replaceable jaws. With HEUER Quicklaunch Adjustment. The jaws will open up to 130mm (5"). A scale on the tube will display the opening dimension. To be used with size 120 jaws, size 100 table clamp or size 100 rotary table.
4.5kg, 10lbs

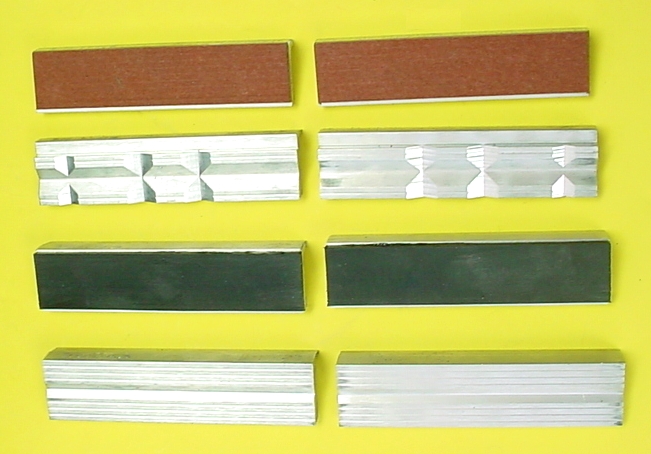

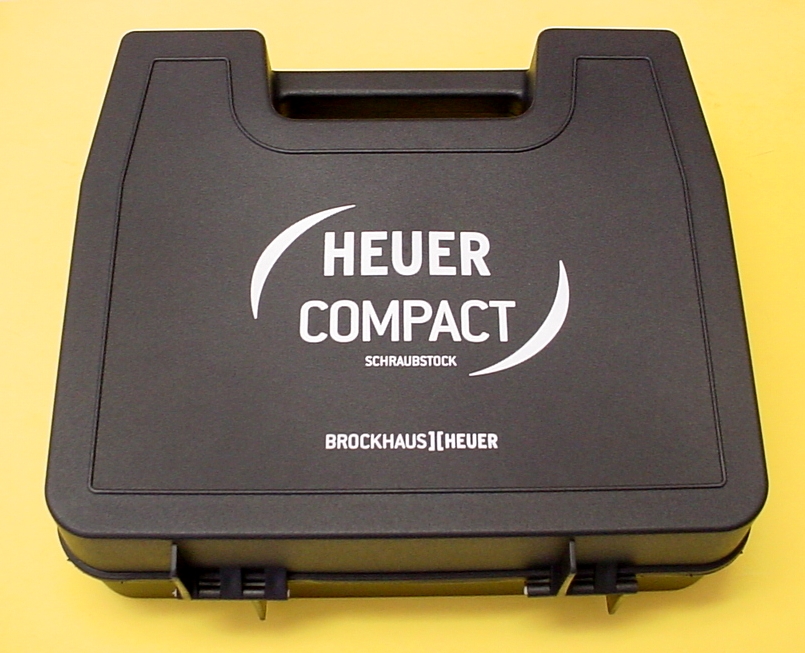

118003 Heuer Compact Vise Set. With Vise 118001, table mount 119100, selection of 4 jaws - Neutral, Fibre, Rubber, Prisms. All in a nice carry case.
. .
(To see the  PDF product brochure, click here.)
7.4 Kg,  16.3lbs
.
Standard Vise with Fixed Jaw (non replaceable)

Part
Number
Size

Kg  / Lbs
100100 4" (100mm) vise
4.5kg, 10lbs
100120 4 3/4" (120mm) vise
9.0kg, 20lbs
100140 5 1/2" (140mm) vise
16.0kg, 35lbs
100160 6 1/2" (160mm) vise
27.0kg, 60lbs
100180 7" (180mm) vise
29.0kg, 64lbs

Vise with Replaceable Jaws



Part
Number
Size Kg  / Lbs
101120 4 3/4" (120mm) vise 9.0kg, 20lbs
101140 5 1/2" (140mm) vise 16.0kg, 35lbs
101160 6 1/2" (160mm) vise 27.0kg, 60lbs
116120
Spare Jaw 4 3/4" (120mm) Price for 1 piece
170g
116140 Spare Jaw 5 1/2" (140mm) Price for 1 piece 280g
116160 Spare Jaw 6 1/2" (160mm) Price for 1 piece 350g
.

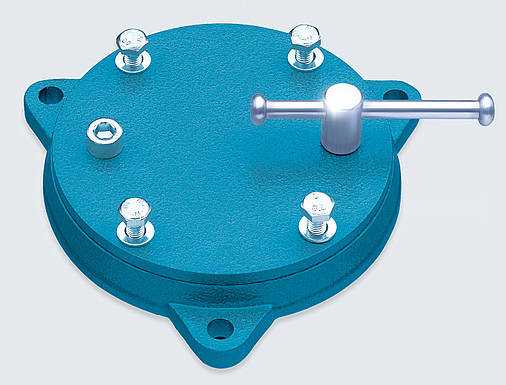

Rotary Table




Part
Number
Size Kg  / Lbs
103100 4" (100mm) rotary table 1.8kg, 4lbs
103120 4 3/4" (120mm) rotary table 2.5kg, 5lbs
103140 5 1/2" (140mm) rotary table 5.0kg, 11lbs
103160 6 1/2" to 7" (160/180mm) rotary table 7.5kg, 17lbs
.

.
Magnefix Protective Jaws
Attach with magnets to protect your work piece.

.
Polyurethane Prism Jaws {PP}
108100 Type "PP" Polyurethane Prism jaws, 100mm, Set of 2. Used for clamping delicate round and oval workpieces.
108120 Type "PP" Polyurethane Prism jaws, 120mm, Set of 2. Used for clamping delicate round and oval workpieces.
108140 Type "PP" Polyurethane Prism jaws, 140mm, Set of 2. Used for clamping delicate round and oval workpieces.
108160 Type "PP" Polyurethane Prism jaws, 160mm, Set of 2. Used for clamping delicate round and oval workpieces.

Polyurethane Grooved Jaws {PR}
107100 Type "PR" Polyurethane grooved jaws, 100mm, Set of 2. Used for clamping all types of delicate pieces.
107120 Type "PR" Polyurethane grooved jaws, 120mm, Set of 2. Used for clamping all types of delicate pieces.
107140 Type "PR" Polyurethane grooved jaws, 140mm, Set of 2. Used for clamping all types of delicate pieces.
107160 Type "PR" Polyurethane grooved jaws, 160mm, Set of 2. Used for clamping all types of delicate pieces.
.
Fibre Lined Jaws {F}
111090 Type "F" Fibre jaws, 90mm, Set of 2. Used for clamping finely machined or polished faces.
111100 Type "F" Fibre jaws, 100mm, Set of 2. Used for clamping finely machined or polished faces.
111115 Type "F" Fibre jaws, 115mm, Set of 2. Used for clamping finely machined or polished faces.
111120 Type "F" Fibre jaws, 120mm, Set of 2. Used for clamping finely machined or polished faces.
111125 Type "F" Fibre jaws, 125mm, Set of 2. Used for clamping finely machined or polished faces.
111135 Type "F" Fibre jaws, 135mm, Set of 2. Used for clamping finely machined or polished faces.
111140 Type "F" Fibre jaws, 140mm, Set of 2. Used for clamping finely machined or polished faces.
111150 Type "F" Fibre jaws, 150mm, Set of 2. Used for clamping finely machined or polished faces.
111160 Type "F" Fibre jaws, 160mm, Set of 2. Used for clamping finely machined or polished faces.
111175 Type "F" Fibre jaws, 175mm, Set of 2. Used for clamping finely machined or polished faces.
111180 Type "F" Fibre jaws, 180mm, Set of 2. Used for clamping finely machined or polished faces.
.
Prism Jaws {P}
109090 Type "P" Prism jaws, 90mm, Set of 2. Used for clamping workpieces of various shapes.
109100 Type "P" Prism jaws, 100mm, Set of 2. Used for clamping workpieces of various shapes.
109115 Type "P" Prism jaws, 115mm, Set of 2. Used for clamping workpieces of various shapes.
109120 Type "P" Prism jaws, 120mm, Set of 2. Used for clamping workpieces of various shapes.
109125 Type "P" Prism jaws, 125mm, Set of 2. Used for clamping workpieces of various shapes.
109135 Type "P" Prism jaws, 135mm, Set of 2. Used for clamping workpieces of various shapes.
109140 Type "P" Prism jaws, 140mm, Set of 2. Used for clamping workpieces of various shapes.
109150 Type "P" Prism jaws, 150mm, Set of 2. Used for clamping workpieces of various shapes.
109160 Type "P" Prism jaws, 160mm, Set of 2. Used for clamping workpieces of various shapes.
109175 Type "P" Prism jaws, 175mm, Set of 2. Used for clamping workpieces of various shapes.
109180 Type "P" Prism jaws, 180mm, Set of 2. Used for clamping workpieces of various shapes.
.
Rubber Lined Jaws {G}
112090 Type "G" Rubber lined jaws, 90mm, Set of 2.Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
112100 Type "G" Rubber lined jaws, 100mm, Set of 2. Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
112115 Type "G" Rubber lined jaws, 115mm, Set of 2.Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
112120 Type "G" Rubber lined jaws, 120mm, Set of 2.Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
112125 Type "G" Rubber lined jaws, 125mm, Set of 2.Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
112135 Type "G" Rubber lined jaws, 135mm, Set of 2.Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
112140 Type "G" Rubber lined jaws, 140mm, Set of 2.Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
112150 Type "G" Rubber lined jaws, 150mm, Set of 2.Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
112160 Type "G" Rubber lined jaws, 160mm, Set of 2.Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
112175 Type "G" Rubber lined jaws, 175mm, Set of 2.Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
112180 Type "G" Rubber lined jaws, 180mm, Set of 2.Used for clamping thin walled tubes, shaped pieces, wood and plastic parts.
. Felt Lined Jaws {FI}
113090 Type "Fi" Felt lined jaws, 90mm Set of 2. Used for clamping extremely delicate workpieces.
113100 Type "Fi" felt lined jaws, 100mm, Set of 2. Used for clamping extremely delicate workpieces.
113115 Type "Fi" felt lined jaws, 115mm, Set of 2. Used for clamping extremely delicate workpieces.
113120 Type "Fi" felt lined jaws, 120mm, Set of 2. Used for clamping extremely delicate workpieces.
113125 Type "Fi" felt lined jaws, 125mm, Set of 2. Used for clamping extremely delicate workpieces.
113135 Type "Fi" felt lined jaws, 135mm, Set of 2. Used for clamping extremely delicate workpieces.
113140 Type "Fi" felt lined jaws, 140mm, Set of 2. Used for clamping extremely delicate workpieces.
113150 Type "Fi" felt lined jaws, 140mm, Set of 2. Used for clamping extremely delicate workpieces.
113160 Type "Fi" felt lined jaws, 160mm, Set of 2. Used for clamping extremely delicate workpieces.
113175 Type "Fi" felt lined jaws, 175mm, Set of 2. Used for clamping extremely delicate workpieces.
113180 Type "Fi" felt lined jaws, 180mm, Set of 2. Used for clamping extremely delicate workpieces.
. Neutral Jaws {N}
110090 Type "N" neutral jaws, 90mm, Set of 2. Used for clamping rough to medium machine workpieces.
110100 Type "N" neutral jaws, 100mm, Set of 2. Used for clamping rough to medium machine workpieces.
110115 Type "N" neutral jaws, 115mm, Set of 2. Used for clamping rough to medium machine workpieces.
110120 Type "N" neutral jaws, 120mm, Set of 2. Used for clamping rough to medium machine workpieces.
110125 Type "N" neutral jaws, 125mm, Set of 2. Used for clamping rough to medium machine workpieces.
110135 Type "N" neutral jaws, 135mm, Set of 2. Used for clamping rough to medium machine workpieces.
110140 Type "N" neutral jaws, 140mm, Set of 2. Used for clamping rough to medium machine workpieces.
110150 Type "N" neutral jaws, 150mm, Set of 2. Used for clamping rough to medium machine workpieces.
110160 Type "N" neutral jaws, 160mm, Set of 2. Used for clamping rough to medium machine workpieces.
110175 Type "N" neutral jaws, 175mm, Set of 2. Used for clamping rough to medium machine workpieces.
110180 Type "N" neutral jaws, 180mm, Set of 2. Used for clamping rough to medium machine workpieces.
.
.

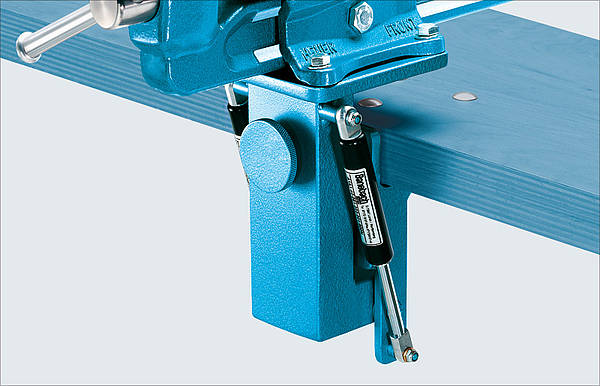

Collapsible

105120 Collapsible 120mm jaw width, lowest depth 495mm, folding depth 410mm, swivel radius 390mm.
105140 Collapsible 140mm jaw width, lowest depth 535mm, folding depth 455mm, swivel radius 430mm.
.
.
Lift

104200 Lift height adjustment for the Vise. 100mm jaw width, 4-10kg permitted loading.
104220 Lift height adjustment for the Vise. 120mm jaw width, 4-10kg permitted loading.
104240 Lift height adjustment for the Vise. 140mm jaw width, 10-16kg permitted loading.
104260 Lift height adjustment for the Vise. 160/180mm jaw width, 16-29kg permitted loading.
.
.

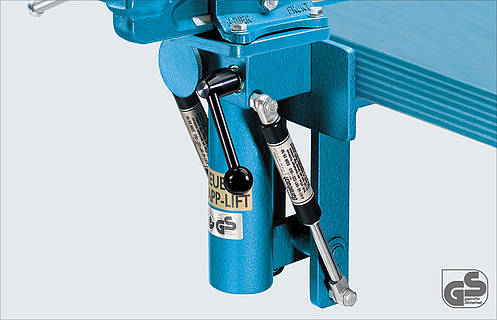

 Collapsible Lift

106120 Collapsible Lift. 120mm jaw width, lowest depth 590mm, folding depth 460mm, swivel radius 430mm, permitted loading 4-10kg.
106140 Collapsible Lift. 140mm jaw width, lowest depth 630mm, folding depth 495mm, swivel radius 470mm, permitted loading 10-16kg.
.
.

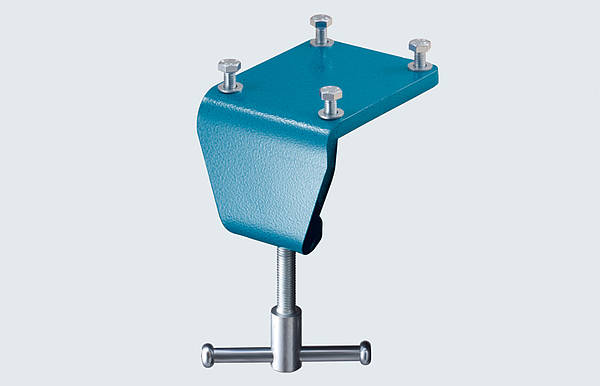

Table Clamp

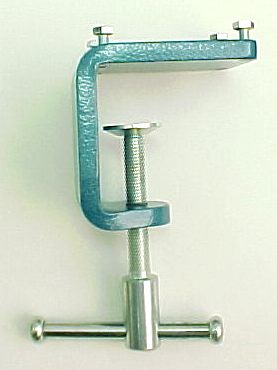

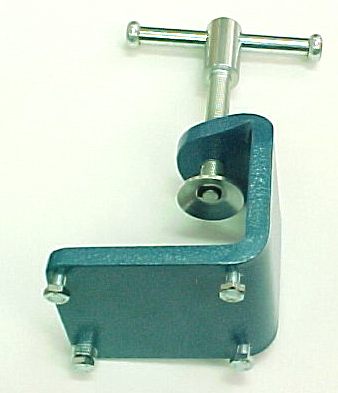

119100 Table Clamp. 100mm jaw width, table top thickness 8-50mm. Also for the compact vise number 118001 with 120mm jaws
119120 Table Clamp. 120mm jaw width, table top thickness 8-50mm

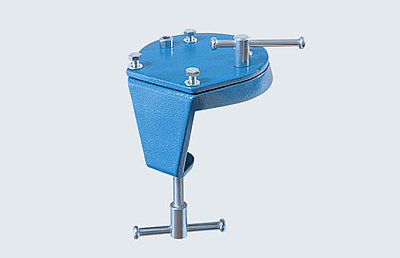

119103 Rotary Table Clamp. For 100mm jaw width vise, , table top thickness 10-60mm.
Also for the compact vise number 118001 with 120mm jaws
119104 Rotary Table Clamp. For 120mm jaw width vise , table top thickness 10-60mm
.
