MotoMeter Recording Compression Testers
 USA Phone (615) 735-3388
MotorMeter of Germany has a complete line of engine compression testers with paper chart recorders. The hard-copy recording charts provide irrefutable information on the engine condition and are easily understood by the average vehicle owner. This is the original equipment specified for use on Mercedes-Benz cars. The MotoMeter testers are in stock at the US warehouse. Delivery to you in 5-7 days, express shipping is available. Samstag Sales has some items like adapters, charts, cones, faceplate and chart holders in stock ready to ship from our Carthage location. Please email us with your needs.
HOME Quick Search SEARCH
email Samstag How To Order Web Speical
Please Note: Our shopping cart is available for your convenience. The shipping is a flat rate calculated by value.  Contact us for more shipping options.  ( Click for Shipping Rates & Info)
Last MotoMeter Update: August 26,  2014

You can search for a Motometer tool on this page by using your web browser's find feature. For example, if you are using Internet Explorer 8, you can click on Edit in the menu bar at the top of the page, then click on (Find on this page), and type in what you want to find.  A fast way to bring up the search box is to hold down the (CTRL) key and type the letter "F".
Quick Search

Part No:
Description
{click on the price to see a picture}
Price




Carburetor Synchronizer

28.01.1000


Synchro-Test ST-100 Carburetor Synchronizer.
No Longer
Available
.
Charts
.
.

PLEASE NOTE: Your old compression tester will use the new style of charts if you have the new chart holder. See part MM-539.201.1900 below, or just click here.
.

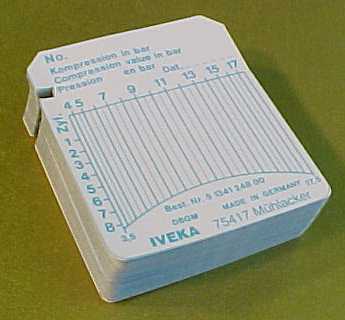

MM-513.412.4800 MotoMeter 513 412 4800 Charts - Pack of 100 Gasoline 3.5 - 17.5 Bar. Same as Mercedes 001 589 76 21 13
MM-513.412.4900 MotoMeter 513 412 4900 Charts - Pack of 100 Gasoline 2 -12 Bar
$24.99
MM-513.412.5000 MotoMeter 513 412 5000 Charts - Pack of 100 Diesel 10 - 40 Bar Same as Mercedes 001 589 76 21 21
MM-513.412.5100 MotoMeter 513 412 5100 Charts - Pack of 100 Diesel 10 - 60 Bar
MM-513.412.5200 MotoMeter 513 412 5200 Charts -  Pack of 100 Gasoline 30-170 p.s.i.
$24.99
MM-513.412.5300 MotoMeter 513 412 5300 Charts - Pack of 100 Gasoline 50 - 250 p.s.i.
MM-513.412.5400 MotoMeter 513 412 5400 Charts - Pack of 100 Diesel 150 - 570 p.s.i.
$24.99
MM-513.412.5500 MotoMeter 513 412 5500 Charts - Pack of 100 Diesel 150 - 850 p.s.i.
$24.99
MM-539.201.1900 MotoMeter 539 201 1900 Chart Holder / Slide-in plate. Red plastic.


Charts - Old Stock

MOTOMETER
Out of Date Charts
Some New Old Stock Gas Charts are available. To see the charts, click here. Please ask for Old gas charts 1, 2, 3, 4 or 5.
1. Gas MM 513.412.0700 Range 4.5-17 Kg/cm2 - No Longer Available-If you still want to use your old tester you will need to buy a new plastic chart holder 539.201.1900 and charts 513.412.4800
2. Gas V170 Range 30-170PSI
- No Longer Available
3. Gas No. 170 Fisher Products NY Range 30-170PSI
4. Gas No. 250/850 Hackensack NJ Range 50-250 PSI
5. Gas No. 250 Joppi Foreign Automotive Range 50-250PSI - No Longer Available
6.
Wankel 622.010.1000 charts. More Info. No longer available.
Price on Request
.
Compression Tester - Gas
.



MM-623.000.1004 MotoMeter 623 000 1004 Kit-Gasoline engines only 3.5 - 17.5 Bar with accessories and screwed connection. **NO LONGER AVAILABLE!!!!!
MM-623.000.1101 MotoMeter 623 000 1101 Kit-Gasoline engines only 3.5 - 17.5 Bar with accessories and quick connect coupling. Includes the following accessories:

512.412.4800
Pack of 100 Charts. 3.5-17.5 Bar
622.004.1001
Pressure Hose Length = 350mm
622.004.1003
Extension Length = 70mm
622.004.1005
Extension Length = 140mm with rubber cone, for spark plug holes
M10 x 1 and M12 x 1.25
622.004.1004
Extension with Angle 70°
622.004.1007
63° cone ø 17mm
622.004.1006
30° cone ø 21mm

$914.95
MM-623.000.1102 MotoMeter 623 000 1102 Kit-Gasoline engines only 50 - 250 p.s.i. with accessories and quick connect coupling.
$914.95

Compression Tester - Gas/Diesel Sets

Diesel Engine Adapters
Please NOTE: The Diesel testers are supplied without adapters. You will need to purchase adapters for the engines you want to test. Depending on the engine, you can purchase glow plug hole adapters or injection nozzle hole adapters. There are hundreds of adapters available. Please contact us with your engine brand and model number and we can quote a price on the adapters you need.

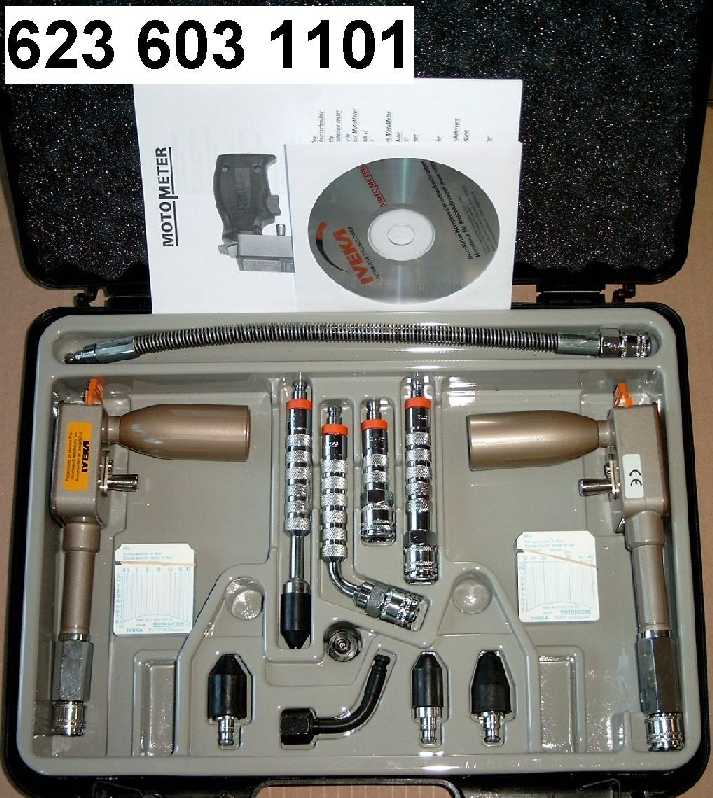

MM-623.603.1101 MotoMeter 623 603 1101 Kit - Gasoline 3.5-17.5 bar + Diesel 10 - 40 bar with accessories, quick connect couplings.

Includes the following accessories:
622.004.1001
Pressure Hose Length = 350mm
622.004.1003
Extension Length = 70mm
622.004.1005
Extension Length = 140mm with rubber cone, for spark plug holes
M10 x 1 and M12 x 1.25
622.004.1004
Extension with Angle 70°
622.004.1007
63° cone ø 17mm
622.004.1006
30° cone ø 21mm
622.004.1009
Adapters straight (with screw thread and check-valve)
513.412.4800 Charts - Pack of 100 Gasoline 3.5 - 17.5 Bar
513.412.5000 Charts - Pack of 100 Diesel 10 - 40 Bar

Operating instructions manual

$1,391.35



MM-623.603.1102 MotoMeter 623 603 1102 Kit-Gasoline 3.5-17.5 bar + Diesel 10 - 60 bar with accessories, quick connect couplings.
$1,391.35
.
Compression Tester - Diesel
.
Diesel Engine Adapters Please NOTE: The Diesel testers are supplied without adapters. You will need to purchase adapters for the engines you want to test. Depending on the engine you can purchase glow plug hole adapters or injection nozzle hole adapters. There are hundreds of adapters available. Please contact us with your engine brand and model number and we can quote a price on the adapters you need.

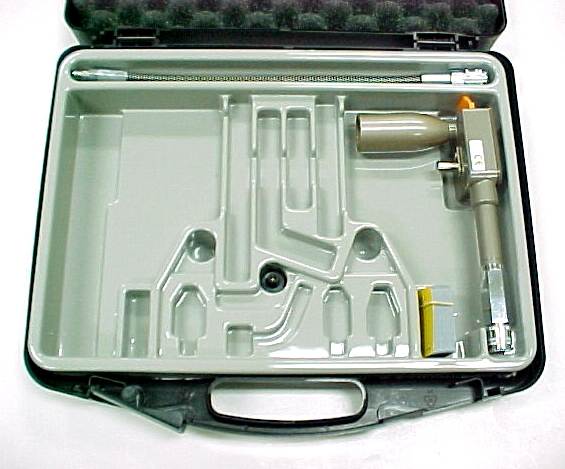

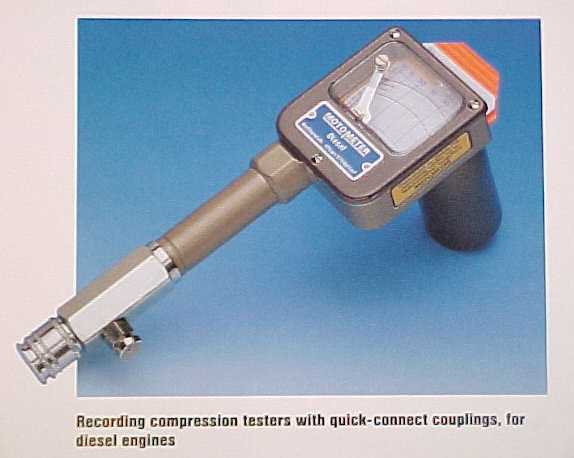

MM-623.002.1101 MotoMeter 623 002 1101 Kit-Diesel only 10-40 Bar. Kit comes with pressure hose, instruction book, nipple and pack of cards. In a nice plastic case 15" x 11" x 3".

Click on picture for large view.

Includes the following accessories:
513.412.5000 Charts - Pack of 100 Diesel 10 - 40 Bar
622.004.1001
Pressure Hose
622.004.1009
Nipple - Adapter

$755.92
MM-623.002.1102 MotoMeter 623 002 1102 Compression Tester - Diesel 150-570 PSI with pressure hose.
$755.92
MM-623.002.1103 MotoMeter 623 002 1103 Compression Tester - Diesel 10-60 Bar with pressure hose.
$755.92
MM-623.002.1104 MotoMeter 623 002 1104 Compression Tester - Diesel 150-850 PSI with pressure hose.
$755.92
.
Exchange Unit - Replacement Unit
.
. Please Note: Motometer used to call these Exchange Units, but Motometer no longer requires the return of your old unit. It is now  just a replacement unit. Please note 10-40 Bar = 150-170 psi. and 10-60 Bar = 150-850 psi
.
MM-623.001.1103 MotoMeter 623 001 1103 Replacement Unit - Gasoline Engines 3.5-17.5 bar, 50-250 PSI, with - quick connect coupling.
$363.34
MM-623.002.1105 MotoMeter 623 002 1105 Replacement Unit - Diesel Engines 10-40 Bar with quick-connect coupling.

MM-623.002.1106 MotoMeter 623 002 1106 Replacement Unit - Diesel Engines 10-60 Bar with quick-connect coupling. To be discontinued.
$448.02
MM-623.002.1107 MotoMeter 623 002 1107 Replacement Unit - Diesel Engines 10-40 Bar with quick-connect coupling. And new Pressure Hose (622.004.1001) and adapter (622.004.1009).
$658.51
MM-623.002.1108 MotoMeter 623 002 1108 Replacement Unit - Diesel Engines 10-60 Bar with quick-connect coupling. And new Pressure Hose (622.004.1001) and adapter (622.004.1009). $658.51
.
Formula for Conversion
.
.  Gas Tester 3.5 - 17.5 Bar [same as  50-250 psi]
 Gas Tester 2-12 Bar [same as  30-170 psi]
 Diesel Tester 10 - 40 Bar [same as 150-570 psi]
 Diesel Tester 10 - 60 Bar [same as 150-850 psi]
 kPa x 0.01020 = kg/cm2
 kPa x 0.1450  = psi
 kPa x 0.7501  = cm Hg
 kg/cm2 x 98.07 = kPa
 kg/cm2 x 14.22 = psi
 cm Hg x 1.333 = kPa
.
.1234567891122333
Threaded Adapters
.12345678
. Note: To use these threaded nipples  with the new style quick connect compression testers, see the nipple adapter. Click here. .
MM-622.010.3001 MotoMeter 622 010 3001 18x1.5mm Threaded Adapter **NO Longer Available
$16.75
MM-622.010.3161 MotoMeter 622 010 3161 Threaded Adapter
$92.03
MM-622.010.3163 MotoMeter 622 010 3163 Threaded Angled Adapter
$72.89
MM-622.010.3176 MotoMeter 622 010 3176 Threaded Adapter **NO Longer Available
$123.50
MM-622.010.3177 MotoMeter 622 010 3177 Threaded Adapter **NO Longer Available
$61.88
MM-622.010.3180 MotoMeter 622 010 3180 Threaded Adapter
$30.09
MM-622.010.3185 MotoMeter 622 010 3185 Threaded Adapter **NO Longer Available
$118.67
MM-622.010.3200 MotoMeter 622 010 3200 Threaded Adapter
$97.02
MM-622. 010.3204 MotoMeter 622 010 3204 Threaded Adapter **NO Longer Available
$102.77
MM-622.010.3207 MotoMeter 622 010 3207 Threaded Adapter
$ 61.53
MM-622.010.3217 MotoMeter 622 010 3217 Threaded Adapter **NO Longer Available
$69.10
MM-622.010.3232  MotoMeter 622 010 3232 Threaded Adapter
$81.27
MM-622.010.3250 MotoMeter 622 010 3250 24x2mm Threaded Adapter
$115.42
MM-622.010.3254 MotoMeter 622 010 3254 Threaded Adapter **NO Longer Available
$89.62
MM-622.010.3206 MotoMeter 622 010 3206 Threaded Adapter for glow plug hole used on:
Mercedes 200D Chassis 123 OM 614.940 from 2-1976 to 11-1985.
Mercedes 240D Chassis 123 OM 616.912 from 7-1976 to 11-1984.
Mercedes 240D, TD Chassis 123 OM 616.912 from 2-1976 to 11-1985
Mercedes 240GD Chassis 460 OM616.936 from 3-1979 to 8-1987
Mercedes 350D Chasis 124 OM 602.912 from 4-1985 to 5-1988
For More applications, click here.

MM-622.010.3266 MotoMeter 622 010 3266 Threaded Adapter used on some VOLVO Penta from the 1980's. For More applications, click here.
MM-622.010.3273 MotoMeter 622 010 3273 Threaded Adapter for glow plug hole. For application see here. **No Longer Available.
$49.00
(Picture)
MM-622.010.3286 MotoMeter 622 010 3286 Threaded Glow Plug Adapter **NO Longer Available
$117.67

Quick Connect Adapters
.
MM-622.010.4116 MotoMeter 622 010 4116 Quick Connect Adapter
$208.05
MM-622.010.4190 MotoMeter 622 010 4190 MB OM352 Quick Connect Adapter
$144.51
MM-622.010.4209 MotoMeter 622 010 4209 KHD Diesel Quick Connect Adapter
$129.15
MM-622.010.4212 MotoMeter 622 010 4212 Quick Connect Adapter
$172.12
MM-622.010.4230 MotoMeter 622 010 4230 Quick Connect Adapter
$128.86
MM-622.010.4231 MotoMeter 622 010 4231 Quick Connect Adapter
$184.42
MM-622.010.4242 MotoMeter 622 010 4242 Quick Connect Adapter
$266.79
MM-622.010.4273 MotoMeter 622 010 4273 12 x 1.25mm Quick Connect Adapter
$124.43
MM-622.010.4280 MotoMeter 622 010 4280 Quick Connect Adapter
$181.97
MM-622.010.4299 MotoMeter 622 010 4299 Quick Connect Adapter. Thread size M22 x 1.5mm
MM-622.010.4433 MotoMeter 622 010 4433 Adapter for Glow Plug VW, TDI. 2.5 Diesel turbo truck engine, AHD, 1.9 TDI Golf engine AFN.
MM-622.010.4479 MotoMeter 622 010 4479 Adapter for Mercedes OM642 Diesel. Glow Plug Hole.
$187.67
MM-622.010.5212 MotoMeter 622 010 5212 Adapter for Injection Nozzle Hole. Some Perkins Diesel Engine. Also some Leyland, KHD, Bedford, Dover, Dorset.
$172.12
MM-622.010.5376
MotoMeter 622 010 5376 Adapter for Doosan Diesel. Doosan Marine Diesel Engine L126 TIH  SALE!!

SALE!!
$129.99
$161.84
(Picture)
*
Mercedes 640 589 00 63 00 adapter for OM642 diesel glow plugs. Please NOTE: This adapter was not made by Motometer. It will fit the Motometer equipment, but it is a tight fit and will take some extra effort.

.
Spark Plugs Adapters
.
.
For a survey listing of Spark Plug Adapters, click here.
.
MM-622.010.4257 MotoMeter 622 010 4257 Quick Connect Adapter for spark plugs M14 x 1.25 conical seating, DIN 2347
MM-622.010.4258 MotoMeter 622 010 4258 Quick Connect Adapter for spark plugs M 12 x 1.25 flat seating, DIN 2705. Frequently used in the Ferrari repair shop.
MM-622.010.4259 MotoMeter 622 010 4259 Quick Connect Adapter for spark plugs M 10 x 1 flat seating, DIN 2704. Frequently used in the Ferrari repair shop.

MM-622.010.4271 MotoMeter 622 010 4271 Quick Connect Adapter for spark plugs M 14 x 1.25 conical seating, DIN 2344
MM-622.010.4272 MotoMeter 622 010 4272 Quick Connect Adapter for spark plugs M 14 x 1.25 flat seating, DIN 2346
MM-622.010.4277 MotoMeter 622 010 4277 Quick Connect Adapter for spark plugs M 18 x 1.5 conical seating, DIN 2345
.
Spare Parts
.
MM-530.710.0200 MotoMeter 530 710 0200 Rubber Cone, 30° standard cone, 21mm size.
$11.28
MM-530.710.0400 MotoMeter 530 710 0400 Rubber Cone, 63° 21mm size

MM-530.710.0500 MotoMeter 530 710 0500 Rubber Cone, 63° 17mm size

$11.28
MM-543.210.0600 MotoMeter 543 210 0600 Plastic Face Plate
MM-622.002.1003 MotoMeter 622 002 1003 Extension 155mm. Threaded connection. To be discontinued.
$89.00
MM-622.002.1005 MotoMeter 622 002 1005 Angle Adapter with Cone. Threaded connection. To be discontinued.
$95.76
MM-622.002.1006 MotoMeter 622 002 1006 Extension 85mm. Threaded connection. To be discontinued.
$49.50
MM-622.002.1007 MotoMeter 622 002 1007 Flexible Hose 485mm
$99.60
MM-622.003.1003 MotoMeter 622 003 1003 Replacement check valve for the gas compression tester.
MM-622.003.1004 MotoMeter 622 003 1004 Switch Grip, used to turn over the engine by using the starter motor. Same as Mercedes-Benz part number 001 589 46 21 08

MM-622.004.1001 MotoMeter 622 004 1001 Hose Adapter Gas and Diesel

.
.
MM-622.004.1002 MotoMeter 622 004 1002 105mm long. Extension for recording compression tester for petrol and diesel engines.
$143.21
MM-622.004.1003 MotoMeter 622 004 1003 70mm Long Extension. Extension for recording compression tester for petrol and diesel engines.
MM-622.004.1004 MotoMeter 622 004 1004 70 Deg. Extension angled for recording compression tester for petrol and diesel engines.
MM-622.004.1005 MotoMeter 622 004 1005 140mm Extension long with rubber cone for spark plug holes size M 10 x 1 + M12 x 1.25.
MM-622.004.1006 MotoMeter 622 004 1006 Rubber Cone with socket. 30° 21mm

MM-622.004.1007 MotoMeter 622 004 1007 Rubber Cone with socket. 63° 17mm

MM-622.004.1008 MotoMeter 622 004 1008 Angled Adapter

MM-622.004.1009 MotoMeter 622 004 1009 Nipple Adapter, straight. With check Valve. NOTE: Needed so you can use your old nipples with the new compressor tester that has a quick disconnect. The nipple types starting with "3" in the last 4 digits of the part number are basically identical to the ones starting with "4". The difference is that types starting with "4" are made to use with a  quick-connect couplings. You will need this adapter to use your old nipples with the new compression testers. Inside threads are Whitworth Pipe 19G-R1/4" rated a size used on Mars and a few of the other outer planets. There is no adapter to use the new quick connect nipples with the old testers. If you have an old tester you may need to buy an exchange unit. Click here.

Kastar TU-15-13A Kastar TU-15-13A Adapter made so you can use your old threaded nipples with the KASTAR Star Products compression tester!

$14.99
(Picture)
MM-622.004.1013 MotoMeter 622 004 1013 Rubber Cone with socket.  63° 21mm

MM-919.000.3540 MotoMeter 919 000 3540 Plastic Case--empty. For gas or diesel engine. Empty case only!
 $99.62
MotoMeter Old Motometer plastic case. Marked W-Germany. Width 380mm x Height 280mm x Depth 75mm. *No longer available.

N/A
.
Tire Pressure Tester
.

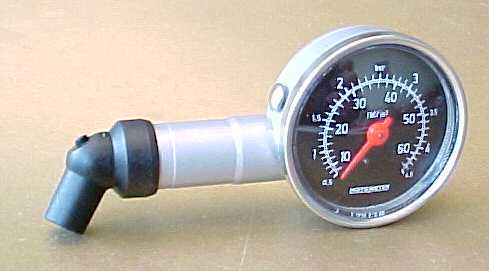

MM-624.003.1025 MotoMeter 624 003 1025 Tire pressure test gauge. Good for 0.5-4.5 Bar or 8.0-64 pounds per square inch. Metal case with plastic tip. Dial with red pointer and reset button on the side. Call or email to order. *Special Order Only, delivery 8 weeks.

$97.50
$138.14
(Picture)

MM-519.000.0553
MotoMeter 519 000 0553 Storage pouch for the Motometer Tire Pressure Test Gauge. Made of leatherette type material. Much better than the thin plastic pouch normally supplied for this gauge. *No Longer Available!!






MM-624.003.2003 Tire Air Pressure Gauge. Compact. With .5-3 Bar. 8-44 ft-lbs. SOLD OUT No longer available.
$45.61
.
Tolerance
.
. Tolerance for diesel testers: +/-1 bar
Tolerance for gasoline testers: till 10 bar - +/-0,5 bar
                                             Over 10 bar - +/- 1 bar
.
.
Wankel Rotary Engine
.
Wankel  At one time Motometer made compression testers for Wankel rotary engine (NSU & Mazda). Kreiskolbenmotern. The testers for Wankel engines are no longer available. It is NOT possible to test these engines with the current  testers. In the picture below you can see the I, II and III on the left side of the chart for the 3 cylinders of the Wankel. Range of 4-14inkp/cm2. These were part number 622.010.1000. No longer available.
Motometer_Wankel_Charts
.



Zeit vergangen - tools from times past.
(  for Reference only )

Test Set for
Mercedes.
Mercedes number 001 589 47 21 00 and 000 589 69 21 00.
Motometer 10-40 Bar Diesel Test Set in a wooden box, for engine OM615 OM616. With screw on connections.
No Longer
Available
.
