Last Update:  February 21, 2017

This table is for reference only. For prices $$$, click here. This table is here to help you identify special tools you may need, or old tools you may find. Many of the older tools are no longer available. This table is not complete. We are adding numbers as time and information becomes available. Please email us for a quote on any Mercedes-Benz hand tool!
How To
  Search For a
Mercedes-Benz Tool:
You can search for a Mercedes-Benz tool on this page by using your web browser's find feature. For example, if you are using Internet Explorer 8, you can click on Edit in the menu bar at the top of the page, then click on (Find on this page), and type in the box what you are searching for.  A fast way to bring up the search box is to hold down the (CTRL) key and type the letter "F".
Quick Search
3-digit groups
For Prices $$$$- Click Here
.
Mercedes Number: 115 589 42 63 00
Wheel Cover Masking Tool.
.
No Longer Available! Samstag Sales sold
the last one off the self from Germany!
.

Mercedes-Benz
Tool Number
??=not verified
Tool Description
( Many of the tools are made by the well known German tool companies. Some of the older tools are made by US companies. Tool equivalents or substitutions are listed in blue. BU=Baum, ER=Elora, GD=Gedore, HZ=Hazet, HC=Heyco, KK=Kukko, KL=Klann,
MT=Matador, ST=Sir Tools, SW=Stahlwille
For Prices $$$$- Click Here

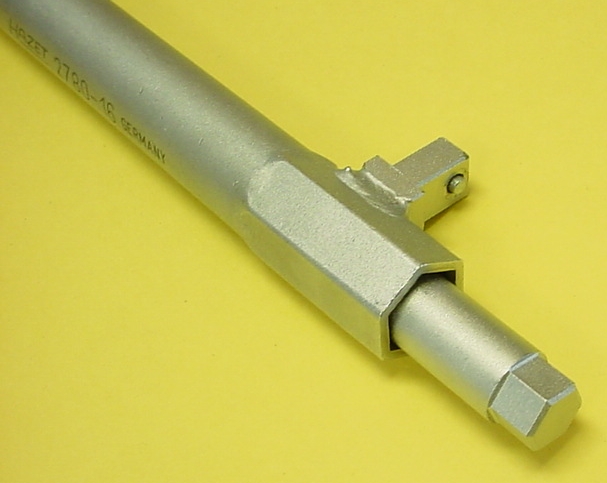

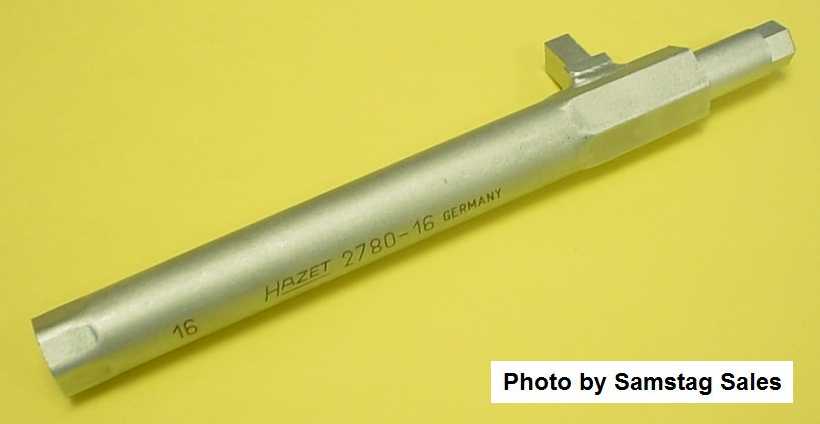

HAZET 2780-16
Shock absorber tool. Slide insert 16mm. Use with the Hazet torque wrench 6291-2CT (not included). Chrome plated. Type 202 C Class  210 E Class vehicles built after 1999.



000 581 00 67 spark plug wrench  (HZ  M-59)
000 581 19 36 spark plug wrench 20.8 DOWIDAT
000 589 00 46 00 (new number 126-589-00-01-00) 46mm wrench, drive shaft
000 589 01 50 00 1.5mm Allen key, Zenith carburetor adjustment
000 589 01 14 00 Ring Spanner-Unimog
000 589 02 37 00 Brake Piston Clamp-Unimog
000 589 03 34 00 .
000 589 04 14 00 Piston Ring Compressor, M115, etc.
000 589 05 07 00 10mm head socket, 1/2" drive (HZ 986Lg10) (SW1054/10)
000 589 06 07 00 8mm head socket, 1/2" drive
000 589 09 30 00 Valve guide reamer, 9mm
000 589 10 30 00 Valve guide reamer, 10mm
000 589 11 07 00 Valve adjustment  tool. 14mm with screwdriver. (HAZET 327)
000 589 11 30 00 Valve guide reamer, 11mm
000 589 14 01 00 Valve adjusting tool 4.5
000 589 14 11 00 T- handle 3mm hex key, mixture adjustment M110 etc. - no longer available from Mercedes (HZ4516)
000 589 21 03 00 Ring spanner-Unimog
000 589 22 00 00 22mm Allen key, gasoline drain
000 589 24 07 00 Oil drain tool, 17mm box, 14mm Allen,  Engine M115, etc.

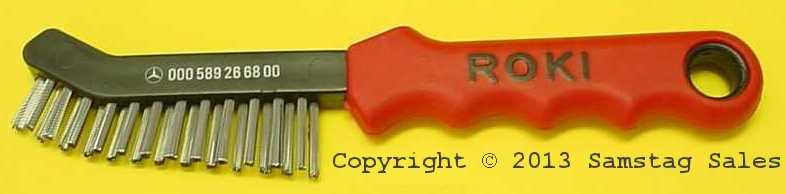

000 589 26 68 00
Steel Wire Brush for Brake Caliper.

000 589 27 01 00 Torque wrench, 1/2" drive, 15-65Nm, T-handle style with pointer.
000 589 27 21 00 Torque Wrench,1/2" square,15-65Nm. See Carl Walter 2717.
000 589 34 07 00 Offset 8mm head socket V-8 heads
000 589 36 41 00 (New Number 201-589-00-01-00) 41mm wrench, drive shaft
000 589 37 37 00 Wilhelm Bäcker GmbH "Wilbär" Piston Ring pliers with replaceable tips
000 589 39 07 00 Valve adjusting tool, 14mm
000 589 40 37 00 Fuel Line, Vacuum Hose Clamp. M115 throttle valve adjustment, etc. (SW12975) ( ML 12901 )
000 589 44 33 00 Ball joint tool  Puller for Pitman Arm  (SW11041-2)
000 589 50 37 00 Brake Piston Turning Pliers ( old number 000 589 36 37 00)
000 589 51 21 00 Carburettor Measuring Spray Tube 190SL
000 589 51 37 00 Piston Ring Expanding Pliers, M115, etc.
000 589 52 43 00 Brake Pistion Reset Pliers, (old number 111 589 07 37 00)
000 589 61 09 00 27mm diesel injector socket
000 589 68 03 00 Fuel Injection Line wrench. 1/2" drive, 17mm open/box. ( HZ 4550-1)
000 589 69 21 00 Compression Pressure Recorder
000 589 70 99 00 Zenith carb. synchronizer tool
000 589 71 03 00 Heated Oxygen Sensor Socket
000 589 82 33 00 (KK  210-1)  ,Separator-Puller,  95mm width, 170mm reach.
001 589 32 07 00 Valve adjusting tool, 17mm -NO Longer Available
001 589 36 33 00 .
001 589 46 21 00 Compression Tester Recorder
001 589 46 21 08 "Contact handle for rotating engine".  Remote Starter Switch with pistol grip.
001 589 65 09 00 Socket 27mm, 1/2" dr, for turning engine. 115.951 or 115.954  (HZ4555N) (SW 51-27)
001 589 66 21 00 Torque Wrench
001 589 67 21 00
STAHLWILLE 730R/20DC Service-Manoskop Torque Wrench, 1/2" drive. Capacity 40-200 Nm. NO LONGER AVAILABLE
001 589 69 21 00 "Kirkit" V-Belt Tension Gauge
001 589 72 21 00 Torque Wrench
001 589 76 09 00 17 Piece Torx Socket Set
001 589 76 21 00 Motometer Compression Tester Set
001 589 78 21 00 Compression recorder, Diesel engine by Motometer.
002 589 21 07 00 5mm wobble Allen wrench, 10"
003 589 03 63 00 HAZET 4850-1. Washer nozzle adjust tool, with magnetic tip, with MB logo
003 589 21 07 00 6mm wobble Allen wrench, 10"
004 589 21 07 00 Injector pump wrench, 17mm
005 589 21 07 00 Carburetor tool, 12mm
100 589 03 43 00 Assembly tool, valve seal, 12mm
102 589 00 07 00 Special T-handle key for seal plug on fuel distributor.
102 589 00 09 00 Valve adjust tool 13mm with PH2 screwdriver. Engine 102.92/93/96/97/98/99 (HAZET 2767)  No Longer Available from HAZET.
102 589 00 15 00 Drift used to knock core plug into the block. Engine M104, etc.
102 589 00 21 00 Fuel pressure testing Bosch Mechanical CIS fuel injection
with air flow sensor, new number 103 589 00 21 00
102 589 01 09 00 Spark plug tool
102 589 03 33 00 Bearing Puller -no longer available
102 589 04 63 00 Test Cable, idle speed diagnostics, 1989 560 SEL Mercedes Benz, etc..
103 589 00 40 00 Special Socket for fan clutch. (ST M0040)
103 589 00 21 00 Fuel pressure testing, Bosch Mechanical CIS fuel injection  with air flow sensor
103 589 00 21 04 Test hose.
103 589 00 21 05 Test hose.
103 589 00 37 00  spark plug pliers
103 589 01 09 00 (SW3049-8) Extra short 8mm bit
103 589 01 14 00 Insertion sleeve for exhaust camshaft, M104, etc.
103 589 02 09 00 Oil Filter Wrench, Engine 102,103
103 589 03 09 00 Oil filter wrench, new cars. (KL-0122-319)
108 589 02 33 00 Steering Pump Pulley Puller

110 589 00 01 00 Valve adjusting tool Model  230, 280 , Engine M110, M115 etc.
(SW 3011-17) (HZ 2768-1)
110 589 00 15 00 Drift for valve guide installation, 9mm (intake)
110 589 00 40 00 Dentent, Flywheel lock, M115
110 589 00 53 00 Reamer
110 589 01 15 00 Drift for (6-cyl) valve guide installation, 11mm (exhaust)
110 589 01 53 00 Reamer, front end
110 589 02 15 00 Drift for valve guide removal, 9mm, and oil dipstick guide tube on M115.
110 589 03 15 00 Drift for valve guide removal, 11mm
110 589 03 59 00 Plastic wedge for trim work, 200mm long, special curve.

110 589 04 61 00 Remover/installer, rocker arm & valve springs, M-110
111 589 00 07 00 socket for  joint flange of the rear end 1966 230S, etc..
111 589 01 59 00 replaced by number 111 589 25 61 00
111 589 03 15 00 Pins to hold the camshafts when removing chain tensioner
111 589 04 23 00 Graduated Disc and Pointer-no longer available-no substitute
111 589 06 37 00 Axle boot pliers-Old swing axle-no longer available
111 589 18 61 00 Pushing lever, part of valve compression tool-no longer available
111 589 25 61 00 Valve Spring Kit, good for 86 and up diesel, or 92 and up gas engines
111 589 25 63 00 Valve Spring Kit-no longer available
112 589 00 40 00 Vibration damper counter holder for 112 (6cyl), 113 (8cyl) and 137 (12cyl)
112 589 00 72 00 Hand pump for oil extraction. Power steering reservoir, etc.
112 589 01 09 00 Special Hazet Spark Plug Tool
112 589 08 61 00 Push Valve Spring Retainer with Removal & Installation Tool
113 589 00 40 00 replacement for 111 589 00 40 00
115 589 00 01 00 Valve Clearance Adjusting Spanner
115 589 00 53 00 Reamer
115 589 01 07 00 Pin Socket for Transmission flange.
115 589 01 53 00 Reamer
115 589 02 43 00 Wheel Bearing race install
115 589 03 59 00 Plastic wedge
115 589 04 63 00 Star stencil, hub cap, covers the outside edge.- no longer available
115 589 08 07 00 Socket for grooved nut
115 589 19 33 00 Sliding rail pin remover, old number- no longer available
see new number  116 589 20 33 00
115 589 20 33 00 puller body for timing chain rail guide bolts, no pins included.
115 589 30 23 00 throttle linkage adjustment gauge
115 589 42 63 00 Star stencil, hub cap, covers the star- no longer available
116 589 00 13 00 U-shape 8mm offset head socket, for V-8 heads
116 589 00 43 00 Assembly mandrel tool, intake valve seal, 9mm
116 589 00 61 00 Push valve Spring Retainer with Removal & Installation Tool
116 589 01 01 00 Camshaft holding wrench. Used to tighten expansion bolt.
116 589 01 34 00 Threaded Bolt for impact puller, 6mm, 50mm long.
116 589 01 40 00 Starter Ring Gear, Crankshaft lock
116 589 01 43 00 Assembly mandrel tool, exhaust valve seal, 11mm
116 589 02 34 00 Threaded Bolt for impact puller, 6mm, 150mm long.
116 589 02 07 00 Allen Wrench 5mm, 300mm long. For oil pan. M115 etc.
116 589 04 62 00 Lower balljoint press tool used on W123 cars for pressing in the steering knuckle support joint.
116 589 06 63 00 Magnetic finger for valve keeper  removal, M115 etc. NO Longer Available.

116 589 08 15 00 Drift for (V-8) valve guide installation, 11mm (exhaust)
116 589 09 33 00 Lower Wishbone Ball Joint puller
116 589 15 21 00 Pressure gauge for CIS injector
116 589 16 33 00 Ball Joint Puller
116 589 20 33 00 Impact Puller for slide rail bearing bolt, basic unit.
116 589 22 33 00 Wheel Bearing hub cap removal tool.
.
123456789012345
117 589 03 07 00
10mm bit for replacing the A/C belt. See new number 117-589-05-07-00.
117 589 05 07 00 10mm bit for replacing the A/C belt.
117 589 70 01 00 Injection tool
117 589 06 23 00 Test Gauge for Hydraulic Compensating Elements

119 589 01 09 00 Spark Plug Socket for M104 engine (HAZET 2776)
119 589 01 61 00 Valve Spring Compressor M0104
120 581 02 46 Lug Wrench 17mm
120 581 06 65 Oil Pan tool , (Dowidat) ??
120 589 06 21 00 Test Dipstick, Oil Level, Engine 103.943 /984 /985 , 104 , 111 , 119 , 120 , 137 , 603.913 /963 /97 , 604 ,  605 , 606,  611 , 612 , 613 ,  628
120 589 07 21 00 Test Dipstick, Oil Level , Engine 112, 113, 646, 647, 648
123 589 00 37 00 Brake piston reset pliers (replaced by 000 589 52 43 00 ) (Kukko 126-00)
123 589 03 61 00 Remover/installer, rocker arm & valve springs, V-8
123 589 06 33 00 Slide hammer type impact puller for disk brake pads.  (Hazet 1966-1)
123 589 07 33 00 Puller for tightly seated brake pads.
123 589 13 33 00 Brake Pad Remover Lever (Kukko 123)

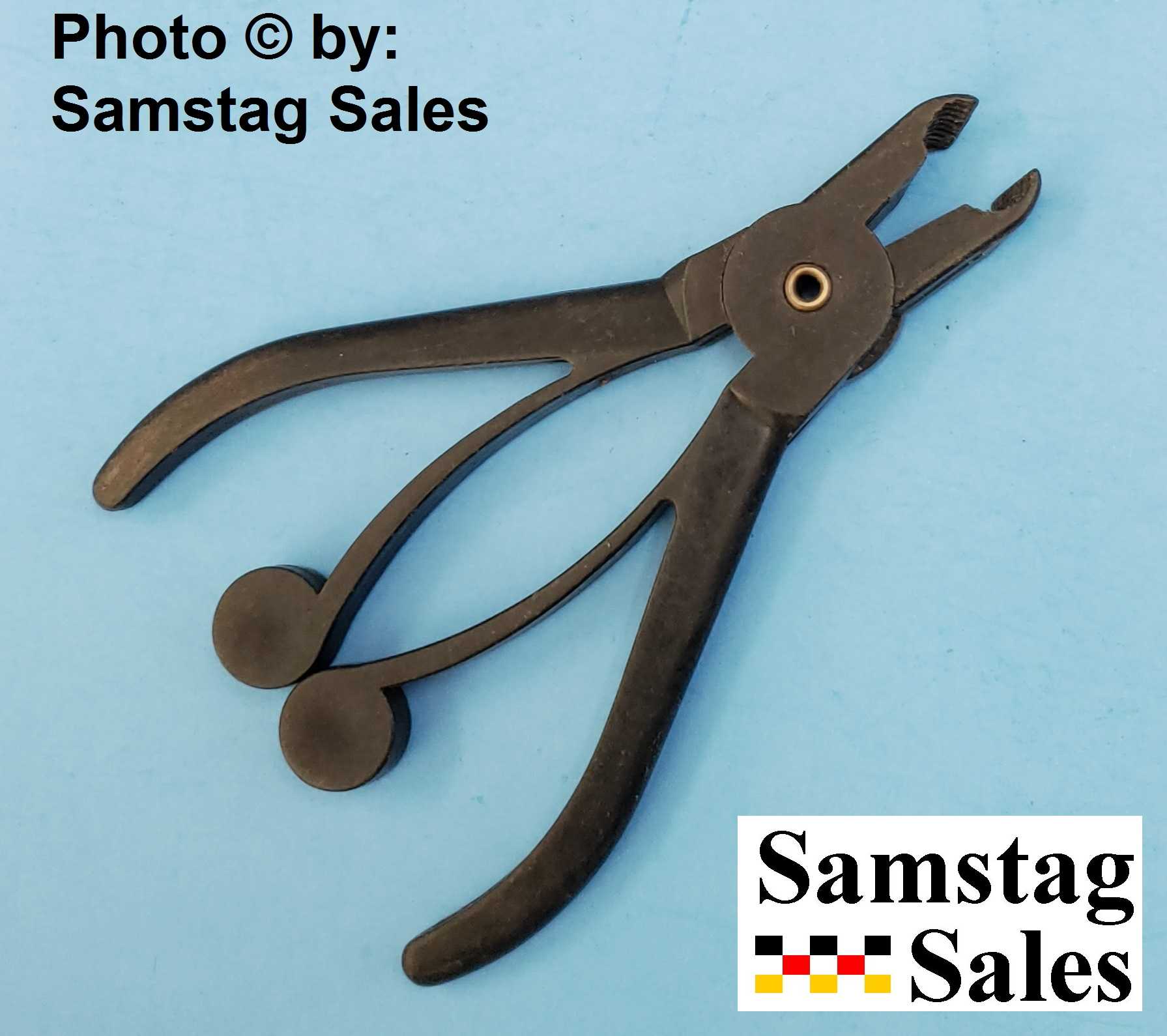

124 580 00 10 Fuse Kits
124 589 00 09 00 Socket Wrench for for removing the strut mount bolt
124 589 00 21 00 Test Box with Terminals
124 589 03 33 00 Ball Joint Tool - W123 lower ball joint.  Replaces old number 186 589 10 33 00
124 589 17 63 00 Clip on wheel weight remover.
124 589 19 21 00 Impulse counter
124 589 28 63 00 .
124 589 36 63 00 Torque Wrench
124 589 45 63 00 Test Cable
126 403 00 74 Small Wheel Pins 12mm
126 589 00 01 00 46mm torque wrench insert tool for drive shaft
126 589 00 19 00 Caliper type measuring gauge for brake rotor thickness
126 589 03 21 00 Test Adapter Box, for Climate Control, W107, W124, W126, W201
126 589 00 07 00 Spanner wrench for rosette on ignition/starter switch.
Same as 210 589 00 07 00.
129 589 00 21 00 Socket Box for testing
129 589 03 21 00 Feeler gauge set.
129 589 00 59 00 Stick on wheel weight remover.( HZ 667)
136 589 09 07 00 Rear-end wrench. W108 chassis rear wheel bearing. No longer available.
136 589 12 33 00 Ball Joint Tool.
140 589 00 19 00 Brake Caliper Measuring Guage
140 403 00 74 Large wheel pins 14mm
140 589 00 33 00 Steering Linkage Joint Tool W140 Chassis
140 589 00 63 00 Thrust piece to use with 140-589-00-33-00
140 589 01 33 00 ECU removal Tool for LH-SFI module-sequen fuel injection.
140 589 02 33 00 Pulling Hook Instrutment Cluster. For Chassis 168, 170, 208, 210.
140 589 03 07 00 Pin Wrench, Steering Gearbox. No longer available
140 589 09 33 00 Lower wishbone ball joint W140
140 589 11 43 00 Tool for lower wishbone rubber mounts W140 (KL 0350-3)

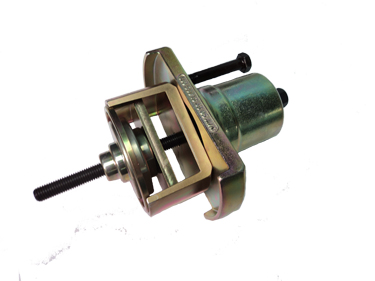

140 589 13 43 00 Assembly tool
140 589 14 63 00 Mushroom Adapter. Adapter for 38 pin socket.

.
140 589 15 21 00 Special Test Dip Stick for Transmission
140 589 16 63 00 removal lever for wood covering on door
140 589 24 63 00 thrust piece to use with 140 589 09 33 00
140 589 43 63 00 Test Cable (use with socket box 129 589 00 21 00)
140 589 45 63 00 .
140 589 46 63 00 .
140 589 50 63 00 .
140 589 69 63 00 .
163 589 00 37 00 Fuel line clamp pliers
163 589 00 63 00 Set of Plates for Coil Spring compressor
168 589 02 03 00 Set of Plates
186 589 04 33 00 (see new number  601 589 04 33 00) Puller forSuspension Work
186 589 10 33 00 (see new number 124 589 03 33 00)  for lower ball joint.
186 589 11 07 00 Socket for grooved nut
201 589 00 01 00  41mm torque wrench insert tool for drive shaft
201 589 00 34 00 .
201 589 00 61 00 .
201 589 08 33 00 Lower ball joint tool W190. Old number. See 201 589 14 33 00
201 589 10 33 00 Impact hammer
201 589 13 21 00 Vacuum Tester
201 589 14 33 00 Lower ball joint tool W190.
202 589 00 09 00 Special socket for front shock. 17mm. Used with your torque wrench.
202 589 02 63 00 .
202 589 16 63 00 .
203 589 00 07 00 Strut tool
203 589 00 43 00 .
203 589 01 07 00
Special Claw.

203 589 01 31 00 Suspension Coil Spring Compressor.
Spring Compressor. Includes:
Mercedes Number:      Hazet Number:
203 589 01 31 00           4900-2A       - Body
203 589 01 31 28           4900-02 A/3 - Shear Pins
203 589 01 43 00 .
203 589 01 63 00 .
203 589 01 63 02 Spring Compressor. Includes:
Mercedes Number:      Hazet Number:
203 589 01 63 02           4900-17
204 589 00 63 00 Spring Compressor. Includes:
Mercedes Number:      Hazet Number:
204 589 00 63 04           4900-392
204 589 00 63 03           4900-391
204 589 00 63 01           4900-39
204 589 00 63 02           4900-393
210 589 00 31 00 Spring Compressor
210 589 00 43 00 Bushing Tool
210 589 02 63 00 .
210 589 08 63 00 Test Cable (use with socket box 129 589 00 21 00)
210 589 10 63 00 Set of Plates
212 589 00 63 00
Spring Compressor. Includes:
Mercedes Number:      Hazet Number:
212 589 00 63 03           4900-395
212 589 00 63 01           4900-31
212 589 02 63 00
Spring Compressor. Includes:
Mercedes Number:      Hazet Number:
212 589 02 63 00           4900-396

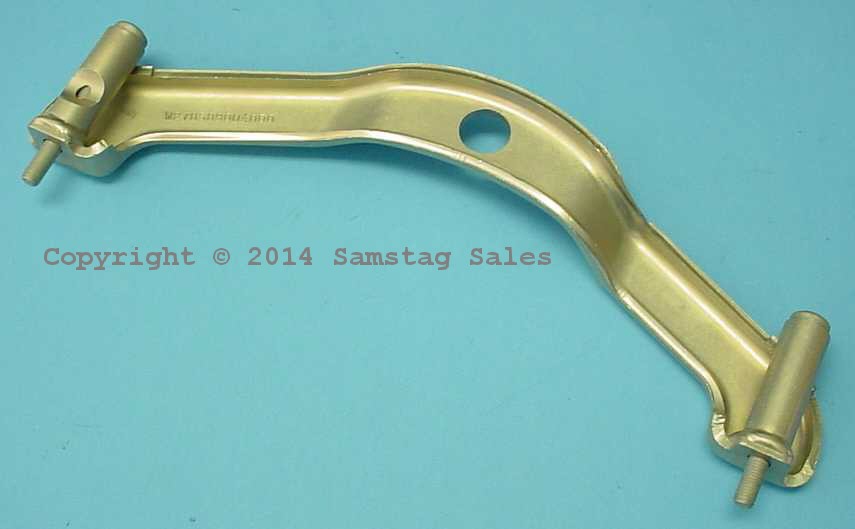

278 589 00 40 00
Engine Lifting Eye.


303 589 06 09 00 30mm diesel injector socket
314 589 01 03 00 Dipstick guide tube on M314, 1/2" drive 19mm ( HZ 4550-2 )
363 589 02 21 00  Dial gauge holder to check bearing end play NO Longer Available
401 589 00 07 00 Socket Spanner-Unimog
401 589 00 33 00 For Unimog types 401 and 411? It's needed to pull out the driving pinion for the tachometer.
401 589 00 61 00 Socket Spanner-Unimog
403 589 00 07 00 Wrench for Unimog,  180g
404 580 00 51 00 Cab Raising Device-Unimog
601 589 00 08 00 Injection pump tooth wrench
601 589 00 66 00 Lowering, Diesel pre-combustion Chamber seating
601 589 02 40 00 Starter Ring flywheel lock, used to remover harmonic balancer.

601 589 02 59 00 Lever bridge for valve spring compression.-no longer available
601 589 04 33 00 Puller for Suspension Work, replaces old number 186 589 10 33 00
601 589 05 14 00 Assembly Sleeve
601 589 05 21 00 injection pump lock.
601 589 16 63 00 Thrust piece-no longer available
.
xxxxxxxxxxxxxxxxxxx .
603 589 00 15 00
??
install and remove the piston liners on a 617 diesel engine.
603 589 00 40 00 Pully holding bar for Diesel
603 589 01 21 00  Position locating device for the holder for the TCD sensor
604 589 01 09 00  screw attachment
604 589 01 40 00 Timing chain retainer. Used when changing timing chain.
606 589 01 09 00  Oil filter wrench for OM606 used in 1995 W124 E300 diesel, 96-97
W210 E300 diesel, and 1998 E300 turbodiesel
615 589 00 01 00 Valve adjusting tool 200D, 220D
615 589 00 07 00 Prechamber nut remover
615 589 00 15 00 Drift for valve guide installation, 10mm
615 589 00 33 00 Prechamber puller
615 589 00 43 00 Assembly tool, valve seal, 9mm
615 589 01 15 00 Drift for valve guide removal, 10mm
615 589 01 33 00 Puller for crankshaft gear
616 589 00 01 00 Valve adjusting tool 240D
616 589 02 40 00 Chain Holder
617 589 00 29 00 Socket,1/2" square, Notched tooth 17x20
617 589 00 10 00 Cylinder head bolt socket, extra long 140mm, XZN size M12. (SW3054X-M12) (HZ990Slg-12)
617 589 00 14 00 Sleeve for centering  front cover and oil pan, 617 diesel engine
617 589 00 23 00 Feeler Gauge Blade .10 mm
617 589 00 40 00 Feeler Gauge Handle, red plastic
617 589 00 53 00 Glow Plug Reamer
617 589 01 23 00 Feeler Gauge Blade .15 mm
617 589 08 21 00 Diesel Timing Tester
117 589 00 23 00 Feeler Gauge Blade .20 mm
117 589 01 23 00 Feeler Gauge Blade .25 mm
605 078 05 81 Fuel Loop Line 1 Meter
621 589 00 01 00 Top wrench - Diesel valve adjusting HZ 2769 ??
621 589 00 30 00 Retainer wrench  Diesel valve adjusting ? HZ 2769-3 ??
636 589 02 23 00 Pipe to adjust diesel fuel delivery
638 589 02 63 00 Set of Plates
6511 0001 99
965 589 00 01 00
Mercedes Hand Held Tester HHT-no longer available. For Model 124-without engine 103, 129, 140 , 163, 202, 208, 210. For More info click here.

6511 0021 00  Operating instructions HHT -no longer available
6511 0021 00 13 Operating instructions HHT English-no longer available
6511 0040 99
965 589  00 40 00
Multiplexer test cable -no longer available
6511 0050 99
965 589  00 50 00
4-pin adapter cable. Masse (-) [black],  KL 15 [white],  Signal [yellow], 12V B+ [red] -no longer available
6511 0060 99
965 589  00 60 00
Ten Signal Adapter Cable. 2 meter extension cable to allow technician to drive the car.  -no longer available
6511 0070 99
965 589  00 70 00
Printer Cable for HHT -no longer available
6511 0080 99 Wire  for Hand Held Tester-no longer available
6511 0090 99
965 589  00 90 00
HHT/SAE Cable OBD 16 pin for HHT-no longer available
6511 0140 99
965 589  00 40 01
Upgraded. Remanufactured. Multiplexer lead for Hand Held Tester. Must be used with upgraded HHT-no longer available
6511 0160 99
965 589  01 60 00
 Transport-case for HHT-no longer available
6511 0501 99  Cartridge programmer HHT -no longer available
6511 2000 13 Software Cartridge for HHT 09/02 -no longer available
900 589 00 07 00 pin socket
900 589 00 72 00 Door Hinge Grease Gun

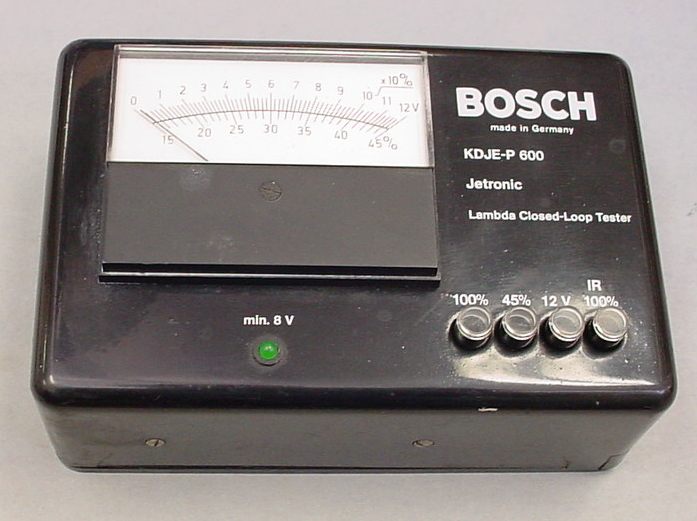

909 589 00 21 00 Bosch KDJE-P 600 Jetronic Lambda Closed-Loop Tester. No Longer Available.  This test can be done with
some effort and a multimeter that will measure pulse width, for example a Fluke 88V automotive multimeter.
.

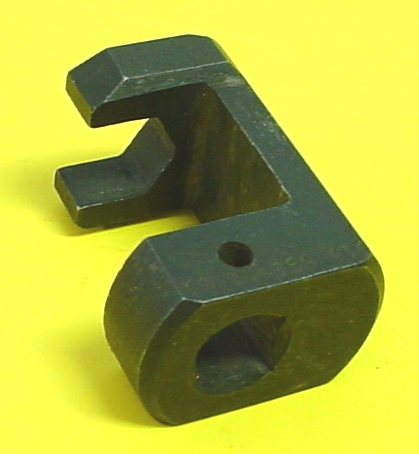

915 589 00 01 00
Valve Adjust Crow-Foot 17mm 1/2" Drive. M114 Engine.

950 589 00 32 00 Set of Plates
965 589 00 40 00 Multiplex Cable Used with HHT (Hand Held Tester). 38-pin to 19-pin.  For type 124-not 103 engine,  129, 140, 163, 202, 208, 210.  No longer available
965 589 00 90 00 Adapter Cable 16-pin for HHT
986 589 11 07 00 Pin Wrench, Transmission
Q 4 86 0024 First Aid Kit
Q 4 86 0025 First Aid Kit
..
.
HOME TOP eMail Samstag How To Order
Mercedes Tool Page.
Copyright © 1997-2016  Samstag Sales
