Torque Wrench Insert Tools |
|
||||||||
|
||||||||||
|
|
||||||||||
| Code Number | Order Number |
 |

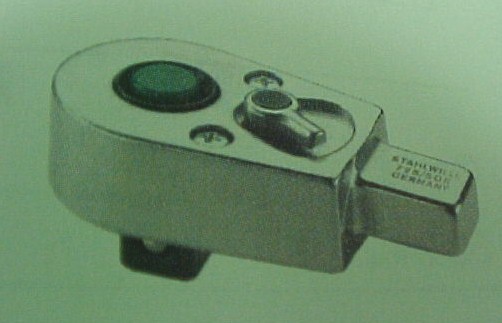

| 58 25 30 04 | 725QR-4 | Quick release ratchet insert tool, 4mm, 1/4"square , 9x12 mounting. |
| 58 25 30 05 | 725QR-5 | Quick release ratchet insert tool, 5mm, 3/8" square, 9x 12 mounting |
| 58 25 30 10 | 725QR-10 | Quick release ratchet insert tool, 10mm, 1/2" square, 9x 12 mounting |
| 58 25 30 20 | 725QR-20 | Quick release ratchet insert tool, 20mm, 1/2" square, 14x18 mounting |
| Code Number | Order Number |
 |

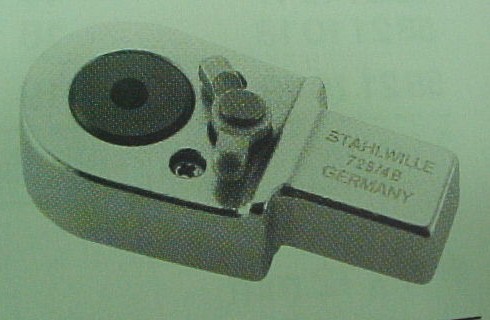

| 58 25 50 04 | 725/B-4 | Ratchet insert tool, reversible with inside hexagon. 1/4" inside, 9x12 mounting |
| 58 25 50 05 | 725/B-5 | Ratchet insert tool, reversible with inside hexagon, 5/16 inside, 9x12 mounting |
|
|
|
 |

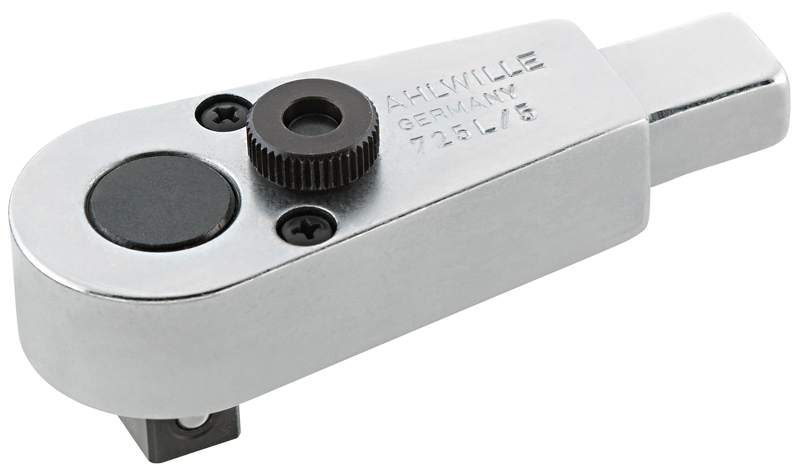

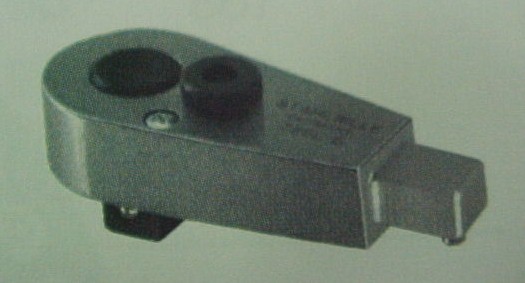

| 58 15 10 05 | 725L/5 | Ratchet Shell Tool 3/8, 9x12 Mounting, DBGM |
| Code Number | Order Number |
 |
| 58 25 40 04 | 725/4 | Ratchet insert tool, 1/4"square, 9x12 mounting. |
|
|
|
 |
| 58 25 00 05 | 735/5 | Reversible Ratchet Insert Tools 3/8" dr, 9x12 mounting |
| 58 25 00 10 | 735/10 | Reversible Ratchet Insert Tools 1/2" dr, 9x12 mounting |
| 58 25 00 20 | 735/20 | Reversible Ratchet Insert Tools 1/2" dr, 14x18 mounting |
| 58 25 00 40 | 735/40 | Reversible Ratchet Insert Tools 3/4" dr, 14x18 mounting |
|
|
|
 |
| 58 25 00 80 | 735/80-3/4 | Ratchet Shell Tool 3/4, 24.5 x 28 Mounting, DB |
| Code Number | Order Number |
 |
| 58 24 00 04 | 734/4-1/4 | Square Drive Insert Tool 1/4, 9 x 12 Mounting |
| 58 24 00 05 | 734/5-3/8 | Square Drive Insert Tool 3/8, 9 x 12 Mounting |
| 58 24 00 10 | 734/10-1/2 | Square Drive Insert Tool 1/2, 9 x 12 Mounting |
| 58 24 00 20 | 734/20-1/2 | Square Drive Insert Tool 1/2, 14 x 18 Mounting |
| 58 24 00 40 | 734/40-3/4 | Square Drive Insert Tool 3/4,14 x 18 Mounting |
| Code Number | Order Number |
|
| 58 25 00 80 | 734/80-3/4 | Square Drive Shell Tool, 24.5 x 28 Mounting |
| Code Number | Order Number |
 |
| 58 21 10 07 | 731/10-7 | Open End Insert Tool 7mm, 9x12 Mounting |
| 58 21 10 08 | 731/10-8 | Open End Insert Tool 8mm, 9x12 Mounting |
| 58 21 10 09 | 731/10-9 | Open End Insert Tool 9mm, 9x12 Mounting |
| 58 21 10 10 | 731/10-10 | Open End Insert Tool 10mm, 9x12 Mounting |
| 58 21 10 11 | 731/10-11 | Open End Insert Tool 11mm, 9x12 Mounting |
| 58 21 10 12 | 731/10-12 | Open End Insert Tool 12mm, 9x12 Mounting |
| 58 21 10 13 | 731/10-13 | Open End Insert Tool 13mm, 9x12 Mounting |
| 58 21 10 14 | 731/10-14 | Open End Insert Tool 14mm, 9x12 Mounting |
| 58 21 10 15 | 731/10-15 | Open End Insert Tool 15mm, 9x12 Mounting |
| 58 21 10 16 | 731/10-16 | Open End Insert Tool 16mm, 9x12 Mounting |
| 58 21 10 17 | 731/10-17 | Open End Insert Tool 17mm, 9x12 Mounting |
| 58 21 10 18 | 731/10-18 | Open End Insert Tool 18mm, 9x12 Mounting |
| 58 21 10 19 | 731/10-19 | Open End Insert Tool 19mm, 9x12 Mounting |
| Code Number | Order Number |
|
| 58 61 10 16 | 731a/10-1/4 | Open End Insert Tool 1/4", 9x12 Mounting |
| 58 61 10 20 | 731a/10-5/16 | Open End Insert Tool 5/16", 9x12 Mounting |
| 58 61 10 24 | 731a/10-3/8 | Open End Insert Tool 3/8", 9x12 Mounting |
| 58 61 10 28 | 731a/10-7/16 | Open End Insert Tool 7/16", 9x12 Mounting |
| 58 61 10 32 | 731a/10-1/2 | Open End Insert Tool 1/2", 9x12 Mounting |
| 58 61 10 34 | 731a/10-9/16 | Open End Insert Tool 9/16", 9x12 Mounting |
| 58 61 10 36 | 731a/10-5/8 | Open End Insert Tool 5/8", 9x12 Mounting |
| 58 61 10 38 | 731a/10-11/16 | Open End Insert Tool 11/16", 9x12 Mounting |
| 58 61 10 40 | 731a/10-3/4 | Open End Insert Tool 3/4", 9x12 Mounting |
| Code Number | Order Number |
|
| 58 21 40 13 | 731/40-13 | Open End Insert Tool 13mm, 14x18 Mounting |
| 58 21 40 14 | 731/40-14 | Open End Insert Tool 14mm, 14x18 Mounting |
| 58 21 40 15 | 731/40-15 | Open End Insert Tool 15mm, 14x18 Mounting |
| 58 21 40 16 | 731/40-16 | Open End Insert Tool 16mm, 14x18 Mounting |
| 58 21 40 17 | 731/40-17 | Open End Insert Tool 17mm, 14x18 Mounting |
| 58 21 40 18 | 731/40-18 | Open End Insert Tool 18mm, 14x18 Mounting |
| 58 21 40 19 | 731/40-19 | Open End Insert Tool 19mm, 14x18 Mounting |
| 58 21 40 21 | 731/40-21 | Open End Insert Tool 21mm, 14x18 Mounting |
| 58 21 40 22 | 731/40-22 | Open End Insert Tool 22mm, 14x18 Mounting |
| 58 21 40 24 | 731/40-24 | Open End Insert Tool 24mm, 14x18 Mounting |
| 58 21 40 25 | 731/40-25 | Open End Insert Tool 25mm, 14x18 Mounting |
| 58 21 40 27 | 731/40-27 | Open End Insert Tool 27mm, 14x18 Mounting |
| 58 21 40 30 | 731/40-30 | Open End Insert Tool 30mm, 14x18 Mounting |
| 58 21 40 32 | 731/40-32 | Open End Insert Tool 32mm, 14x18 Mounting |
| 58 21 40 34 | 731/40-34 | Open End Insert Tool 34mm, 14x18 Mounting |
| Code Number | Order Number |
|
| 58 61 40 28 | 731a/40-7/16 | Open End Insert Tool 7/16", 14x18 Mounting |
| 58 61 40 32 | 731a/40-1/2 | Open End Insert Tool 1/2", 14x18 Mounting |
| 58 61 40 34 | 731a/40-9/16 | Open End Insert Tool 9/16", 14x18 Mounting |
| 58 61 40 36 | 731a/40-5/8 | Open End Insert Tool 5/8", 14x18 Mounting |
| 58 61 40 38 | 731a/40-11/16 | Open End Insert Tool 11/16", 14x18 Mounting |
| 58 61 40 40 | 731a/40-3/4 | Open End Insert Tool 3/4", 14x18 Mounting |
| 58 61 40 42 | 731a/40-13/16 | Open End Insert Tool 13/16", 14x18 Mounting |
| 58 61 40 44 | 731a/40-7/8 | Open End Insert Tool 7/8", 14x18 Mounting |
| 58 61 40 46 | 731a/40-15/16 | Open End Insert Tool 15/16", 14x18 Mounting |
| 58 61 40 48 | 731a/40-1 | Open End Insert Tool 1", 14x18 Mounting |
| 58 61 40 52 | 731a/40-1 1/8 | Open End Insert Tool 1 1/8", 14x18 Mounting |
| Code Number | Order Number |
 |
| 58 21 80 24 | 731/80-24 | Open End Shell Tool 7/16", 24.5 x 28 Mounting |
| 58 21 80 27 | 731/80-27 | Open End Shell Tool 1/2", 24.5 x 28 Mounting |
| 58 21 80 30 | 731/80-30 | Open End Shell Tool 9/16", 24.5 x 28 Mounting |
| 58 21 80 32 | 731/80-32 | Open End Shell Tool 5/8", 24.5 x 28 Mounting |
| 58 21 80 34 | 731/80-34 | Open End Shell Tool 11/16", 24.5 x 28 Mounting |
| 58 21 80 36 | 731/80-36 | Open End Shell Tool 3/4", 24.5 x 28 Mounting |
| 58 21 80 41 | 731/80-41 | Open End Shell Tool 13/16", 24.5 x 28 Mounting |
| 58 21 80 46 | 731/80-46 | Open End Shell Tool 7/8", 24.5 x 28 Mounting |
| 58 21 80 50 | 731/80-50 | Open End Shell Tool 15/16", 24.5 x 28 Mounting |
| 58 21 80 55 | 731/80-55 | Open End Shell Tool 1", 24.5 x 28 Mounting |
| 58 21 80 60 | 731/80-60 | Open End Shell Tool 1 1/8", 24.5 x 28 Mounting |
| Code Number |
Order Number |
 |
| 58 22 10 07 | 732/10-7 | Ring Insert Tool 7mm, 9x12 Mounting |
| 58 22 10 08 | 732/10-8 | Ring Insert Tool 8mm, 9x12 Mounting |
| 58 22 10 10 | 732/10-10 | Ring Insert Tool 10mm, 9x12 Mounting |
| 58 22 10 11 | 732/10-11 | Ring Insert Tool 11mm, 9x12 Mounting |
| 58 22 10 12 | 732/10-12 | Ring Insert Tool 12mm, 9x12 Mounting |
| 58 22 10 13 | 732/10-13 | Ring Insert Tool 13mm, 9x12 Mounting |
| 58 22 10 14 | 732/10-14 | Ring Insert Tool 14mm, 9x12 Mounting |
| 58 22 10 15 | 732/10-15 | Ring Insert Tool 15mm, 9x12 Mounting |
| 58 22 10 16 | 732/10-16 | Ring Insert Tool 16mm, 9x12 Mounting |
| 58 22 10 17 | 732/10-17 | Ring Insert Tool 17mm, 9x12 Mounting |
| 58 22 10 18 | 732/10-18 | Ring Insert Tool 18mm, 9x12 Mounting |
| 58 22 10 19 | 732/10-19 | Ring Insert Tool 19mm, 9x12 Mounting |
| 58 22 10 21 | 732/10-21 | Ring Insert Tool 21mm, 9x12 Mounting |
| 58 22 10 22 | 732/10-22 | Ring Insert Tool 22mm, 9x12 Mounting |
| Code Numb | Order Number |
|
| 58 62 10 16 | 732a/10-1/4 | Ring Insert Tool 1/4", 9x12 Mounting |
| 58 62 10 20 | 732a/10-5/16 | Ring Insert Tool 5/16", 9x12 Mounting |
| 58 62 10 24 | 732a/10-3/8 | Ring Insert Tool 3/8", 9x12 Mounting |
| 58 62 10 28 | 732a/10-7/16 | Ring Insert Tool 7/16", 9x12 Mounting |
| 58 62 10 32 | 732a/10-1/2 | Ring Insert Tool 1/2", 9x12 Mounting |
| 58 62 10 34 | 732a/10-9/16 | Ring Insert Tool 9/16", 9x12 Mounting |
| 58 62 10 36 | 732a/10-5/8 | Ring Insert Tool 5/8", 9x12 Mounting |
| 58 62 10 38 | 732a/10-11/16 | Ring Insert Tool 11/16", 9x12 Mounting |
| 58 62 10 40 | 732a/10-3/4 | Ring Insert Tool 3/4", 9x12 Mounting |
| 58 62 10 42 | 732a/10-13/16 | Ring Insert Tool 13/16", 9x12 Mounting |
| 58 62 10 44 | 732a/10-7/8 | Ring Insert Tool 7/8", 9x12 Mounting |
| Code Number | Order Number |
 {More
Information} |
| 58 22 40 13 | 732/40-13 | Ring Insert Tool 13mm, 14x18 Mounting |
| 58 22 40 14 | 732/40-14 | Ring Insert Tool 14mm, 14x18 Mounting |
| 58 22 40 15 | 732/40-15 | Ring Insert Tool 15mm, 14x18 Mounting |
| 58 22 40 16 | 732/40-16 | Ring Insert Tool 16mm, 14x18 Mounting |
| 58 22 40 17 | 732/40-17 | Ring Insert Tool 17mm, 14x18 Mounting |
| 58 22 40 18 | 732/40-18 | Ring Insert Tool 18mm, 14x18 Mounting |
| 58 22 40 19 | 732/40-19 | Ring Insert Tool 19mm, 14x18 Mounting |
| 58 22 40 21 | 732/40-21 | Ring Insert Tool 21mm, 14x18 Mounting |
| 58 22 40 22 | 732/40-22 | Ring Insert Tool 22mm, 14x18 Mounting |
| 58 22 40 24 | 732/40-24 | Ring Insert Tool 24mm, 14x18 Mounting |
| 58 22 40 27 | 732/40-27 | Ring Insert Tool 27mm, 14x18 Mounting |
| 58 22
40 28 |
732/40-28 |
Ring
Insert Tool 28mm, 14x18 Mounting |
| 58 22 40 30 | 732/40-30 | Ring Insert Tool 30mm, 14x18 Mounting |
| 58 22 40 32 | 732/40-32 | Ring Insert Tool 32mm, 14x18 Mounting |
| 58 22 40 34 | 732/40-34 | Ring Insert Tool 34mm, 14x18 Mounting |
| 58 22 40 36 | 732/40-36 | Ring Insert Tool 36mm, 14x18 Mounting |
| 58 22 40 41 | 732/40-41 | Ring Insert Tool 41mm, 14x18 Mounting |
| Code Number | Order Number |
|
| 58 62 40 32 | 732a/40-1/2 | Ring Insert Tool 1/2", 14x18 Mounting |
| 58 62 40 34 | 732a/40-9/16 | Ring Insert Tool 9/16", 14x18 Mounting |
| 58 62 40 36 | 732a/40-5/8 | Ring Insert Tool 5/8", 14x18 Mounting |
| 58 62 40 38 | 732a/40-11/16 | Ring Insert Tool 11/16", 14x18 Mounting |
| 58 62 40 40 | 732a/40-3/4 | Ring Insert Tool 3/4", 14x18 Mounting |
| 58 62 40 42 | 732a/40-13/16 | Ring Insert Tool 13/16", 14x18 Mounting |
| 58 62 40 44 | 732a/40-7/8 | Ring Insert Tool 7/8", 14x18 Mounting |
| 58 62 40 46 | 732a/40-15/16 | Ring Insert Tool 15/16", 14x18 Mounting |
| 58 62 40 48 | 732a/40-1 | Ring Insert Tool 1", 14x18 Mounting |
| Code Number | Order Number |
 |
| 58 62 00 07 | 732G/10-7 | Ring Insert Tool 7mm, 9 x 12 Mounting |
| 58 62 00 08 | 732G/10-8 | Ring Insert Tool 8mm, 9 x 12 Mounting |
| 58 62 00 09 | 732G/10-9 | Ring Insert Tool 9mm, 9 x 12 Mounting |
| 58 62 00 10 | 732G/10-10 | Ring Insert Tool 10mm, 9 x 12 Mounting |
| 58 62 00 13 | 732G/10-13 | Ring Insert Tool 13mm, 9 x 12 Mounting |
| 58 62 12 16 | 732aG/10-1/4 | Ring Insert Tool 1/4, 9 x 12 Mounting |
| 58 62 12 20 | 732aG/10-5/16 | Ring Insert Tool 5/16, 9 x 12 Mounting |
| 58 62 12 24 | 732aG/10-3/8 | Ring Insert Tool 3/8, 9 x 12 Mounting |
| 58 62 12 28 | 732aG/10-7/16 | Ring Insert Tool 7/16, 9 x 12 Mounting |
| 58 62 12 32 | 732aG/10-1/2 | Ring Insert Tool 1/2, 9 x 12 Mounting |
| 58 62 12 34 | 732aG/10-9/16 | Ring Insert Tool 9/16, 9 x 12 Mounting |
| 58 62 12 36 | 732aG/10-5/8 | Ring Insert Tool 5/8, 9 x 12 Mounting |
| Code Number | Order Number |
 Order
Number |

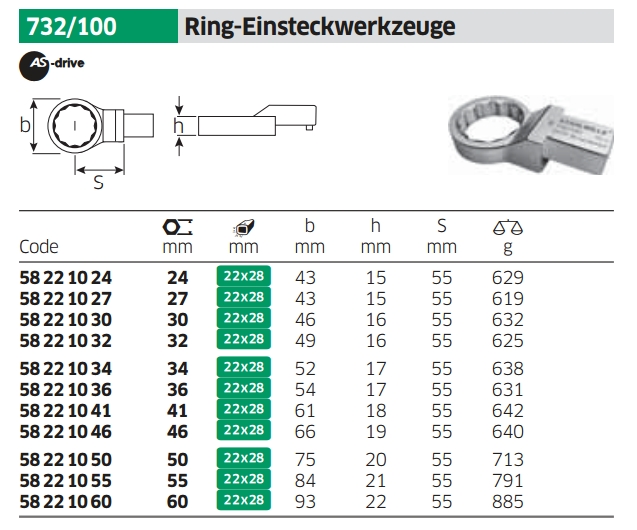

| 58 22 80 24 | 732/80-24 | Ring Insert Tool 24mm, 24.5 x 28 Mounting |
| 58 22 80 27 | 732/80-27 | Ring Insert Tool 27mm, 24.5 x 28 Mounting |
| 58 22 80 30 | 732/80-30 | Ring Insert Tool 30mm, 24.5 x 28 Mounting |
| 58 22 80 32 | 732/80-32 | Ring Insert Tool 32mm, 24.5 x 28 Mounting |
| 58 22 80 34 | 732/80-34 | Ring Insert Tool 34mm, 24.5 x 28 Mounting |
| 58 22 80 36 | 732/80-36 | Ring Insert Tool 36mm, 24.5 x 28 Mounting |
| 58 22 80 41 | 732/80-41 | Ring Insert Tool 41mm, 24.5 x 28 Mounting |
| 58 22 80 46 | 732/80-46 | Ring Insert Tool 46mm, 24.5 x 28 Mounting |
| 58 22 80 50 | 732/80-50 | Ring Insert Tool 50mm, 24.5 x 28 Mounting |
| 58 22 80 55 | 732/80-55 | Ring Insert Tool 55mm, 24.5 x 28 Mounting |
| 58 22 80 60 | 732/80-60 | Ring Insert Tool 60mm, 24.5 x 28 Mounting |
| 58 62 80 46 | 732a/80-15/16 | Ring Insert Tool 15/16, 24.5 x 28 Mounting (Airbus Engine Pin) |
| 58 62 80 50 | 732a/80-1-1/16 | Ring Insert Tool 1-1/16, 24.5 x 28 Mounting (Airbus Engine Pin) |
| Code Number | Order Number |
 Or( More Info ) |
| 58 22 10 24 |
732/100-24 | Ring Insert Tool 24mm, 22 x 28 Mounting |
| 58 22 10 27 |
732/100-27 | Ring Insert Tool 27mm, 22 x 28 Mounting |
| 58 22 10 30 | 732/100-30 | Ring Insert Tool 30mm, 22 x 28 Mounting |
| 58 22 10 32 |
732/100-32 | Ring Insert Tool 32mm, 22 x 28 Mounting |
| 58 22 10 34 | 732/100-34 | Ring Insert Tool 34mm, 22 x 28 Mounting |
| 58 22 10 36 | 732/100-36 | Ring Insert Tool 36mm, 22 x 28 Mounting |
| 58 22 10 41 | 732/100-41 | Ring Insert Tool 41mm, 22 x 28 Mounting |
| 58 22 10 46 | 732/100-46 | Ring Insert Tool 46mm, 22 x 28 Mounting |
| 58 22 10 50 | 732/100-50 | Ring Insert Tool 50mm, 22 x 28 Mounting |
| 58 22 10 55 | 732/100-55 | Ring Insert Tool 55mm, 22 x 28 Mounting |
| 58 22 10 60 | 732/100-60 | Ring Insert Tool 60mm, 22 x 28 Mounting |
| Code Number | Order Number |
 |
| 58 29 10 06 | 732TX/10-E6 | TORX Insert Tool E6, 9 x 12 Mounting |
| 58 29 10 08 | 732TX/10-E8 | TORX Insert Tool E8, 9 x 12 Mounting |
| 58 29 10 10 | 732TX/10-E10 | TORX Insert Tool E10, 9 x 12 Mounting |
| 58 29 10 12 | 732TX/10-E12 | TORX Insert Tool E12, 9 x 12 Mounting |
| 58 29 10 14 | 732TX/10-E14 | TORX Insert Tool E14, 9 x 12 Mounting |
 |
||
| 58 29 40 14 | 732TX/40-E14 | TORX Insert Tool E14, 14 x 18 Mounting |
| 58 29 40 18 | 732TX/40-E18 | TORX Insert Tool E18, 14 x 18 Mounting |
| 58 29 40 20 | 732TX/40-E20 | TORX Insert Tool E20, 14 x 18 Mounting |
| 58 29 40 24 | 732TX/40-E24 | TORX Insert Tool E24, 14 x 18 Mounting |
| Code Number | Order Number |
 |
| 58 23 10 10 | 733/10-10 | Open Ring Insert Tool , 10mm, 9x12 Mounting |
| 58 23 10 11 | 733/10-11 | Open Ring Insert Tool , 11mm, 9x12 Mounting |
| 58 23 10 12 | 733/10-12 | Open Ring Insert Tool , 12mm, 9x12 Mounting |
| 58 23 10 13 | 733/10-13 | Open Ring Insert Tool , 13mm, 9x12 Mounting |
| 58 23 10 14 | 733/10-14 | Open Ring Insert Tool , 14mm, 9x12 Mounting |
| 58 23 10 16 | 733/10-16 | Open Ring Insert Tool , 16mm, 9x12 Mounting |
| 58 23 10 17 | 733/10-17 | Open Ring Insert Tool , 17mm, 9x12 Mounting |
| 58 23 10 18 | 733/10-18 | Open Ring Insert Tool , 18mm, 9x12 Mounting |
| 58 23 10 19 | 733/10-19 | Open Ring Insert Tool , 19mm, 9x12 Mounting |
| 58 23 10 21 | 733/10-21 | Open Ring Insert Tool , 21mm, 9x12 Mounting |
| 58 23 10 22 | 733/10-22 | Open Ring Insert Tool , 22mm, 9x12 Mounting |
| 58 23 10 24 | 733/10-24 | Open Ring Insert Tool , 24mm, 9x12 Mounting |
| Code Number | Order Number |
|
| 58 63 10 24 | 733a/10-3/8 | Open Ring Insert Tool , 3/8", 9x12 Mounting |
| 58 63 10 28 | 733a/10-7/16 | Open Ring Insert Tool , 7/16", 9x12 Mounting |
| 58 63 10 32 | 733a/10-1/2 | Open Ring Insert Tool , 1/2", 9x12 Mounting |
| 58 63 10 34 | 733a/10-9/16 | Open Ring Insert Tool , 9/16", 9x12 Mounting |
| 58 63 10 36 | 733a/10-5/8 | Open Ring Insert Tool , 5/8", 9x12 Mounting |
| 58 63 10 38 | 733a/10-11/16 | Open Ring Insert Tool , 11/16", 9x12 Mounting |
| 58 63 10 40 | 733a/10-3/4 | Open Ring Insert Tool , 3/4", 9x12 Mounting |
| Code Number | Order Number |
 |
| 58 26 10 10 | 736/10-5/16 | Bit Holder Insert Tool, 5/16 D8, 9 x 12 Mounting |
| 58 26 26 10 | 736/10-1.1/4 | Bit Holder Insert Tool 1/4 D6.3, 9 x 12 Mounting |
| 58 26 10 40 | 736/40-5/16 | Bit Holder Insert Tool 5/16 D8, 14 x 18 Mounting |
.
| Code Number | Order Number |
 |
| 58 27 00 10 | 737/10 | Blank End Insert Tool, 8x14 (h x b), 9 x 12mm |
| 58 27 00 40 | 737/40 | Blank End Insert Tool, 11 x 25 (h x b), 14 x 18mm |
| Code Number | Order Number |
 |
| 58 29 00 80 | 7370/80 | Shell Adapter 14 x 18 Mounting. So you can use your 14x18mm
size inserts with a 24.5x28mm Shell Torque Wrench. Caution! Modifed settings will be needed on your torque wrench when using this insert. |
| HOME | Stahlwille Tools |
How to Order | SEARCH | Contact Us | Catalog Pages |
