About


The Stahlwille VDE range offers more than 130 tools, including spanners, fine tooth ratchets, torque wrenches, pliers, cutters, sockets, and screwdrivers. The VDE line of tools offers insulation on tools up to 1000 volts. Samstag Sales is happy to provided you with all your insulated tool needs! To get information on pricing and the full range of VDE tools, contact us by E-mail or phone.


Pliers


Stahlwille's VDE line offers several types of pliers including combination, flat nose short and long, round nose short and long, straight and bent snipe nose pliers with cutters (radio- or telephone pliers), mechanics snipe nose pliers, side cutters, cable shears, and wire stripping pliers. Most versions are available with either dip-coated or multi-component insulated handles.

6501 VDE
Stahlwille 6501 VDE Combination Pliers. DIN ISO 5746. Precision cutting edges for all wires, including piano wires. Induction hardened cutting edges to approximately 62 HRC. Sizes available are 160mm, 180mm, and 200mm with either dip-coated or multi-component insulated handles. All pliers in this line are insulated to DIN EN 60900, AC/1000 V.

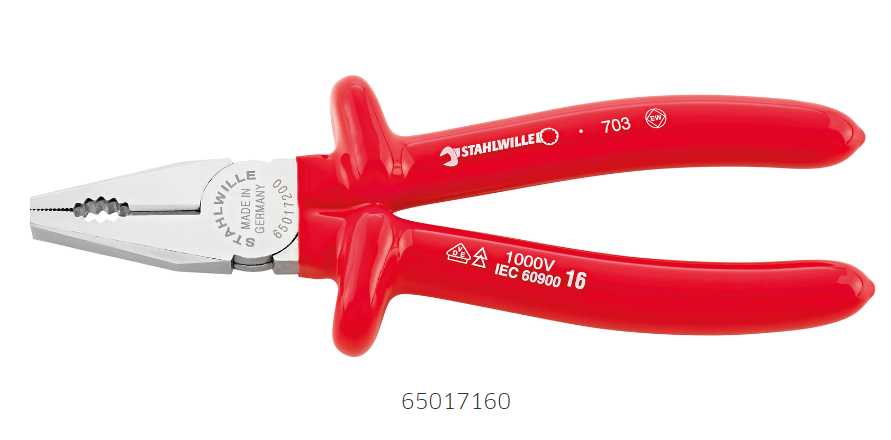

65017160
Stahlwille 6501 VDE size 160mm long Combination Pliers. Chrome plated head with dip-coated insulated handles. Cutting capacity for hard wire 1.8mm, for piano wire 1.5mm, for cable 10mm.

Price on Request

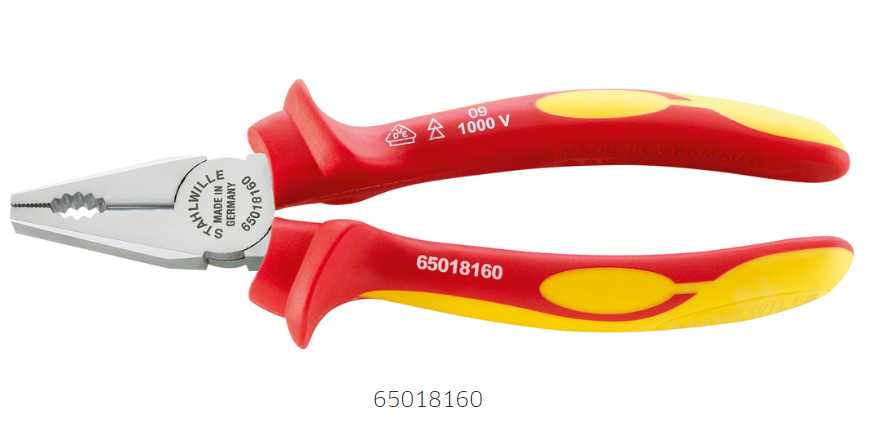

65018160
Stahlwille 6501 VDE size 160mm long Combination Pliers. Chrome plated head with multi-component insulated handles. Cutting capacity for hard wire 1.8mm, for piano wire 1.5mm, for cable 10mm.

Price on Request
6529 VDE
Stahlwille 6529 VDE Straight Snipe Nose Pliers with cutters (radio- or telephone pliers). DIN ISO 5745. Half round, long tapering, serrated jaws, with burner hole. Precision cutting edges for soft and hard wires. Induction hardened cutting edges to approximately 60 HRC. All pliers in this line are insulated to DIN EN 60900, AC/1000 V. Sizes available are 160mm and 200mm long.


65297160
Stahlwille 6529 VDE size 160mm long with chrome plated head and dip-coated handles. Length of nose, 51mm.
Price on Request

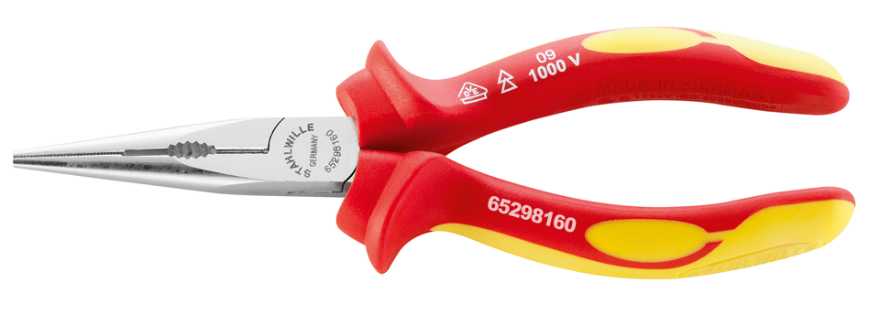

65298160
Stahlwille 6529 VDE size 160mm long with chrome plated head and multi-component handles. Length of nose, 51mm.

Price on Request

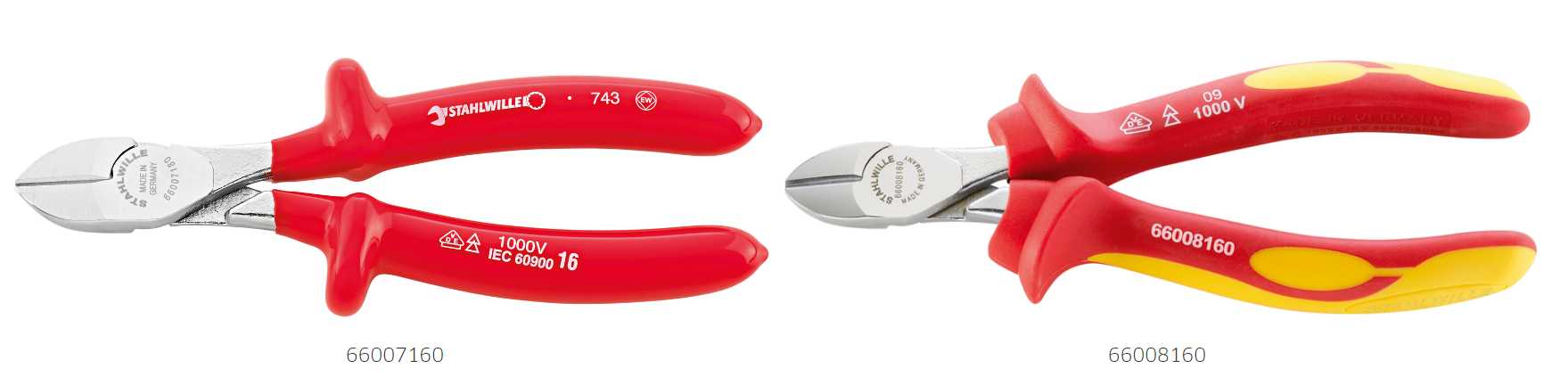

6600 VDE
Stahlwille 6600 VDE Side Cutters, DIN ISO 5749, form B. Precision cutting edges for all wires. High quality alloy steel, with beveled cutting edges. Induction hardened to approximately 63 HRC. Avaiable in sizes 140mm, 160mm, and 180mm long in either dip-coated or multi-component insulated handles. All cutters in this line are insulated up to DIN EN 60900, AC/1000 V.


66007145
Stahlwille 6600 VDE size 140mm side cutters. Chrome plated head with dip-coated handles. Cutting capacity for soft wire 3mm, for medium hard wire 2.5mm, for hard wire 1.8mm, and for piano wire 1.6mm.
Price on Request
66008145
Stahlwille 6600 VDE size 140mm side cutters. Chrome plated head with multi-component handles. Cutting capacity for soft wire 3mm, for medium hard wire 2.5mm, for hard wire 1.8mm, and for piano wire 1.6mm. Price on Request

Ratchets

12165 VDE
Stahlwille 12165 VDE QuickRelease fine tooth ratchet, 3/8" drive. Features: 80 teeth, reversible, QuickRelease safety lock, double-insulated plastic sleeve with 2-component handle. For use in confined spaces, re-engages after movement of 4.5 degrees. Insulated up to DIN EN 60900, AC/1000 V.


12430001
Stahlwille 12165 VDE Ratchet, 3/8" drive. Overall length 205mm, 37mm thick working end.
Price on Request

Screwdrivers


Stahlwille VDE offers an extension range of screwdrivers. These include: slotted (flat head) electrician's screwdrivers, cross-head (Phillip-Recess), cross-head (POZIDRIVE/SUPADRIV), and Torx for inside TORX screws.

4660 VDE
Stahlwille 4660 VDE electrician's screwdrivers DRALL, for slotted screws. Chrome alloy steel, blade gunmetal finished. Multi-component handles insulated up to DIN EN 60900, AC/1000 V. Available in sizes 1 through 7.


46603025
Stahlwille 4660 VDE Size 1 electrician's slotted screwdriver. Overall length 160mm, blade length 75mm, tip thickness of 0.4mm and width of 2.5mm.
Price on Request
46603080
Stahlwille 4660 VDE Size 7 electrician's slotted screwdriver. Overall length 300mm, blade length 175mm, tip thickness of 1.2mm and width of 8mm. Price on Request
4665 VDE
Stahlwille 4665 VDE Cross-head screwdrivers DRALL, Phillips-Recess. Chrome alloy steel, blade gunmetal finished. Multi-component handles insulated up to DIN EN 60900, AC/1000 V. Available in sizes PH 0 to PH 3.


46653000
Stahlwille 4665 VDE Phillips Screwdriver, Size PH 0. Overall length 145mm, blade length 60mm.
Price on Request
46653003
Stahlwille 4665 VDE Phillips Screwdriver, Size PH 3. Overall length 275mm, blade length 150mm. Price on Request

Sockets


Stahlwille VDE line offers 12-point sockets in sizes 3/8" and 1/2" drive, 3/8" and 1/2" drive extensions, a 3/8" socket 1/2" plug extending adapter, 3/8" drive TORX sockets, and 3/8" drive XZN sockets.

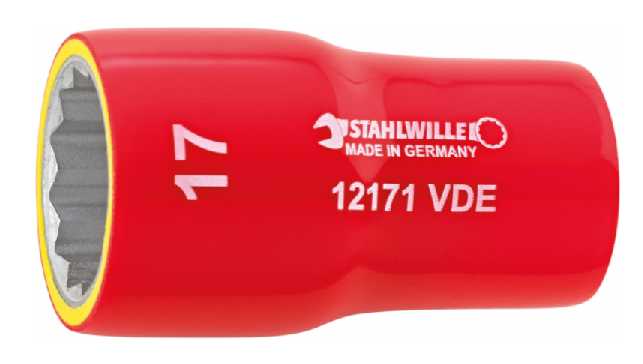

12171 VDE
Stahlwille 12171 VDE 12-Point 3/8" drive sockets. HPQ high performance steel, chrome plated. VDE insulated up to DIN EN 60900, AC/1000 V. Available from sizes 7mm up to 22mm.


02380007
Stahlwille 12171 VDE Size 7mm, 12-point socket, 3/8" drive. Overall length 42mm.
Price on Request
02380022
Stahlwille 12171 VDE Size 22mm, 12-point socket, 3/8" drive. Overall length 53mm. Price on Request

Tool Case Sets

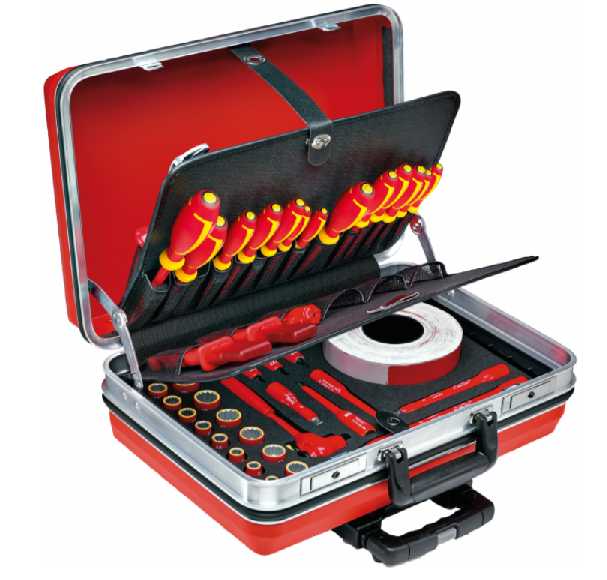

13300 VDE
Stahlwille 13300 VDE Case with 48 tools, sturdy aluminum frame. Ergonomically designed carrying handle, with smooth-running rollers and integrated telescopic handle to simplify transport. Includes 14 piece set of 12171 VDE 12-point sockets, 3 Torx 12174 VDE sockets, 2 XZN 12174 VDE sockets, one of each size type 12167 VDE extensions, a 12165 VDE Ratchet, sizes 1-4 of the 4660 VDE Electrician's screwdrivers, 3 Phillips head 46665 VDE screwdrivers, 6 Torx 4675 VDE Screwdrivers, one pair of 6501 VDE Combination pliers, one pair of 6508 VDE Long Flat nose pliers, one pair of 6602 VDE Heavy duty side cutters, one pair of 6630 VDE Cable shears, a 12188 VDE Electrician's penknife, a box of 12191 VDE Barrier tape, a 12193 VDE Prohibitory sign, and one 12194 and 12195 VDE self-clamping insulating cable-end caps. Note: Contact us for additional information regarding this product.


Price on Request




Wrenches - Box End

12161 VDE
Stahlwille 12161 VDE single-ended 12-point ring spanners. Chrome alloy steel. Insulated up to DIN EN 60900, AC/1000 V. Available in sizes from 10mm up to 22mm.


44190010
Stahlwille 12161 VDE size 10mm single-ended 12-point ring spanner. Overall length 147.6mm.
Price on Request
44190022
Stahlwille 12161 VDE size 22mm single-ended 12-point ring spanner. Overall length 254.2mm. Price on Request

Wrenches - Open End

12160 VDE
Stahlwille 12160 VDE single-ended open-jaw spanners. Chrome alloy steel. Insulated up to DIN EN 60900, AC/1000 V. Available in sizes from 10mm up to 22mm.


44180010
Stahlwille 12160 VDE size 10mm single-ended open-jaw spanner. Overall length 140.7mm. Price on Request
44180022
Stahlwille 12160 VDE size 22mm single-ended open-jaw spanner. Overall length 248mm. Price on Request
