You can search for a AMF tool on this page by using your web browser's find feature. For example, if you are using Internet Explorer 8, you can click on Edit in the menu bar at the top of the page, then click on (Find on this page), and type in what you want to find. A fast way to bring up the search box is to hold down the (CTRL) key and type the letter "F". | |
Quick Search |
|
AMF # | DESCRIPTION |
PRICE |
Download PDF Catalog: ![]() |
Price on
Request
|

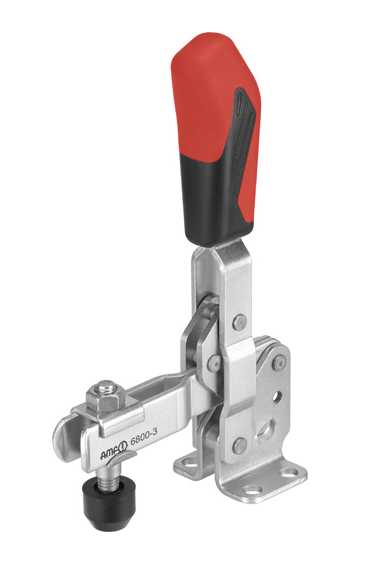

Type 6800 | ||
AMF 6800 |
AMF Type
6800 Vertical Toggle Clamp with Red Handle with open
clamping arm and horizontal base. |
|
90001 |
Amf Type 6800 No. 90001 Vertical Toggle Clamp. Size 0, clamping screw size M4x25. | $48.47 |
90019 | Amf Type 6800 No. 90019 Vertical Toggle Clamp. Size 1, clamping screw size M5x30. | $60.47 |
90027 | Amf Type 6800 No. 90027 Vertical Toggle Clamp. Size 2, clamping screw size M6x35. | $86.93 |
90035 | Amf Type 6800 No. 90035 Vertical Toggle Clamp. Size 3, clamping screw size M8x45. | $136.37 |
90043 | Amf Type 6800 No. 90043 Vertical Toggle Clamp. Size 4, clamping screw size M8x65. | $201.21 |
90050 | Amf Type 6800 No. 90050 Vertical Toggle Clamp. Size 5, clamping screw size M12x80. | $317.18 |
90068 | Amf Type 6800 No. 90068 Vertical Toggle Clamp. Size 6, clamping screw size M12x110. | $474.14 |

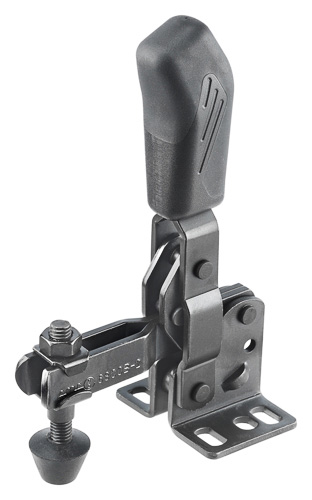

Type 6800B |
||
AMF 6800B |
Vertical toggle clamp with
open clamping arm and horizontal base. Matte black
surface. |
Price on Request |

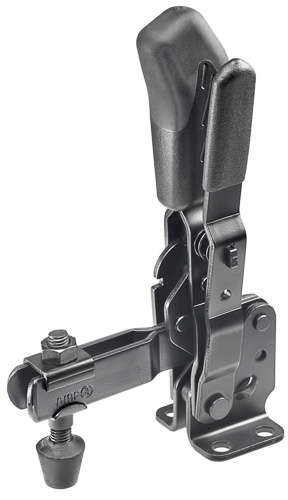

Type 6800BS |
||
AMF 6800BS |
Vertical toggle clamp with
safety latch. For open and clamped positions with open
clamping arm and base. Matte black surface. |
Price on Request |

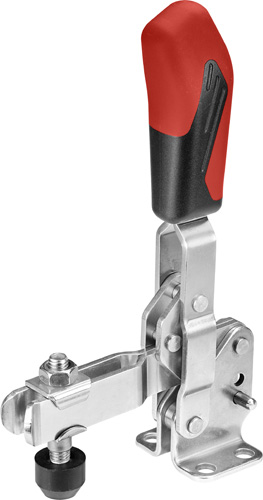

Type 6800NI |
||
AMF 6800NI |
Vertical toggle clamp with
open clamping arm and horizontal base. Stainless steel |
Price on Request |

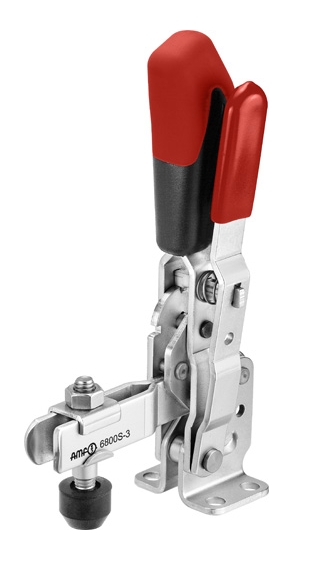

Type 6800S | ||
AMF
6800S |
AMF Type 6800S
Vertical Toggle Clamp with Red Handle and Safety Latch.
For open and clamped positions with open clamping arm
and horizontal base. With an ergonomic, oil-resistant
handle. Safety clamping piece with finger protection.
Bearings are pre-lubricated. Complete with tempered,
galvanized clamping screw No. 6890. |
|
90134 |
Amf
Type
6800S No. 90134 Vertical Toggle Clamp. Size 2, clamping
screw size M6x35. |
$141.24 |
90142 |
Amf Type 6800S No. 90142 Vertical Toggle Clamp. Size 3, clamping screw size M8x45. | $192.20 |
90159 |
Amf Type 6800S No. 90159 Vertical Toggle Clamp. Size 4, clamping screw size M8x65. | $262.37 |

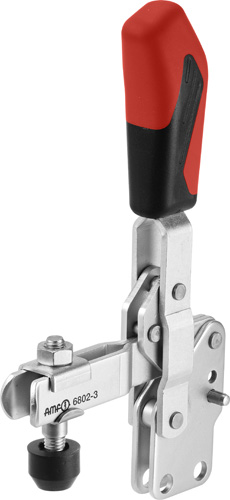

Type 6802 |
||
AMF 6803 |
Vertical toggle clamp with
open clamping arm and vertical base. |
Price on Request |
Type 6802B |
||

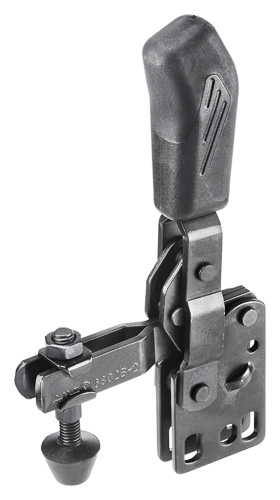

AMF 6802B |
Vertical toggle clamp with
open clamping arm and vertical base. Matte black
surface. |
Price on Request |

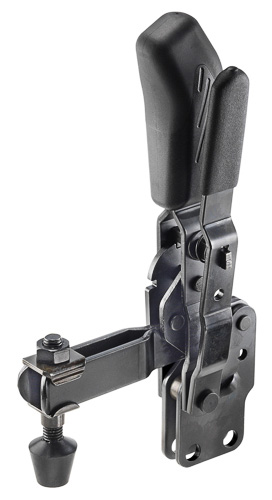

Type 6802BS |
||
AMF 6802BS |
Vertical toggle clamp with
safety latch. For open and clamped positions. With
clamping arm and vertical base. Matte black surface. |
Price on Request |

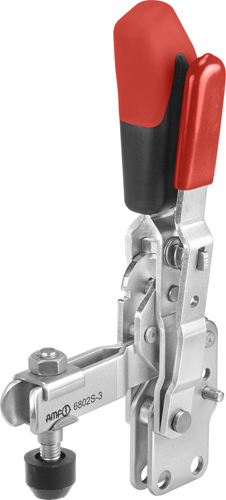

Type 6802S |
||
AMF 6802S |
Vertical toggle clamp with
safety latch for open and clamped postitions With open
clamping arm and vertical base. |
Price on Request |

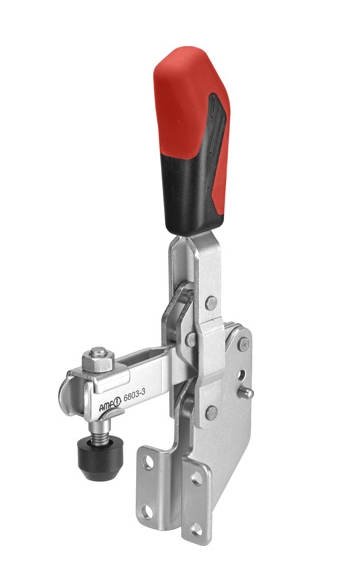

Type
6803 |
||
AMF 6803 | Vertical toggle clamp with open clamping arm and angle base. | Price on Request |

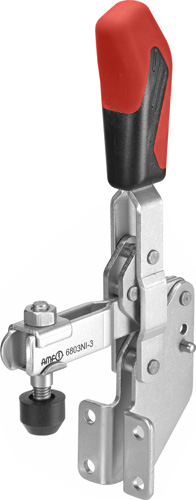

Type 6803NI |
||
AMF 6803NI |
Vertical toggle clamp with
open clamping arm and angle base. Stainless steel |
Price on Request |

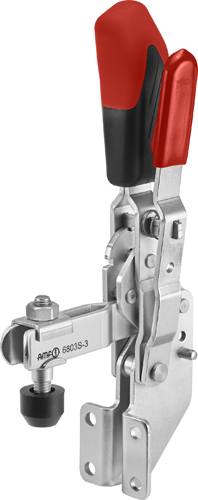

Type 6803S |
||
AMF 6803S |
Vertical toggle clamp with
safety latch for open and clamped postitions. With
open clamping arm and angle base. |
Price on Request |

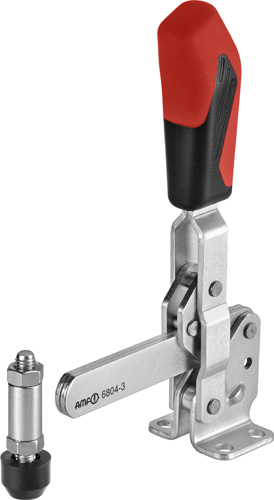

Type 6804 |
||
AMF 6804 |
Vertical toggle clamp with
solid arm and horizontal base. |
Price on Request |

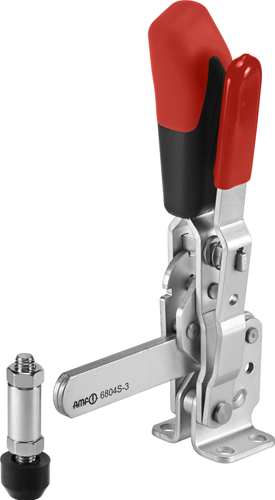

Type 6804S |
||
AMF 6804S |
Vertical toggle clamp with
safety latch for open and clamped positions. With
solid arm and horizontal base. |
Price on Request |

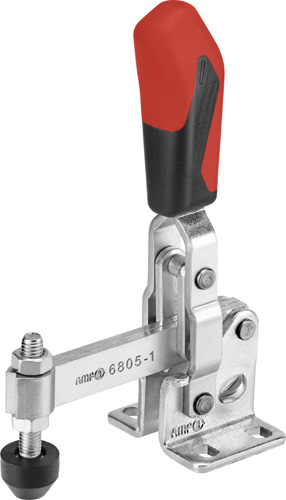

Type 6805 |
||
AMF 6805 |
Vertical toggle clamp with
clamping arm at fixed distance of clamping screw and
horizontal base. |
Price on Request |

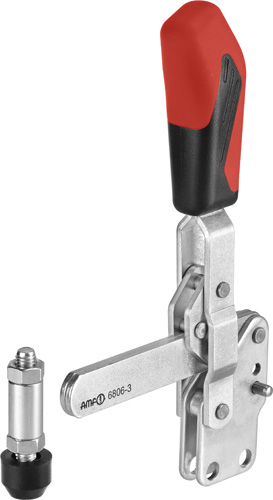

Type 6806 |
||
AMF 6806 |
Vertical toggle clamp with
solid arm and vertical base. |
Price on Request |

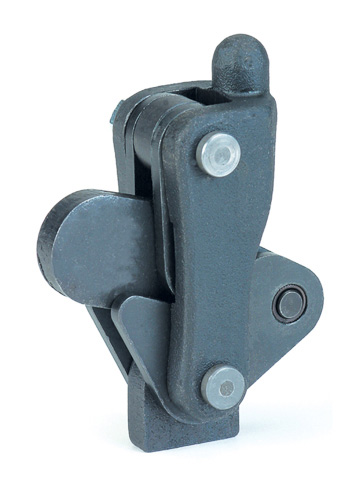

Type 6809P |
||
AMF 6809P |
Modular clamp with
swiveling foot, welding version. |
Price on Request |
Type 6810P |
||

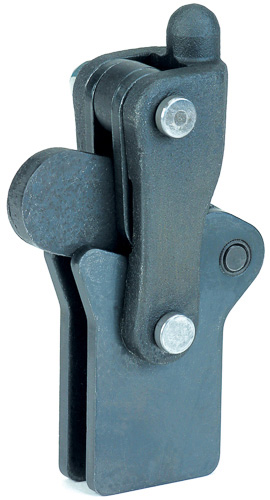

AMF 6810P |
Modular clamp with vertical
foot, welding version. |
Price on Request |
Type 6811P |
||
AMF 6811P |
Heavy vertical toggle clamp
with horizontal base. |
Price on Request |

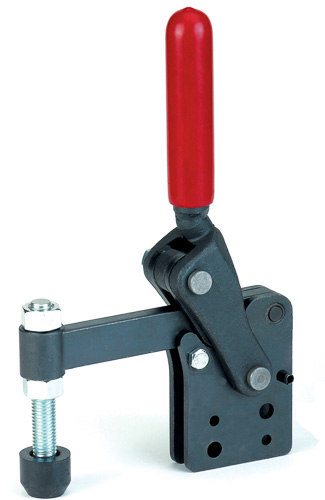

Type 6812P |
||
AMF 6812P |
Heavy vertical toggle clamp
with vertical base and mounting holes. |
Price on Request |

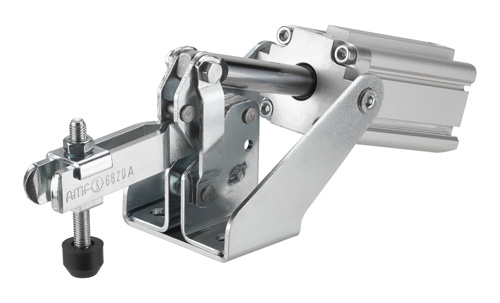

Type
6820A |
|
AMF 6820A |
AMF 6820A Pneumatic Clamp
with horizontal cylinder attachment. Fitted with
pneumatic cylinder, double-acting. With magnetic piston
for end-position monitoring. With throttle bores for
reduced speed. Clamps are galvanized and passivized.
Stainless steel rivets run in hardened bearing bushes
for sizes 2 to 4. |
555061 |
AMF Type 6820A, Number
555061 Pneumatic Clamp. Size 1 with clamping screw size
M5x30. |
555062 |
AMF Type 6820A, Number 555062 Pneumatic Clamp. Size 2 with clamping screw size M6x35. |
555063 |
AMF Type 6820A, Number 555063 Pneumatic Clamp. Size 3 with clamping screw size M8x45. |
555064 |
AMF Type 6820A, Number 555064 Pneumatic Clamp. Size 4 with clamping screw size M8x65. |
Type 6821A |
|
AMF
6821A |
AMF 6821A Pneumatic Clamp
with vertical cylinder structure. Space-saving angled
form. Vertical or horizontal mounting. Fitted with
pneumatic cylinder, double-acting. With magnetic piston
for end-position monitoring. Complete with tempered,
galvanized clamping screw no. 6890. |
AMF 555065 | AMF Type 6821A, Number
555065 Pneumatic Clamp. Size 2 with clamping screw
M6x35. |
AMF 555066 | AMF Type 6821A, Number 555066 Pneumatic Clamp. Size 3 with clamping screw M8x45. |
AMF 555067 | AMF Type 6821A, Number 555067 Pneumatic Clamp. Size 4 with clamping screw M8x65. |
Type 6830 | ||
AMF Type 6830 |
Horizontal toggle clamp
with red handle. Ergonomic, oil-resistant handle with
large grip surface and soft components. Lock washer
for the thrust bolt at the end of the clamping arm. |
|
93005 | AMF 93005 Toggle clamp. AMF number 6830-0. Made in the EU. 90º arc. Duel component handle. 79mm in length. 23mm tall. Clamping screw size M4x25. | Price on Request |
93013 |

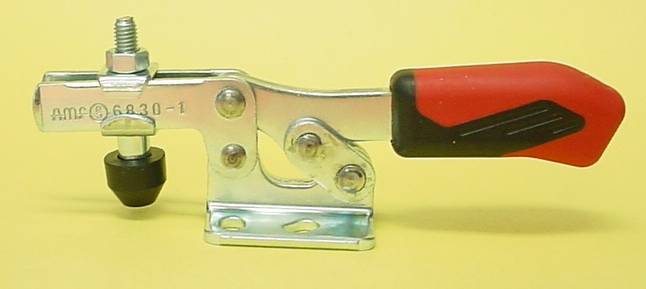

AMF
93013 Toggle clamp. AMF number 6830-1. Made in the EU. 90º
arc. Duel component handle. 120mm in length. 30mm tall.
Clamping screw size M5x30. Technical
Info.![]() |
$67.18 (Picture) |

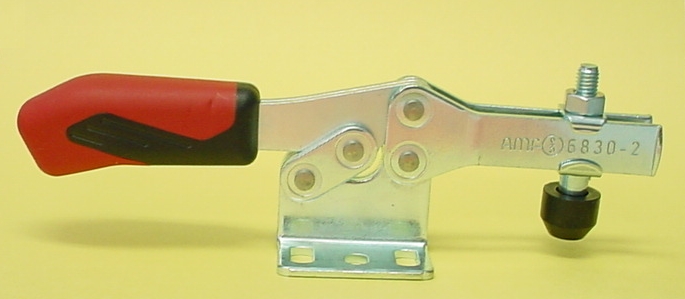

93021 |
AMF
93021 Toggle clamp. AMF Nr. 6830-2 Made in the EU, high
quality. 90º arc.
Red plastic handle. 162mm long x 45mm tall in the closed
position. Clamping screw size M6x35. Technical
Info.![]() |
|
93039 | AMF 93039 toggle clamp, AMF Nr. 6830-3, clamping screw size M8x45. | $124.22 |
93047 |
AMF
93047 toggle clamp, AMF Nr. 6830-4, clamping screw
size M8x65. Overall length 287mm, and 75mm tall. |
Price on Request |
93054 |
AMF
93054 toggle clamp, AMF Nr. 6830-5, clamping screw
size M8x65. Overall length 321mm, and 73mm tall. |
Price on Request |

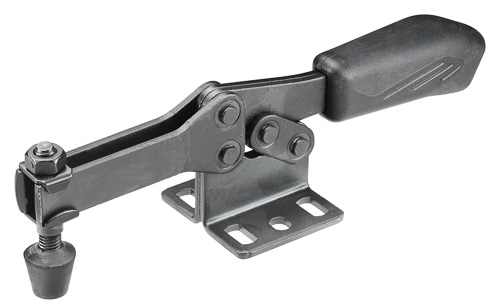

Type 6830B |
||
AMF 6830B |
Horizontal toggle clamp
with open clamping arm and horizontal base. Matte
black surface. |
Price on Request |

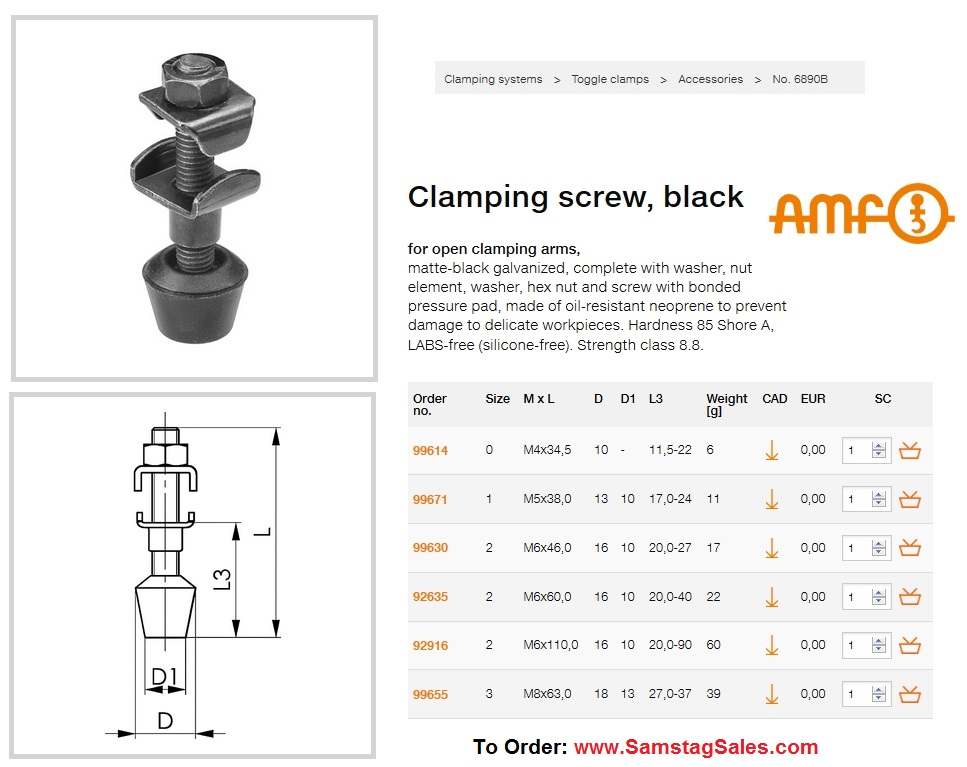

AMF 6890B | Spare Clamping Screw,
Black. With Neoprene pressure pad. |
More Information |

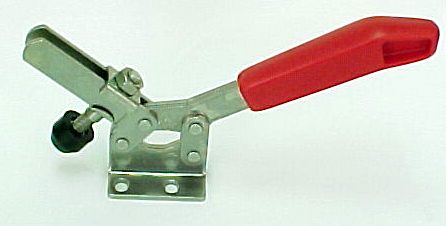

Type 6830NI | ||
95208 | AMF
95208 Toggle clamp. AMF Nr. 6830NI-3. German-made. 90º arc.
221mm in length & 48mm tall. 328g.![]() |
$173.43 (Picture) |

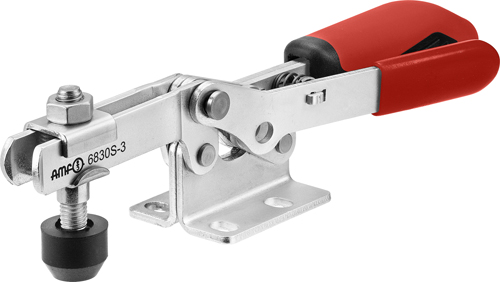

Type 6830S |
||
AMF 6830S |
Horizontal toggle clamp
with safety latch for open and clamped positions. With
open clamping arm and horizontal base. |
Price on Request |
Type 6832 |
||

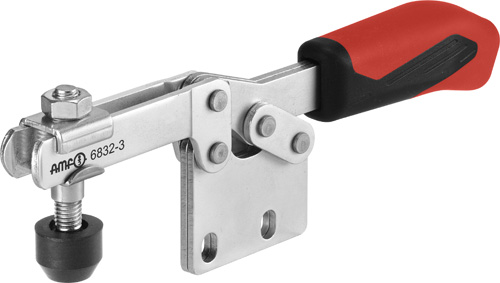

AMF 6832 |
Horizontal toggle clamp
with open clamping arm and vertical base. |
Price on Request |
93203 |
Size 0 with clamping screw
size M4x25 |
Price on Request |
93211 |
Size 1 with clamping screw size M5x30 | Price on Request |
93229 |
Size 2 with clamping screw size M6x35 | Price on Request |
93237 |
Size 3 with clamping screw size M8x45 | Price on Request |
93245 |
Size 4 with clamping screw size M8x65 | Price on Request |
93252 |
Size 5 with clamping screw size M8x65 | Price on Request |

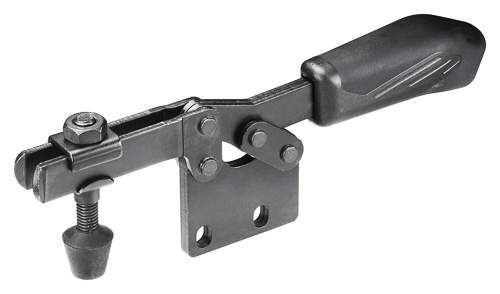

Type 6832B |
||
AMF 6832B |
Horizontal toggle clamp
with open clamping arm and vertical base. Matte black
surface. |
Price on Request |

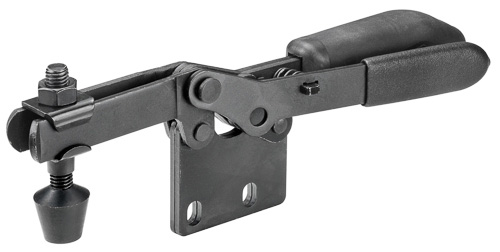

Type 6832BS |
||
AMF 6832BS |
Horizontal toggle clamp
with saftey latch for open and clamped positions. With
open clamping arm and vertical base. Matte black. |
Price on Request |
Type 6832S |
||
AMF 6832S |
Horizontal toggle clamp
with safety latch for open and clamped postitions.
With open clamping arm and vertical base. |
Price on Request |

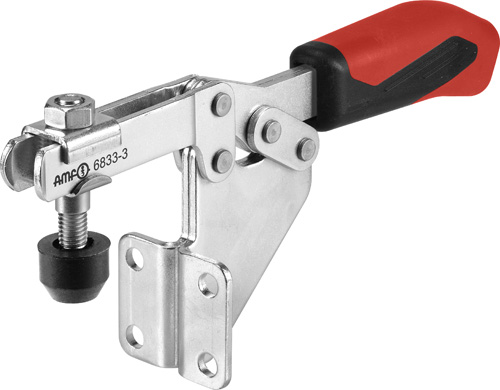

Type 6833 |
||
AMF 6833 |
Horizontal toggle clamp
with open clamping arm and angle base. |
Price on Request |
Type 6834 | ||
AMF Type 6834 | Price
on
Request |

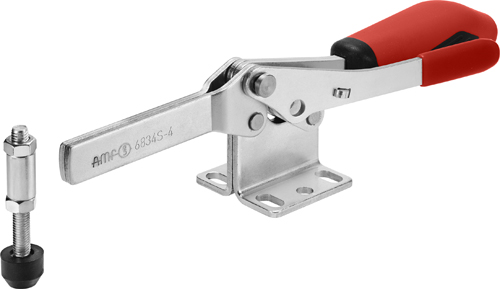

Type 6834S |
||
AMF 6834S |
Horizontal toggle clamp
with saftey latch for open and clamped positions. With
solid arm and horizontal base. |
Price on Request |

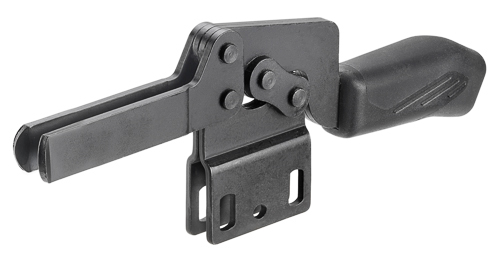

Type 6835B-2 |
||
AMF 6835B-2 |
Horizontal toggle clamp
with open clamping arm and open vertical base. Matte
black surface. |
Price on Request |

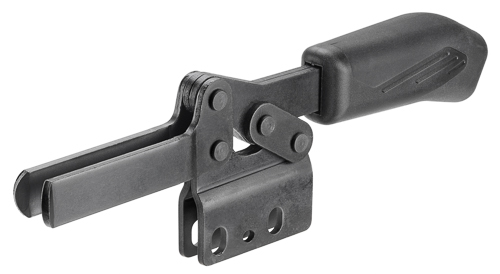

Type 6835B-3 |
||
AMF 6835B-3 |
Horizontal toggle clamp
with open clamping arm and open vertical base. Matte
black surface. |
Price on Request |

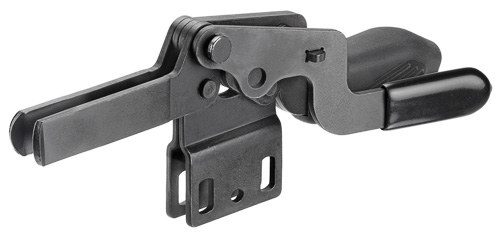

Type 6835BS-2 |
||
AMF 6835BS-2 |
Horizontal toggle clamp
with safety latch for open and clamped positions. With
open clamping arm and open vertical base. Matte black
surface. |
Price on Request |

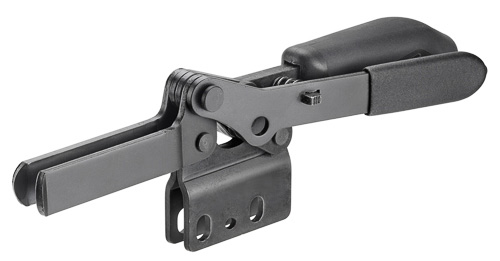

Type 6835BS-3 |
||
AMF 6835BS-3 |
Horizontal toggle clamp
with safety latch for open and clamped positions. With
open clamping arm and open vertical base. Matte black
surface. |
Price on Request |

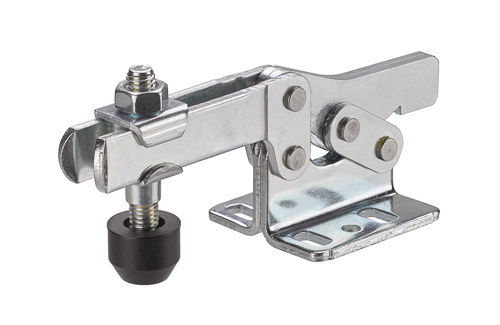

Type 6837M |
||
AMF 6837M |
Horizontal acting toggle
clamp. To be used with removable handle Type 6837. |
Price on Request |

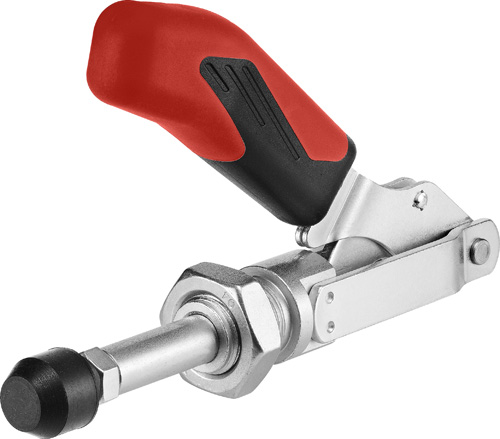

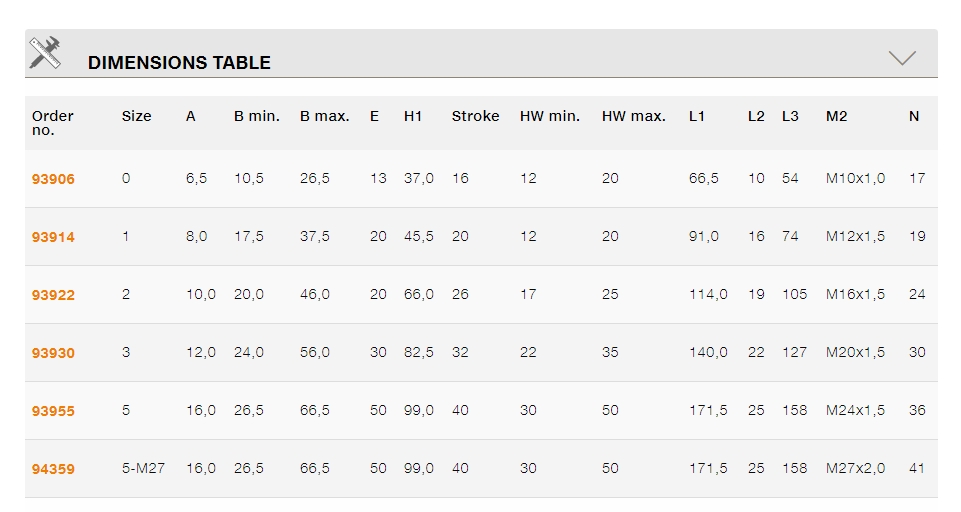

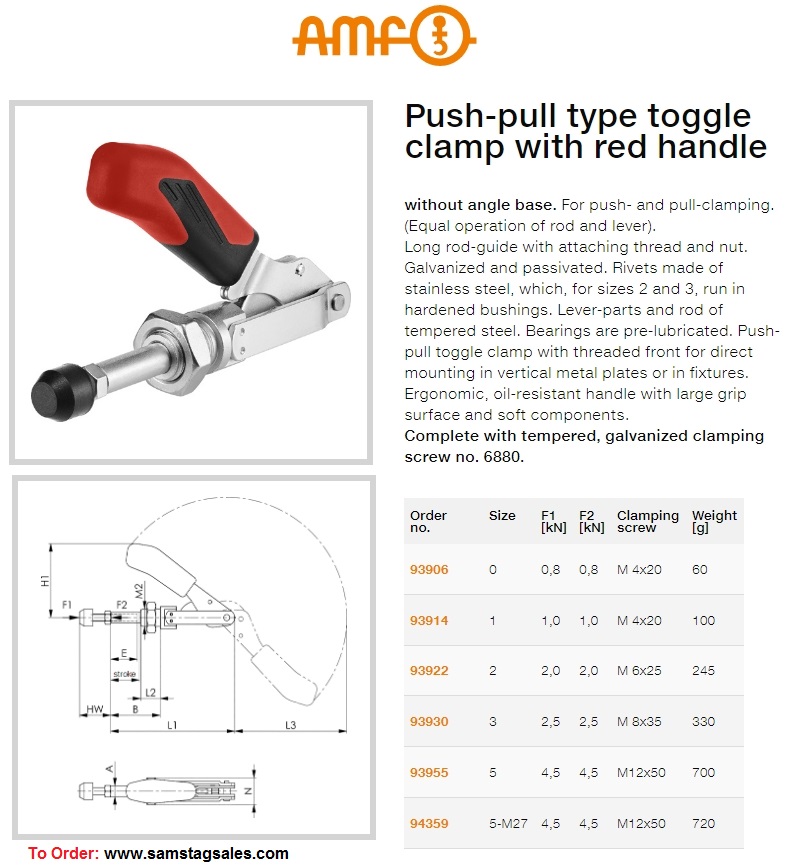

Type 6840 |
||
AMF 6840 |
Push-pull type toggle clamp
without angle base. |
Price on Request ( See Chart) (See Dimensions) |
93906 |
Size 0 with M4x20 clamping
screw |
Price on Request |
93914 |
Size 1 with M4x20 clamping screw | Price on Request |
93922 |
Size 2 with M6x25 clamping screw | Price on Request |
93930 |
Size 3 with M8x35 clamping screw | Price on Request |
93955 |
Size 5 with M12x50 clamping screw | Price on Request |
94359 |
Size 5-M27 with M12x50 clamping screw | Price on Request |

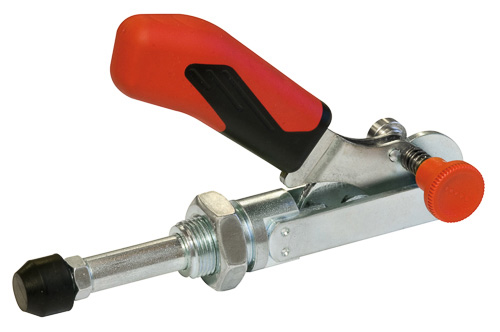

Type 6840S |
||
AMF 6840S |
Push-pull type toggle clamp
with safety latch for open and clamped positions.
Without angle base. |
Price on Request |

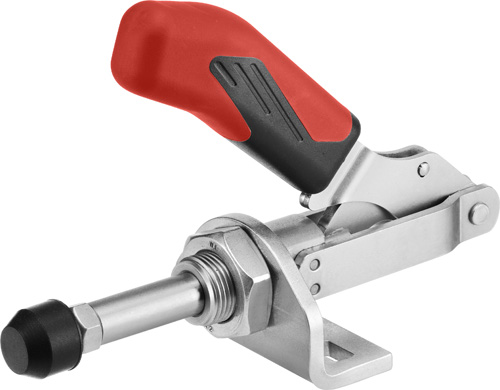

Type 6841 |
||
AMF 6841 |
Push-pull type toggle clamp
with small angle base. Galvanized |
Price on Request |

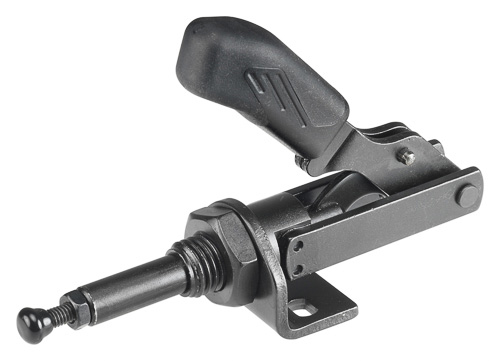

Type 6841B |
||
AMF 6841B |
Push-pull type toggle clamp
with small angle base. Matte black surface. |
Price on Request |

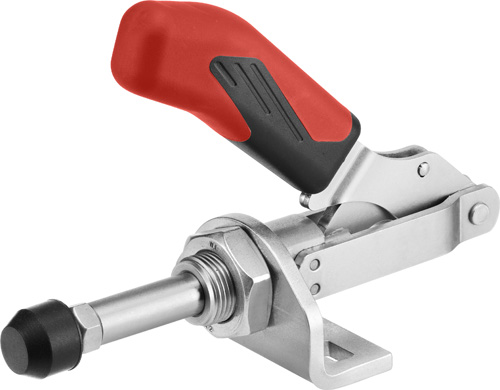

Type 6841NI |
||
AMF 6841NI |
Push-pull type toggle clamp
with small angle base. Stainless steel. |
Price on Request |

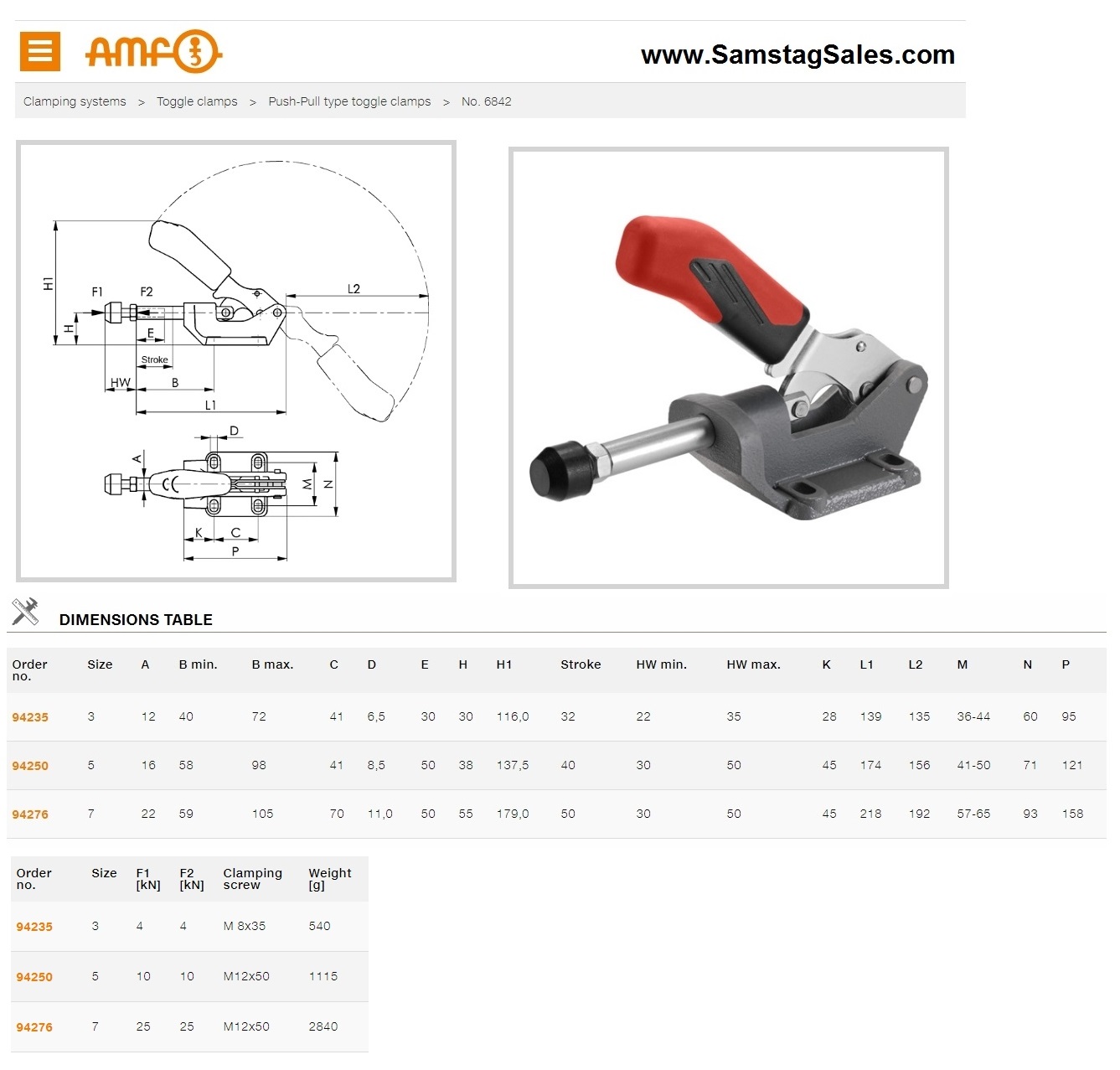

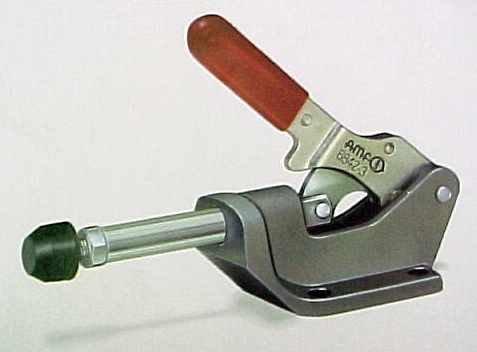

Type 6842
|
||
94235 |
AMF 6842-3 Heavy duty push-pull toggle clamp. The
base is malleable casting and is varnished. Ergonomic,
oil-and impact-resistant. The toggle parts and push rod
are heat-treated steel, galvanized and passivated.
M8x35. Stroke 32mm. ( More Information ) |
$219.74 (Picture) |
Type 6842PK |
||

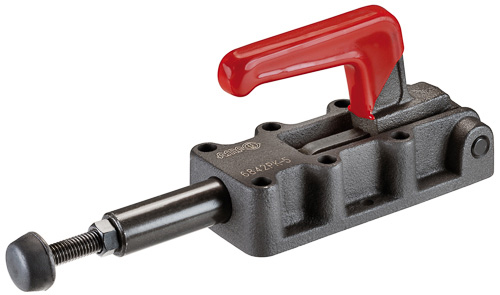

AMF 6842PK |
Heavy push-pull type toggle
clamp with solid lever. |
Price on Request |

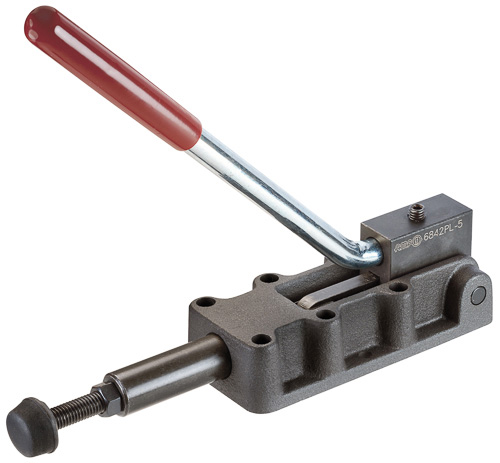

Type 6842PL |
||
AMF 6842PL |
Heavey push-pull type
toggle clamp with reversible lever. |
Price on Request |

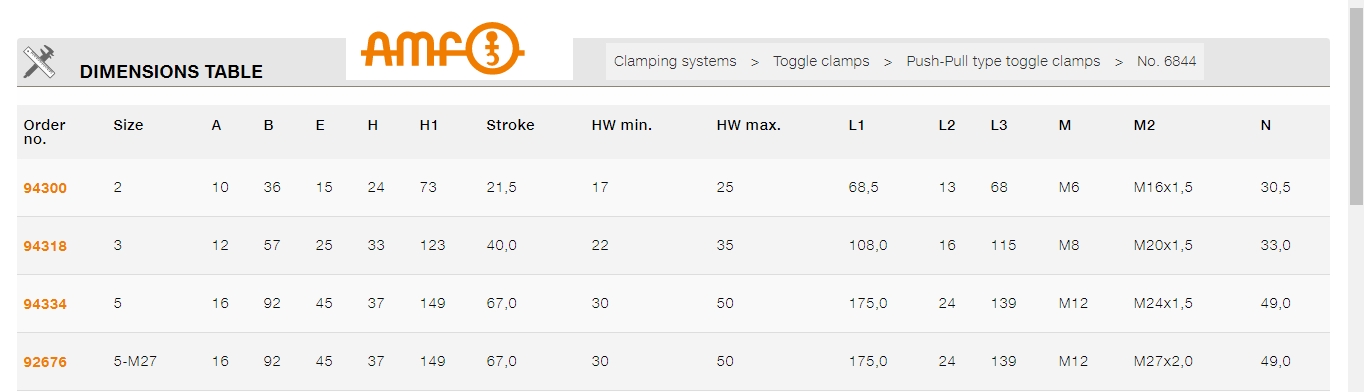

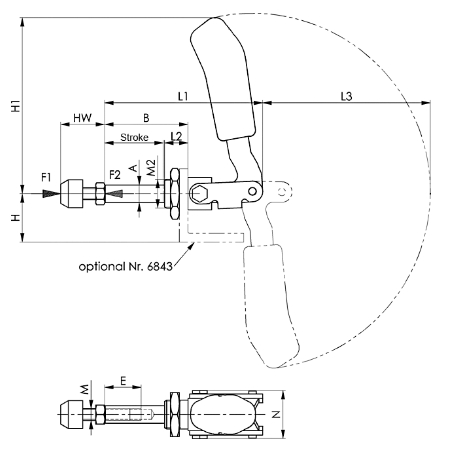

Type 6844 |
||
Price
on
Request ( See Chart ) |
||
94300 | Size 2 with M6x25 Clamping
Screw |
Price on Request |
94318 | Size 3 with M8x35 Clamping Screw | Price on Request |
94334 | Size 5 with M12x50 Clamping Screw | Price on Request |
92676 | Size 5-M27 with M12x50 Clamping Screw | Price on Request |
Type 6844NI |
||
AMF 6844NI |
Push-pull type toggle
clamp, short version. Stainless steel. |
Price on Request |
Type 6845 |
||
AMF 6845 |
Push-pull type toggle
clamp, opposed operation of rod and lever. |
Price on Request |
Type 6845B |
||
AMF 6845B |
Push-pull type toggle
clamp, opposed operation of rod and lever. Matte black
surface. |
Price on Request |
Type 6847 |
||
AMF 6847 |
Hook type toggle clamp.
Galvanized |
Price on Request |
Type 6847K | ||
AMF 6847K | Hook type toggle clamp for
cylindrical mounting surfaces. Galvanized |
Price on Request |
Type 6847KNI | ||
AMF 6847KNI | Hook type toggle clamp for cylindrical mounting surfaces. Stainless steel | Price on Request |
Type 6847NI |
||
AMF 6847NI |
Hook type toggle clamp.
Stainless steel. |
Price on Request |
Type 6847S |
||
AMF 6847S |
Hook type toggle clamp with
safety latch. |
Price on Request |
Type 6847SU |
||
AMF 6847SU |
Hook type toggle clamp with
safety latch. U-shackle. |
Price on Request |
Type 6848 |
||
95604 | AMF
95604 Toggle clamp. AMF Nr. 6848VNI-3. 135mm long. 68mm
tall. 28mm adjustment. With anchor block.![]() |
$197.18 (Picture) |
Type 6848H |
||
AMF 6848H |
Horizontal hook-type toggle
clamp. |
Price on Request |
Type 6848HNI |
||
AMF 6848HNI |
Horizontal hook-type toggle
clamp. Stainless steel |
Price on Request |
Type 6848HS |
||
AMF 6848HS |
Horizontal hook-type toggle
clamp with safety latch. |
Price on Request |
Type 6848HSNI |
||
AMF 6848HSNI |
Horizontal hook-type toggle
clamp with safety latch. Stainless steel |
Price on Request |
Type 6848V |
||
AMF 6848V |
Vertical hook-type toggle
clamp. |
Price on Request |
Type 6848VNI |
||
AMF 6848VNI |
Vertical hook-type toggle
clamp. Stainless steel |
Price on Request |
Type 6849PH |
||
MF 6849PH | Heavy hook type toggle
clamp for high retaining force. Pins hardened, ground
and permanently-lubricated. Circlips are used to
retain pins in bearing bushes, and to center the
clamping pin. Foot, lever arm and catch are made of
cast steel and blued. Stirrup, pins and nuts are
heat-treated and zinc-plated. Handle grip is red,
oil-resistant plastic. Supplied complete with counter
catch. |
Price
on Request |
Type 6860 |
||
AMF 6860 |
Combination clamp. |
Price on Request |
Spare
Parts |
||
AMF 6885 Clamping Screw |
![]() |
Price on
Request |
AMF
6893 Rubber Nose |
![]() |
Price on
Request |
|
||
|
||
|
HOME | Quick Search | SEARCH | email Samstag |
|
