RILLEX & ROLLEX Bearing Pullers

"Rillex" is a brand of special tools for pulling jobs on automotive transmissions. The brand "Rollex" is a special system to pull roller bearings without damage to the bearing. They have several tools used on VW, with tool numbers ranging: 1582/0 to 1582/12, 1616/0 and  1616/01. Special tools can be made from your engineering drawings. Email Samstag Sales for a quote on any Rillex or Rollex tool.

  .

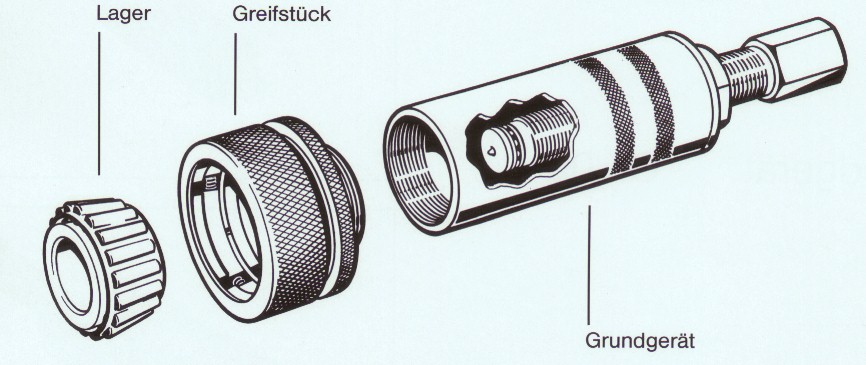

Lager = Bearing
Greifstück = Bearing Gripper
Grundgerät = Basic Tool

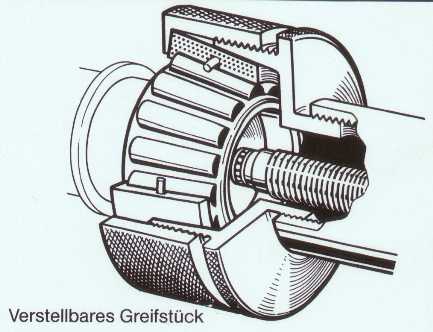

Verstellbares Greifstück = Adjustable Bearing Gripper

Please Note:
You will need a Basic Tool and Bearing Gripper to make a complete tool.

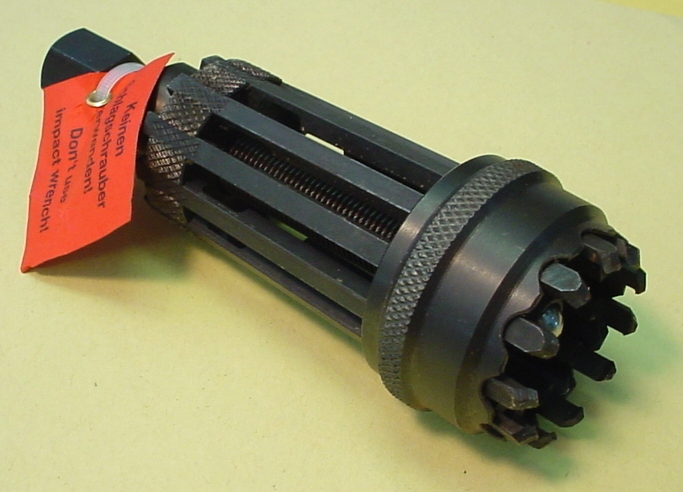

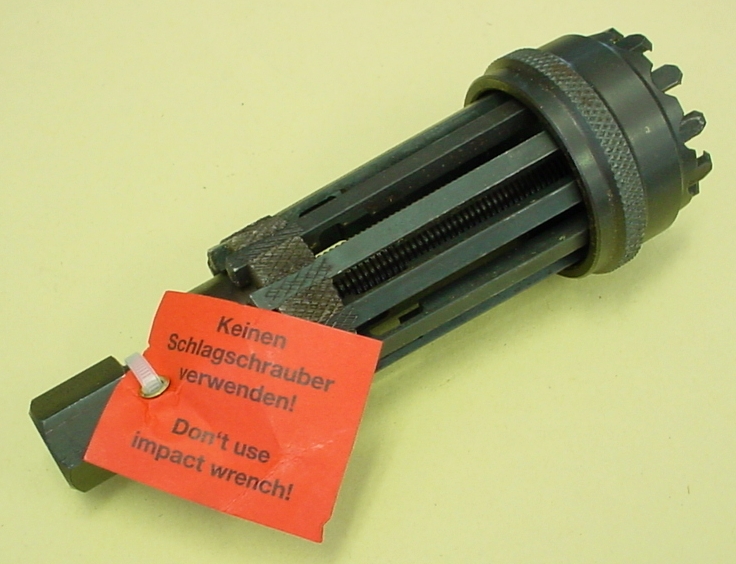

NOT for use with Impact Wrench!
Technical Data Basic Device (Grundgerät)

Rollex
0a
Rollex
0
Rollex
Ia
Rollex
I
Rollex
II
Rollex
IIa
Rollex
III
Rollex
IV



(Picture)





Abziehlänge
( Pulling Depth )
60mm
130mm
85mm
185mm
225mm
112.5mm
270mm
325mm
Außendurchmesser
( Outer Diameter of Basic Tool )
45mm
45mm
70mm
70mm
102mm
102mm
131mm
158mm
Gesamtlänge ohne Spindel
( Total Length without Spindel )
87mm
160mm
120mm
220mm
275mm
162.5mm

320mm
375mm
Schlüsselfläche
( Across Flats of Basic Tool )
36 SW
36 SW
41 SW
41 SW
50 SW
50 SW
50 SW
55 SW
Spindel - Gewinde
( Spindel Thread Size )
M20X1,5
M20X1,5
M30X1,5
M30X1,5
M40X1,5
M40X1,5 M40X1,5
M40X1,5
Hydraulikspindel Lieferbar
( Available with Hydraulic Spindel )
-
-
ja
(yes)
ja
(yes)
ja
(yes)
?
ja
(yes)
ja
(yes)
Schlüsselfläche der Spindel
( Hex across Flats on Spindel )
22 SW
22 SW
32 SW
32 SW
41 SW
41 SW 41 SW
41 SW
Gewicht
( Weight in kilograms )
0,82 kg
1,1 kg
2,3 kg
2,85 kg
5,7 kg
4.9kg
8 kg
11 kg
Verwendbare Reduzierstücke
Used with Reducers number: )
-
-
-
-
II/I
II/I III/II
IV/III









 .

Super-Greifstück passend zu Grundgerät Rollex 0
( Bearing Gripper to use with Basic Tool Rollex 0 )
für Lager Nummer
( for Bearing Number )

30 304 - 32 304

31 305

30 305 - 32 305

31 306

30 306 - 32 306

32 005 X

30 204 - 32 204

32 006 X

30 205 - 32 205

33 205

30 206 0 32 206

33 206


Super-Greifstück passend zu Grundgerät Rollex I
( Bearing Gripper to use with Basic Tool Rollex I
für Lager Nummer
( for Bearing Number )

30 207 - 32 207

32 008 X

30 208 - 32 208

32 009 X

30 209 - 32 209

32 010 X

30 210 - 32 210

32 307 B

30 307 - 32 307

32 309 B

30 308 - 32 308

32 310 B

30 309 - 32 309

33 010

30 310 - 32 310

33 109

31 307

33 207

31 308

33 208

31 309

33 209

31 310

33 210

32 007 X


Super-Greifstück passend zu Grundgerät Rollex II
( Bearing Gripper to use with Basic Tool Rollex II )
für Lager Nummer
( for Bearing Number )

30 211 - 32 211

31 311

30 212 - 32 212

31 312

30 213 - 32 213

31 313

30 214 - 32 214

31 314

30 215 - 32 215

31 315

30 216 - 32 216

31 316

30 311 - 32 311

32 011 X

30 312 - 32 312

32 012 X

30 313 - 32 313

32 013 X

30 314 - 32 314

32 014 X

30 315 - 32 315

32 015 X

30 316 - 32 316

32 016 X
Super-Greifstück passend zu Grundgerät Rollex II
( Bearing Gripper to use with Basic Tool Rollex II )
für Lager Nummer
( for Bearing Number )

32 311 B

33 111

32 312 B

33 112

32 313 B

33 113

32 314 B

33 114

32 315 B

33 115

32 316 B

33 116 =   8 to BPW neu

33 011

33 118 = 10 to BPW neu

33 013

33 211

33 014

33 212

33 015

33 213

33 016

33 215

52 8983 - 33 1933

33 216
Super-Greifstück passend zu Grundgerät Rollex III
( Bearing Gripper to use with Basic Tool Rollex III )
für Lager Nummer
( for Bearing Number )

30 217 - 32 217

32 020 X

30 218 - 32 218

32 021 X

30 219 - 32 219

32 317 B

30 220 - 32 220

33 017

30 221 - 32 221

33 018

30 317 - 32 317

33 019

30 318 - 32 318

33 020

30 319 - 32 319

33 021

31 317

33 022

32 017 X

33 117

32 018 X

33 217

32 019 X

33 220
Super-Greifstück passend zu Grundgerät Rollex IV
( Bearing Gripper to use with Basic Tool Rollex IV )
für Lager Nummer
( for Bearing Number )

30 222 - 32 222

32 026 X

30 224 - 32 224

33 022

30 226 - 32 226

33 024

32 022 X

33 122

32 024 X







Rollex Bearing Application Survey
Fahrzeugetype
Vehicle Type
Voderachslager innen
Front Axle Inside
Hinterachslager innen
Rear Axle Inside
Ausgleichs-gehäuse
Differential
Triebling hinteres Lager
Drive Pinion Rear Bearing

Daimler Benz
MAN
AP-Achsen
Rollex II
528983/
331933
oder Super
mit gleicher Nr.
Rollex III
Super 33021
kleine Achse 10 to.

Super 33022
Große Achse
13 to.
+ Druckpilz
Rollex IIa
Super 33113


Super 33115
+ Druckpilz
Rollex II
Super 32313 B


Super 32314 B

Allrad
Rollex III
Super 528595/
          331974/
          32021 X
+ Druckpilz



DAF
2800-2805
Rollex II
528983/
331933
oder Super
mil gleicher Nr.
Rollex III
Super 683
Rollex IIa
Super 497
Rolles II
Super 52401
Kässbohrer
Setra
S 80, S 208
S 209, S 100,
S 120
S 211 - S 215

S 130 - S 150
Rollex I

Super
30309-32309
30310-32310
Rollex II
Super
30312-32312
Rollex II

Super
30216-32216
Rollex III
Super
30219-32219
+ Druckpilz



BPW
8 To. "neu"

10 To. ,,neu"
Rollex II

Super 33116

Super 33118

Rollex II

Super 33116

Super 33118



BMW
alle Typen
Rollex 0

Super 67048


Rollex 0a

Super 501349-
          503349
Rollex 0

Super 88649
Super 89449

Daimler Benz
200-350
107, 114, 115,
116
107, 116,
450 SE-SLC
100, 116, 123,
126

Rollex 0


Super 67048

Super 67048
f. Diagonal-
Pendelachse
Super 48548
Rollex Ia


Super 501349-
          503349/I
u. Druckpilz
Rollex Ia


Super 501349-
          503349/I
u. Druckpilz
Rollex 0


Super 89449

Super 802048

Ford
Taunus, alle
Typen ab 1970

Escort 1,1 - 1,3
Capri
Escort 1,6 - 2,0
Granada
Rollex 0

Super 44649


dto.

dto.
Super 45449


Rollex 0a
altes Modell
Super 16150
neues Modell
Super 29749


Super 48548
Super 501349
          503349
Rollex 0
Super 86649


Super 88043


Super 88649
Super 89449

Opel
Rekord, alle
Ascona GT
Commodore 2,2
Kadett, alle
außer D
Manta
Admiral
Diplomat
Commodore
2,5 - 2,8
Rollex 0



Super 44649
Super 45449



Super 67048

Rollex 0a



Super 19150
Super 32007 X



Super 501349-
          503349
Rollex 0



Super 32206 B




Super 89449

Renault
R 4 - R 6
R 12, R 14
R 17

dto. alte Typen
bis 1975-76
R 30

Rollex 0
Super 32005 X




Super 30205-32205
Rollex 0a
Super
30206-32206


Super 30207-32207
Super
30209-32209


.

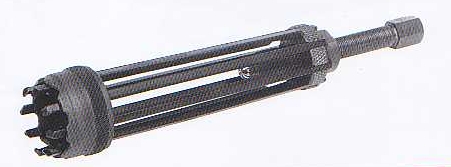

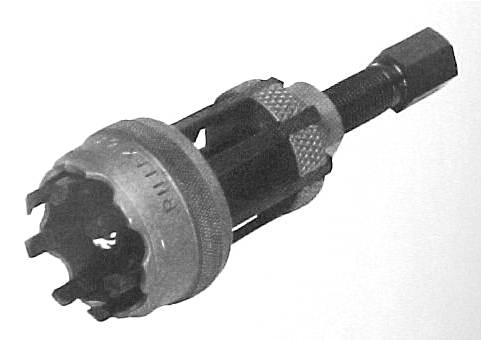

Rillex Ball Bearing Pullers



Please Note: Call or eMail with your bearing number, number of balls, and bearing installation depth. We will then need to check with the factory for a tool number.

.
