HAZET Coil Spring Compressor
{ Special Order Only }
Last Update: November 19, 2013. Go Back to Samstag Sales Home Page


  • extremely high capacity 26000 N
  • suitable for Impact Wrenches - except BMW.
  • maintenance-free
  • application possible even when strut unit is installed


Part # Description Price
4900-2A Spring Vice Body: max. span 309 mm, especially for BMW
Price on Request
4900-10/2 Pair of Tensioning Jaws - Ford, Nissan, Suzuki, Volkswagen
Price on Request
4900-11/2 Pair of Tensioning Jaws - Audi, BMW, Isuzu, Nissan, Opel, Renault, Volkswagen, Chrysler
Price on Request
4900-12/2 Pair of Tensioning Jaws - Audi, BMW, Fiat, Nissan, Opel, Peugeot, Renault, Toyota, Chrysler
Price on Request
4900-13/2 Pair of Tensioning Jaws - Audi, Fiat, Nissan, Chrysler, Alfa
Price on Request
4900-14/2 Pair of Tensioning Jaws - Mercedes-Benz class E 4MATIC Price on Request
4900-15/2 Pair of Tensioning Jaws - Mercedes-Benz class A Price on Request
4900-16/2 Pair of Tensioning Jaws - Mercedes-Benz class ML, Chrysler Price on Request
4900-17/2 Pair of Tensioning Jaws - Mercedes-Benz Vito, class V, Chrysler Price on Request
4900-22/4 Pair of Tensioning Jaws, includes Plastic Spring Protection Inserts - BMW series 3(E46) since 1998 Price on Request
4900-23/4 Pair of Tensioning Jaws, includes Plastic Spring Protection Inserts - BMW series 7 (E38) since 1993 Price on Request

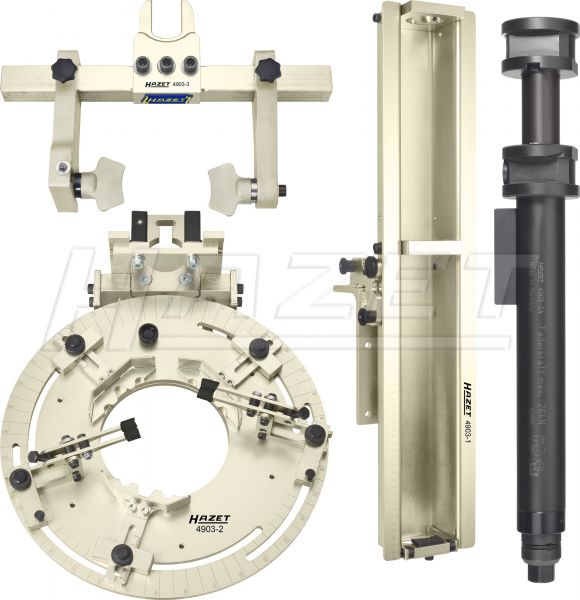

4903/4
Hazet 4903/4 Universal Spring Vice Compressor. Included in this are as follows:
4903-1 Base Support
4903-2 Adjustable Clamping Disk
4900-2A Basic Unit - Cylinder
4903-3
Adjustable Clamping Plate.
The compressor can be used for almost any strut or shock absorber. It swivels in vertical or horizontal working positions with a simple, lockable strut mount. Made in Germany.


Price on
Request
* Plastic Protection inserts available for the protection of lacquered spring surfaces to avoid corrosion of the spring!
Car Year Front Back
AUDI
AUDI 80 1989 4900-11 *
AUDI 80B4 1992 4900-11 *
AUDI 100 Quattro 1989-1993 4900-13 4900-11,12
AUDI A100 1991 4900-13 *
AUDI 100C4 1989-1993 4900-13 4900-11
AUDI A2 2000 4900-11 *
AUDI A3 2000 4900-11 *
AUDI A4 1996 4900-11 *
AUDI A4 Varioa 1996 4900-11 *
AUDI A6 1996 4900-11 *
AUDI A8 1996 4900-11 *
BMW
BMW 3 (E36) ** 1989-1998 4900-12 *
BMW 3 (E46) ** 1998- 4900-22/4 *
BMW 5 (E34) ** 1994 4900-11 -
BMW 528i (E39) ** 1995 4900-12 *
BMW 530i+540i (E39) ** 1996- 4900-23/4 *
BMW 730i (E32) ** 1985-1994 4900-11 -
BMW 7 (E38) ** 1993- 4900-23/4 *
BMW Z3 ** 1996- 4900-12 *
CHRYSLER
Chrysler Cherokee (XJ) 1993- 4900-11 *
Chrysler Grand Cherokee (ZJ, ZG, WJ) 1993- 4900-11 *
Chrysler Stratus (JA/JX) 1996- 4900-16 *
Chrysler Voyager (GS) 1996- 4900-13 *
Chrysler Neon (PL) 1997- 4900-12 4900-17
Chrysler Wrangler (TJ) 1997- 4900-11 *
Chrysler 300M (LH) 1998- 4900-12 4900-11
MERCEDES-BENZ
MB class A 1997- 4900-15 4900-14
MB class E 4MATIC 1997- 4900-14 -
MB class ML 1997- - 4900-16
MB Vito, class Va 1996- 4900-17 -
PORSCHE
Porsche 928/ 928 S/ 928 S4/ 928 GTS 1978-1995 4900-15 4900-15
Porsche 924 S 1982-1991 4900-10 -
Porsche 944/ 944 S/ 944 S2/ 944 Turbo  1982-1991 4900-10 -
Porsche 911 Turbo/Carrera 2/4(Typ964) 1989-1993 4900-16 4900-14
Porsche 968 1992-1995 4900-10 -
Porsche 911 Turbo/Carrera 2/4(Typ993) 1993-1998 4900-16 4900-16
Porsche 911 Carrera RS (TYP 993) 1995- 4900-16 4900-14
Porsche Boxter / Boxter S (TYP 986) 1996- * 4900-11
Porsche Carrera 2/4 / Turbo (TYP 996) 1998- * 4900-16
VOLKSWAGEN
VW Golf I + II 1984-1992 4900-10 *
VW Golf II 1,3L 1983-1992 4900-10 4900-11
VW Golf III 1992-1997 4900-11 *
VW Golf IV 1998 4900-11 4900-10
VW Jetta 1989 4900-11 *
VW Lupo 1999 4900-11 4900-10
VW Passat 1986 4900-11 *
VW Passat B5 1997 4900-11 *
VW Passat 1990 4900-11 *
VW Passat 1992 4900-11 *
VW Pass Variant 1993 4900-11 4900-10
VW Polo I 1989-1992 4900-11 *
VW Polo 1994 4900-11 *
VW Sharan 1996 * 4900-12
Volvo
Volvo S 80 * 4900-12 4900-12


- = No Safety Spring Vice necessary
* = No information available at this moment
** = Only use BMW coil springs in combination with the corresponding plastic spring protection inserts.
BMW regulations: Use Spring Vice with manual tools only.
